20590€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Sustainability compliance |  |
| Ports & interfaces | |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 30 cm |
| SATA power cable length | 100,330,445 mm |
| Peripheral (Molex) power cable length | 100,330 mm |
| PCI Express power cable length | 52 cm |
| EPS power connector (4+4 pin) | |
| PCI Express power connectors (12+4 pin) | 1 |
| Weight & dimensions | |
| Weight | 1.42 kg |
| Height | 63.5 mm |
| Width | 125 mm |
| Depth | 100 mm |
| Energy management | |
| Input current | 6 - 12 A |
| Nominal power | 850 W |
| Efficiency | 90% |
| Hold time | 16 ms |
| Power protection features | Over power, Overheating, Over voltage, Under voltage, Over current, Short circuit |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 849.6 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |
| Power Good signal delay range | 100 - 500 ms |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging data | |
| Package weight | 1.86 kg |
| Package depth | 260 mm |
| Package height | 100 mm |
| Package width | 190 mm |
| Certificates | |
| Certification | ErP 2014 Lot 3, TUV, cTUVus, EAC, RCM, CB |
| Other features | |
| EPS cable length | 45 cm |
| Design | |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC/Server |
| Bearing technology | FDB |
| Supported motherboard form factors | ATX |
| ATX version | 3.0 |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | SFX |
| Logistics data | |
| Master (outer) cases per pallet | 24 pc(s) |
| Master (outer) case height | 215 mm |
| Master (outer) case width | 275 mm |
| Master (outer) case length | 520 mm |
| Products per master (outer) case | 5 pc(s) |
| EAN | 4719512134726 |
Small But Mighty
Small But Mighty
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
Flexible Compatibility
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.0 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
ATX 3.0 support & a durable 90-degree 12VHPWR cable
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.
80 PLUS Gold certified
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.
100% Japanese capacitors
Large, high-quality Japanese capacitors feature inmproved efficiency and reduced ripple noise.

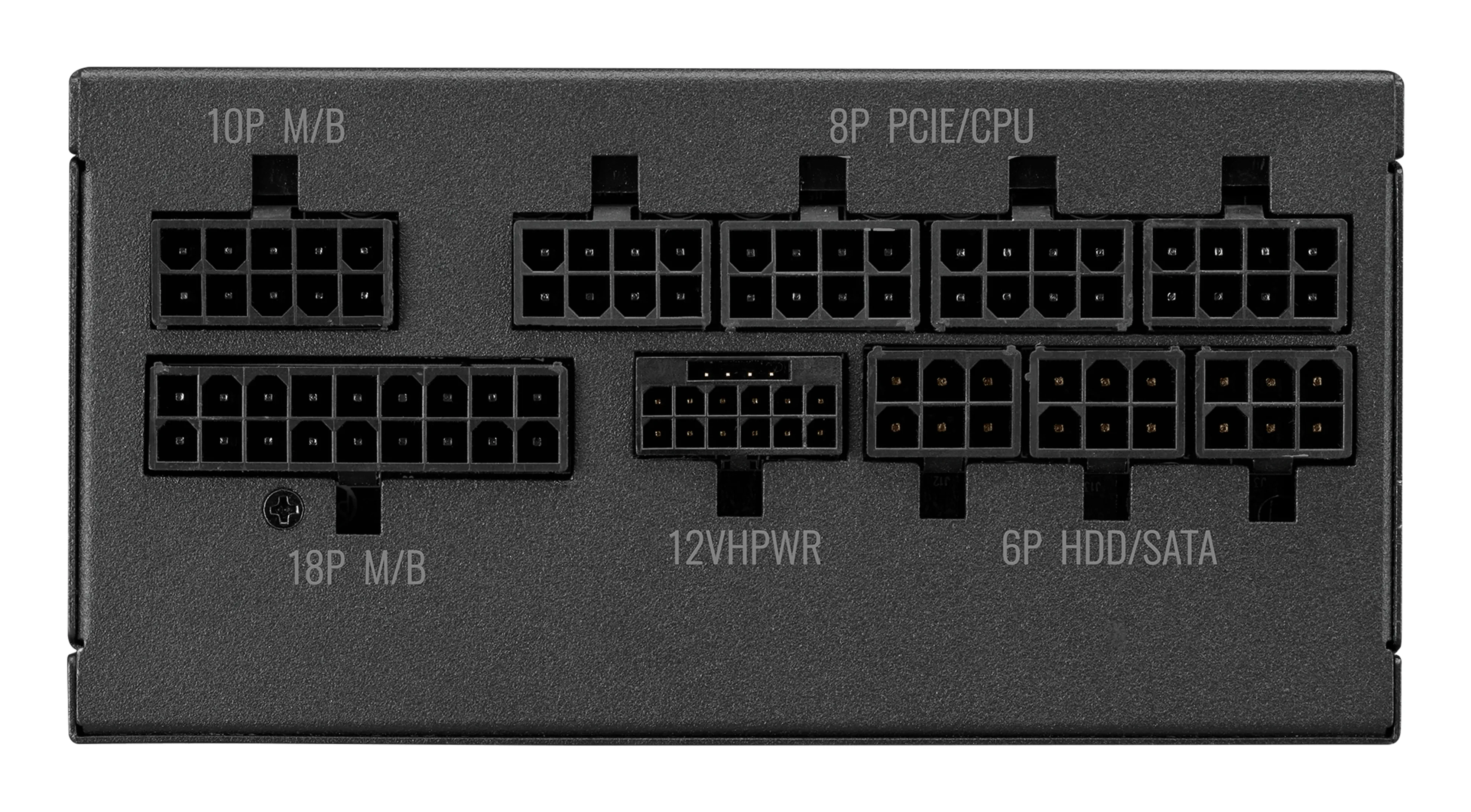

Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
Small But Mighty
As the leading SFX power supply design, the V SFX Gold offers a highly powerful unit in a space-saving, mini form factor.
Flexible Compatibility
With the included SFX-to-ATX bracket, the V SFX Gold ATX 3.0 can be used to power systems ranging from as small as a mini-ITX all the way up to E-ATX motherboards.
ATX 3.0 support & a durable 90-degree 12VHPWR cable
Includes ATX 3.0 support and a 90-degree 12+4pin (12VHPWR) PCIe 5.0 connector featuring higher electrical durability, lower temperatures, and improved safety.
80 PLUS Gold certified
The V SFX Gold is certified to achieve more than 90% efficiency at typical loads.
100% Japanese capacitors
Large, high-quality Japanese capacitors feature inmproved efficiency and reduced ripple noise.
Fully modular cabling
Modular cabling reduces clutter, increases airflow, and improves overall thermal performance.
