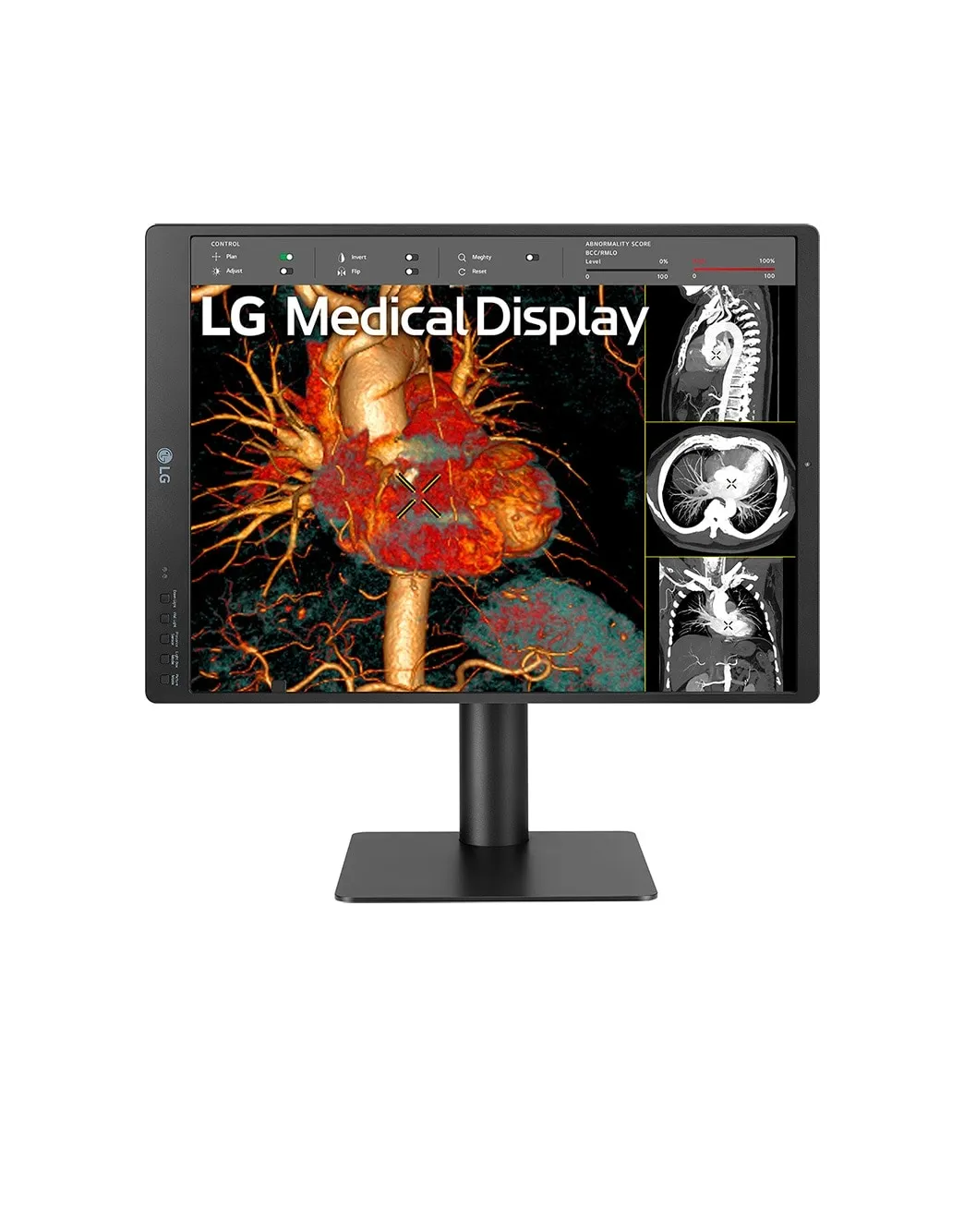

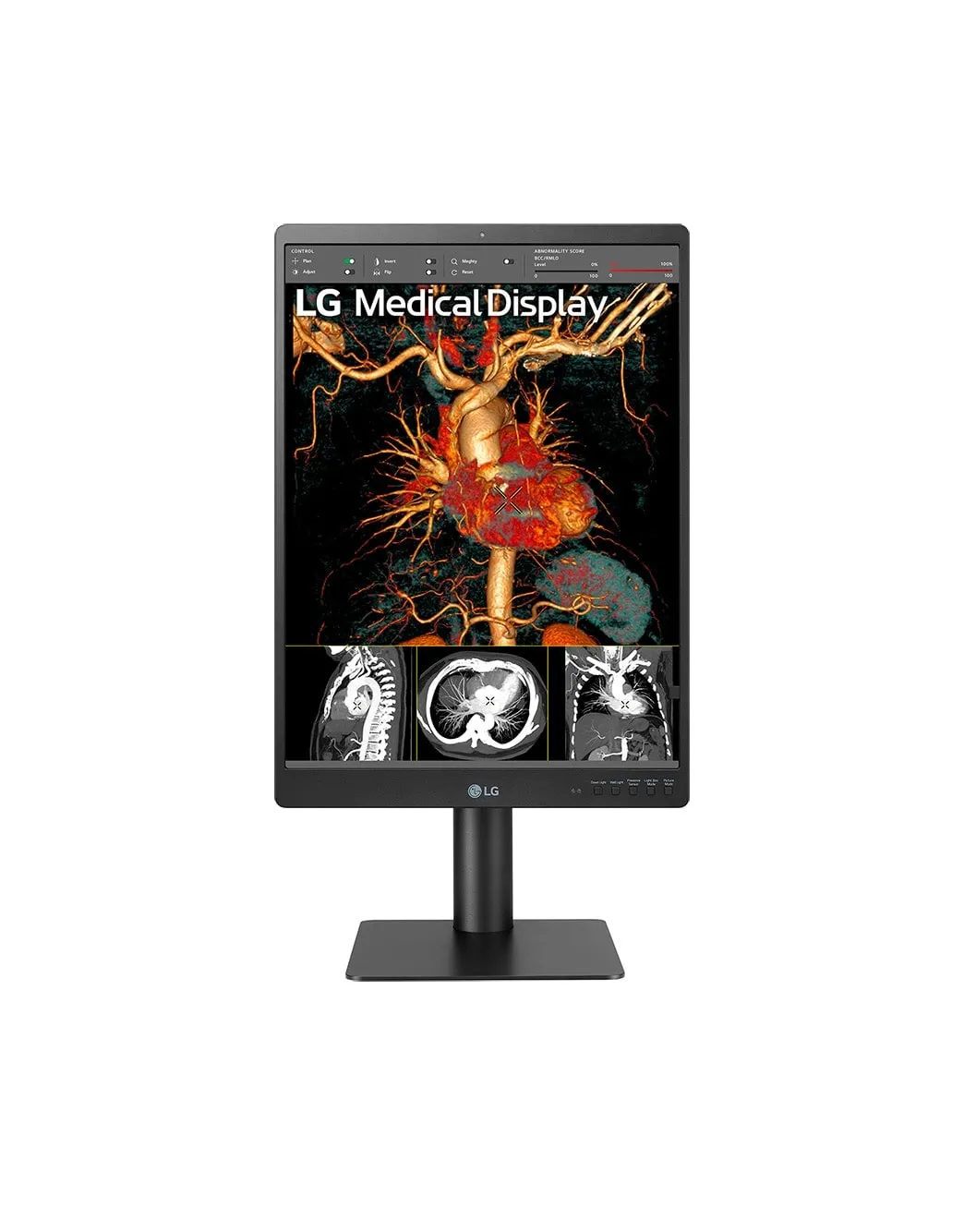

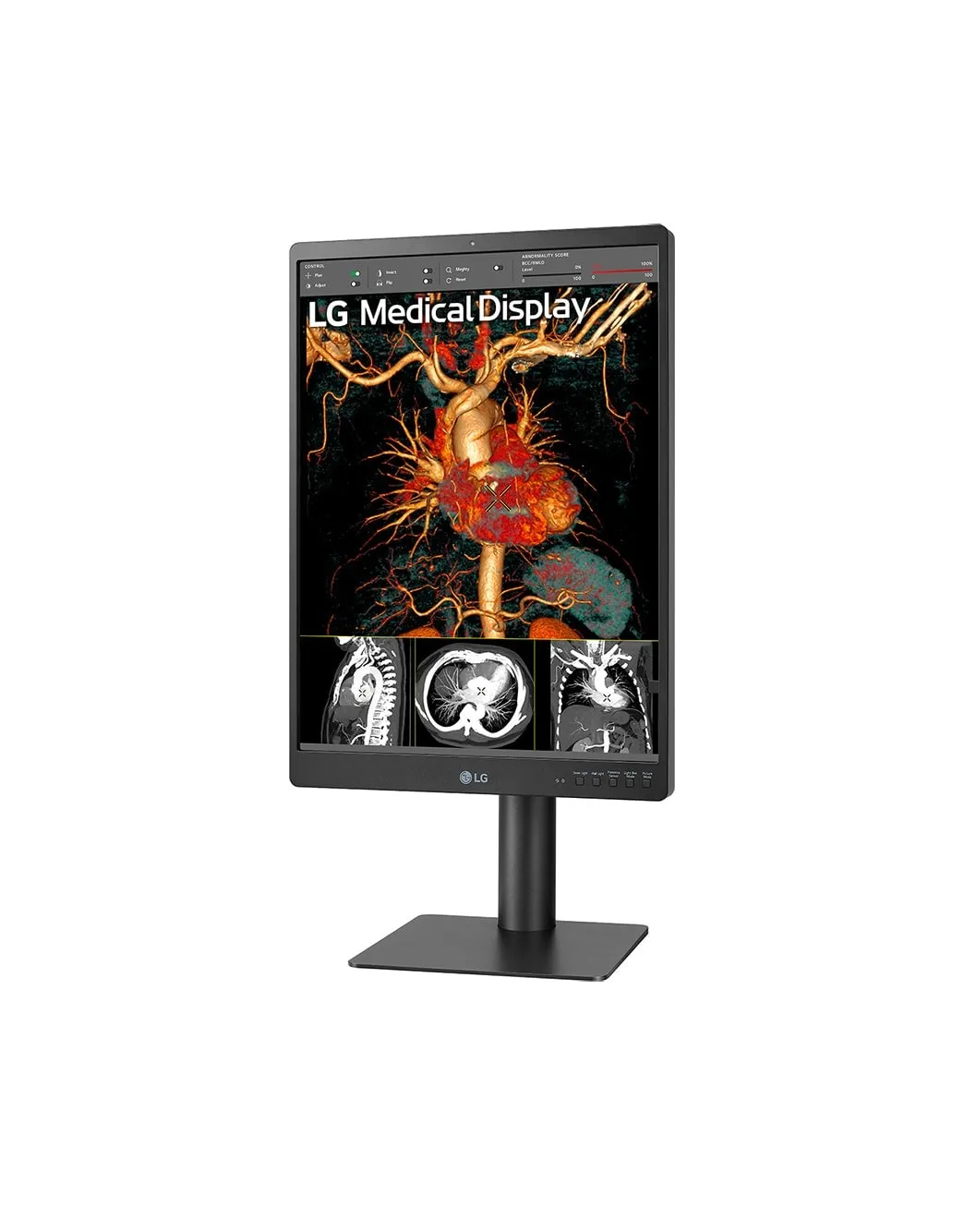

LG DIAGNOSTIC MONITOR, 21.3", 3MP, 1100CD/M2, NTSC 72%, HAS/PIVOT, FRONT CALIBRATION SENSOR
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Display | |
Pixel pitch | 0.2115 x 0.2115 mm |
Contrast ratio (typical) | 1800:1 |
Viewing angle, horizontal | 178° |
Viewing angle, vertical | 178° |
Display diagonal | 54.1 cm (21.3") |
Response time | 5 ms |
Colour depth | 10 bit |
Display resolution | 1536 x 2048 pixels |
Touchscreen | |
Display technology | LCD |
Native aspect ratio | 3:4 |
HD type | HD |
Panel type | IPS |
Screen shape | Flat |
NTSC coverage (typical) | 72% |
Display brightness (typical) | 1100 cd/m² |
Built-in calibration sensor | |

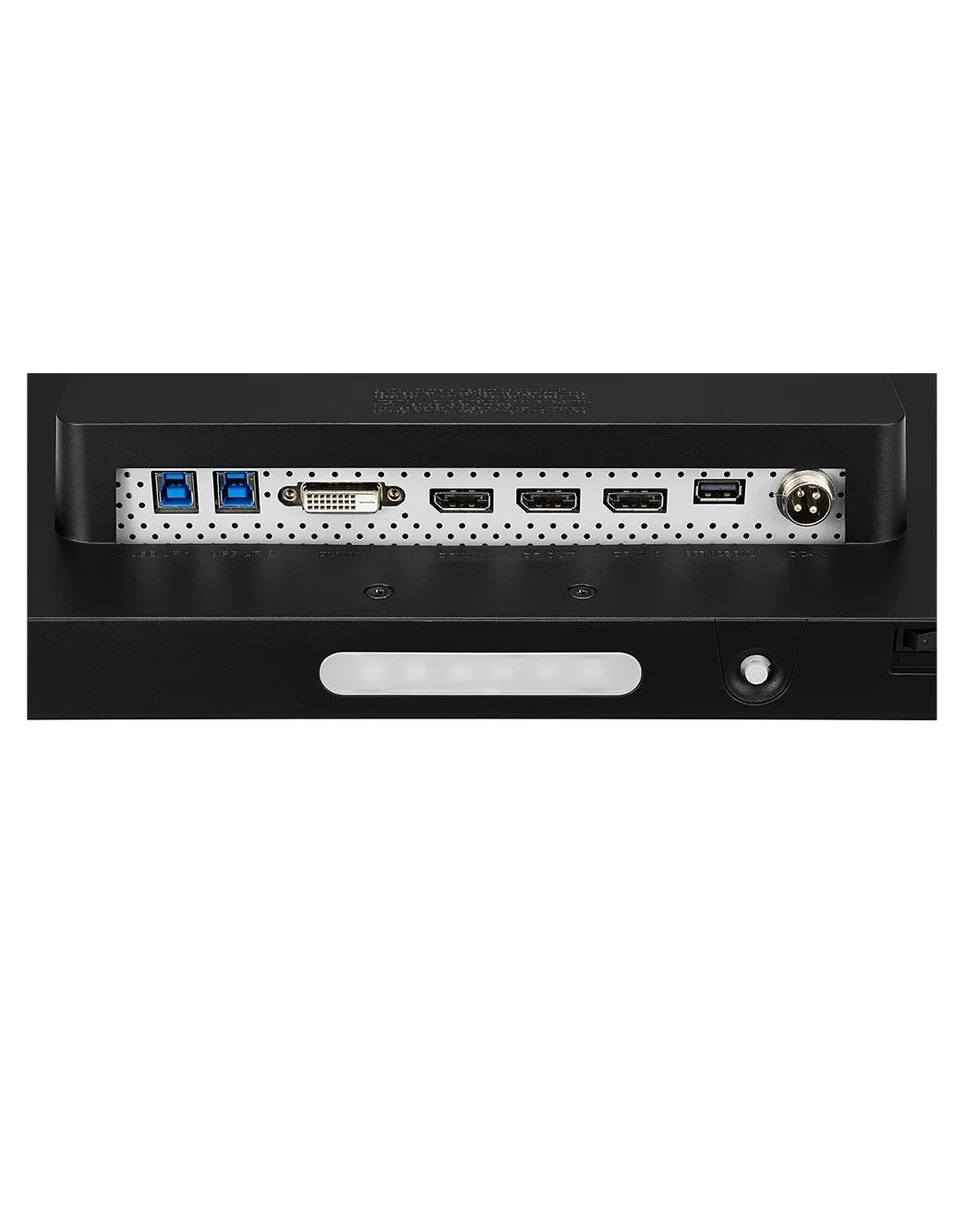

Ports & interfaces | |
DVI port | |
DisplayPorts quantity | 3 |
Built-in USB hub | |
Weight & dimensions | |
Width (with stand) | 343.1 mm |
Height (with stand) | 640 mm |
Depth (with stand) | 234.6 mm |
Weight (without stand) | 5 kg |
Height (without stand) | 484 mm |
Width (without stand) | 343.1 mm |
Depth (without stand) | 72.4 mm |
Weight (with stand) | 7 kg |
Energy management | |
Power supply type | External |
AC adapter output voltage | 100 - 240 V |
Power consumption (off) | 0.3 W |
AC input frequency | 50 - 60 Hz |
Power consumption (max) | 120 W |
Packaging data | |
Package weight | 9.5 kg |
Package depth | 163 mm |
Package height | 551 mm |
Package width | 636 mm |
Package type | Box |
Ergonomics | |

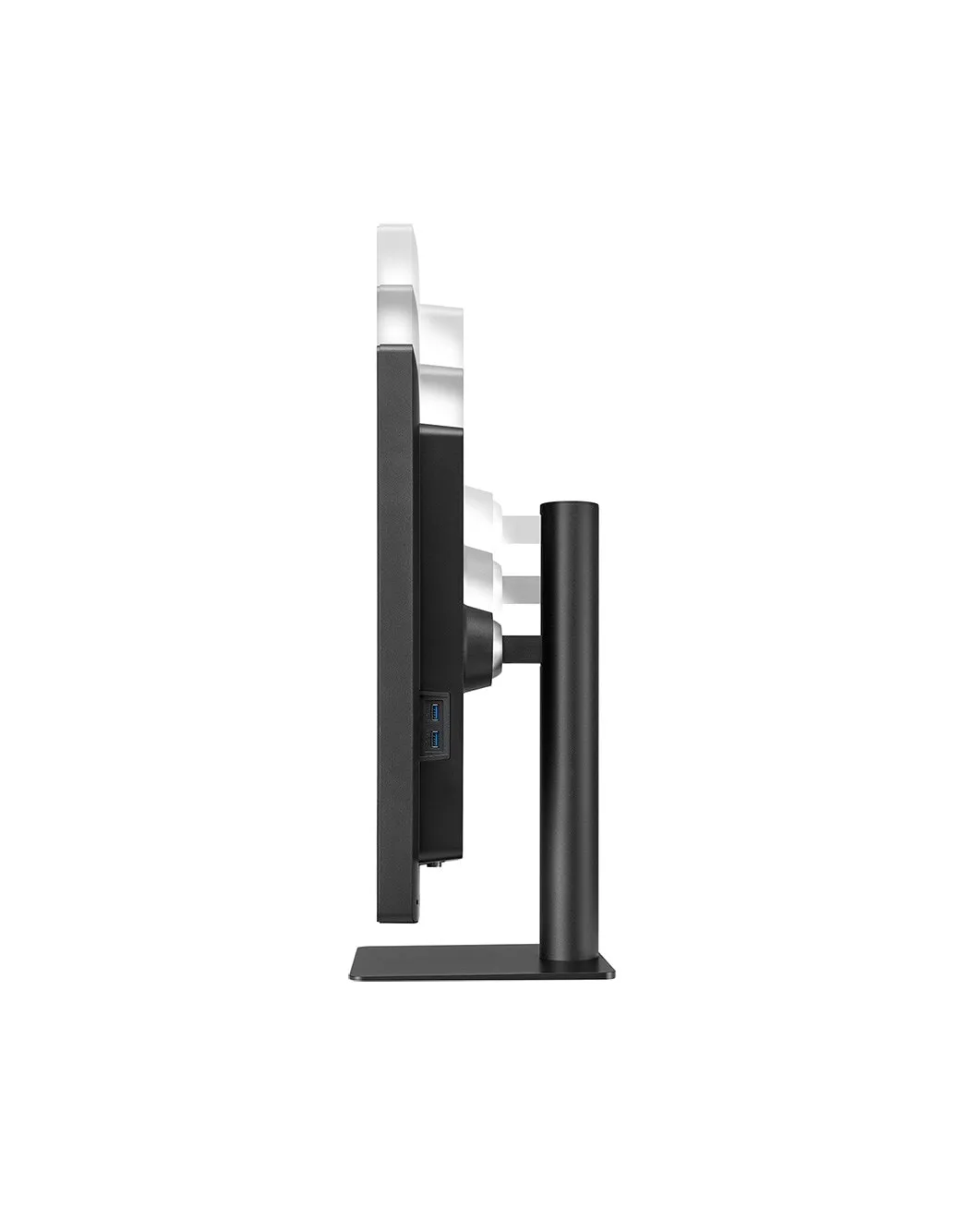

Height adjustment | 11 cm |
Tilt angle range | -5 - 20° |
Pivot | |
Panel mounting interface | 100 x 100 mm |
Tilt adjustment | |
VESA mounting | |
Packaging content | |
Cables included | AV, DVI, DisplayPort, USB |
Power adapter included | |
Design | |
Product colour | Black |
Market positioning | Medical |
Multimedia | |
Megapixel (approx.) | 3 MP |
Built-in camera | |
Logistics data | |
Harmonized System (HS) code | 85285210 |
EAN | 8806091443205 |
Warranty | 1 year |
Source: Icecat.biz |
Easy Calibration with Front Sensor
Manage Effortless Quality Control
The Integrated Front Sensor allows easy calibration without the need for additional measuring equipment. It improves the quality and consistency of medical images that are displayed by maintaining accurate values.
Multi-resolution Mode
Compatible with Various Device
Diagnostic monitors often need to be connected to various modalities, all with differing resolutions. Thanks to 21HQ513D’s Multi-resolution Mode, you can adjust the resolution of monitor to optimize to the connected device.
Pathology Mode
True-to-Life Color Reproduction
In Pathology Mode, the 21HQ513D reproduces the same level of detail and color accuracy as seen directly under a microscope, to help healthcare professionals make more accurate diagnoses.
Presence Sensor
Hassle-free Savings & Stronger Security
Thanks to the Presence Sensor of 21HQ513D which automatically turns off the display when no motion is detected, you can save energy and be more secure against exposing patient information and other sensitive data.
Focus View
Fully Focus on the Region of Interest
LG 21HQ513D includes the Focus View Mode which allows you to review a specific part of the medical image more closely. This allows professionals to focus fully on the region of interest of the image for a more accurate and efficient diagnosis.
Down Lighting & Wall Lighting
Ideal Diagnostic Workspace
Down and Wall Lighting Modes reduce the contrast between the monitor brightness and ambient lighting conditions, allowing you to work comfortably without having to adjust the lighting to view paper documents in the darkroom.
5 Hot Keys
Intuitive Control
The 21HQ513D's 5 Hot Keys make changing between screen modes easier and more intuitive than operation through an OnScreen menu. The 5 Hot Keys are much faster and easier to operate while working, allowing you to change mode and lighting settings all without disrupting your workflow.
Auto Luminance Sensor
Reducing Eye Strain
LG 21HQ513D features an Auto Luminance Sensor which automatically adjusts screen brightness according to the ambient lighting conditions. As a result, eye strain is reduced by ensuring screen brightness is always set to the optimal level.

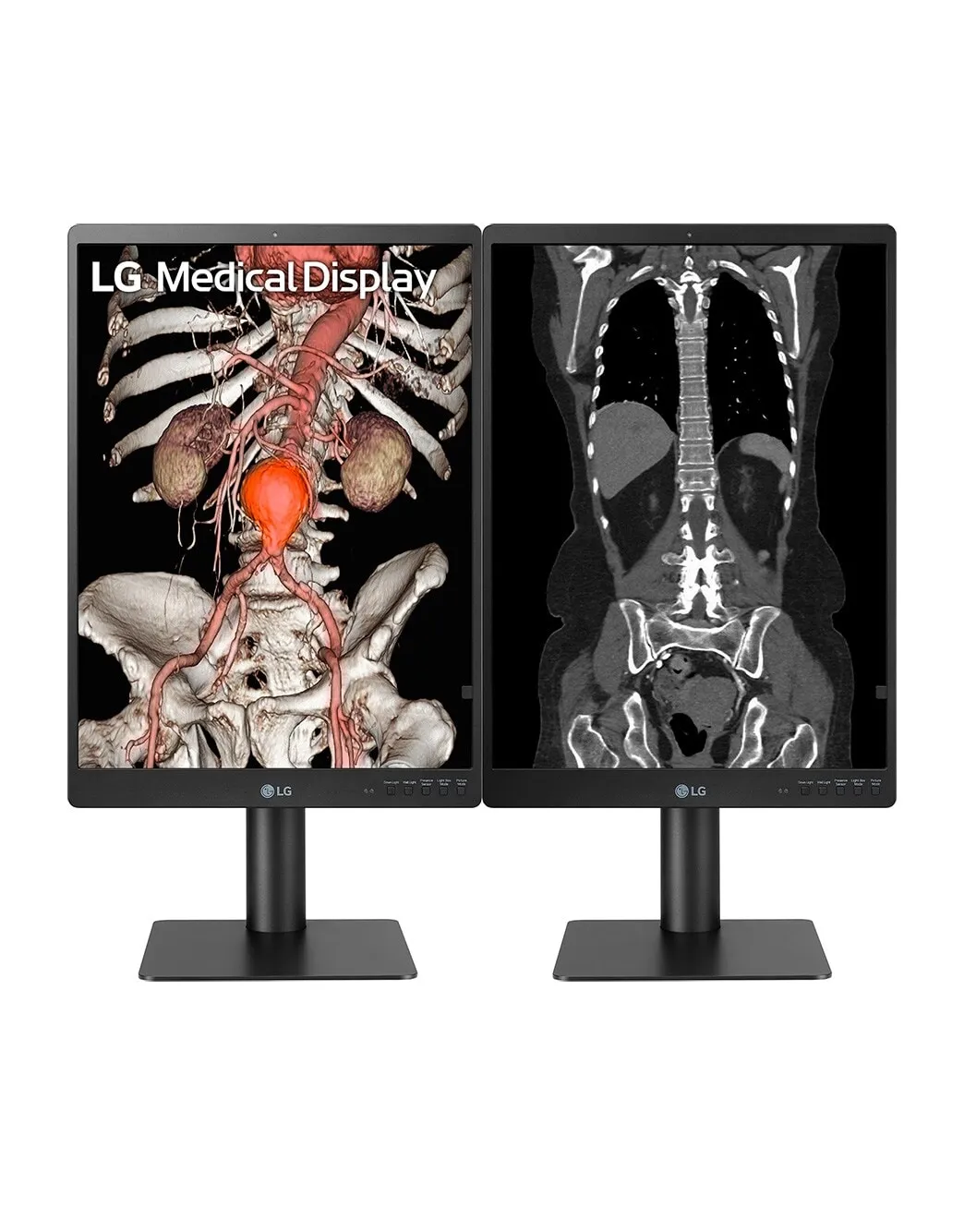

Daisy Chain
Reducing Clutter on Your Desk and Simplifying Cable Management
The 21HQ513D with 2 USB 3.0 Upstream Port and DisplayPort support Daisy Chain Setup. So you can establish a productive workstation by connecting two diagnostic Monitors and a PC.
Ergonomic Design
Easy and Comfortable Workspace
The 21HQ513D is designed to be adjustable for the posture of healthcare professionals' image review. So, It helps review medical images more comfortable reducing chronic pain caused by long hours of work.
