Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| PCI Express connector |  |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | |
| ATX power connector (20+4 pin) | |
| PCI Express power connectors (8-pin) | 4 |
| CPU power connector (4+4 pin) | |
| PCI Express power connectors (6+2 pin) | 4 |
| Cabling type | Modular |
| Number of PATA power connectors | 3 |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 150,600 mm |
| CPU power cable length | 600 mm |
| Peripheral (Molex) power cable length | 200,600 mm |
| PCI Express power cable length | 70 cm |
| PCI Express power connectors (16-pin) | 1 |
| Weight & dimensions | |
| Height | 85 mm |
| Width | 150 mm |
| Depth | 140 mm |
| Energy management | |
| Input current | 12 - 6 A |
| Nominal power | 850W |
| Efficiency | 90% |
| Hold time | 16 ms |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 105 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 105 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |
| Maximum input current (@110V) | 6 A |
| Maximum input current (@220V) | 12 A |
| Packaging data | |
| Package type | Box |
| Certificates | |
| RoHS compliance | |
| 80 PLUS certification | 80 PLUS Gold |
| Compliance certificates | CCC, CE, Federal Communications Commission (FCC), RoHS |
| Packaging content | |
| Cables included | CPU, PATA, Peripheral (Molex), SATA |
| Cable tie(s) included | |
| Design | |
| Product colour | Black |
| Illumination |  |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Fan location | Top |
| Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Form factor | ATX |
| Noise level | 40 dB |
| Purpose | PC |
| Supported motherboard form factors | ATX |
| Silent mode | |
| Power supply unit (PSU) form factor | ATX |
| Logistics data | |
| Warranty period | 5 year(s) |
| EAN | 4719331553104 |
| Warranty | 1 year |

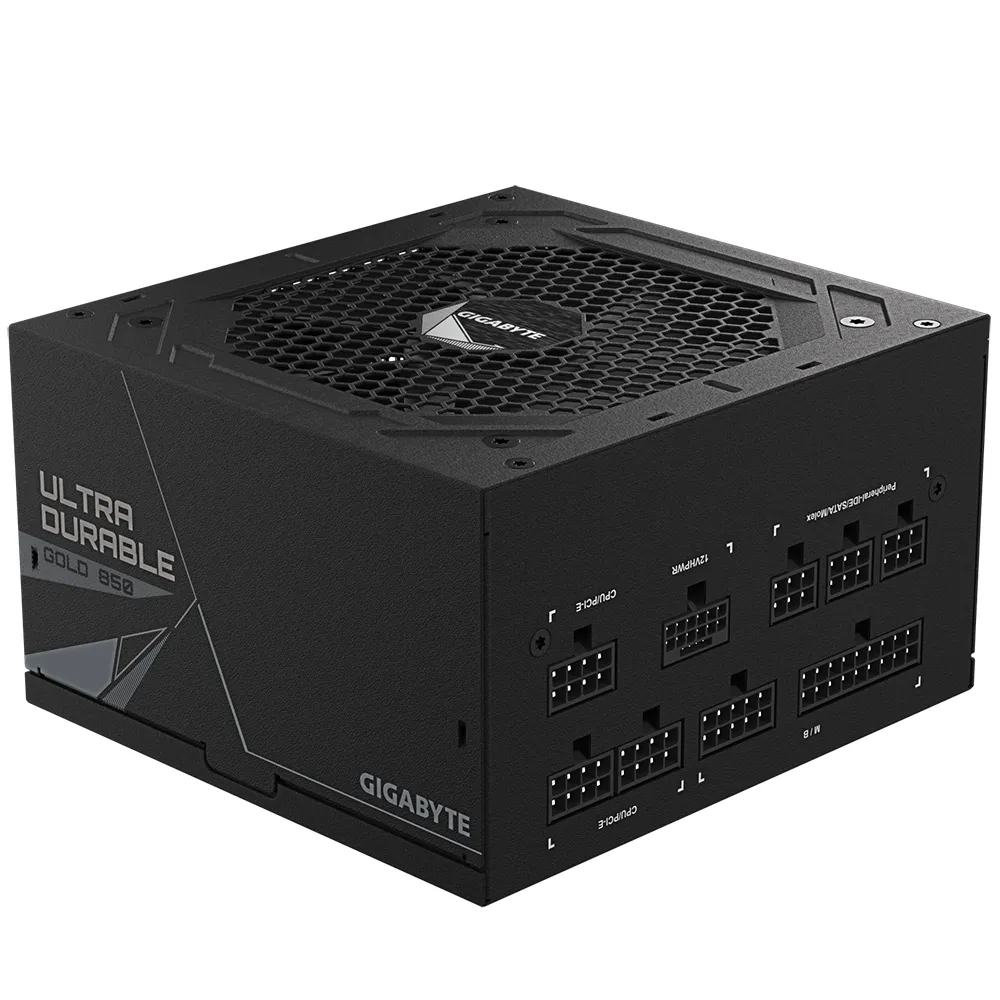

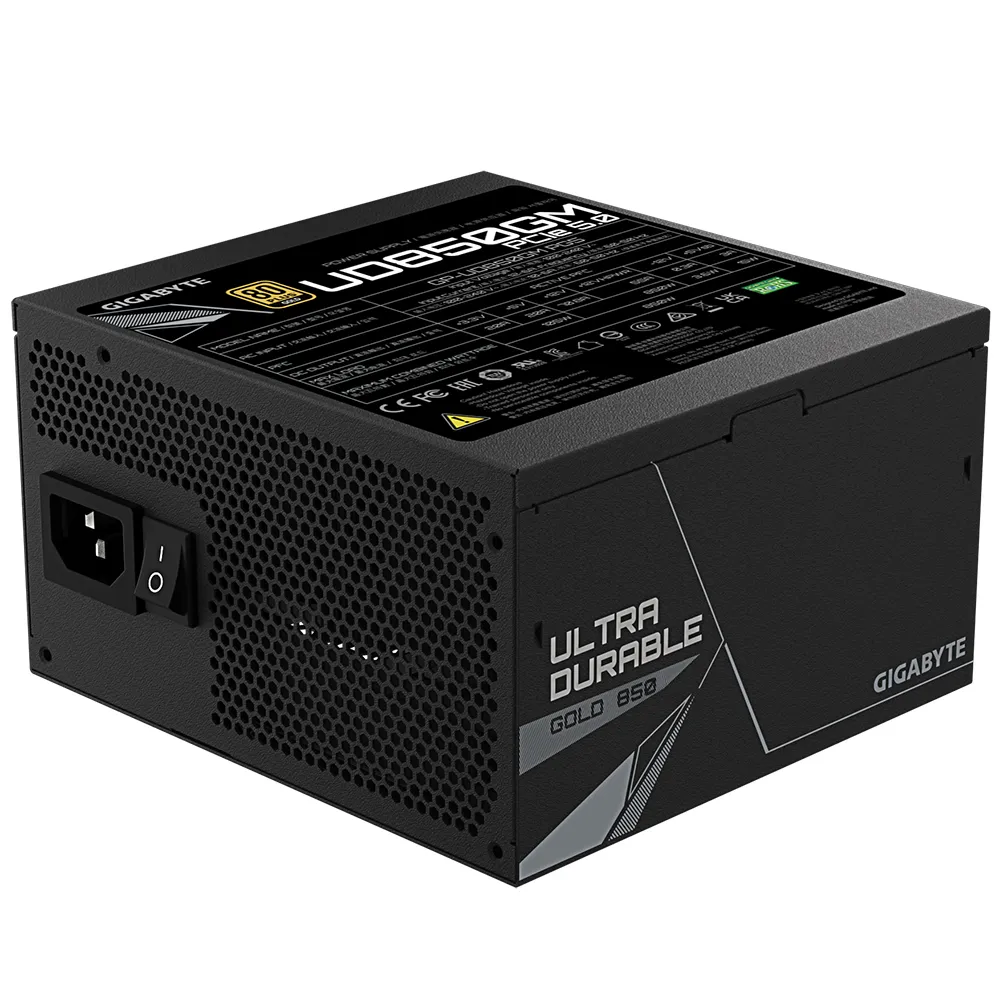

The GIGABYTE GP-UD850GM PG5 2.0 is an 850-watt power supply unit engineered for compatibility with modern high-performance systems. It is built to the ATX 3.0 standard and provides native support for PCIe Gen 5.0 graphics cards through a 12V-2x6 connector. The unit's 80 PLUS Gold certification denotes high operational efficiency, reducing excess heat generation and energy consumption. Its fully modular design allows for the use of only necessary cables, which can aid in cable management and improve internal case airflow.
Housed in a standard ATX chassis with a 140mm depth, this PSU is compatible with a wide range of computer cases. Thermal management is handled by a 120mm smart fan with a hydraulic bearing, which adjusts its rotational speed in response to system load to maintain a balance between cooling and noise level. The unit integrates a comprehensive suite of protection circuits, including OVP, OPP, SCP, and OTP, to safeguard connected components. Active Power Factor Correction is also implemented to ensure stable power delivery.
Key Features:- Delivers 850W of continuous power
- Features 80 PLUS Gold certified efficiency
- Built to the standard ATX form factor
- Utilizes a fully modular cable system
- Complies with ATX 3.0 and 3.1 specifications
- Includes one native 12V-2x6 PCIe 5.1 connector
- Provides four 6+2 pin PCIe power connectors
- Offers eight SATA power connectors
- Cooled by a 120mm smart hydraulic bearing fan
- Measures 150mm x 86mm x 140mm (W x H x D)
