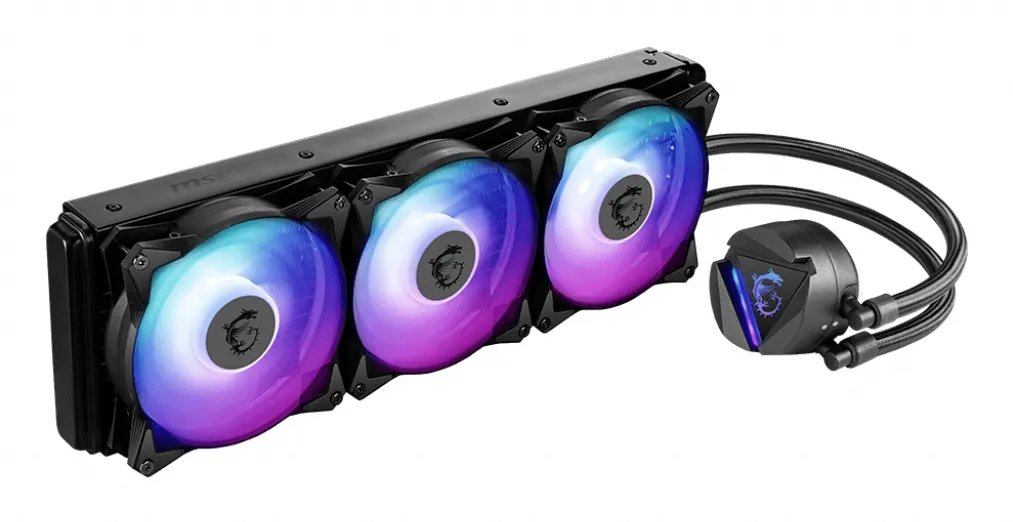

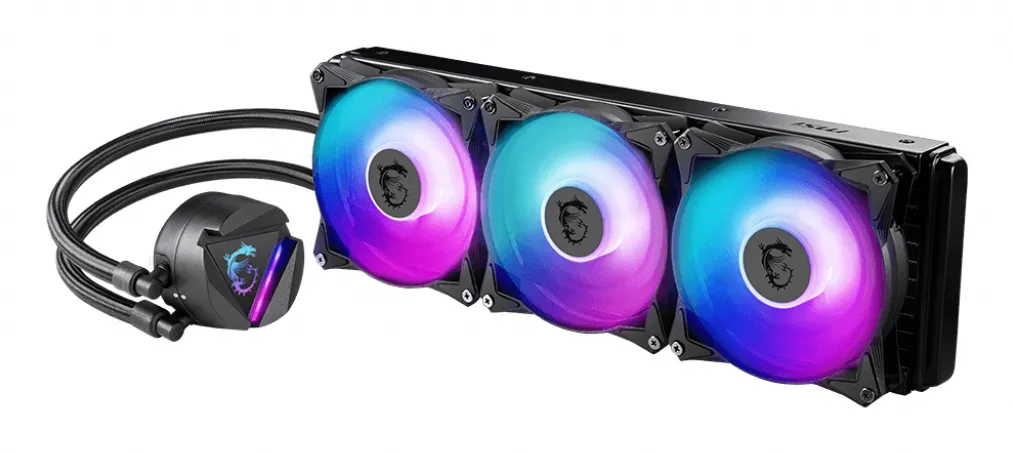

MSI MAG Core Liquid 360R V2 ARGB, 21.63~78.73 CFM

Manufacturer: MSI
ID: 306-7ZW1C41-813
16590€ Show VAT 0% Show VAT 25,5%
Estimated delivery: 31.12
40+pcs available at remote stock
Select your store
Order and pick up in 5-7 days Open today: 10:00 - 18:00 About this store
Order and pick up in 5-7 days Open today: 09:00 - 17:00 About this store
Order and pick up in 5-7 days Open today: Closed About this store
Order and pick up in 5-7 days Open today: 10:00 - 17:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 16:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 17:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 18:00 About this store
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Weight & dimensions
Radiator width39.4 cm
Radiator depth12 cm
Radiator height2.7 cm
Tube length40 cm
Fan dimensions (W x D x H)120 x 120 x 25 mm
Waterblock width8.06 cm
Waterblock depth6.68 cm
Waterblock height4.86 cm
Energy management
Pump voltage12 V
Pump current340 mA
Fan voltage12 V
Fan current0.15 A
Fan power consumption1.8 W
Pump power consumption4.08 W
Design
Product colourBlack
Number of fans3 fan(s)
Fan connector4-pin
Radiator materialAluminum
Illumination LEDcheckmark
Performance
TypeLiquid cooling kit
Compatible processor seriesAMD Ryzen 7 5th Gen, 3rd Generation AMD Ryzen™ 9, AMD Ryzen 9 5th Gen, 3rd Gen AMD Ryzen™ Threadripper™, Intel® Core™ i7, Intel® Core™ i9
Fan diameter12 cm
Supported processor socketsLGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+, Socket SP3, Socket TR4, Socket sTRX4
Suitable locationMotherboard, Processor
Maximum airflow78.73 cfm
Minimum airflow (imperial)21.63 cfm
Minimum air pressure0.23 mmH2O
Maximum air pressure2.39 mmH2O
Pump motor speed4200 RPM
Fan speed (max)2000 RPM
Fan speed (min)500 RPM
Rotational speed (max)2000 RPM
Rotational speed (min)500 RPM
Bearing typeBall bearing
Fan noise level (min)14.3 dB
Fan noise level (max)34.3 dB
Pump noise level18 dB
Pulse-width modulation (PWM) supportcheckmark
Pump connector3-pin
Fan diameter 212 cm
Fan bearing technologyBall bearing
Pump bearing technologyCeramic bearing
Logistics data
Harmonized System (HS) code84733080
EAN4719072864088
Warranty1 year
Source: Icecat.biz

CONQUER THE BATTLEFIELD
The MAG series was born through rigorous quality testing and designed to be a symbol of sturdiness and durability. Focused on providing the best user experience, the MAG series has a simple installation process coupled with a friendly user interface making it the best choice for entry level gamers.

The newly introduced MAG CORELIQUID has everything you're looking for in a liquid cooler, ranging from quality materials that provide reliable durability to heat dissipation technologies that are extremely effective. Users can even enjoy perks like ARGB lighting and a 270-degree rotating blockhead that is simple to use. On top of that, the blockhead boasts a unique irregular aesthetic that is both stylish and artistic. Every single component of the MAG CORELIQUID is designed with the end goal in mind: to provide effective cooling without any compromise.

ROTATABLE BLOCKHEAD
Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.

RADIATOR PUMP DESIGN
The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.

LGA 1700 COMPATIBLE
The MAG CORELIQUID R Series liquid cooler provides out of box support for LGA 1700.

PUMP MOTOR RESONANCE ELIMINATION
A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

HIGH THERMAL DISSIPATION
A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.

EVAPORATION PROOF TUBING
Constructed with three layers of netted plastic tubing and a reinforced mesh exterior.

DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.

MORE SILENCE THAN EXPECTED
MAG CORELIQUID 360R V2's noise level is significantly lower than that of competitor's by 10%.

COOLING YOU CAN'T HEAR
For those who prefer a quieter environment, a bundled noise reducer cable changes the fans’ speed to produce less sound while still providing good airflow.

EXTENSIVE COMPATIBILITY
Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.
