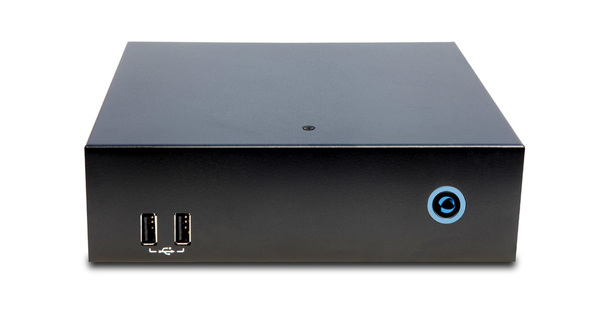

AOPEN DE6200 Full system with RX-421BD 4GBx2 memory M.2 128GB AMD Radeon R7 800MHz HD Graphics 3xHDMI 2.0x1 1.4bx2
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Technical details | |
Quantity per pack | 1 pc(s) |
Processor | |
Processor frequency | 2100 MHz |
Processor manufacturer | AMD |
Processor cores | 4 |
Built-in processor | ![]() |
Processor boost frequency | 3.4 GHz |
Hard drive | |
Total storage capacity | 128 GB |
Memory | |
Internal memory | 8000 MB |
Internal memory type | DDR4 |
Display | |
Built-in display | ![]() |
Ports & interfaces | |
USB 2.0 ports quantity | 2 |
Ethernet LAN (RJ-45) ports | 1 |
Headphone outputs | 1 |
Microphone in | ![]() |
DC-in jack | ![]() |
HDMI ports quantity | 3 |
HDMI version | 1.4/2.0 |
HDCP | ![]() |
RS-232C | ![]() |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
Weight & dimensions | |
Weight | 2 kg |
Height | 48 mm |
Width | 166 mm |
Depth | 157 mm |
Energy management | |
Power consumption (typical) | 90 W |
AC input voltage | 19 V |
Operational conditions | |
Operating relative humidity (H-H) | 0 - 95% |
Storage temperature (T-T) | -30 - 60 °C |
Operating temperature (T-T) | 0 - 50 °C |
Networking | |
Ethernet LAN | ![]() |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Video | |
Maximum video resolution | 3840 x 2160 pixels |
HD type | 4K Ultra HD |
Storage | |
Card reader integrated | ![]() |
Storage media type | SSD |
Built-in storage media | ![]() |
Storage drive size | M.2 |
Ergonomics | |
Plug and Play | ![]() |
Product colour | Black |
On/off switch | ![]() |
File formats | |
Video formats supported | HEVC/H.265 |
Graphics | |
Graphics card | Y |
Number of displays supported | 3 |
EAN | 4710469990038 |
Warranty | 3 years |
Source: Icecat.biz |
UHD (4k) content playback
This media player is capable of driving UHD (4k) content. With a resolution that goes up to 3840x2160 pixels your content will be close to perfect. This feature marks the players that are capable of delivering content that is fluent and stutter free in UHD (4k).
AOPEN intelligent Control
AOPEN Intelligent Control (AiCU) is built for global enterprise brands, AiCU enables network operators with an intelligent device management solution that automates industrial and commercial applications. AiCU brings cloud service and advanced embedded device control technology together into a single dashboard.
Multi-output video wall solution
This player is a multi-output solution. Computing devices with this feature are the perfect backbone for video walls and other multi-screen solutions. These include symmetrical and asymmetrical video walls, depending on software and content.
Triple output player
Triple output player, for solutions with three displays. These mid or high range computing devices have multiple outputs, and are therefore perfect for multi-display digital signage and menu boards.
AMD platform
The DE6200 is based on the AMD platform. More specifically on the AMD Embedded R-Series Merlin Falcon platform. This computing device is capable of driving three screens. Therefore, it's perfect for multiple screen retail and QSR solutions.
Integrated HEVC/H.265 10bit codec
These units support native hardware decoding for modern codecs like the HEVC/H265 10 bit. Offloading the CPU, the GPU handles the decoding of the video. This creates a fluent playback up to 60fps.
Watchdog Timer
With the Watchdog timer, your solution is running at the highest uptime possible. When the Watchdog timer is included in your critical application, the Watchdog is the ultimate failsafe. As soon as the hardware timer reaches zero, the system will reboot.
