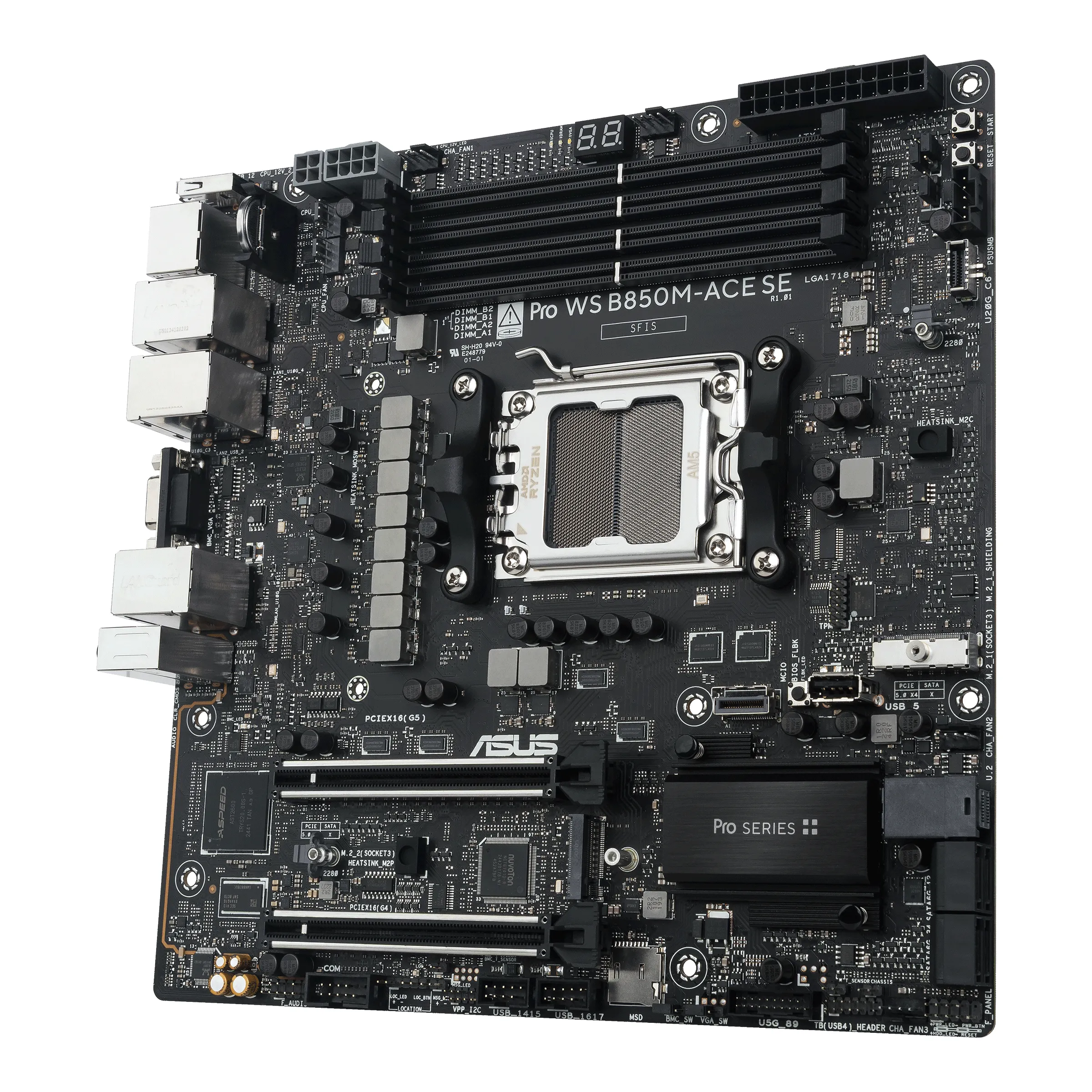

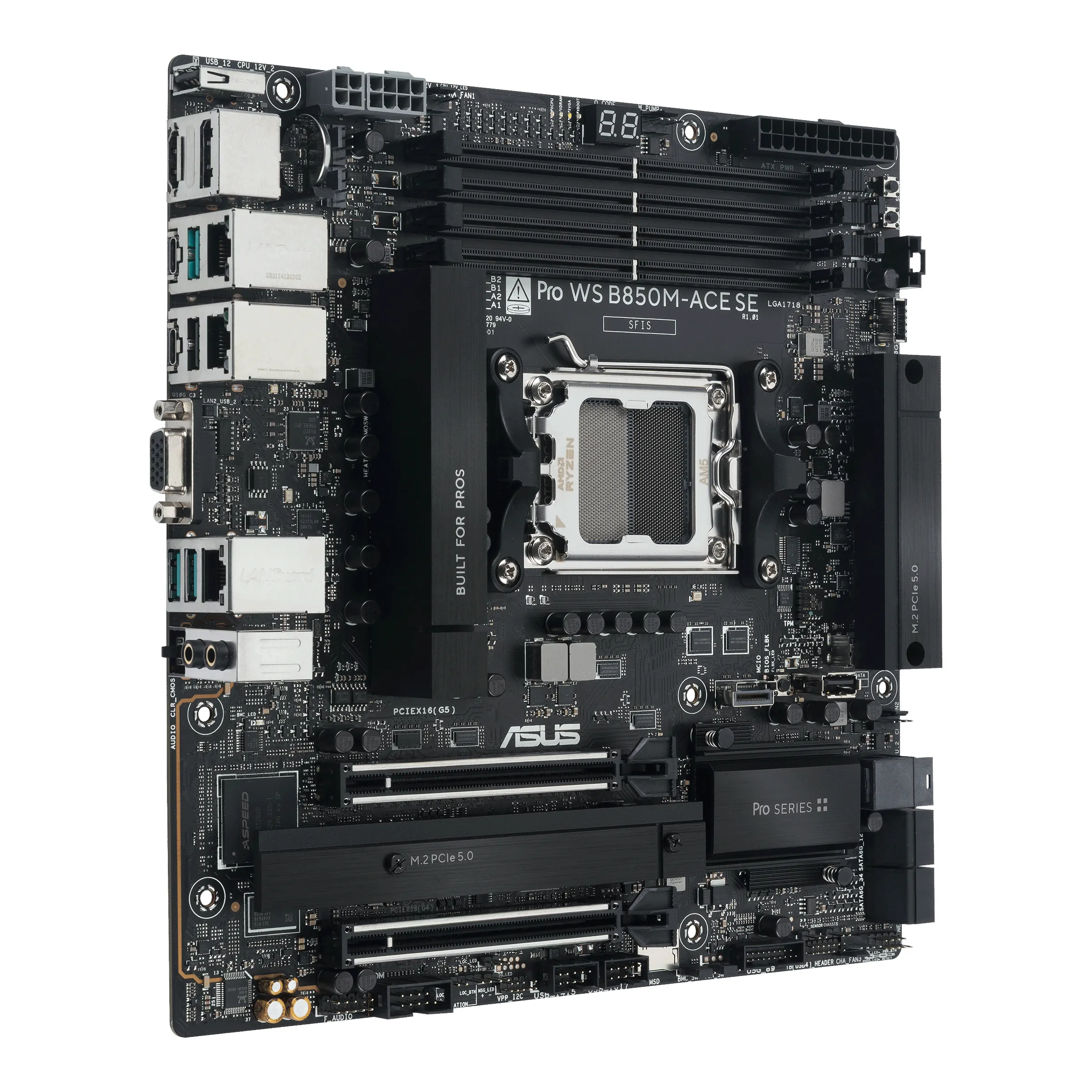

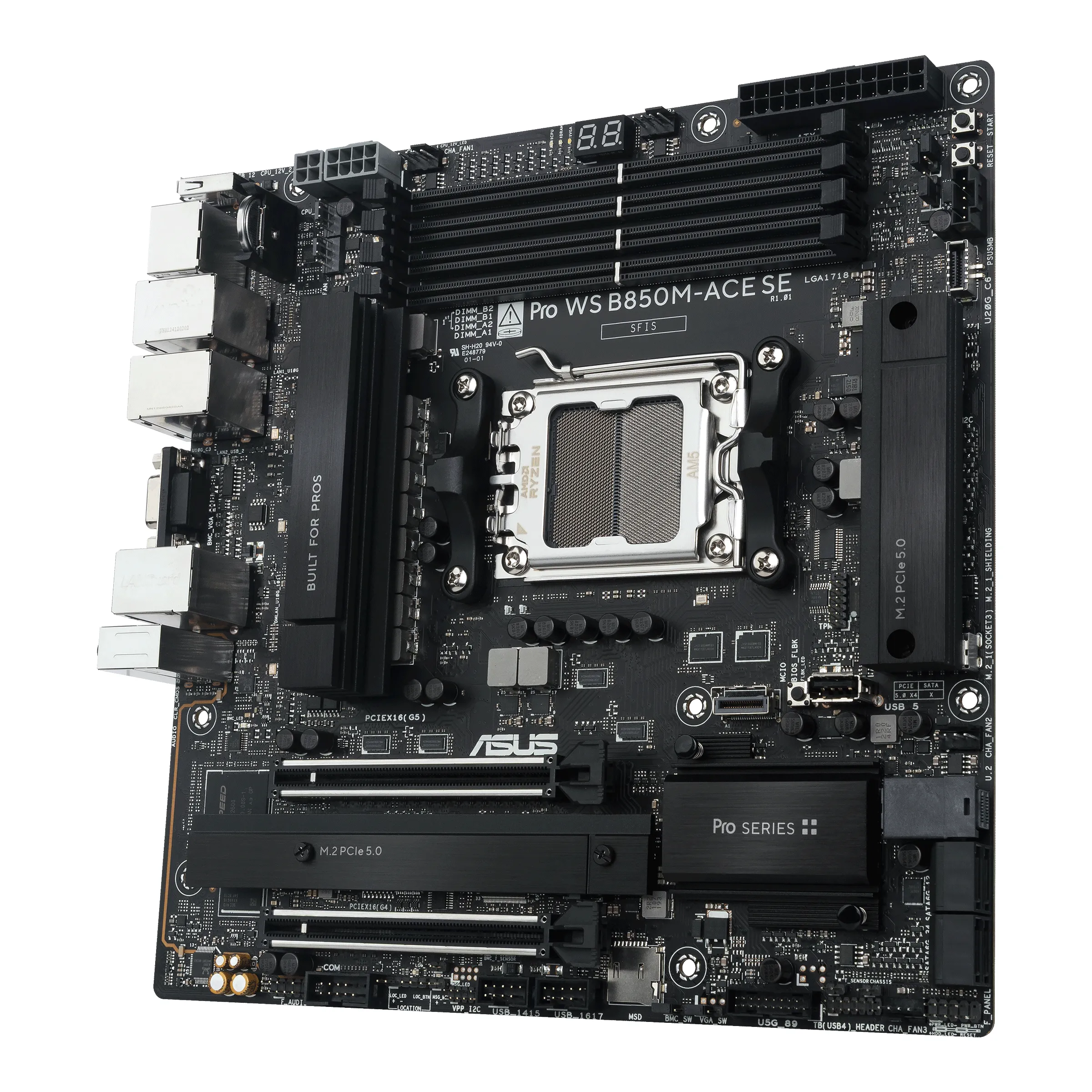

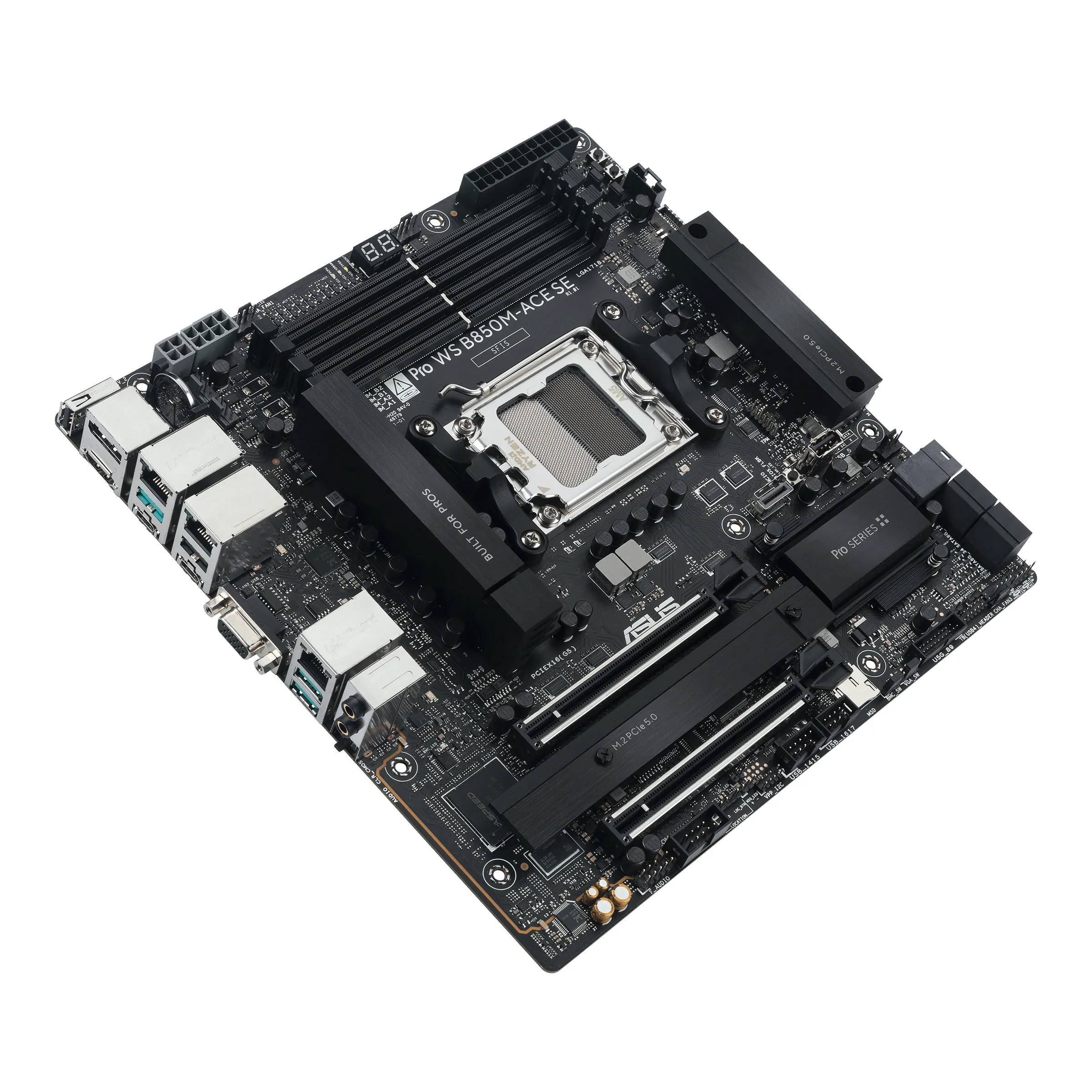

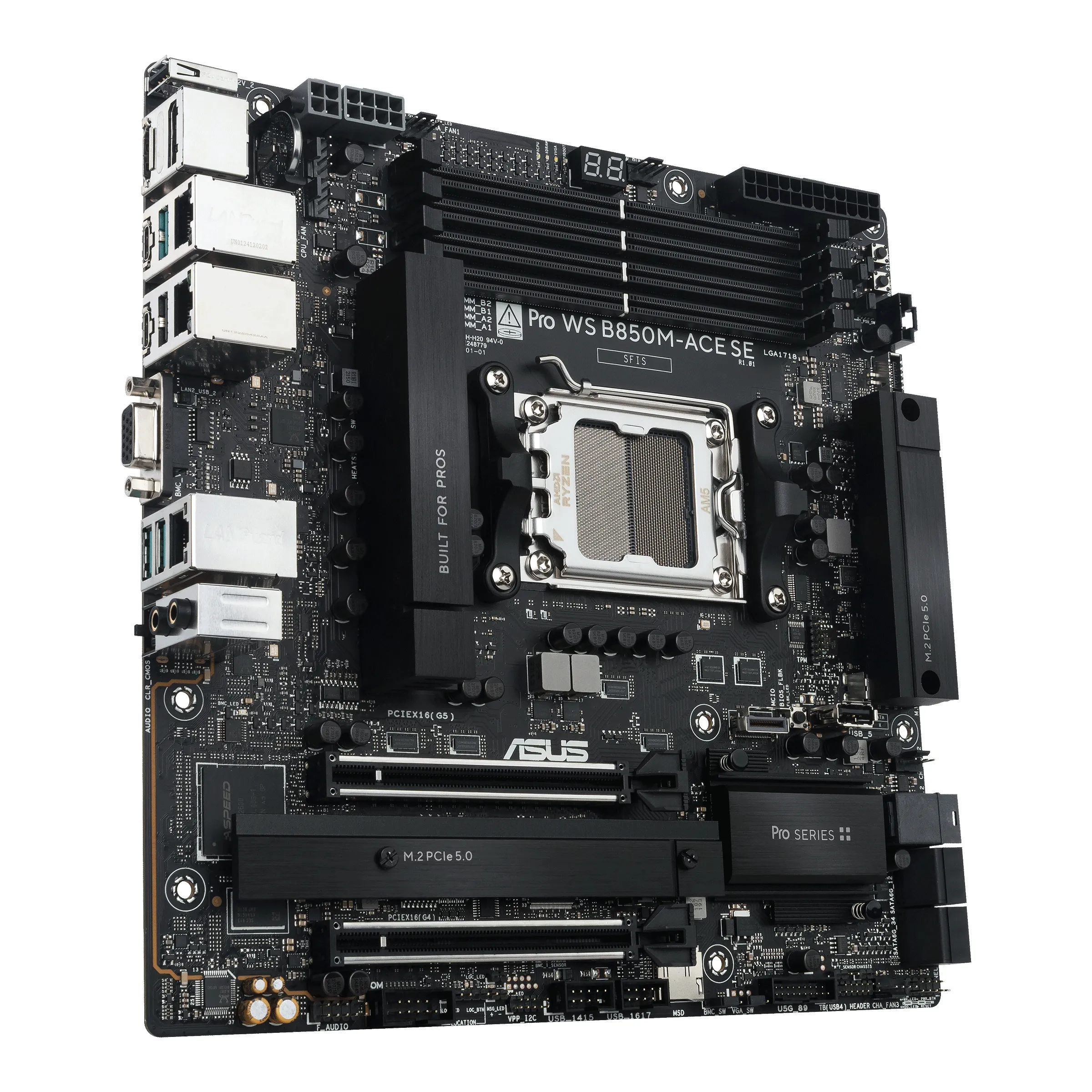

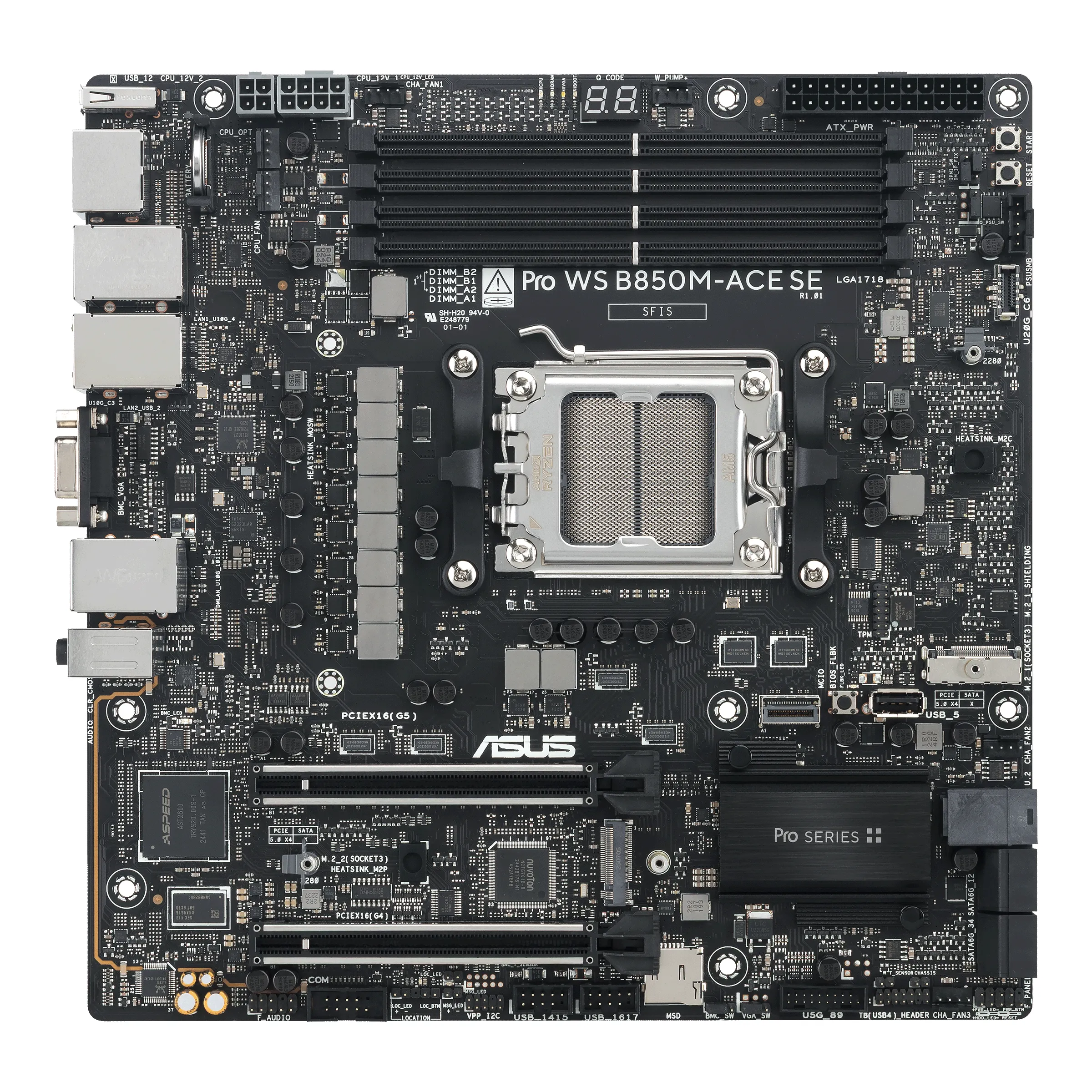

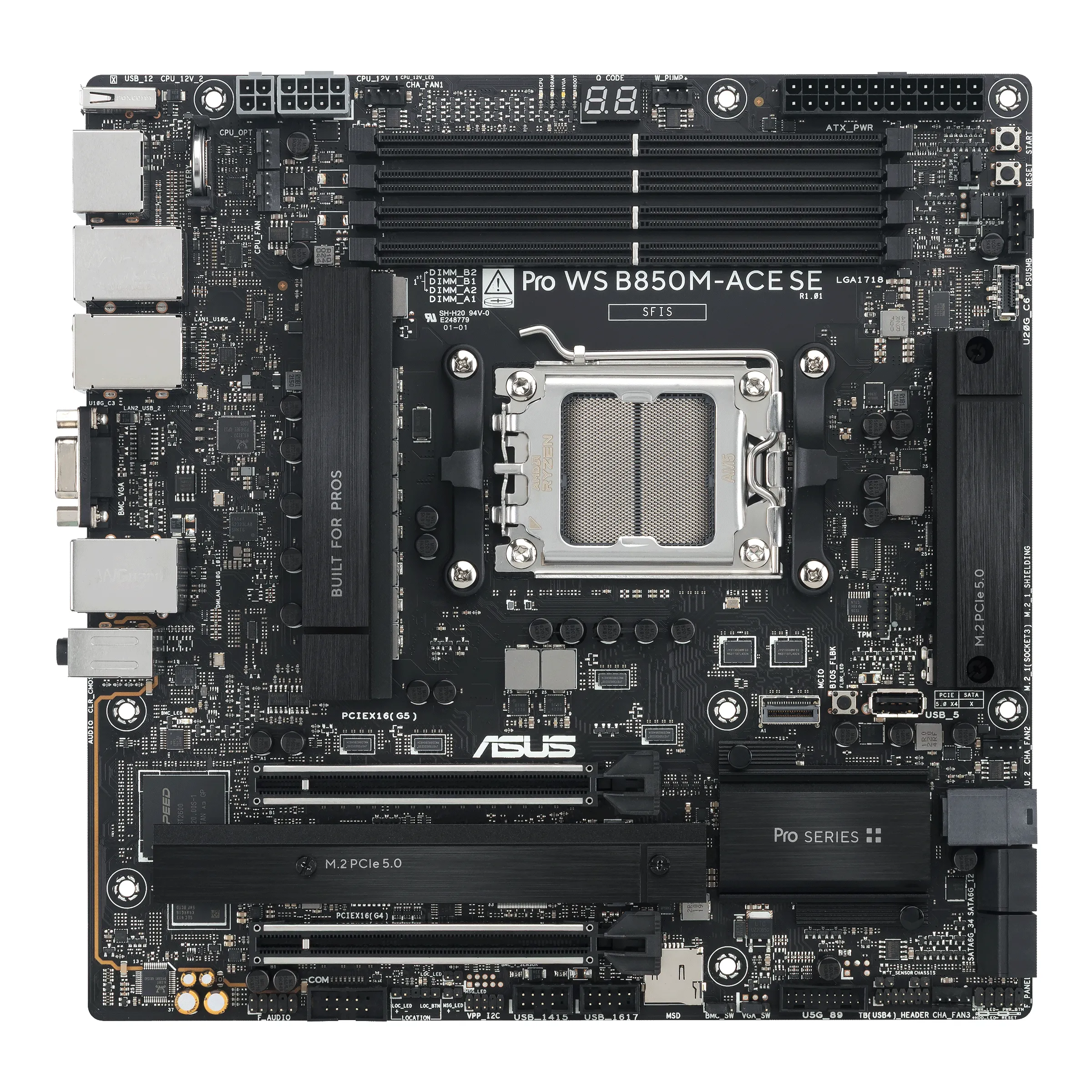

Asus PRO WS B850M-ACE SE AM5 mATX Motherboard

The ASUS PRO WS B850M-ACE SE is a motherboard designed for professional workstation builds, utilizing a micro-ATX form factor. It is built on the AMD B850 chipset and features the AM5 socket, providing compatibility with AMD Ryzen 7000, 8000, and 9000 series processors. The board includes four DIMM slots that support up to 256 GB of dual-channel DDR5 memory. For enhanced system integrity required in professional environments, it offers compatibility with both ECC and non-ECC un-buffered memory modules, contingent on CPU specifications.

For expansion, this motherboard is equipped with a primary PCIe 5.0 x16 slot suitable for high-bandwidth graphics cards or other accelerators. Storage options consist of two M.2 slots and four SATA 6Gb/s ports, with RAID 0, 1, 5, and 10 support available for data management and redundancy. Connectivity is handled by an integrated 10Gb Ethernet port for high-speed networking, alongside a comprehensive selection of USB ports, including USB 3.2 Gen 2 Type-A and Type-C. Video output for integrated graphics is provided through both DisplayPort 1.4 and HDMI 2.1 connectors.

• AMD AM5 socket for Ryzen 7000, 8000, and 9000 series CPUs
• Micro-ATX form factor for compact workstation builds
• Four DIMM slots support up to 256 GB of DDR5 memory
• Features one PCIe 5.0 x16 and one PCIe 4.0 x16 slot
• Offers dual M.2 slots and four SATA 6Gb/s ports for storage
• Provides 10GbE LAN for high-speed network connections

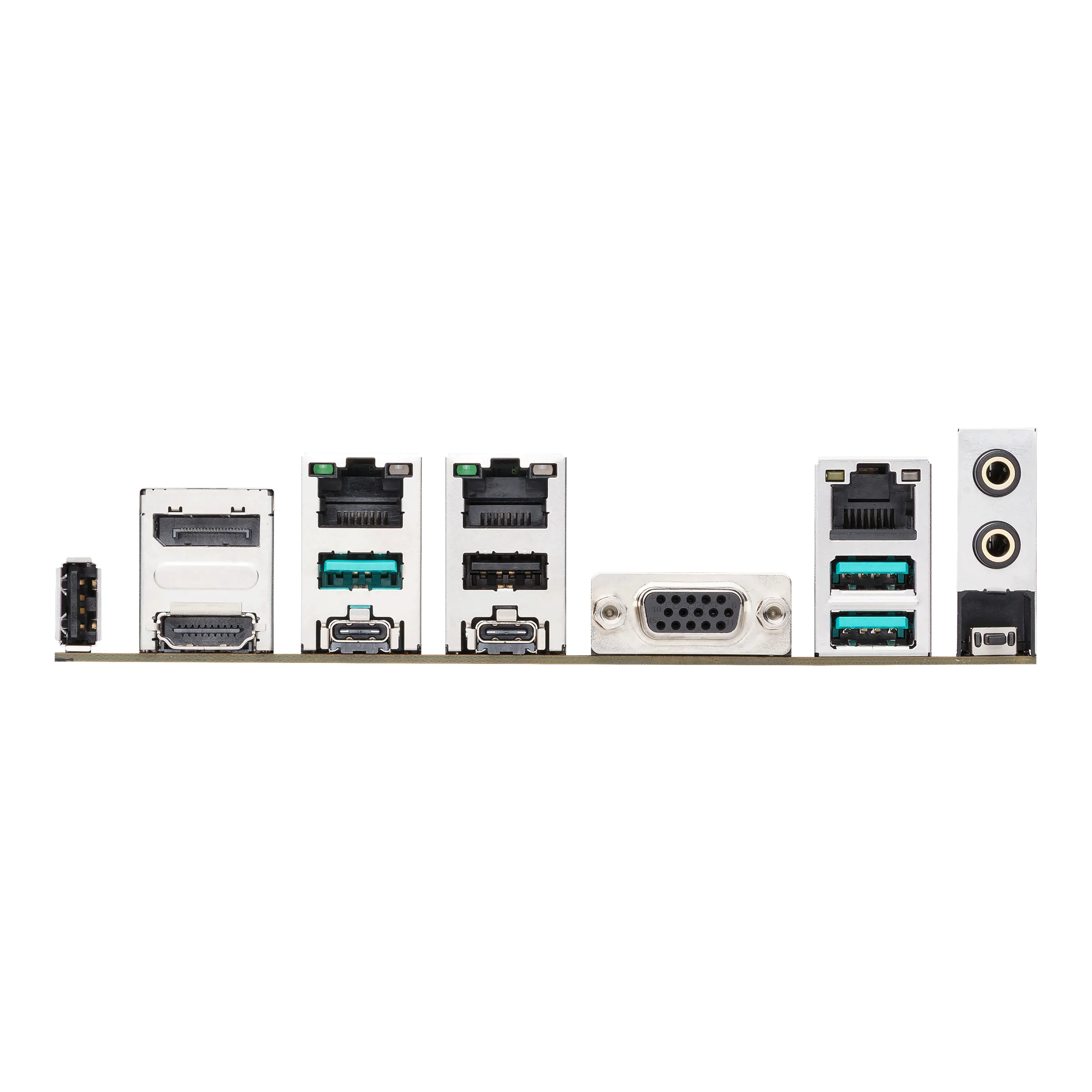

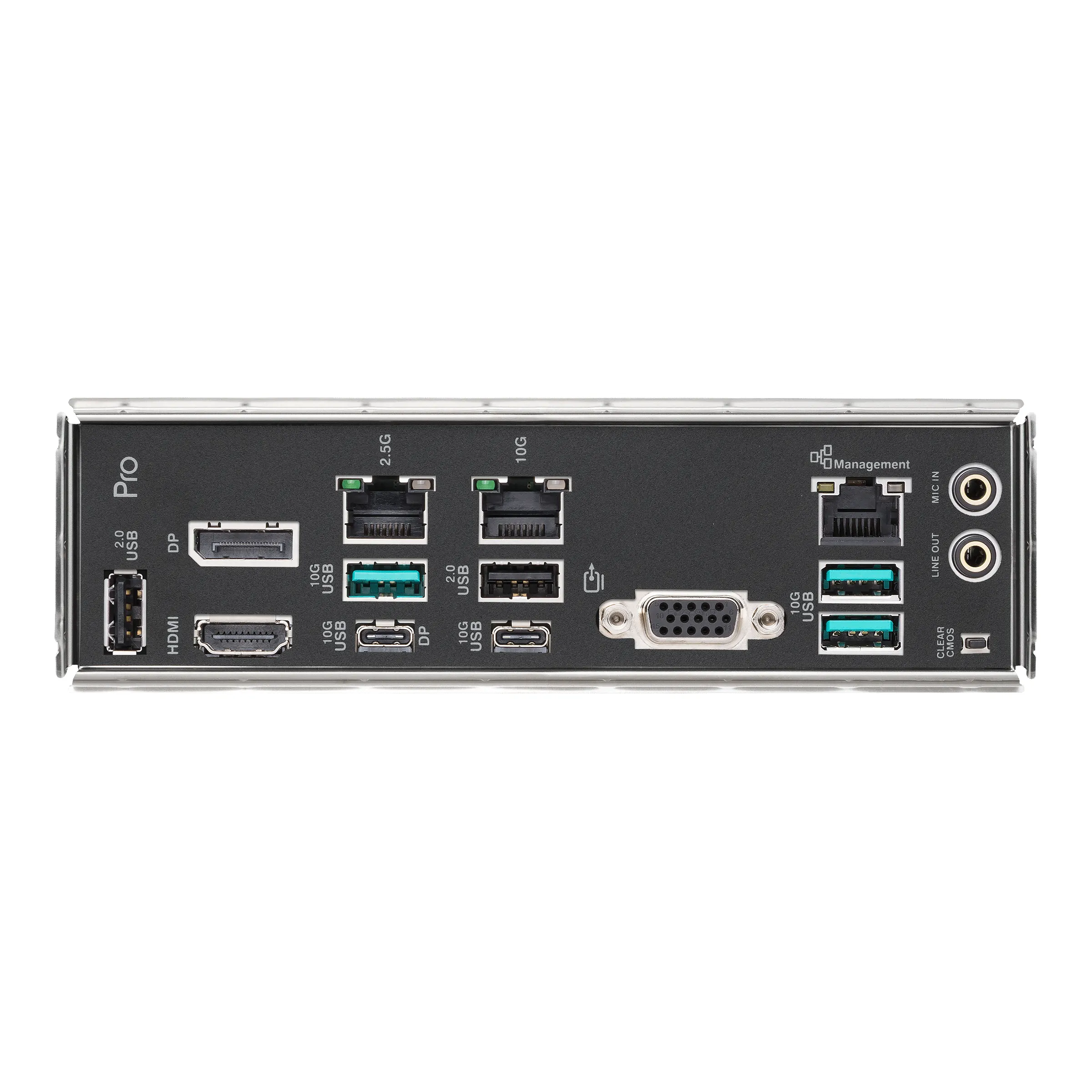

• Includes rear USB 3.2 Gen 2 Type-A and Type-C ports
• Supports both ECC and non-ECC un-buffered memory modules
• Equipped with HDMI 2.1 and DisplayPort 1.4 video outputs
• Realtek 7.1 Surround Sound High Definition Audio CODEC
