DeepCool GamerStorm PN750-M ATX 3.1 - power supply, 80 Plus Gold
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Technical details | |
Sustainability certificates | ErP, Triman |
Ports & interfaces | |
Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 8 |
Peripheral (Molex) power connectors (4-pin) | 2 |
ATX power connector (20+4 pin) | ![]() |
CPU power connector (4+4 pin) | ![]() |
PCI Express power connectors (6+2 pin) | 3 |
Cabling type | Fully-Modular |
Motherboard power cable length | 55 cm |
SATA power cable length | 450,570,690,810 mm |
CPU power cable length | 70 cm |
Peripheral (Molex) power cable length | 930 mm |
PCI Express power connectors (16-pin) | 1 |
Weight & dimensions | |
Height | 86 mm |
Width | 150 mm |
Depth | 140 mm |
Energy management | |
Input current | 10 - 5 A |
Efficiency | 90% |
Hold time | 16 ms |
Power protection features | No load operation, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Surge protection, Under voltage |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 110 W |
Combined power (+12V) | 750 W |
Combined power (+5V) | 110 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 62.5 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 3 A |
AC input frequency | 50/60 Hz |
AC input voltage | 100 - 240 V |
Total power | 750 W |
Power Good signal delay range | 100 - 150 ms |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Packaging data | |
Package type | Box |
Certificates | |
Compliance certificates | CCC, CE, EAC, Federal Communications Commission (FCC), RCM, RoHS, WEEE |
Packaging content | |

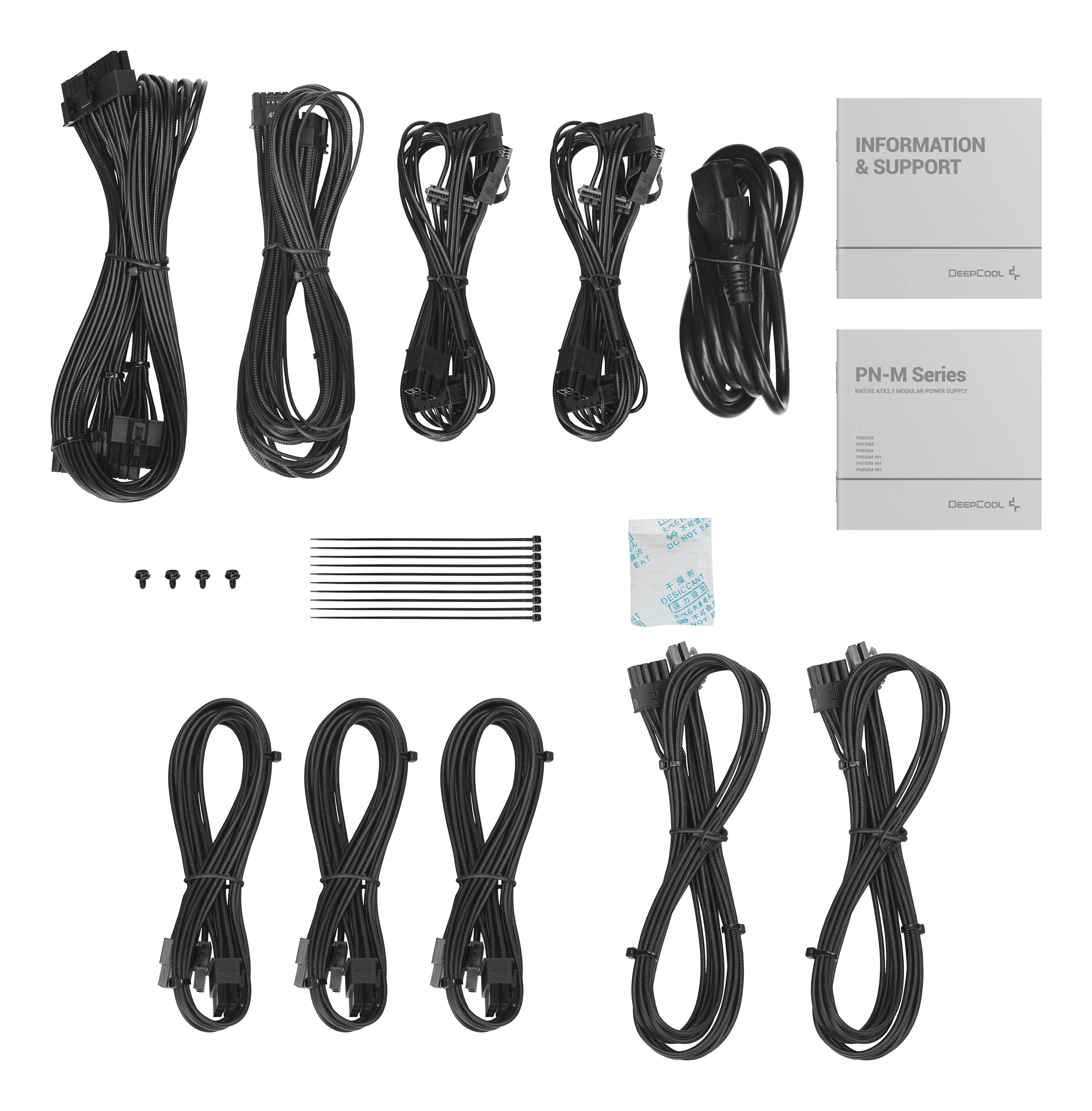

Cables included | AC, CPU, PCIe, Peripheral (Molex), SATA |
Cable tie(s) included | ![]() |
Design | |
Product colour | Black |
Number of fans | 1 fan(s) |
On/off switch | ![]() |
Cooling type | Active |
Fan diameter | 12 cm |
Fan location | Top |
Performance | |
Mean time between failures (MTBF) | 100000 h |
Purpose | PC |
Bearing technology | FDB |
ATX version | 3.1 |
80 PLUS certification | 80 PLUS Gold |
Power supply unit (PSU) form factor | ATX |
Logistics data | |
Warranty period | 10 year(s) |
EAN | 6933412740889 |
Source: Icecat.biz |
The DeepCool GamerStorm PN750-M ATX 3.1 Power Supply Unit is engineered with both efficiency and performance in mind, making it an excellent choice for gaming PCs, high-performance workstations, or even silent computing builds. With a robust 750W power output and an impressive 80 PLUS Gold certification, this power supply ensures reliable energy delivery while minimizing energy waste, helping you save on electricity bills. Designed to handle the demands of both current and next-generation GPUs, it is fully compliant with the ATX v3.1 standard, which allows it to supply up to 200% of its maximum power for very short bursts, making it particularly future-proof for new, power-hungry components.
The PN750-M is equipped with a 120mm Fluid Dynamic Bearing (FDB) fan, which provides optimal cooling performance while maintaining low noise levels. This PSU features a fully modular cable design, allowing for easy installation and customization, and making cable management a breeze in any build. Its build quality is reinforced by high-quality Japanese capacitors and multiple safety protections including Over Voltage Protection (OVP), Under Voltage Protection (UVP), and Short Circuit Protection (SCP) to ensure both durability and reliability during operation. Whether you’re assembling a powerful gaming rig or a silent workstation, the DeepCool PN750-M is your dependable choice for stable, long-lasting power supply.
