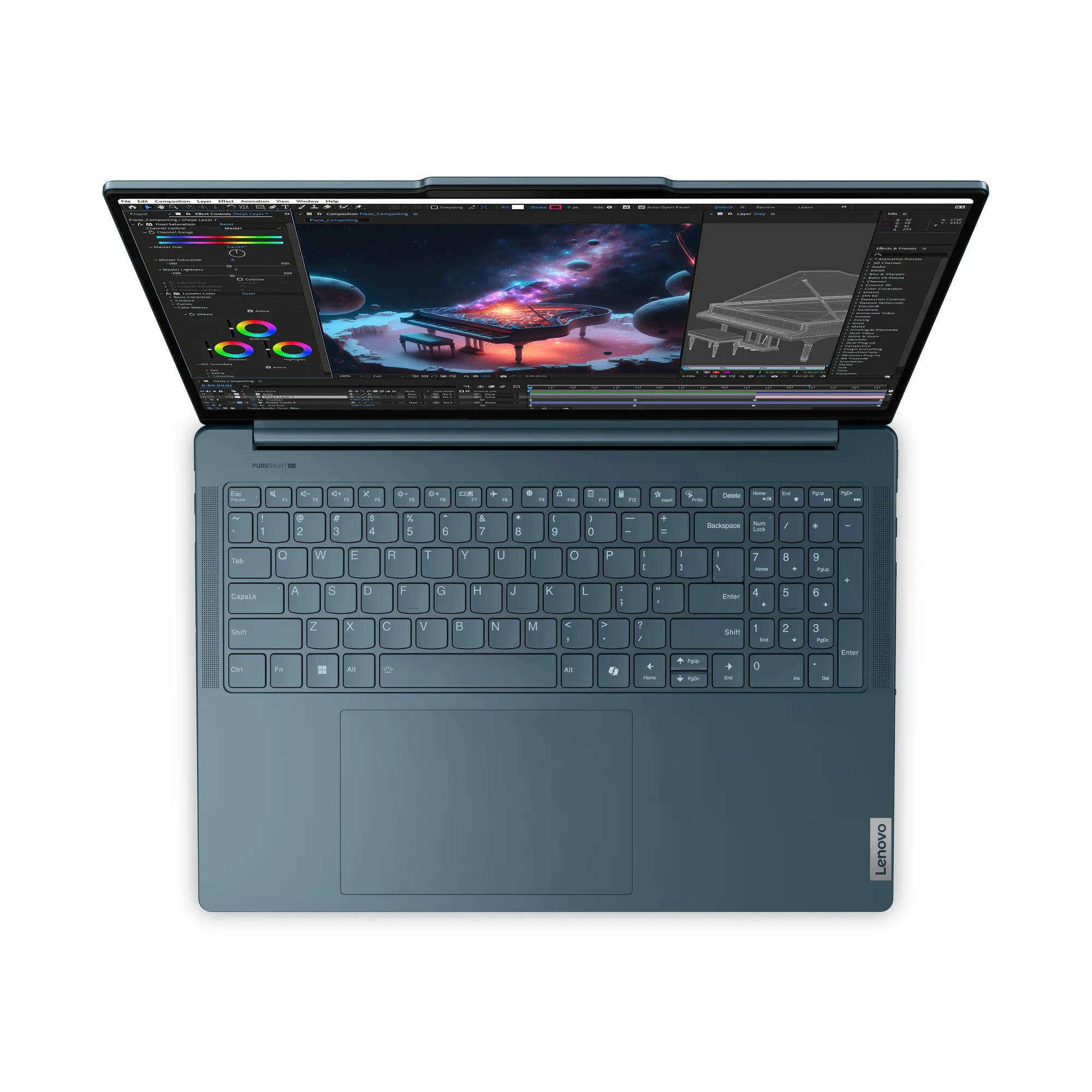

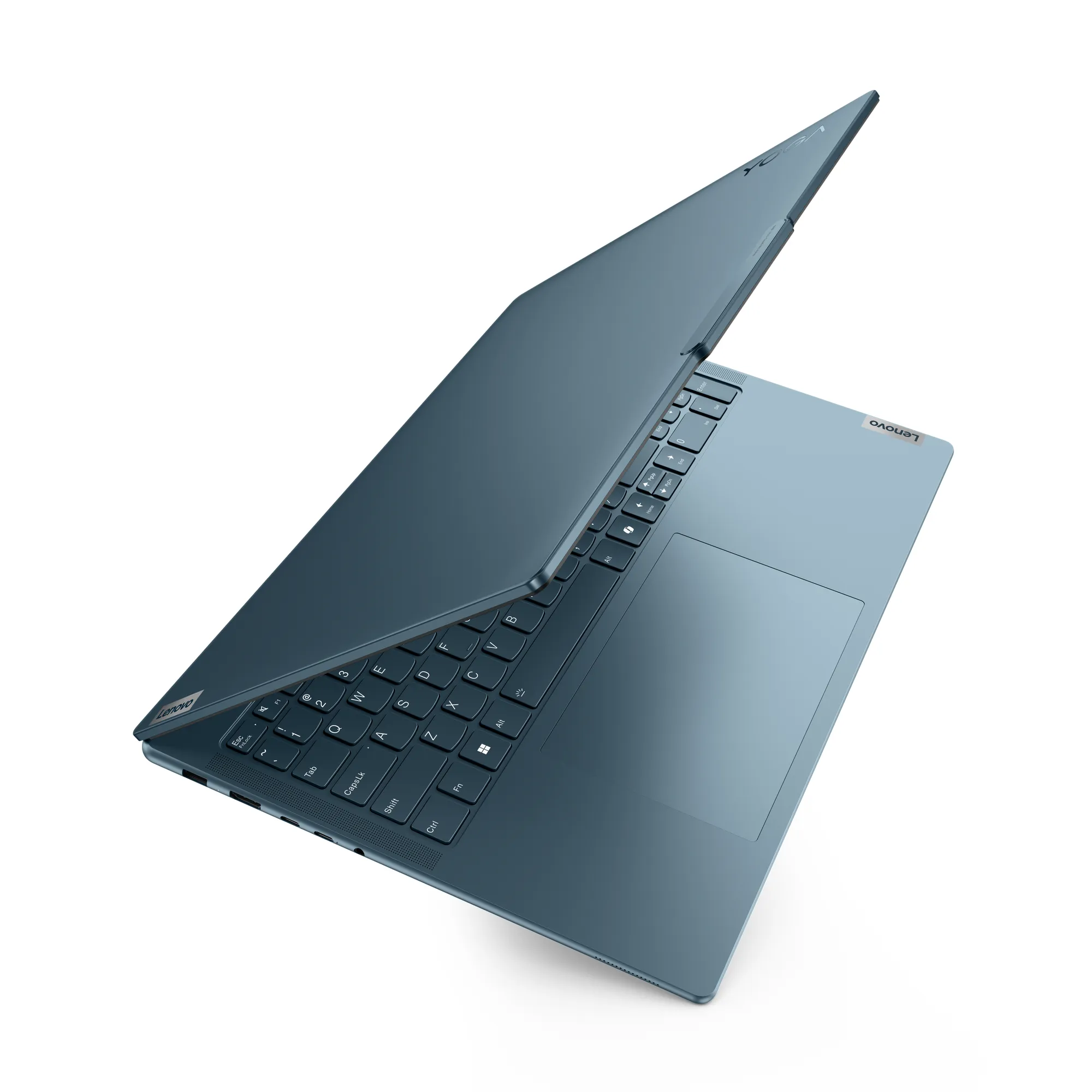

LENOVO YOGA PRO 9 16.0 3.2K MLED 165HZ/U9-185H/64GB/1TB/RTX4070/W11P
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Technical details | |
Device type | SSD |
Processor | |
Processor model | 185H |
Processor manufacturer | Intel |
Processor family | Intel Core Ultra 9 |
Processor cores | 16 |
Processor threads | 22 |
Processor boost frequency | 5.1 GHz |
Processor cache | 24 MB |
Processor cache type | Smart Cache |
Efficient cores | 8 |
Performance cores | 6 |
Processor base power | 45 W |
Maximum turbo power | 115 W |
Efficient-core base frequency | 1.8 GHz |
Performance-core base frequency | 2.3 GHz |
Processor generation | Intel® Core™ Ultra (Series 1) |
Efficient-core Max Turbo Frequency | 3.8 GHz |
Performance-core Max Turbo Frequency | 5.1 GHz |
Low Power Efficient-cores | 2 |
Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
Low Power Efficient-core Base Frequency | 1000 MHz |
Hard drive | |
Total storage capacity | 1000 GB |
Memory | |
Internal memory type | LPDDR5x-SDRAM |
Maximum internal memory | 64 GB |
Memory clock speed | 7467 MHz |
Memory form factor | On-board |
Memory channels | Dual-channel |
Internal memory | 64 GB |
Display | |
Contrast ratio (typical) | 1200:1 |
Display diagonal | 40.6 cm (16") |
Display resolution | 3200 x 2000 pixels |
Touchscreen | ![]() |
LED backlight | ![]() |
Maximum refresh rate | 165 Hz |
Anti-glare screen | ![]() |
Native aspect ratio | 16:10 |
HD type | 3.2K |
Colour gamut | 100% |
Panel type | Mini LED |
High Dynamic Range (HDR) supported | ![]() |
High Dynamic Range (HDR) technology | DisplayHDR 1000, Dolby Vision |
Audio | |
Audio system | Dolby Atmos |
Built-in microphone | ![]() |
Speaker power | 2 W |
Number of built-in speakers | 6 |
Number of microphones | 4 |
Audio chip | Realtek ALC3306 |
Ports & interfaces | |
USB 2.0 ports quantity | 0 |
HDMI ports quantity | 1 |
Combo headphone/mic port | ![]() |
USB Sleep-and-Charge | ![]() |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
USB Type-C DisplayPort Alternate Mode | ![]() |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Thunderbolt 4 ports quantity | 1 |
Intel® Thunderbolt 4 | ![]() |
Weight & dimensions | |
Weight | 2.05 kg |
Height | 18.3 mm |
Width | 362.7 mm |
Depth | 253.7 mm |
Energy management | |
AC adapter input voltage | 100 - 240 V |
AC adapter frequency | 50/60 Hz |
AC adapter power | 170 W |
![]() | |
Operational conditions | |
Operating relative humidity (H-H) | 8 - 95% |
Storage temperature (T-T) | 5 - 43 °C |
Operating temperature (T-T) | 5 - 35 °C |
Storage relative humidity (H-H) | 5 - 95% |
Maximum shipping altitude | 3048 m |
Keyboard | |
Pointing device | Touchpad |
Numeric keypad | ![]() |
Keyboard language | Nordic |
Keyboard backlit | ![]() |
Networking | |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Bluetooth version | 5.3 |
Ethernet LAN | ![]() |
Antenna type | 2x2 |
Bluetooth | ![]() |
WWAN | Not installed |
Mobile network connection | ![]() |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Storage | |
Drive capacity | 1 TB |
Compatible memory cards | SD |
Optical drive type | No |
Card reader integrated | ![]() |
SSD interface | PCI Express 4.0 |
Number of SSDs installed | 1 |
Storage media | SSD |
SSD form factor | M.2 |
NVMe | ![]() |
Total SSDs capacity | 1 TB |
Security | |
Trusted Platform Module (TPM) | ![]() |
Fingerprint reader | ![]() |
Password protection type | BIOS, HDD, Power on, Supervisor |
Trusted Platform Module (TPM) version | 2.0 |
Password protection | ![]() |
Windows Hello | ![]() |
Certificates | |
Certification | ErP Lot 6 ErP Lot 26 Intel® Evo Platform Eyesafe® Certified 2.0 TÜV Rheinland® Low Blue Light (Hardware Solution) MIL-STD-810H |
Compliance certificates | RoHS |
Operating system/software | |
Operating system installed | Windows 11 Pro |
Trial software | Office Trial |
Operating system architecture | 64-bit |
Operating system language | Danish, English, Finnish, Norwegian, Swedish |
Camera | |
Front camera | ![]() |
Front camera resolution (numeric) | 5 MP |
Privacy camera | ![]() |
Privacy type | Privacy shutter |
Infrared (IR) camera | ![]() |
Battery | |
Battery technology | Lithium Polymer (LiPo) |
Battery life (max) | 5 h |
Continuous video playback time | 11 h |
Fast charging | ![]() |
Battery capacity | 84 Wh |
Fast charging time (50%) | 30 min |
Design | |
Form factor | Clamshell |

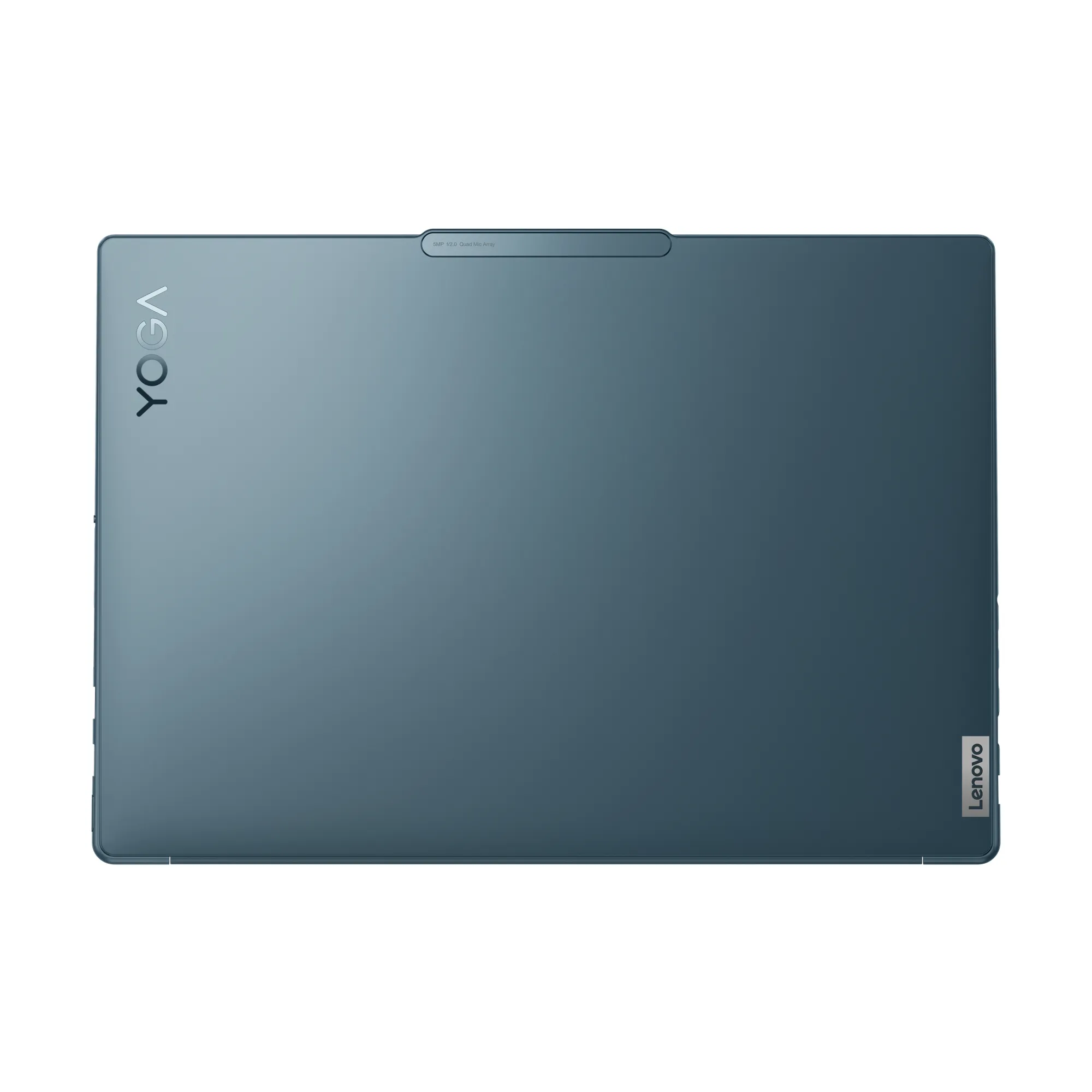

Product colour | Teal |
Housing material | Aluminium |
Product type | Laptop |
Colour name | Tidal Teal |
Graphics | |
On-board graphics card model | Intel Arc Graphics |
Discrete graphics card model | NVIDIA GeForce RTX 4070 |
Discrete graphics memory type | GDDR6 |
On-board graphics card | ![]() |
Discrete graphics card memory | 8 GB |
Discrete graphics card | ![]() |
On-board graphics card family | Intel Arc Graphics |
Discrete GPU manufacturer | NVIDIA |
On-board GPU manufacturer | Intel |
Performance | |
Motherboard chipset | Intel SoC |
Hall sensor | ![]() |
Sustainability | |
Sustainability certificates | ENERGY STAR, EPEAT Gold |
Neural processor unit (NPU) | |
Maximum frequency NPU | 1.4 GHz |
Sparsity support | ![]() |
Windows Studio effects support | ![]() |
AI datatype support on NPU | FP16, FP32, Int8 |
AI software frameworks supported by NPU | DirectML, ONNX RT, OpenVINO, Windows ML |
Neural processor unit (NPU) | Intel AI Boost |
EAN | 197531810953 |
Warranty | 2 years |
Source: Icecat.biz |
A force to reckon with
Expand every capability with mind-blowing performance with up to the latest Intel® Core™ Ultra processors, a dedicated engine to help you unlock AI experiences. Boosted with Lenovo X Power, it pushes the boundaries of your creativity by cranking up the CPU and GPU to run on maximum performance with raw, well-cooled power of up to 130W.
Cleverly does it all
Wielding a dedicated AI processing chip, Lenovo AI Engine+ uses machine learning to accelerate your creative process like never before. Whether you’re rendering 3D environments or colour-correcting feature-length films, the Yoga Pro 9i’s smart engine dynamically detects the creative apps and scenarios you’re running to optimize processing power, battery life, and cooling efficiency.
See your ideas come to life
Welcome to a realm where your imagination meets reality: The revolutionary Creator Zone, a groundbreaking, Lenovo Yoga-exclusive software feature. Designed for creators, artists, designers, and dreamers alike, Creator Zone is an oasis of innovation that empowers you to bring your ideas to life with just a few clicks. At its heart is its text-to-image generation capability, which transforms typed concepts into visual representations—it even learns your visual style through advanced image training.
All it takes is a spark

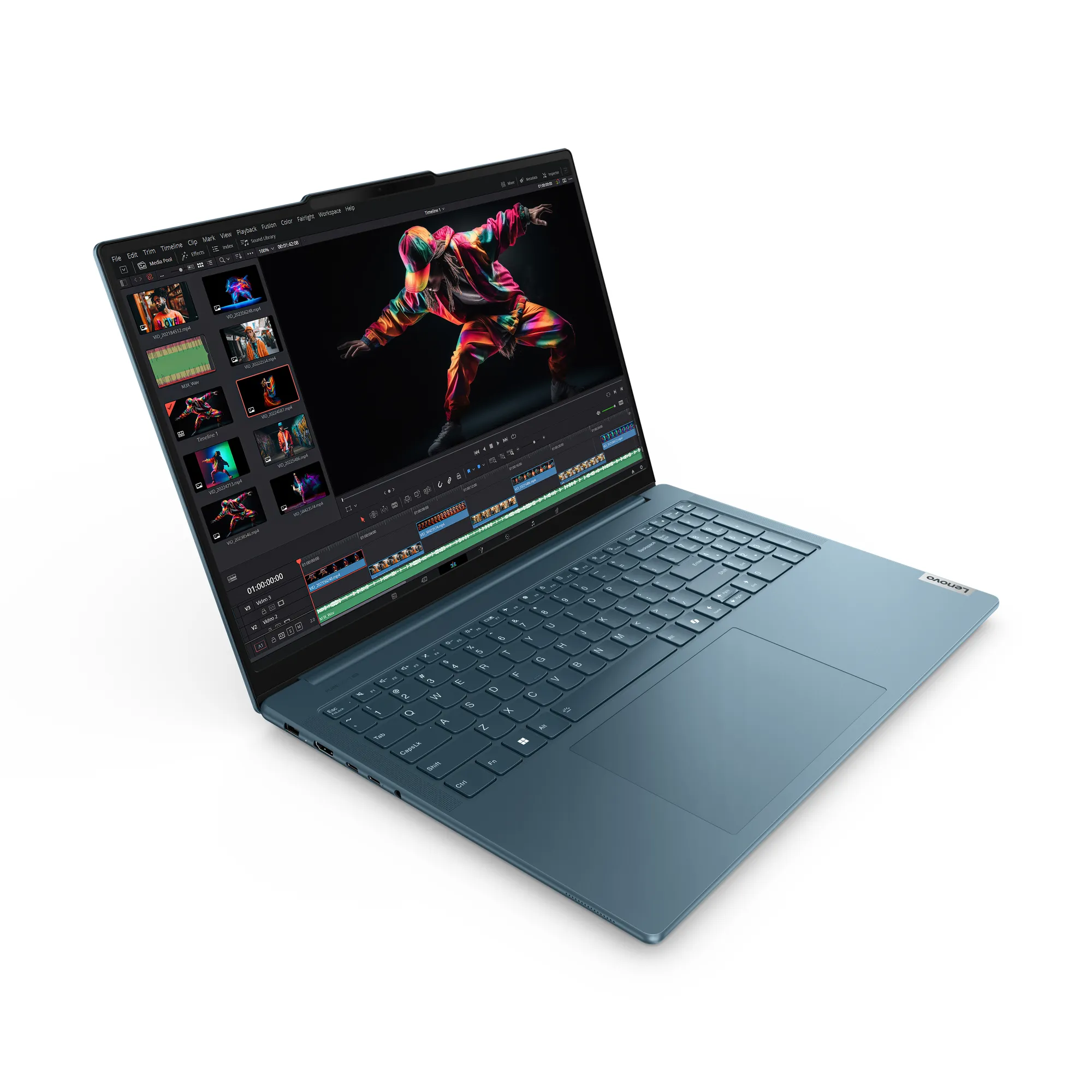

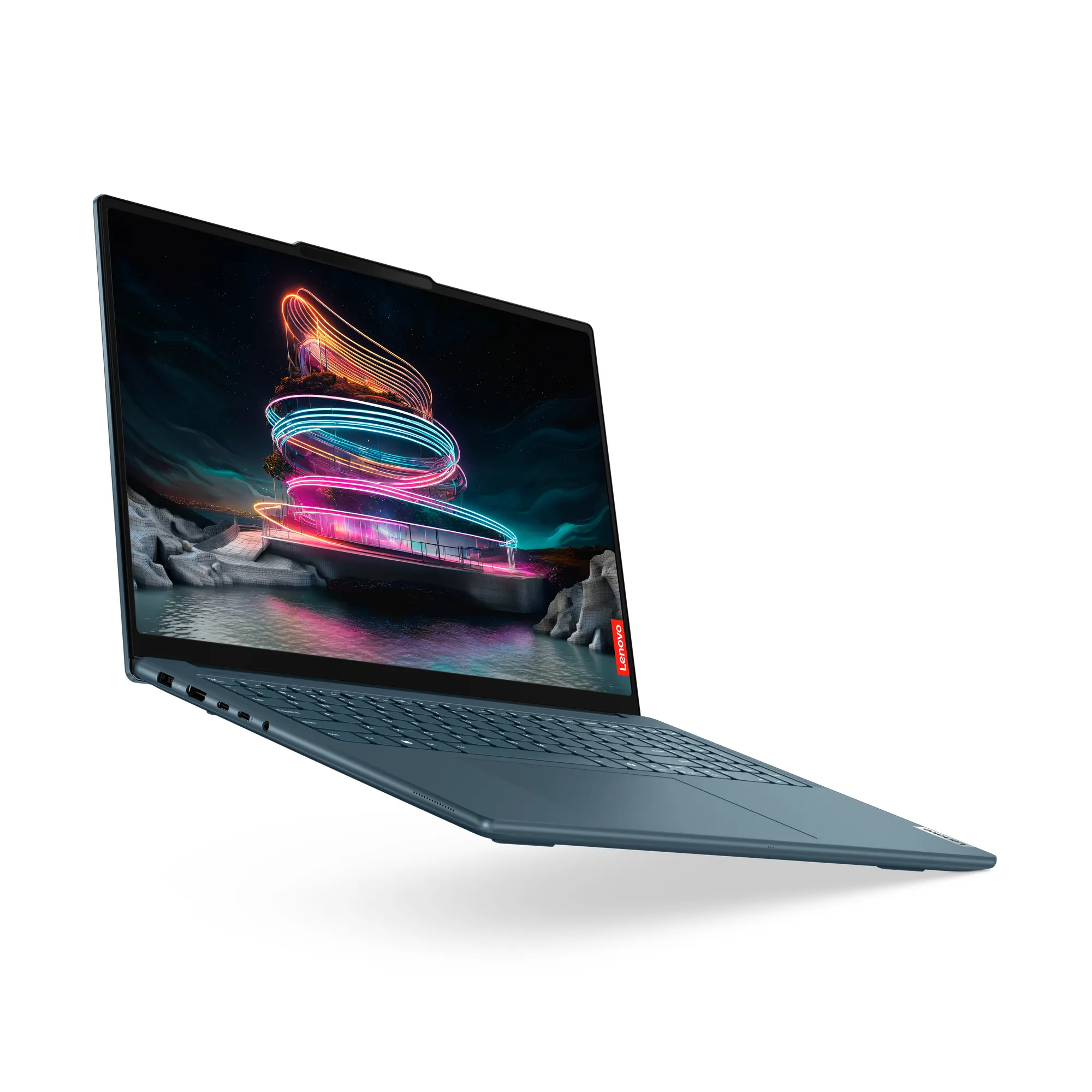

The Yoga Pro 9i’s 16" PureSight Pro display is your inspiring creator window to the world. Fitted with a grid of more than 1600 up to Mini-LED dimming zones, every image captures intense contrasts, spectacularly crisp HDR details, and exhilarating smooth motions, thanks to an up-to-165Hz refresh rate. The stunning 3.2K display is expertly calibrated to Delta E < 1, so you can see the truest representation of your work. Microsoft Auto Colour Management (ACM) toggles automatically between 100% P3, 100% sRGB, and 100% Adobe RGB colour gamuts to ensure you get the highest-quality colour possible.
Here comes the dream team
Joining forces with the supercharged Yoga Pro 9i’s powerful CPU is a GPU to match. Enjoy shorter rendering times and smoother motions with up to NVIDIA® GeForce RTX™ 4070 Series graphics. Every virtual world is incredibly detailed and amazingly realistic on the Ada Lovelace Architecture, unleashing ray tracing capabilities and AI-accelerated framerates. Alternatively, use the high performance Intel® Arc™ graphics to enjoy accelerated creation and immersive high-resolution gaming, even while on-the-go.
Premium Suite: The best of everything

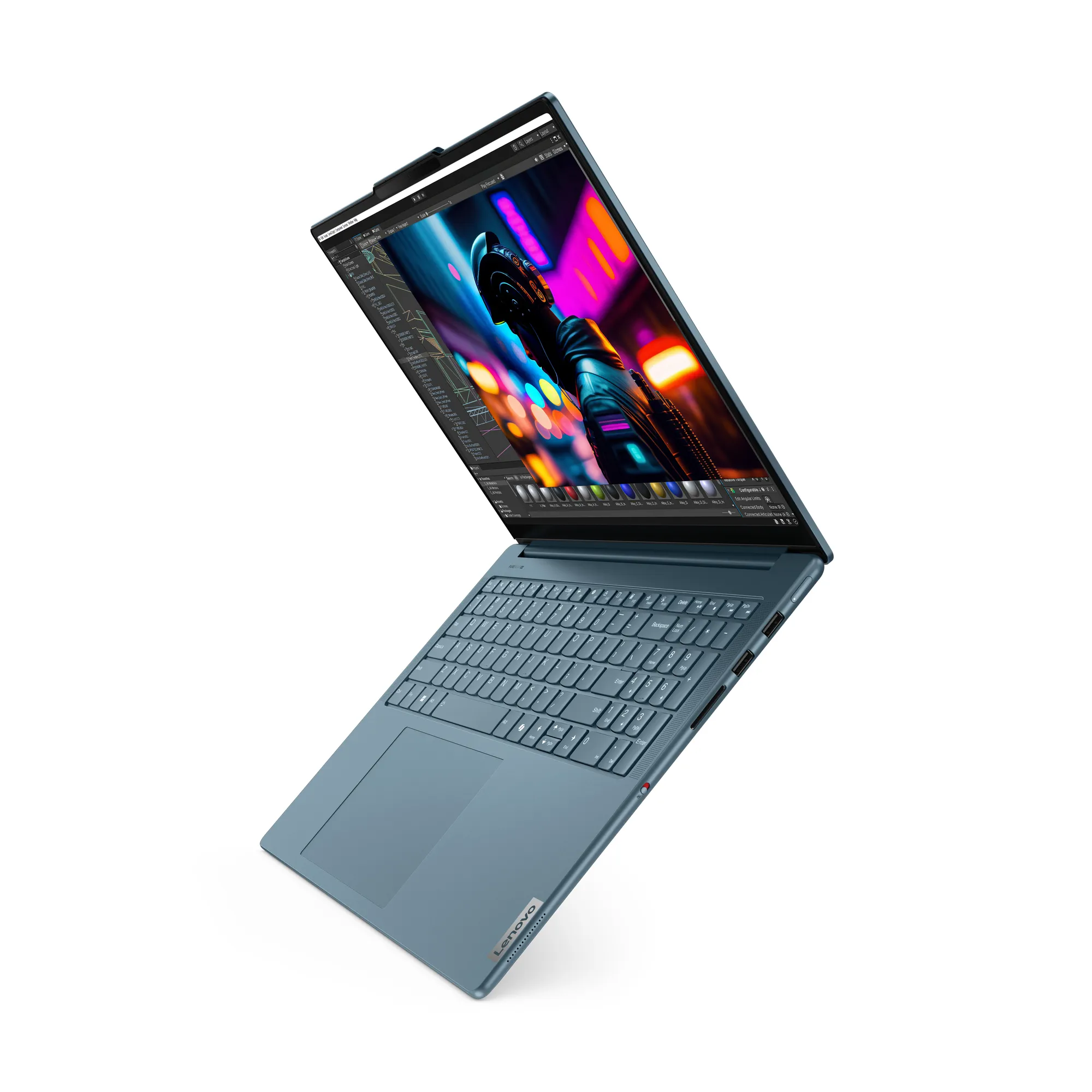

The Yoga Pro 9i’s Premium Suite gives you amazing ways to do more than ever. Command any room with four studio-grade, noise-cancelling microphones and look your best with the up-to-5MP IR camera. Immerse yourself in cinematic sound from six Dolby Atmos® speakers and never lose an inspiration with the intuitive, responsive 1.5mm Yoga Keyboard and enlarged touchpad.
Power couple

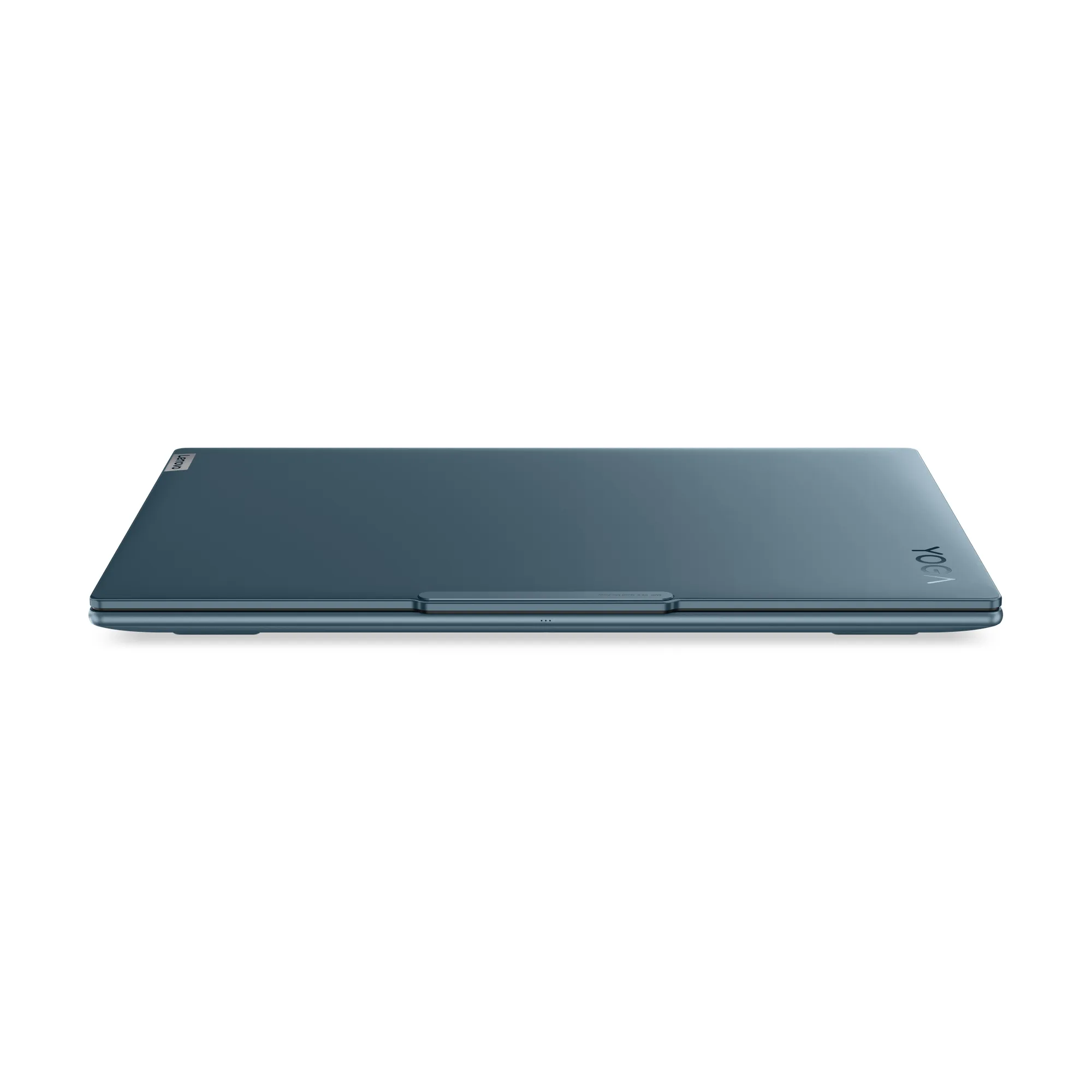

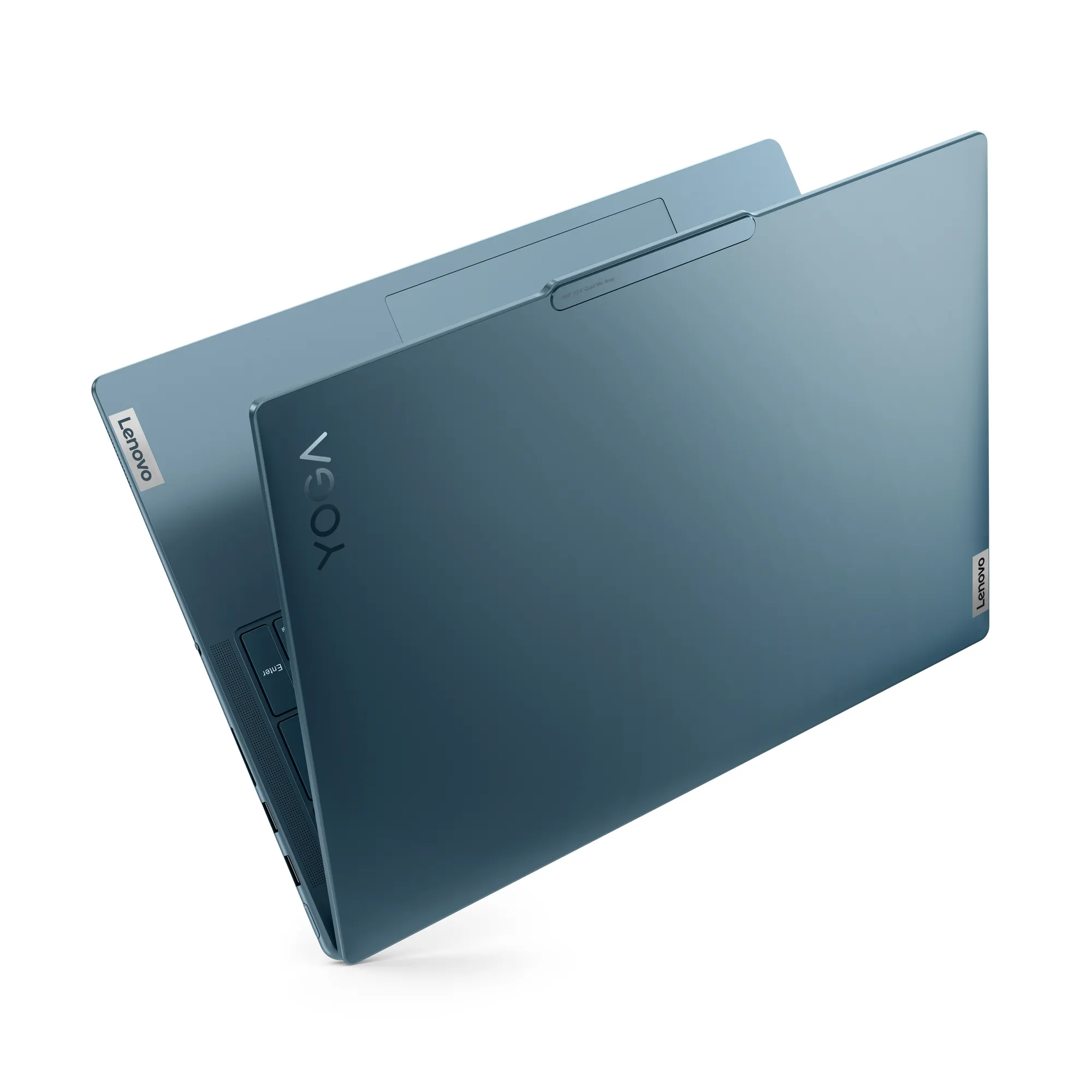

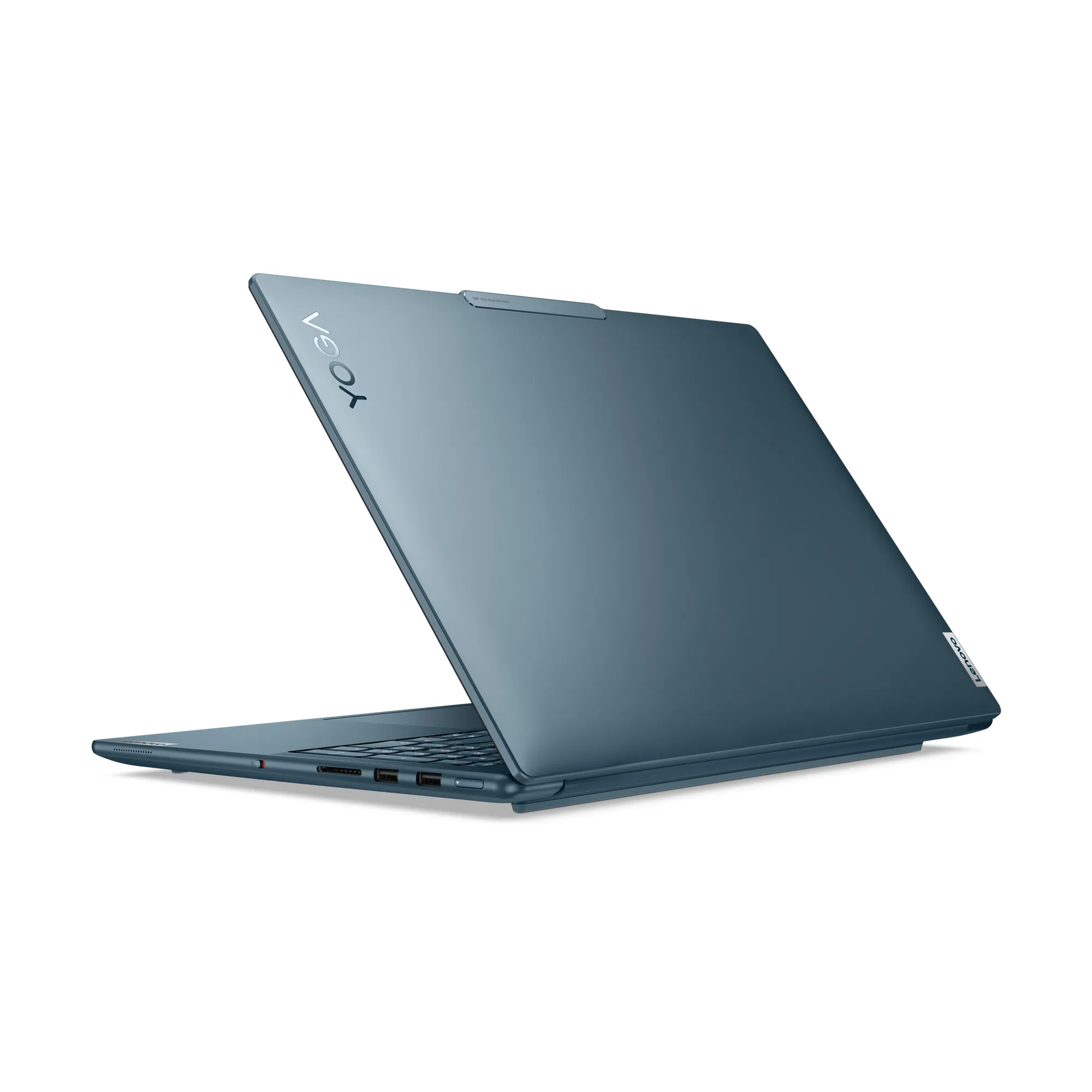

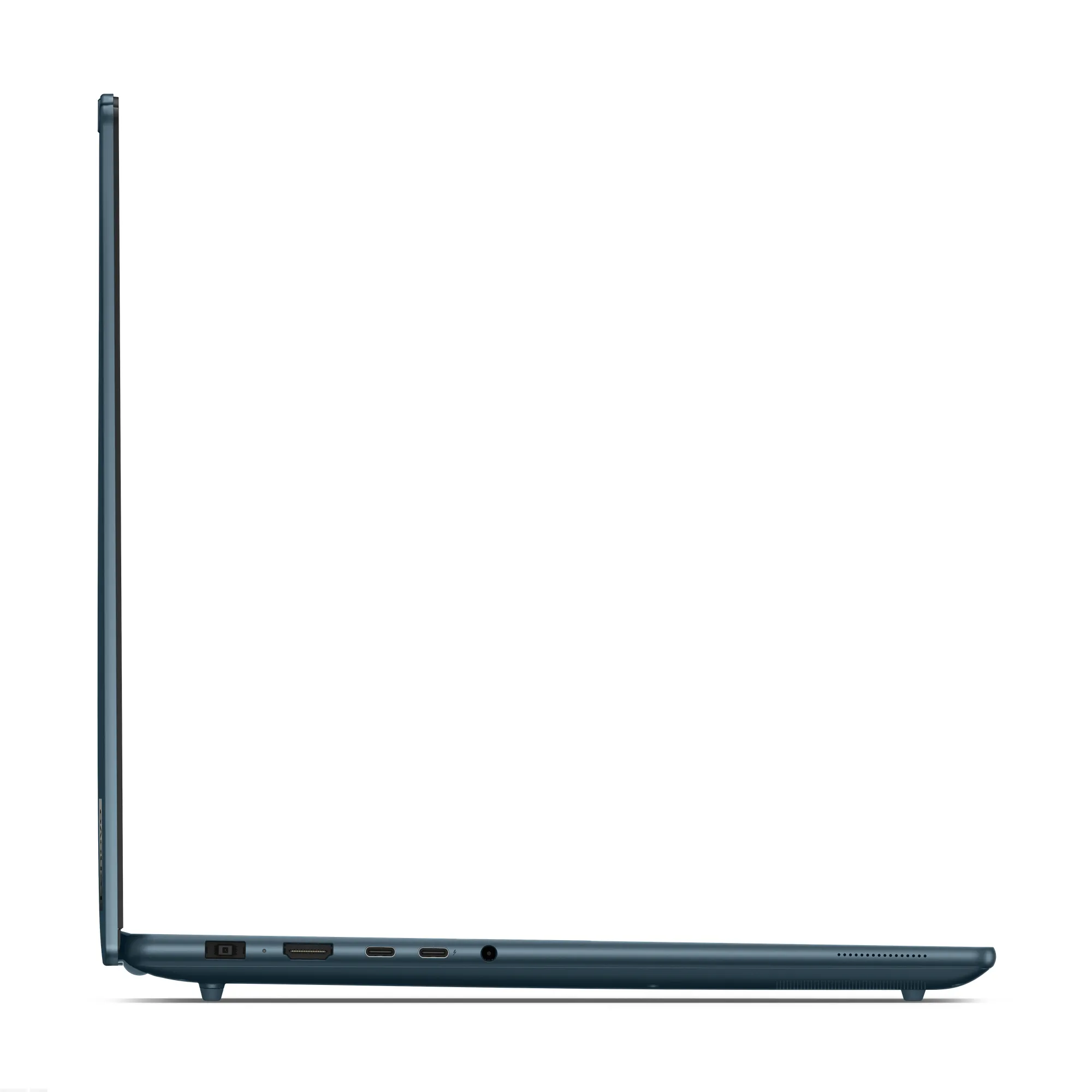

The slim Yoga Pro 9i laptop houses the studio of your dreams. Its sleek body boasts a comfort-edged design that supports your hand’s natural curves. You can make a statement with your choice of colours, an elegant Lunar Grey or a nature-inspired Tidal Teal. It also packs the connectivity you need to reimagine your workspace: Expand your storage with the SD card reader, connect to displays via HDMI, or transfer photos and videos with Intel® Thunderbolt™ 4.0. And never run out of juice with a high-capacity battery that charges up in a flash with Rapid Charge Express.
Sustainability is built in. And out.
A step towards a finer planet, the Carbon Neutral Certified*, EPEAT® Gold-registered**, and ENERGY STAR® rated Yoga Pro 9i 16″ achieves Plastic-Free Packaging with its dry-pressed paper pulp as cushioning and 100% bio-based bamboo fiber made system bag. It's built with 90% post-consumer recycled plastic for the black 100W power adapter case, 50% post-consumer recycled plastic in the keyboard, and 50% recycled aluminum in the bottom cover. All paper used in packaging is FSC™-certified and made from other controlled material for less undesirable environmental impact.
*Carbon Neutrality Certified by TÜV Rheinland.
**EPEAT-registered where applicable — see www.epeat.net for registration status by country.
***FSC License codes: C118727
Enjoy 3 months of Xbox Game Pass on Lenovo Yoga devices
Play over 100 high-quality games with your new Lenovo Yoga laptop and three months of Xbox Game Pass-including EA Play. With new games added all the time, there's always something new to play. Download and play in full fidelity or play console games from the cloud with a connected controller.
Specifications may vary depending upon region / model. Product images may differ from the latest design, but specifications remain unchanged.
