Key Specifications
Choose one or multiple features to search for items that have the same specifications.Processor | |
Processor manufacturer | Intel |
Compatible processor series | Intel Core Ultra (Series 2) |
Processor socket | LGA 1851 |
Memory | |
Maximum internal memory | 256 GB |
Supported memory types | DDR5 |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory clock speed (max) | 9600 MHz |
Weight & dimensions | |
Width | 305 mm |
Depth | 274 mm |
Networking | |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
Ethernet LAN | |
Bluetooth | |
Wi-Fi | |
Ethernet interface type | 10 Gigabit Ethernet |
Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
Internal I/O | |
USB 2.0 connectors | 4 |
CPU fan connector | |
ATX Power connector (24-pin) | |
Number of chassis fan connectors | 2 |
TPM connector | |
EPS power connector (8-pin) | |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 4 |
Number of SATA III connectors | 4 |
Audio connector | |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
RGB LED pin header | |
USB 3.2 Gen 2x2 connectors | 2 |
Back panel I/O ports | |
USB 2.0 ports quantity | 0 |
Ethernet LAN (RJ-45) ports | 2 |
Microphone in | |
S/PDIF out port | |
VGA (D-Sub) ports quantity | 0 |
DVI-D ports quantity | 0 |
WiFi-AP antenna jack | 2 |
HDMI ports quantity | 0 |
Thunderbolt ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 4 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 4 |
Storage controllers | |
RAID levels | 0, 1, 5, 10 |
RAID support | |
Supported storage drive interfaces | M.2, SATA III |
Expansion slots | |
Number of M.2 (M) slots | 6 |
PCI Express x16 (Gen 4.x) slots | 1 |
PCI Express x16 (Gen 5.x) slots | 2 |
BIOS | |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
Clear CMOS button | |
Graphics | |
Parallel processing technology support | CrossFire |
Features | |
Motherboard chipset | Intel Z890 |
Motherboard form factor | Extended ATX |
Product colour | White |
Audio output channels | 5.1 channels |
Motherboard chipset family | Intel |
Component for | PC |
Audio chip | Realtek ALC4082 |
EAN | 4710483949661 |
Pioneering the future

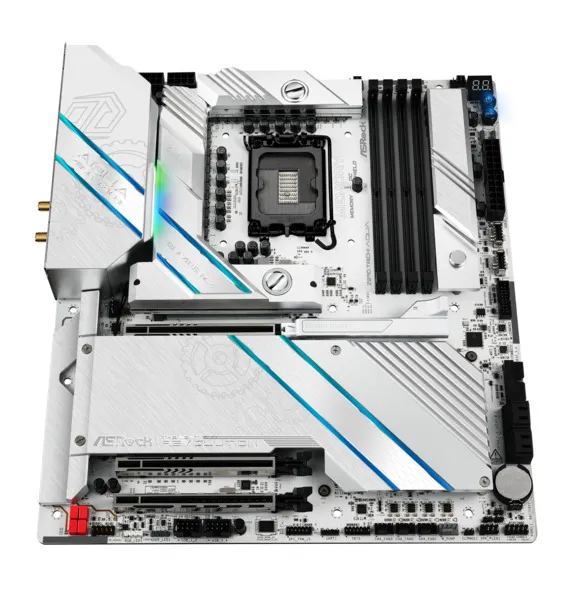

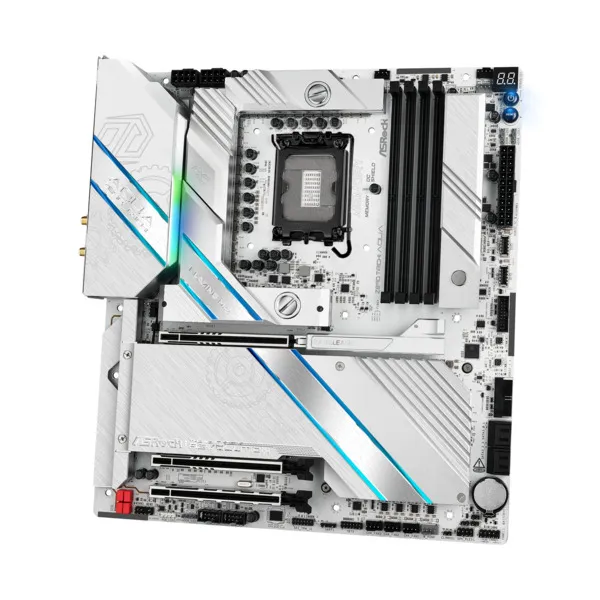

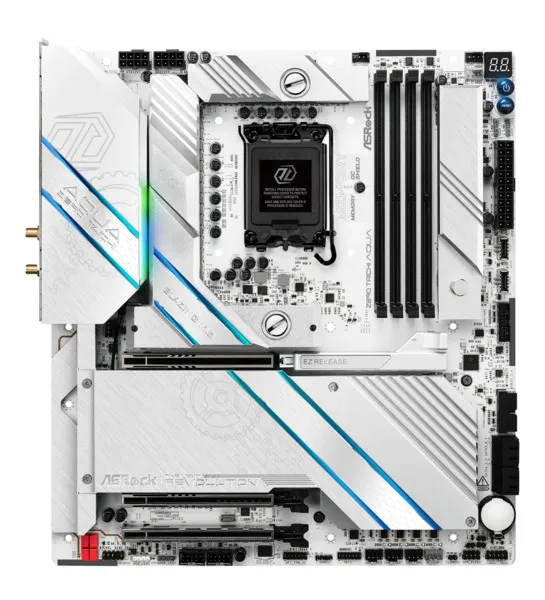

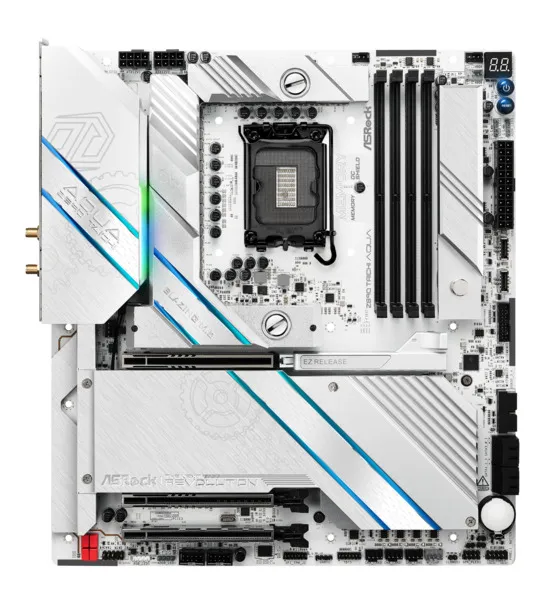

Z890 Taichi AQUA sets a new industry standard with its pioneering hybrid cooling design, featuring the first-ever detachable VRM and M.2 water block. Additionally, the innovative All USB Type-C On Rear IO configuration marks a leap forward in connectivity. Our mission is to lead the future and establish a new benchmark for top-tier motherboards.
A New Era of Taichi
ASRock's flagship motherboard lineup is undergoing a major overhaul, unifying water cooling, extreme overclocking, and all-around flagship models into a powerful Taichi family.
This expansion incorporates the highly acclaimed AQUA series water-cooling motherboards and OC Formula series overclocking motherboards, resulting in the Taichi AQUA for custom water cooling, Taichi OCF for extreme overclocking, and the all-around flagship Taichi/Taichi Lite.
This transformation refines product positioning, centralizing ASRock's flagship offerings under the Taichi brand to meet the diverse needs of high-end PC enthusiasts. This strategic combination enhances the brand's impact, delivering exponential synergy and reinforcing its status as a premier flagship motherboard brand.
