Asus GeForce RTX 4090 ROG Srtix OC Gaming Eva02 Edition 24GB - graphics card
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Processor | |
Graphics processor | GeForce RTX 4090 |
Maximum resolution | 7680 x 4320 pixels |
Parallel processing technology support | Not supported |
Maximum displays per videocard | 4 |
CUDA | ![]() |
CUDA cores | 16384 |
Graphics processor family | NVIDIA |
Processor boost clock speed | 2610 MHz |
Processor frequency (OC mode) | 2640 MHz |
Memory | |
Graphics card memory type | GDDR6X |
Memory bus | 384 bit |
Memory bandwidth (max) | 21 GB/s |
Discrete graphics card memory | 24 GB |
Ports & interfaces | |
Interface type | PCI Express x16 |
HDMI ports quantity | 2 |
HDMI version | 2.1a |
DisplayPorts quantity | 3 |
DisplayPort version | 1.4a |
Weight & dimensions | |
Height | 149.3 mm |
Width | 357.6 mm |
Depth | 70.1 mm |
Length | 357.6 mm |
Energy management | |
Minimum system power supply | 1000 W |
Supplementary power connectors | 1x 16-pin |
Design | |
Number of slots | 3.5 |
Product colour | Multicolour |
Illumination | ![]() |
Number of fans | 3 fan(s) |
Cooling type | Active |
Illumination colour | Multi |
Cooling technology | ASUS Axial-tech |
Performance | |
OpenGL version | 4.6 |
Dual Link DVI | ![]() |
HDCP | ![]() |
HDCP version | 2.3 |
EAN | 4711387246559 |
Warranty | 3 years |
ROG Strix GeForce RTX™ 4090 24GB GDDR6X OC EVA-02 Edition with DLSS 3 and chart-topping thermal performance.
ROG x EVANGELION - Designed by ROG. Tested by NERV. The Ultimate EVA.
Step into the future with the ROG Strix GeForce RTX 4090 OC EVA-02 Edition. Designed in collaboration with the EVANGELION project, this powerhouse graphics card boasts a stunning aesthetic inspired by EVA-02. The shroud and backplate feature intricate design elements, while the front ARGB panel showcases the iconic synchronization effect.

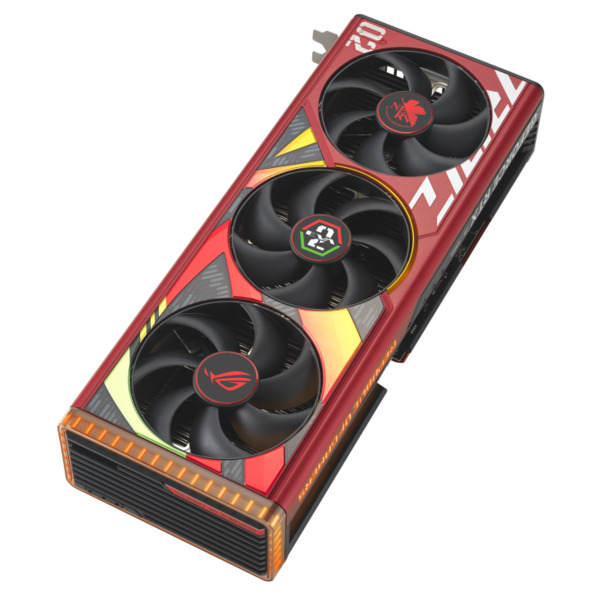

Axial-tech Upgrades
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Patented Vapor Chamber
A vapor chamber featuring milled pathways lets the heatpipes sink in without being pressed flat, allowing heat to be carried more efficiently to the fin stack. In comparison to conventional vapor chamber and heatpipe combos, this potent pairing reduces GPU temperature by up to 5 Celsius when subjected to a 500W thermal load.

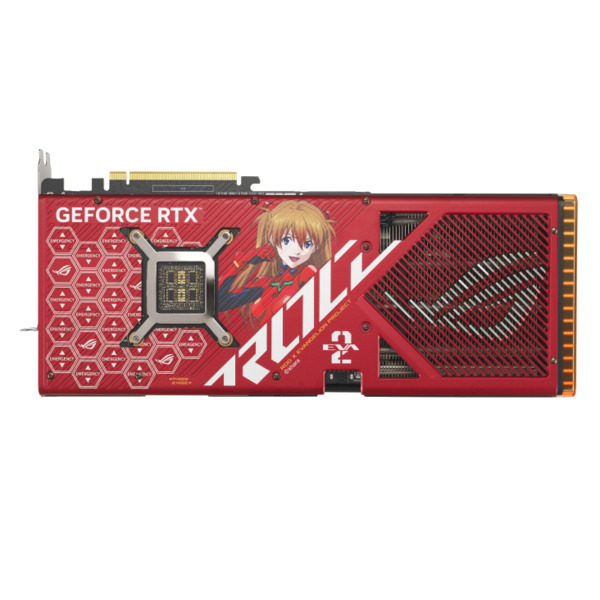

Metal Exoskeleton
A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.
