Key Specifications
Choose one or multiple features to search for items that have the same specifications.Processor | |
Processor manufacturer | Intel |
Maximum number of SMP processors | 1 |
Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
Processor socket | LGA 1700 |
Supported processor sockets | LGA 1700 |
Memory | |
Maximum internal memory | 128 GB |
Non-ECC | |
Supported memory clock speeds | 4800, 4600, 4400, 4266, 4200, 4000, 3800, 3733, 3600, 3466, 3400, 3333, 3200, 2933, 2666, 2400, 2133 MHz |
Supported memory types | DDR4 |
Memory channels | Dual-channel |
Memory slots type | DIMM |
Number of memory slots | 4 |
Supported memory clock speed (max) | 4800 MHz |
Weight & dimensions | |
Width | 243.8 mm |
Depth | 243.8 mm |
Networking | |
Ethernet LAN | |
Wi-Fi | |
Ethernet interface type | 2.5 Gigabit Ethernet |
Internal I/O | |
USB 2.0 connectors | 4 |
CPU fan connector | |
ATX Power connector (24-pin) | |
Front panel audio connector | |
TPM connector | |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
Number of SATA III connectors | 4 |
Front panel connector | |
RGB LED pin header | |

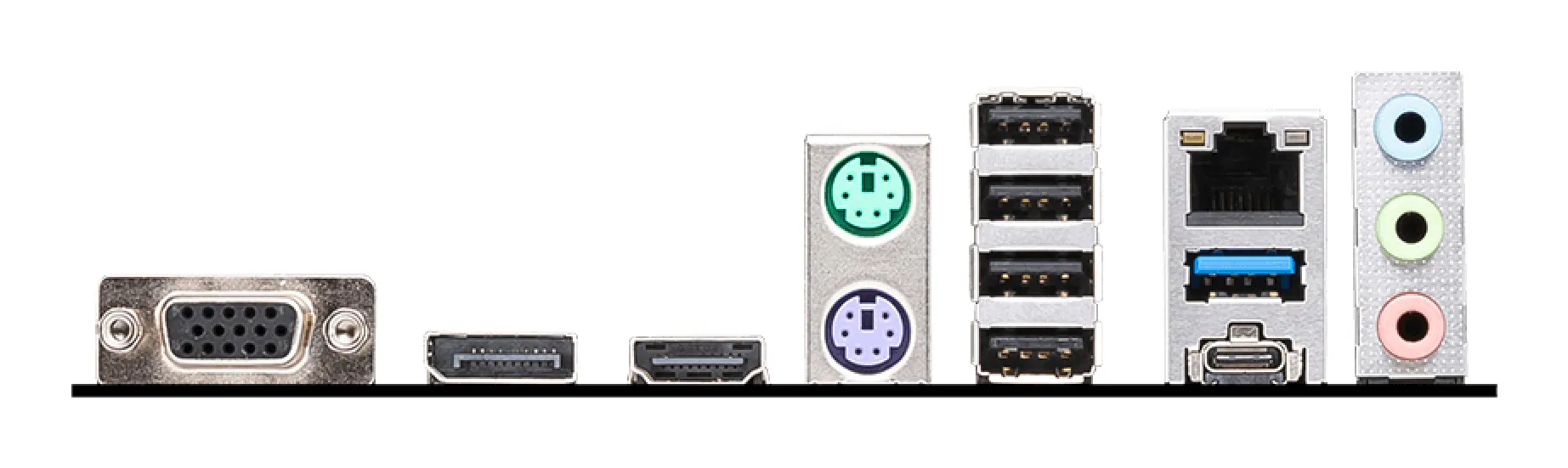

Back panel I/O ports | |
USB 2.0 ports quantity | 4 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 1.4 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
Storage controllers | |
RAID levels | 0, 1, 5, 10 |
RAID support | |
Supported storage drive interfaces | M.2, SATA III |
Expansion slots | |
PCI Express x1 (Gen 3.x) slots | 2 |
BIOS | |
BIOS memory size | 256 Mbit |
BIOS type | UEFI AMI |
System Management BIOS (SMBIOS) version | 3.5 |
Features | |
Motherboard chipset | Intel B760 |
Motherboard form factor | Micro ATX |
Product colour | Black |
Audio output channels | 7.1 channels |
Windows operating systems supported | Windows 10, Windows 11 |
Power source type | ATX |
Motherboard chipset family | Intel |
Component for | PC |
Audio chip | Realtek ALC897 |
EAN | 4711377030991 |
Warranty | 3 years |
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CONTROL IN ONE CLICK
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
AUTO DETECT YOUR FAN
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
