Processor | |
Processor model | i5-1145G7 |
Processor manufacturer | Intel |
Processor lithography | 10 nm |
Processor family | Intel Core i5 |
Processor cores | 4 |
Processor threads | 8 |
Built-in processor | |
Processor boost frequency | 4.4 GHz |
Processor cache | 8 MB |
CPU configuration (max) | 1 |
Thermal Design Power (TDP) | 28 W |
Processor generation | 11th gen Intel® Core™ i5 |
Memory | |
Maximum internal memory | 64 GB |
ECC | |
Number of DIMM slots | 2 |
Supported memory clock speeds | 3200 MHz |
Supported memory types | DDR4 |
Memory channels | Dual-channel |
Memory slots type | SO-DIMM |
Number of memory slots | 2 |
Audio | |
Built-in speaker(s) | |
Ports & interfaces | |
USB 2.0 ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
DC-in jack | |
HDMI ports quantity | 2 |
DisplayPorts quantity | 1 |
Thunderbolt ports quantity | 2 |
Internal USB 2.0 ports quantity | 2 |
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
Serial port via internal header | |
USB ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
Thunderbolt 3 ports quantity | 1 |
M.2 card slot (storage) | 2280 NVMe (M); 2242 SATA (B) |
M.2 card slot (wireless) | 2230 (E-key) (E) |
Weight & dimensions | |
Height | 37 mm |
Width | 117 mm |
Depth | 112 mm |
Energy management | |
Power supply type | External AC adapter |
Number of power supply units | 1 |
AC adapter output voltage | 12 - 24 V |
Power supply | 28 W |
Networking | |
Wi-Fi standards | Wi-Fi 6 (802.11ax) |
Ethernet LAN | |
Bluetooth | |
LAN controller | Intel I225-LM |
Wi-Fi | |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
WLAN controller model | Intel Wi-Fi 6 AX201 |
Storage | |
Storage drive interface | M.2 |
Number of storage drives supported | 2 |
Storage drive sizes supported | M.2 |
Supported storage drive types | SSD |
SSD form factor | M.2 |
Operating system/software | |
Compatible operating systems | Windows 10 IoT Enterprise*|Linux* |
Windows operating systems supported | Windows 10 x64, Windows 10 IoT Enterprise |
Linux operating systems supported | RedHat EL Linux, Ubuntu 20.04 LTS |
Expansion slots | |
PCI Express slots version | 4.0 |
Other features | |
DC input voltage | 12 - 20 V |
Launch date | Q1'21 |
Additional headers | Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector |
Design | |
Chassis type | UCFF |
Product colour | Black |
On/off switch | |

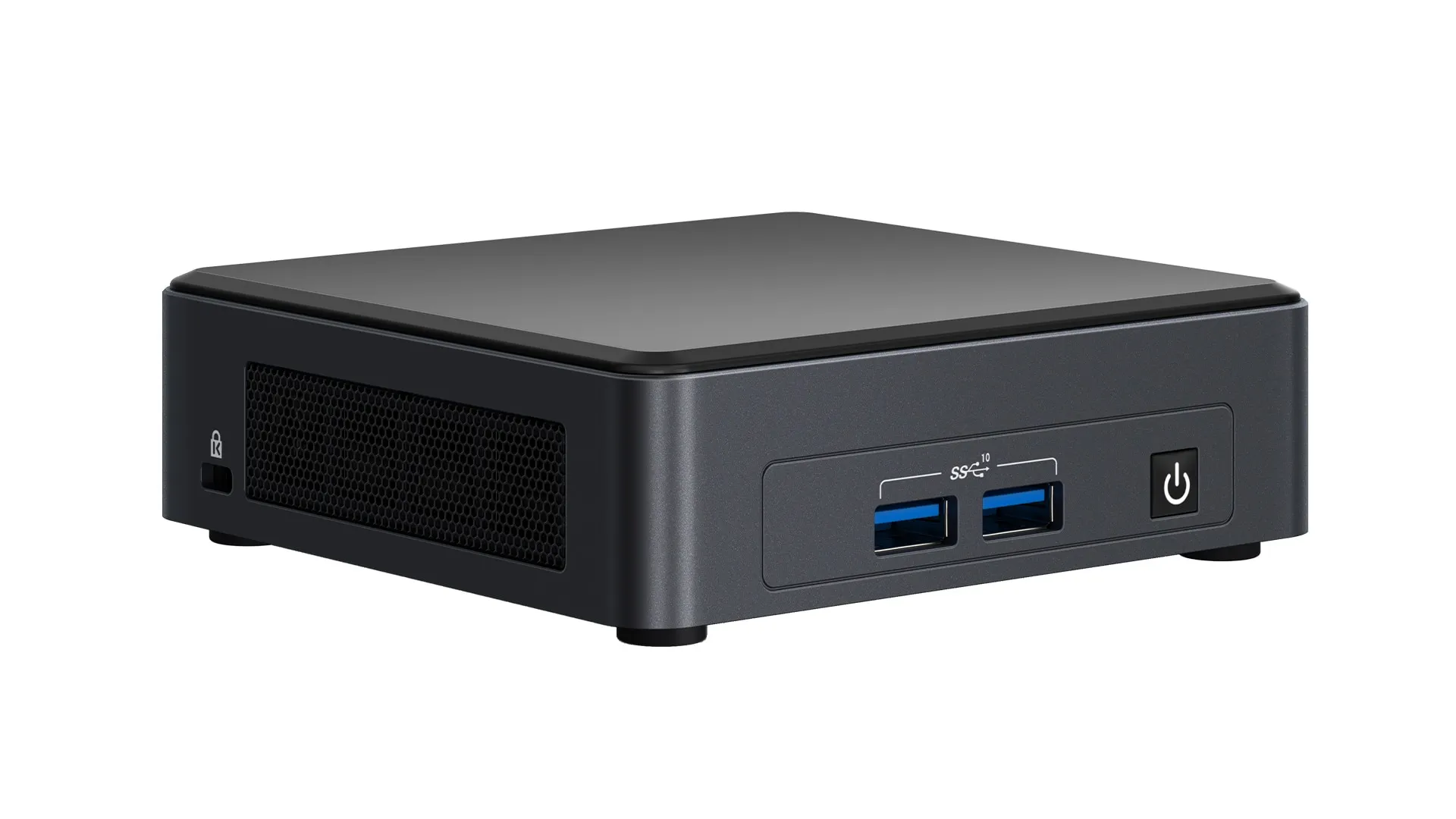

Product type | Mini PC barebone |
Status | Launched |
ARK ID | 205597 |
Graphics | |
Graphics card family | Intel |
On-board graphics card model | Intel Iris Xe Graphics |
Discrete graphics card model | Not available |
On-board graphics card | |
Number of displays supported | 4 |
Processor special features | |
Intel® AES New Instructions (Intel® AES-NI) | |
Idle States | |
Intel Trusted Execution Technology | |
Intel VT-x with Extended Page Tables (EPT) | |
Embedded options available | |
Intel Stable Image Platform Program (SIPP) | |
Intel ME Firmware Version | 15 |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Virtualization Technology (VT-x) | |
Intel® Optane™ Memory Ready | |
Intel® vPro™ Platform Eligibility | |
Performance | |
Motherboard form factor | UCFF |
Trusted Platform Module (TPM) | |
Trusted Platform Module (TPM) version | 2.0 |
Export Control Classification Number (ECCN) | 5A992C |
Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
Logistics data | |
Harmonized System (HS) code | 84713000 |
EAN | 5032037204736 |
Warranty | 1 year |
Source: Icecat.biz |
Intel® Virtualization Technology for Directed I/O (VT-d)
Intel® Virtualization Technology for Directed I/O (VT-d) continues from the existing support for IA-32 (VT-x) and Itanium® processor (VT-i) virtualization adding new support for I/O-device virtualization. Intel VT-d can help end users improve security and reliability of the systems and also improve performance of I/O devices in virtualized environments.
Intel vPro® Platform Eligibility
The Intel vPro® platform is a set of hardware and technologies used to build business computing endpoints with premium performance, built-in security, modern manageability and platform stability.
Intel® ME Firmware Version
Intel® Management Engine Firmware (Intel® ME FW) uses built-in platform capabilities and management and security applications to remotely manage networked computing assets out-of-band.
TPM
Trusted Platform Module (TPM) is a component on the desktop board that is specifically designed to enhance platform security above-and-beyond the capabilities of today's software by providing a protected space for key operations and other security critical tasks. Using both hardware and software, the TPM protects encryption and signature keys at their most vulnerable stages - operations when the keys are being used unencrypted in plain-text form.
TPM Version
TPM (Trusted Platform Module) is a component that provides hardware level security upon system boot-up via stored security keys, passwords, encryption and hash functions.
Intel® Virtualization Technology (VT-x)
Intel® Virtualization Technology (VT-x) allows one hardware platform to function as multiple “virtual” platforms. It offers improved manageability by limiting downtime and maintaining productivity by isolating computing activities into separate partitions.
