Chieftec GPX Power Up 650W - Power supply, 80 Plus Gold

Manufacturer: CHIEFTEC
ID: GPX-650FC
Choose the version of your product
10490€ Show VAT 0% Show VAT 25,5%
Estimated delivery: 26.11
2pcs available at remote stock
Select your store
Order and pick up in 3-5 days Open today: 10:00 - 18:00 About this store
Order and pick up in 3-5 days Open today: 09:00 - 17:00 About this store
Order and pick up in 3-5 days Open today: 10:00 - 18:00 About this store
Order and pick up in 3-5 days Open today: 10:00 - 17:00 About this store
Order and pick up in 3-5 days Open today: 10:00 - 18:00 About this store
Order and pick up in 3-5 days Open today: 10:00 - 18:00 About this store
Order and pick up in 3-5 days Open today: 10:00 - 18:00 About this store
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
PCI Express connectorcheckmark
Motherboard power connector20+4 pin ATX
Floppy drive power connector1
Number of SATA power connectors9
Peripheral (Molex) power connectors (4-pin)3
CPU power connector (4+4 pin)checkmark
PCI Express power connectors (6+2 pin)2

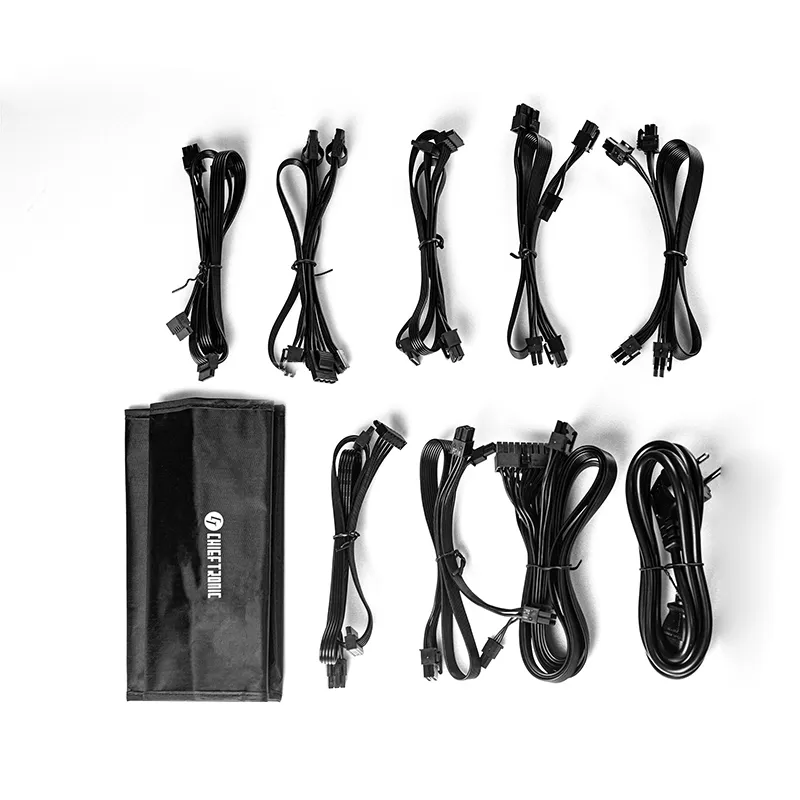

Cabling typeFully-Modular
Motherboard power cable length65 cm
SATA power cable length500,650,800 mm
CPU power cable length80 cm
Peripheral (Molex) power cable length500,650,800,950 mm
PCI Express power cable length50 cm
Weight & dimensions
Weight2.2 kg
Height86 mm
Width150 mm
Depth140 mm
Energy management
Input current10 A
Nominal power650 W
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)100 W
Combined power (+12V)648 W
Combined power (+5V)100 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)12.5 W
Max output current (+3.3V)20 A
Max output current (+12V)54 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)2.5 A
AC input frequency47 - 63 Hz
AC input voltage100 - 240 V
Total power650 W
Packaging data
Package weight2.75 kg
Certificates
80 PLUS certification80 PLUS Gold
Design
Product colourBlack
Number of fans1 fan(s)
Cooling typeActive
Fan diameter12 cm
Performance
Certification80PLUS Gold
PurposePC
ATX version2.53
Power supply unit (PSU) form factorATX
EAN753263077189
Warranty5 years

With the PowerUp series, Chieftec aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.

A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very large gaming cases.
