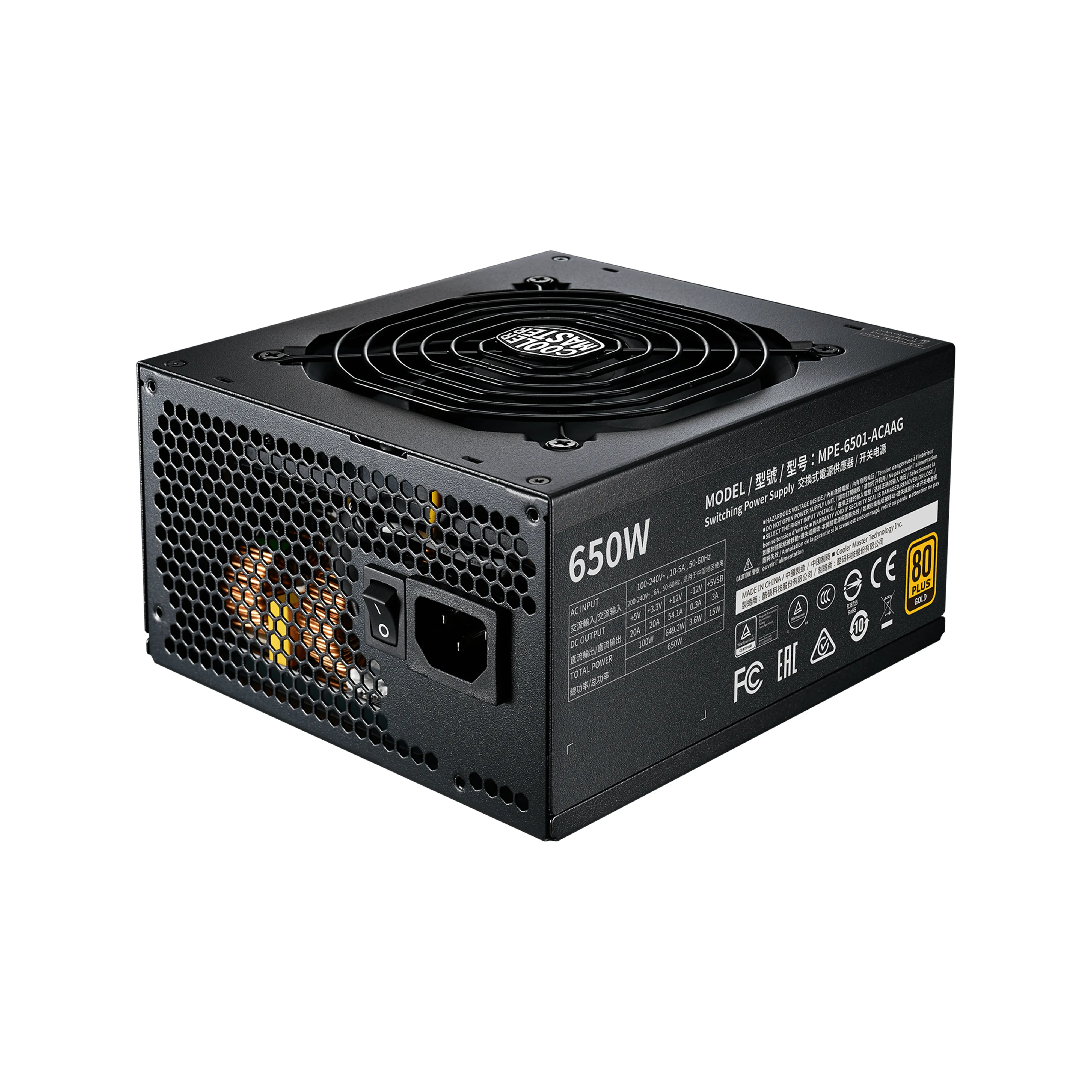

Cooler Master MWE V2 Gold 650W - Power supply, 80 Plus Gold

Manufacturer: COOLER MASTER
ID: MPE-6501-AFAAG-EU
Choose the version of your product
11290€ Show VAT 0% Show VAT 25,5%
Estimated delivery: 28.11 - 29.11
5pcs available at remote stock
Select your store
Order and pick up in 5-7 days Open today: 10:00 - 18:00 About this store
Order and pick up in 5-7 days Open today: 09:00 - 17:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 18:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 17:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 18:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 17:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 18:00 About this store
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Motherboard power connector24-pin ATX
Number of SATA power connectors8
Peripheral (Molex) power connectors (4-pin)4
EPS power connector (8-pin)checkmark
PCI Express power connectors (6+2 pin)4
Cabling typeFully-Modular
Motherboard power cable length61 cm
SATA power cable length740,620,500,860 mm
Peripheral (Molex) power cable length740,620,500,860 mm
PCI Express power cable length67 cm
Weight & dimensions
Weight2.17 kg
Height86 mm
Width150 mm
Depth160 mm
Energy management
Input current4 - 8 A
Nominal power650 W
Efficiency90%
Hold time16 ms
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)100 W
Combined power (+12V)649.2 W
Combined power (+5V)100 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)54.1 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
AC input frequency47 - 63 Hz
AC input voltage90 - 264 V
Total power650 W
Power Good signal delay range100 - 500 ms
Operational conditions
Operating temperature (T-T)0 - 50 °C
Packaging data
Package weight2.57 kg
Package depth310 mm
Package height120 mm
Package width194 mm
Certificates
80 PLUS certification80 PLUS Gold
Design
Product colourBlack
Number of fans1 fan(s)
Cooling typeActive
Fan diameter12 cm
Fan speed0 - 1500 RPM
Performance
CertificationErP 2014 Lot 3, TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI
Mean time between failures (MTBF)100000 h
Noise level23.4 dB
PurposePC/Server
Bearing technologyHDB
ATX version2.41
Power supply unit (PSU) form factorATX
Logistics data
Products per pallet16 pc(s)
Master (outer) case height220 mm
Master (outer) case width325 mm
Master (outer) case length620 mm
Products per master (outer) case5 pc(s)
EAN4719512105597

FULL MODULAR 80 PLUS GOLD ATX POWER SUPPLY UNIT
Power Up
The MWE Gold - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the original version in the places where users will see the most immediate benefit.

80 Plus Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold - V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.

2 EPS Connectors
All MWE Gold - V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you'll have enough connectors to use your ideal components.

Quiet Cooling
The MWE Gold - V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.

High Temperature Resilience
While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what's possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply can take the heat.

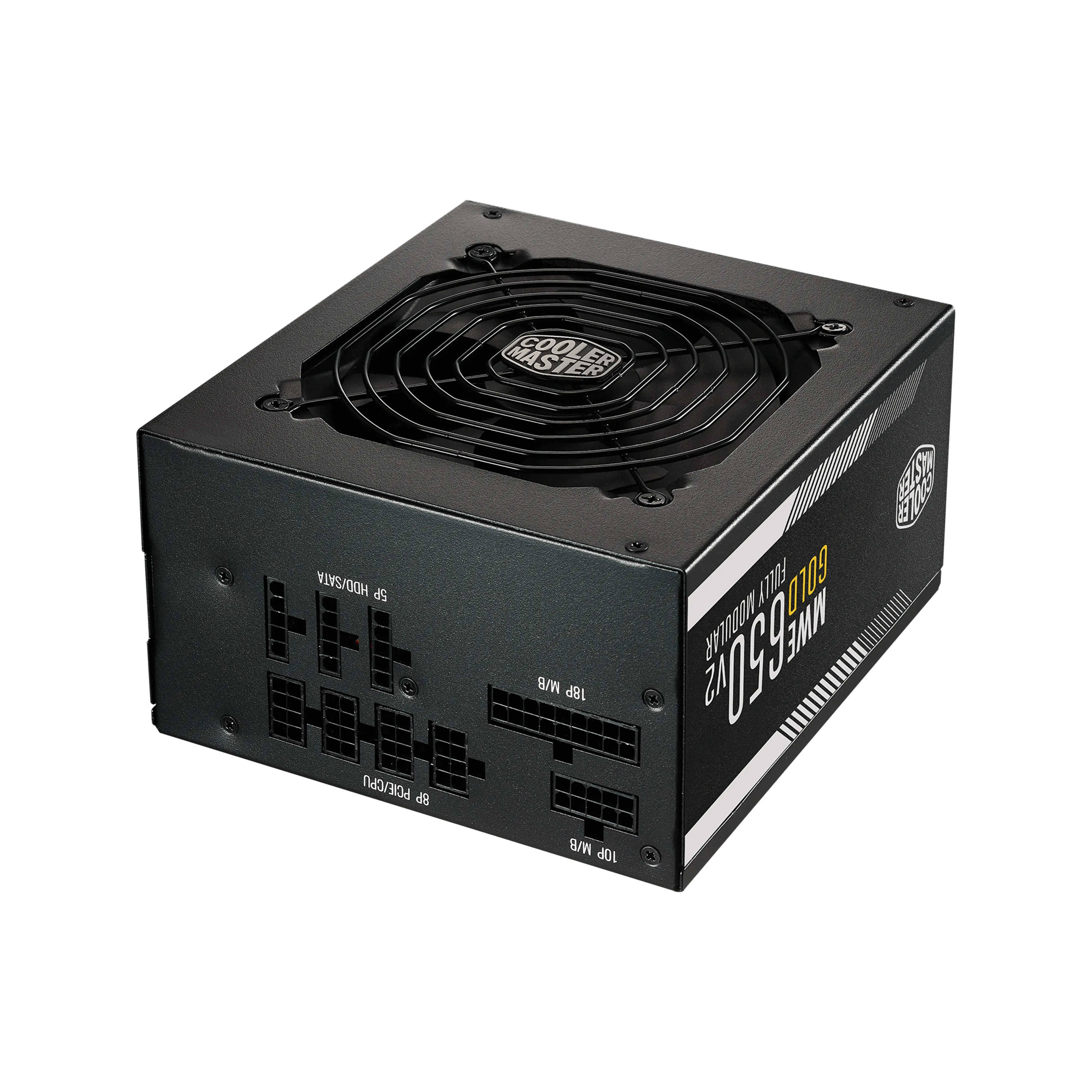

Full Modular Cabling
The full modular version of the MWE Gold - V2 comes with a set of flat black cables that can be customized to each user's individual needs. With a full modular setup, each system only needs to include the cables required for its individual components. The rest of the cables can be put aside for future upgrades and maintenance. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system's overall cooling. Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system.
