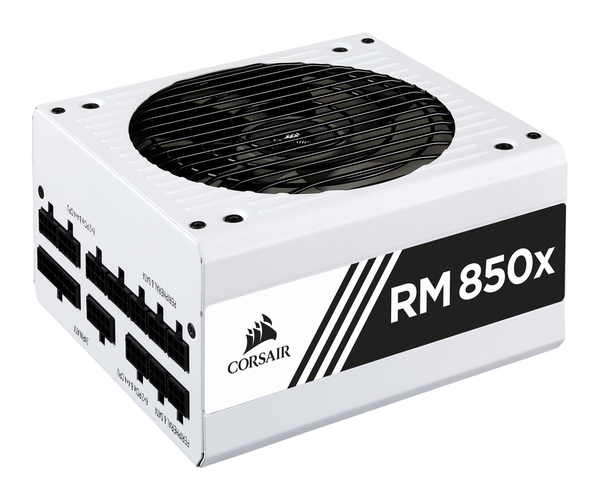

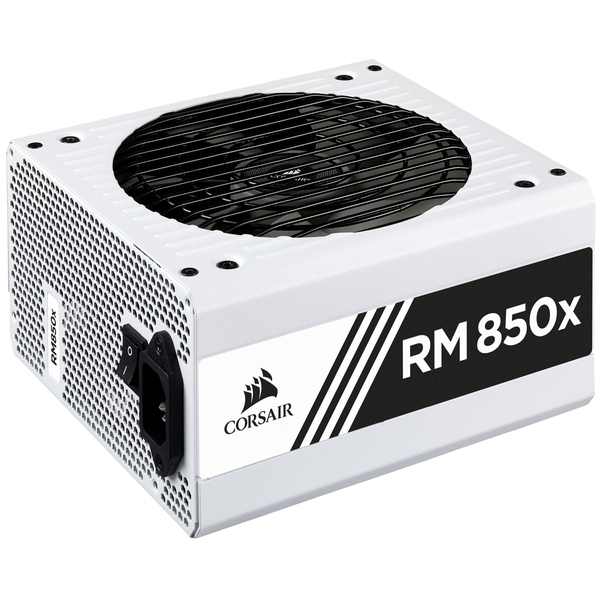

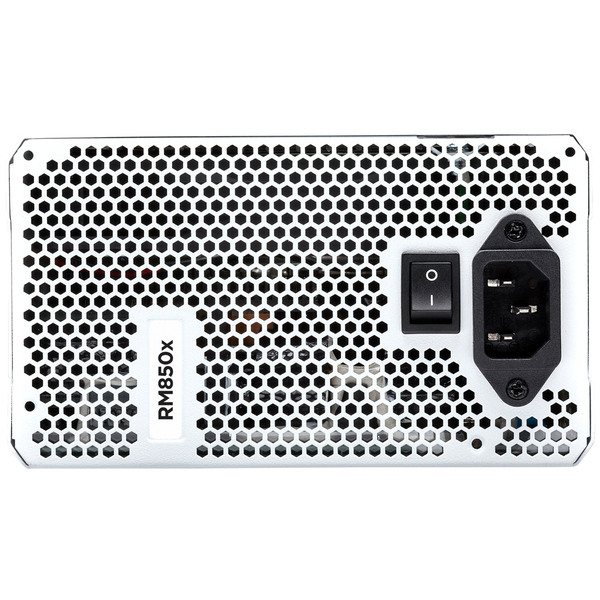

Corsair RMx White Series RM850x 850W - Power supply, 80 Plus Gold
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
PCI Express connector | |
Motherboard power connector | 20+4 pin ATX |
Number of SATA power connectors | 10 |
EPS power connector (8-pin) | |
ATX power connector (20+4 pin) | |
PCI Express power connectors (6+2 pin) | 6 |
Cabling type | Modular |
Weight & dimensions | |
Weight | 1.6 kg |
Height | 86 mm |
Width | 150 mm |
Depth | 160 mm |
Length | 150 mm |
Energy management | |
Input current | 12A-6A |
Nominal power | 850W |
Combined power (+3.3V) | 150W |
Combined power (+12V) | 850 W |
Combined power (+5V) | 150W |
Combined power (-12V) | 9.6W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 25 A |
Max output current (+12V) | 70.8 A |
Max output current (+5V) | 25 A |
Max output current (-12V) | 0.8 A |
Max output current (+5Vsb) | 3 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 100 - 240 V |
Total power | 850 W |
Packaging data | |
Case badge included | |
Certificates | |
80 PLUS certification | 80 PLUS Gold |
Packaging content | |
Cables included | AC |
Manual | |
Cooling | |
Number of fans | 1 |
Cooling type | Active |
Fan location | Top |
Other features | |
Screws included | |
Cable ties included | |
Design | |
Product colour | White |
On/off switch | |
Fan diameter | 13.5 cm |
Performance | |
Mean time between failures (MTBF) | 100000 h |
Purpose | PC |
Bearing technology | Rifle |
ATX version | 2.4 |
EPS version | 2.92 |
Power supply unit (PSU) form factor | ATX |
EAN | 0843591075671 |
Warranty | 1 year |
PRISTINE WHITE CASING
Now available in an elegant white finish to make your build truly stand out.
TUNED FOR LOW NOISE OPERATION
A specially set fan curve ensures that, even at full load, fan noise is kept to a minimum.
80 PLUS GOLD CERTIFIED
The RMx White can deliver power with over 90% efficiency, lowering energy consumption, noise, temperatures, and your power bill.
100% ALL JAPANESE CAPACITORS
By using high-end electrolytic capacitors, the RM850x delivers the unwavering power and long-term reliability you’ve come to expect from a CORSAIR power supply.

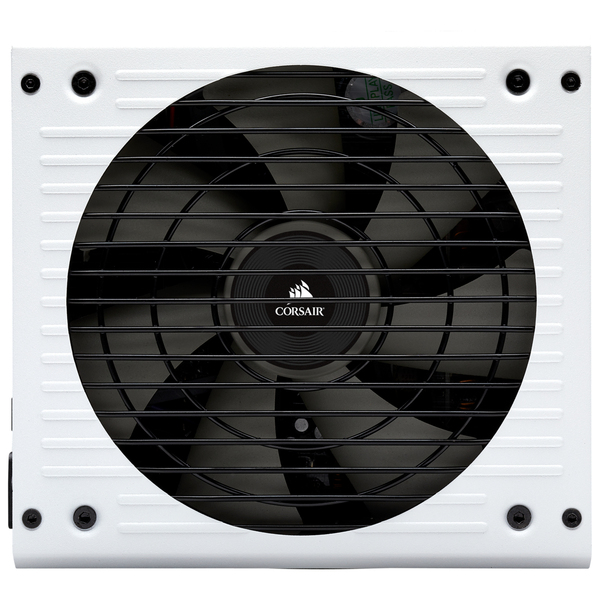

ZERO RPM FAN MODE
At low and medium loads the RM850x’s cooling fan doesn’t spin until you need it, for near-silent operation.

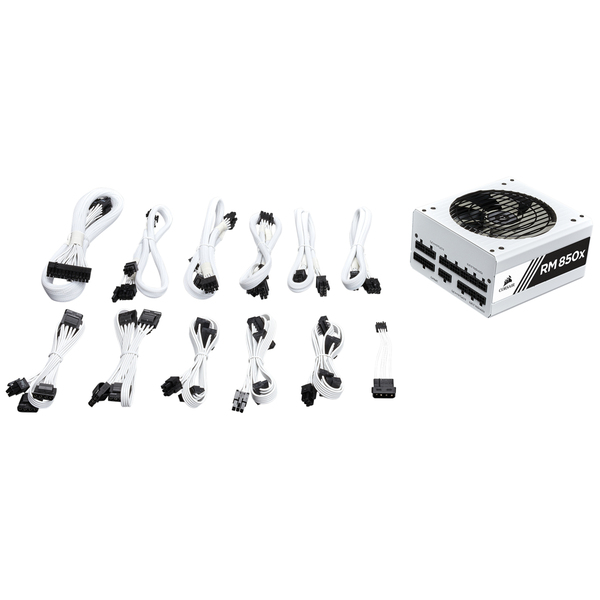

FULLY MODULAR, FLAT CABLES
Flexible fully modular, flat white cables mean that you only connect the cables your system needs, making clean and tidy builds easier.
