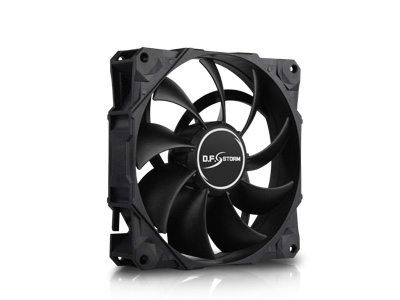

Enermax 120mm D.F. Storm DFR

Manufacturer: ENERMAX
ID: UCDFS12P
Product unavailable
This product is end of life or currently not available.

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Weight & dimensions
Height120 mm
Width120 mm
Depth25 mm
Energy management
Maximum current13.2 A
Voltage12 V
Packaging content
Number of screws8
Screws includedcheckmark
Design
Product colourBlack
Performance
TypeFan
Mean time between failures (MTBF)160000 h
Number of fans1 fan(s)
Airflow263.48 m³/h
Fan diameter12 cm
Suitable forComputer case
Maximum airflow155.08 cfm
Minimum airflow (imperial)74.47 cfm
Minimum air pressure123.12 mmH2O
Maximum air pressure263.48 mmH2O
Noise level (low speed)23 dB
Noise level (high speed)38 dB
Fan connector4-pin
Rotational speed (max)3500 RPM
Rotational speed (min)1500 RPM
EAN4713157722225
Warranty1 year
Source: Icecat.biz

D.F. STORM – a high speed 3,500 RPM fan, equipped with leading Twister Bearing technology. This industrial-grade fan features the patented DFRTM technology, which allows the fan to blow away dust to prolong its lifespan. D.F. STORM also incorporates the patented APS PWM control for 3 different RPM ranges: 1500-2200/2800/3500, enabling users to adjust the fan speed range according to their system needs.

3,500 RPM for industrial application
Designed for extreme applications and conditions (hardcore gaming rigs, servers, industrial systems, supercomputing, etc). The maximum 3,500 RPM is set for extraordinary high cooling performance.

Storm-Flow blades generate +30% airflow and enhance airflow momentum
Innovative Storm-Flow blade design comes with sophisticated inclination inlet & outlet angles,
which generates up to 30% more airflow than normal blades. The extremely strong airflow (up to 263.48m3/h) and high static pressure (up to 11.13mm-H2O) make D.F. STORM ideal for extreme applications

Patented APS (Adjustable Peak Speed) with control switch provides 3 peak RPM options
With LED indicator and the APS switch, users can easily indentify the current RPM setting

Patented Twister Bearing technology for long lifetime and low noise
Smooth and persistently reliable operation thanks to the patented Twister Bearing technology.
Along with more industrial grade components (double-layer PCB, larger magnet, etc.) to ensure 160,000 hours MTBF even at high operating temperatures..
