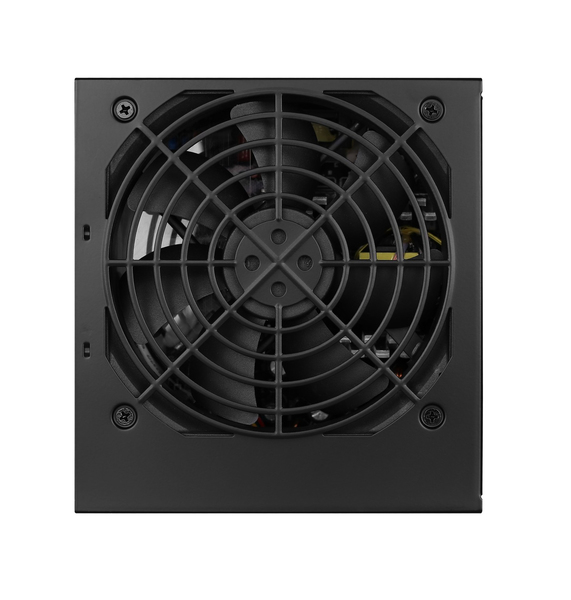

Cooler Master 600W MasterWatt Lite Series - Power supply
This product is end of life or currently not available.
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
Floppy disk drive connector | ![]() |
Motherboard power connector | 20+4 pin ATX |
Floppy drive power connector | 1 |
Number of SATA power connectors | 6 |
Peripheral (Molex) power connectors (4-pin) | 3 |
CPU power connector (4+4 pin) | ![]() |
PCI Express power connectors (6+2 pin) | 2 |
Weight & dimensions | |
Height | 86 mm |
Width | 150 mm |
Depth | 140 mm |
Energy management | |
Input current | 3.5 - 5 A |
Nominal power | 600 W |
Efficiency | 85% |
Hold time | 10 ms |
Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage |
Power factor | 0.9 |
Power Factor Correction (PFC) type | Active |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 525 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 3.6 W |
Combined power (+5Vsb) | 12.5 W |
Max output current (+3.3V) | 20 A |
Max output current (+12V) | 46 A |
Max output current (+5V) | 20 A |
Max output current (-12V) | 0.3 A |
Max output current (+5Vsb) | 2.5 A |
AC input frequency | 47 - 63 Hz |
AC input voltage | 200 - 240 V |
Total power | 600 W |
Power Good signal delay range | 100 - 500 ms |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 °C |
Packaging data | |
Package weight | 1.77 kg |
Cables included | AC |
Package depth | 227 mm |
Package height | 120 mm |
Package width | 238 mm |
Design | |
Product colour | Black |
Number of fans | 1 fan(s) |
On/off switch | ![]() |
Cooling type | Active |
Fan diameter | 12 cm |
Performance | |
Certification | TUV/CE/FCC/BSMI/cTUV-Rhus/KC/CCC/EAC/RCMC/ErP 2013 |
Mean time between failures (MTBF) | 100000 h |
Purpose | PC |
ATX version | 2.31 |
80 PLUS certification | 80 PLUS |
Noise level (quiet mode, 50%) | 21.9 dB |
Noise level (full-load mode, 100%) | 33.2 dB |
Power supply unit (PSU) form factor | ATX |
EAN | 4719512055618 |
Warranty | 1 year |
Power on. We want the MasterWattLite Series to be that simple. In the box are all the essentials of a reliable engine so you don't have to think about it. We added higher-end perks like Active PFC and PWM technology for more stability, and made sure we met ErP2013 and CE ratings for safety and low energy impact. It's the survival kit for reliable, affordable power.
Lighten the Load
Power on. We want the MasterWatt Lite Series to be that simple. In the box are all the essentials of a reliable engine so you don't have to think about it. We added higher-end perks like Active PFC and PWM technology for more stability, and made sure we met ErP 2013 and CE ratings for safety and low energy impact. It's the survival kit for reliable, affordable power.
Advanced Circuit Design
Active PFC + PWM combined with dual forward topology and double EMI filter enhances power output efficiency and increases the performance and stability of your system
Silent and Durable Fan
Cooler Master's 120mm HDB temperature control fan can operate more smoothly without friction, which makes it quiet and more durable.
Green Power
Certified by ErP 2013 Lot6, which guarantees that your PSU will use less than 1W on system standby and lower than 45% transferring efficiency on 5V standby.
Safety Guardian
Full protection (OCP/OVP/SCP/OPP) with built-in Over Temperature Protection (OTP). Minimizes the risk of damage from power outages.
