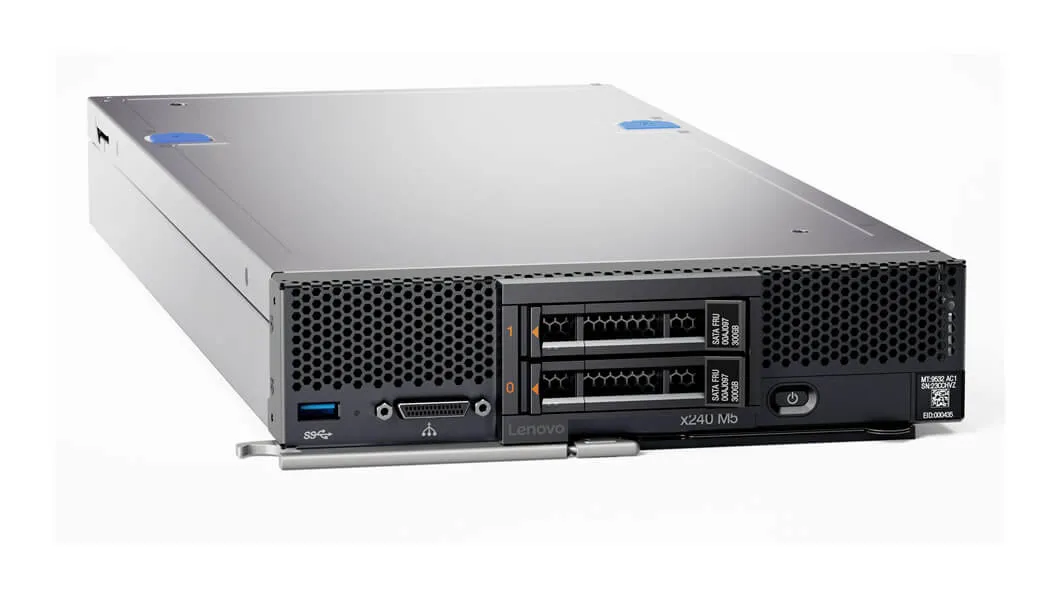

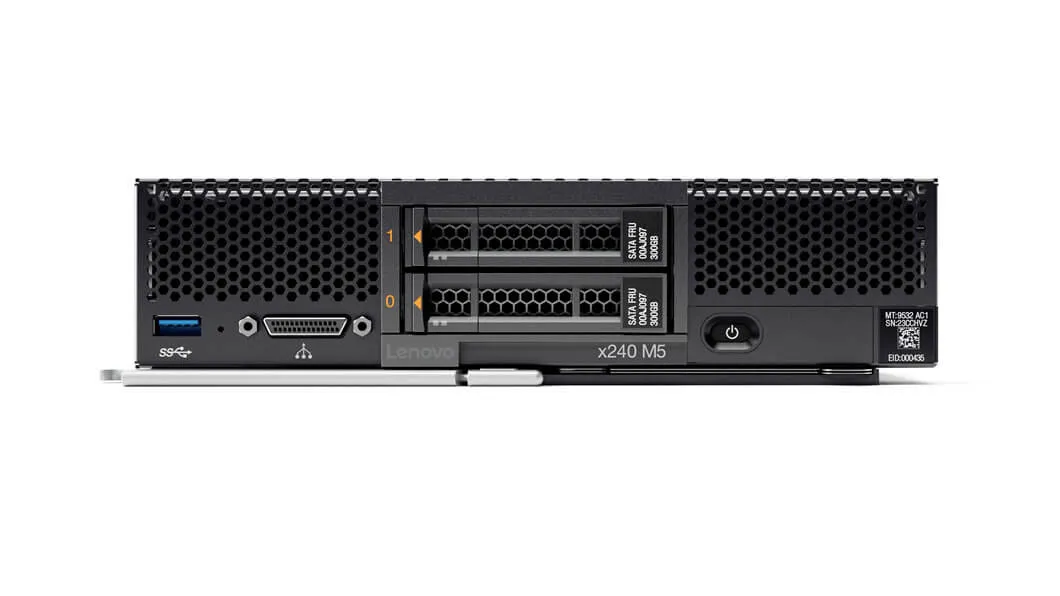

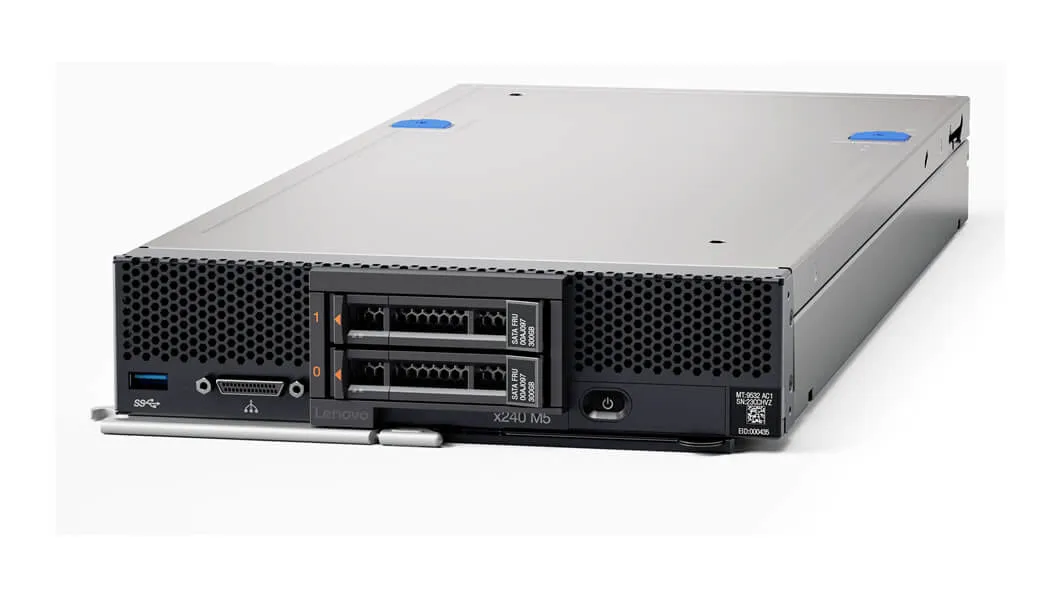

LENOVO EBG Flex System x240 M5 Compute Node Xeon 18C E5-2697v4 145W 2.3GHz/2400MHz/45MB 1x16GB O/Bay 2.5in SAS
Processor | |
Processor model | E5-2697V4 |
Motherboard chipset | Intel C612 |
Number of processors installed | 1 |
Processor manufacturer | Intel |
Processor lithography | 14 nm |
Processor family | Intel Xeon |
Processor socket | LGA 2011 |
Stepping | B0 |
Supported instruction sets | AVX 2.0 |
Processor cores | 18 |
Processor code | SR2JV |
System bus rate | 9.6 GT/s |
Processor threads | 36 |
Processor operating modes | 64-bit |
Processor boost frequency | 3.6 GHz |
Processor cache | 45 MB |
Execute Disable Bit | |
Idle States | |
Thermal Monitoring Technologies | |
Scalability | 2S |
Physical Address Extension (PAE) | 46 bit |
Tcase | 79 °C |
Embedded options available | |
Bus type | QPI |
Number of QPI links | 2 |
Processor frequency | 2.3 GHz |
Thermal Design Power (TDP) | 145 W |
Processor codename | Broadwell |
Maximum number of PCI Express lanes | 40 |
Processor cache type | Smart Cache |
Processor series | Intel Xeon E5-2600 v4 |
Maximum internal memory supported by processor | 1.54 TB |
Memory types supported by processor | DDR4-SDRAM |
Memory clock speeds supported by processor | 1600,1866,2133,2400 MHz |
Memory bandwidth supported by processor (max) | 76.8 GB/s |
Memory channels supported by processor | Quad |
ECC supported by processor | |
Processor package size | 45 x 52.5 mm |
Conflict-Free processor | |
Memory | |
Internal memory type | DDR4-SDRAM |
Memory slots | 24 |
Maximum internal memory | 1.5 TB |
ECC | |
Memory clock speed | 2133 MHz |
Memory layout (slots x size) | 1 x 16 GB |
Internal memory | 16 GB |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Weight & dimensions | |
Weight | 7.1 kg |
Height | 215 mm |
Width | 215 mm |
Depth | 493 mm |
Operational conditions | |
Operating relative humidity (H-H) | 8 - 85% |
Operating temperature (T-T) | 5 - 40 °C |
Networking | |
Ethernet LAN | |
Wi-Fi | |
Storage | |
Compatible memory cards | SD, SDHC |
Optical drive type | No |
RAID levels | 0, 1 |
Card reader integrated | |
Number of HDDs supported | 2 |
Hot-swap | |
Maximum storage capacity | 7.68 TB |
Supported HDD sizes | 1.8,2.5" |
RAID support | |
Supported RAID controllers | M1210e |
Certificates | |
Certification | NEBS level 3, TUV GS, CISPR 22 Class A, BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, CB, IEC 60950-1, EN 60950-1, FCC Part 15 A, CSA C22.2 No. 60950-1, ICES-004, VCCI Class A, KN22, KN24, ASHRAE, CNS 14336 |
Operating system/software | |
Compatible operating systems | Microsoft Windows Server, SUSE, RedHat Enterprise Linux, VMware |
Expansion slots | |
PCI Express slots version | 3.0 |
PCI Express x16 (Gen 3.x) slots | 2 |
Other features | |
Built-in display | |
Design | |
Rack mounting | |
Chassis type | Rack (2U) |
Product colour | Black |
Graphics | |
On-board graphics card model | Matrox G200eR2 |
On-board graphics card | |
On-board graphics card memory | 0.016 GB |
Processor special features | |
Intel® Identity Protection Technology (Intel® IPT) | |
Intel® Hyper Threading Technology (Intel® HT Technology) | |
Intel® Turbo Boost Technology | 2.0 |
Intel Flex Memory Access | |
Intel® AES New Instructions (Intel® AES-NI) | |
Enhanced Intel SpeedStep Technology | |
Intel Trusted Execution Technology | |
CPU configuration (max) | 2 |
Intel Enhanced Halt State | |
Intel VT-x with Extended Page Tables (EPT) | |
Intel Demand Based Switching | |
Intel TSX-NI | |
Intel® Secure Key | |
Intel 64 | |
Intel® OS Guard | |
Intel Virtualization Technology for Directed I/O (VT-d) | |
Intel Identity Protection Technology version | 0.00 |
Intel Secure Key Technology version | 1.00 |
Intel Virtualization Technology (VT-x) | |
Intel TSX-NI version | 1.00 |
Processor ARK ID | 91755 |
Performance | |
BIOS type | UEFI |
Trusted Platform Module (TPM) | |
Trusted Platform Module (TPM) version | 2.0 |
EAN | 889488414932 |
Warranty | 1 year |
Source: Icecat.biz |
The Lenovo Flex System x240 M5 Compute Node is a high-performance server that offers enhanced security, efficiency, and reliability features to handle business-critical workloads. The blade server incorporates Intel Xeon E5-2600 v4 processors. The processors feature up to 22 cores each and use new Lenovo TruDDR4 Memory, which runs at speeds up to 2400 MHz.
This product guide provides essential presales information to understand the x240 M5 offering, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the x240 M5 compute node and consider its use in IT solutions.
