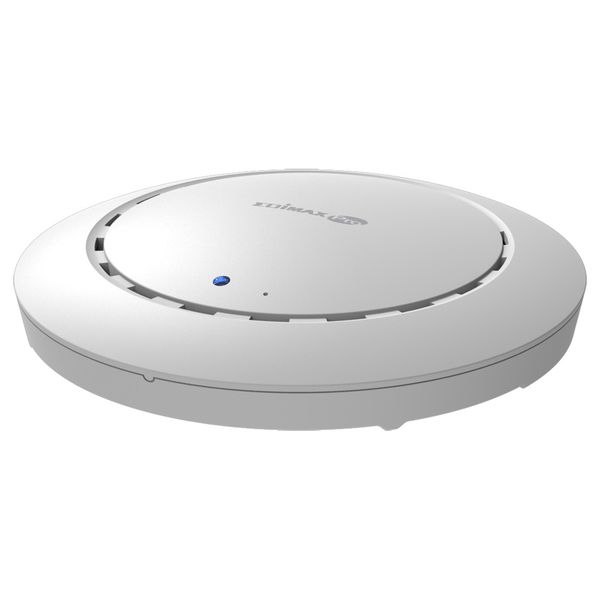

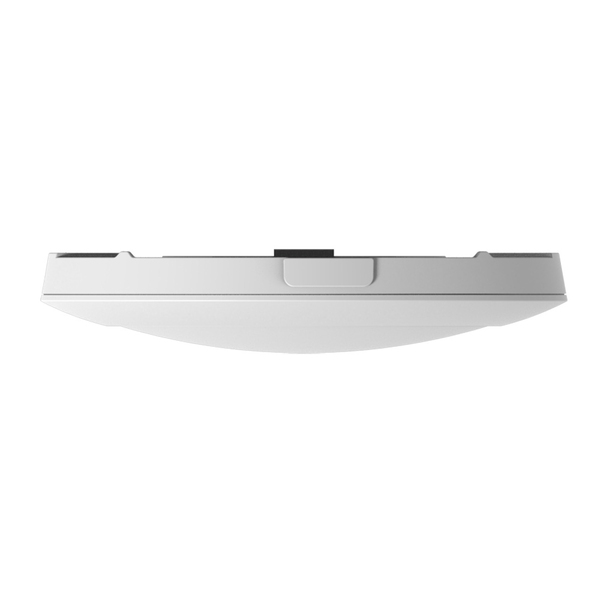

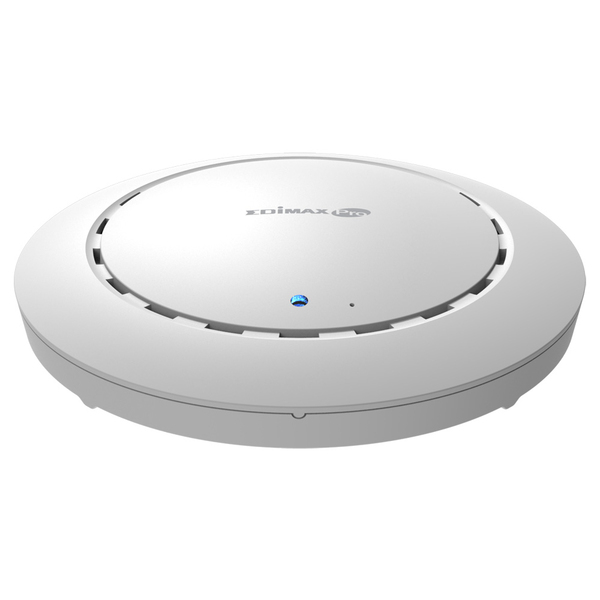

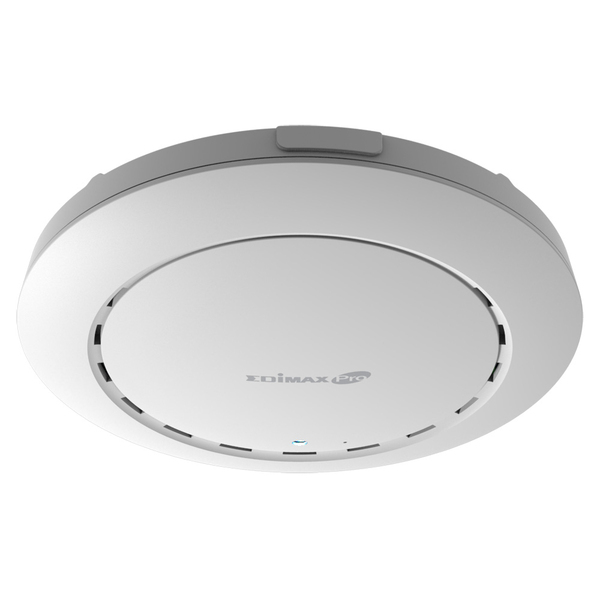

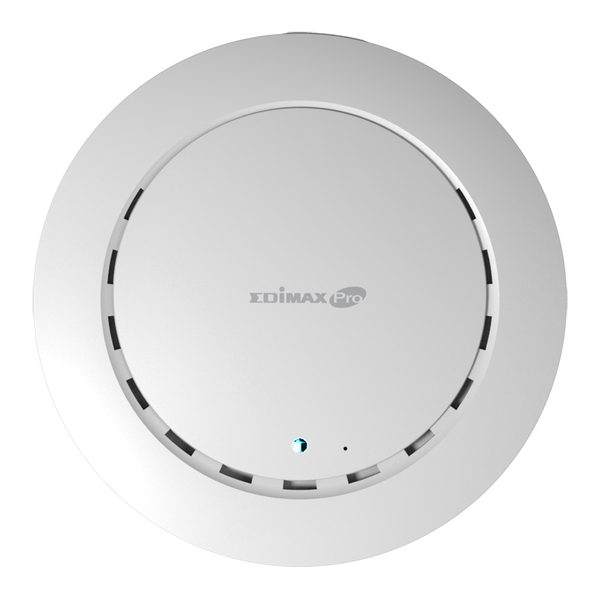

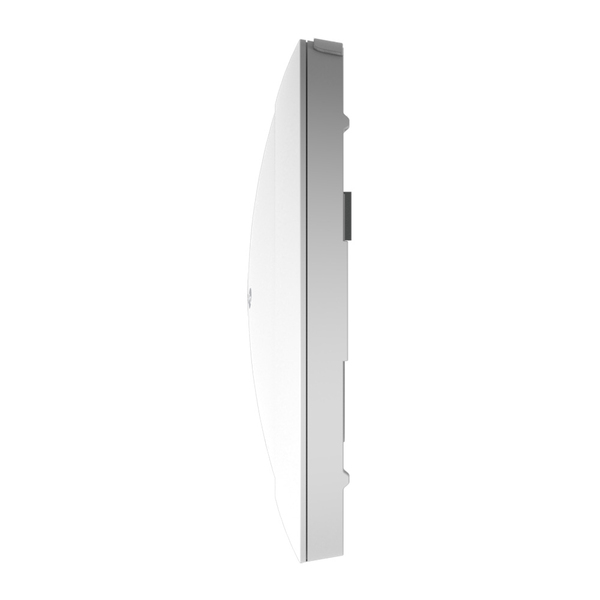

Edimax CAP1200 Access Point AC1200, Ceiling-Mount PoE

Manufacturer: EDIMAX
ID: CAP1200
Product unavailable
This product is end of life or currently not available.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Weight & dimensions
Weight305.7 g
Height32 mm
Width176 mm
Depth176 mm
Energy management
Power over Ethernet (PoE)checkmark
Input current1 A
AC input voltage12 V
Operational conditions
Operating temperature (T-T)0 - 40 °C
Protocols
Management protocolsHTTP / HTTPS, SNMP v1/v2c/v3, Telnet, SSH
Security
Security algorithms802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-SIM, WEP, WPA, WPA2, WPS
VPN supportIPsec, L2TP, PPTP
MAC address filteringcheckmark
Remote Authentication Dial-In User Service (RADIUS)checkmark
Certificates
CertificationCE / FCC
Management features
Web-based managementcheckmark
Antenna
Antenna typeInternal
Antenna gain level (max)4 dBi
Design
Internalcross
LED indicatorscheckmark
Product colourWhite
Reset buttoncheckmark
Features
Maximum data transfer rate1200 Mbit/s
Frequency band2.412 - 2.484, 5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.7, 5.745 - 5.825 GHz
Number of users100 user(s)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
Wi-Fi data rate (max)1300 Mbit/s
Quality of Service (QoS) supportcheckmark
Ethernet LAN data rates10,100,1000 Mbit/s
VLAN supportcheckmark
Logistics data
Harmonized System (HS) code85176990
EAN4717964700537
Warranty2 years
Source: Icecat.biz
2 x 2 AC Dual-Band Ceiling-Mount PoE Access Point

Powerful Mainstream Solution For Modern Businesses

- 802.11AC Dual-Band High Speed
- Easy Installation
- Compact & Durable Housing
- Designed for High Density Usage
- Multiple SSIDs for Security Management
- Fast Roaming
- Wide Coverage & High Sensitivity
- Seamless Mobility
- Power over Ethernet
- Built-In RADIUS Server
- Business Environments
- Central Management

The CAP1200 is a powerful wireless solution designed to meet the needs of modern mainstream businesses with the latest IEEE 802.11ac technology for wireless speeds up to 1200Mbps. Industrial-grade performance and build quality combined with user-friendly operation, super-fast wireless speed, an extensive feature set and a practical, ceiling-mount design make an ideal dual-band solution for enterprise environments.

For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. High-density capacity for up to 100 simultaneous users is ideal for BYOD (Bring Your Own Device) workplaces or other environments with a high volume of users and wireless devices. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Fast roaming for seamless transitions between access points, Power over Ethernet support (PoE) and an intuitive web-based management interface provides flexibility for deployment and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.
