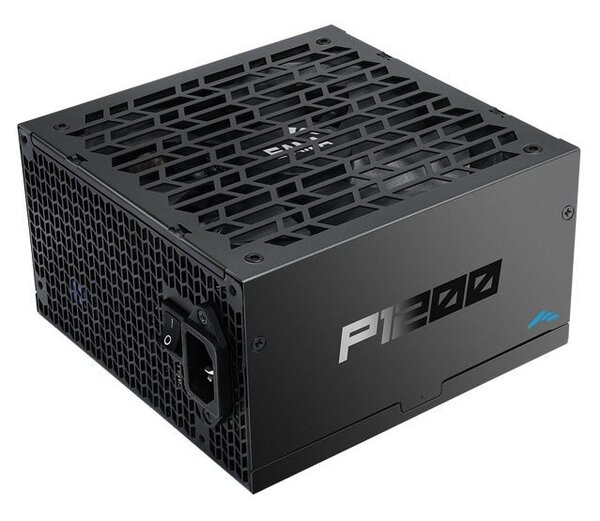

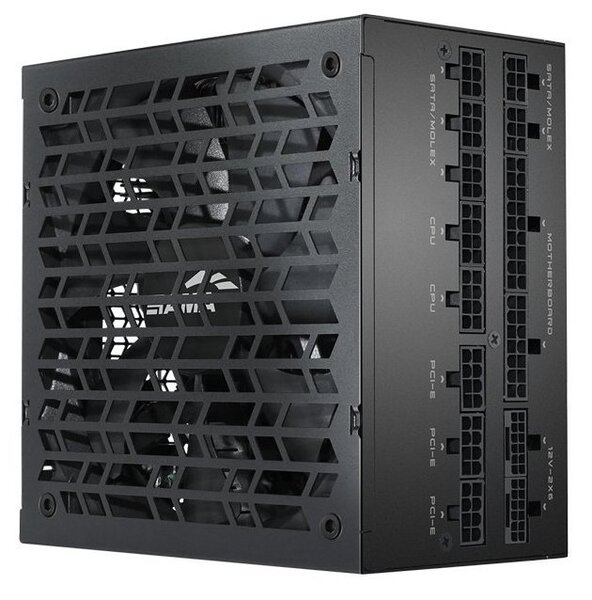

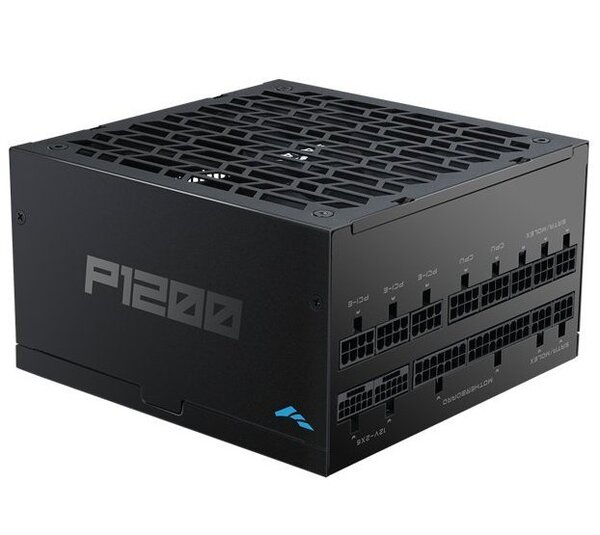

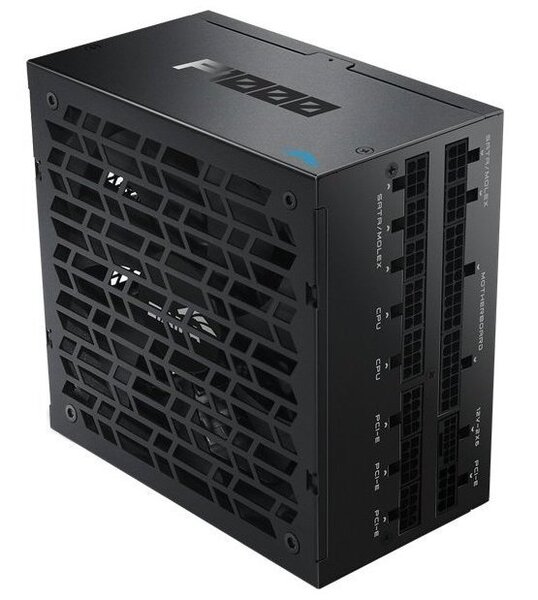

SAMA P1200 1200W ATX 3.1 - PSU, 80 Plus Platinum

The SAMA P1200 is a 1200W, 80 PLUS Platinum, fully modular ATX 3.1 power supply featuring PCIe 5.1 (12V-2x6) support for modern desktop systems. It provides 1200W of total output, suitable for configurations with high-end processors and discrete graphics cards. The unit complies with the ATX 3.1 specification. Its native PCIe 5.1 12V-2x6 connector delivers power directly to modern GPUs without the need for adapters. With 92% efficiency under typical loads, it meets 80 PLUS Platinum requirements, reducing energy waste and heat generation.

The fully modular design allows users to connect only the necessary cables, reducing clutter and improving airflow within the case. The internal circuitry uses Japanese capacitors to maintain stable voltage during heavy system loads. Cooling is managed by an integrated 140mm fluid dynamic bearing fan. Active Power Factor Correction (APFC) optimizes the electrical load from the mains, while a silent mode stops the fan during light loads to eliminate noise. This design ensures consistent power delivery under varying hardware demands.

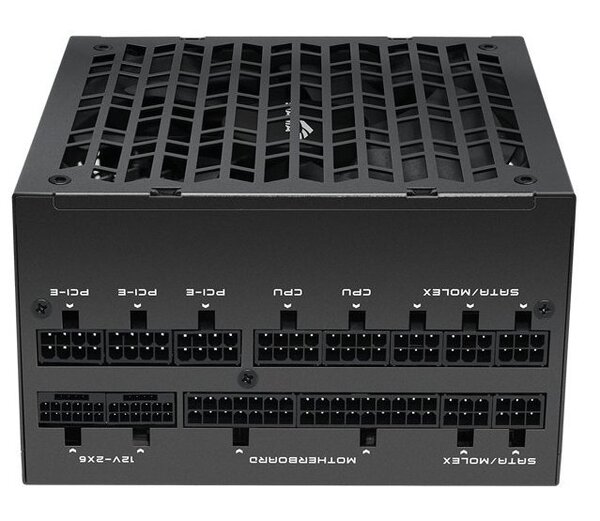

• 24-pin motherboard connector for standard ATX systems
• 12 SATA power connectors for storage drives
• Three 6+2-pin PCIe connectors for legacy or secondary graphics cards
• 4+4-pin and 8-pin EPS connectors for CPU power
• Comprehensive protection circuits (OVP, UVP, OCP, OPP, SCP, OTP, SIP, NLO) for component safety
• 100,000-hour mean time between failures (MTBF)
• 0 to 50 °C operating temperature range
• Black and white housing to match dual-tone system builds
