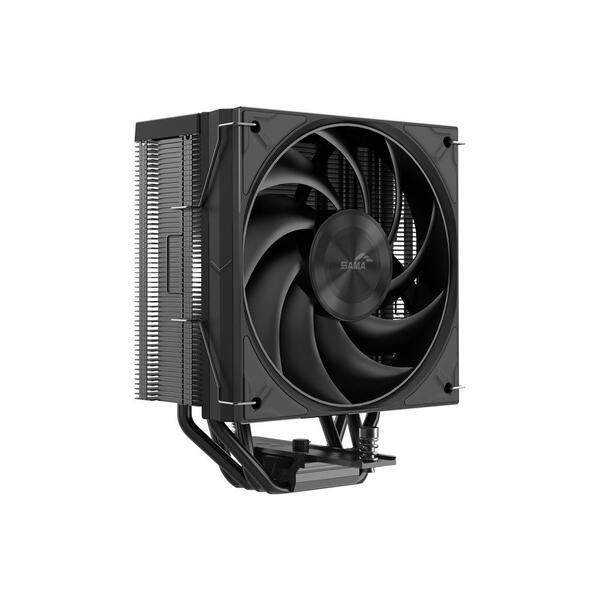

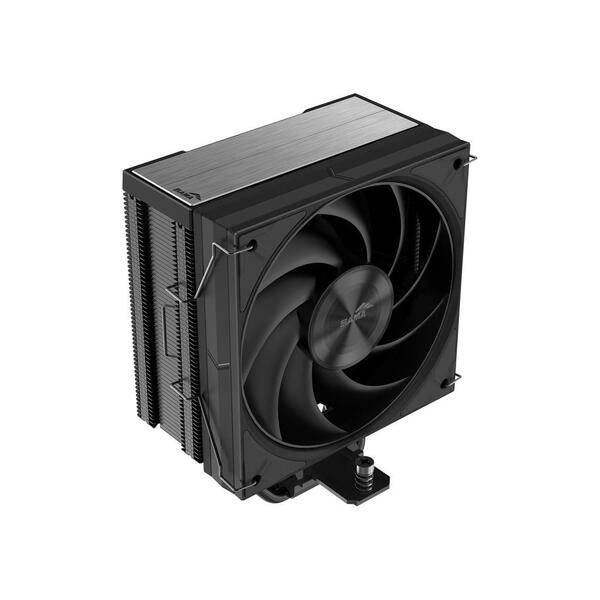

SAMA A40 Black CPU Air Cooler

The SAMA A40 Black is a single-tower CPU cooler for processors with a TDP of up to 240 W. It uses heat pipes in direct contact with the CPU to move thermal energy into a fin stack designed to reduce airflow turbulence. The fan speed is controlled via PWM. The cooler connects to standard 12 V motherboard headers and serves as an air-cooling alternative to liquid loops for standard desktop PCs.

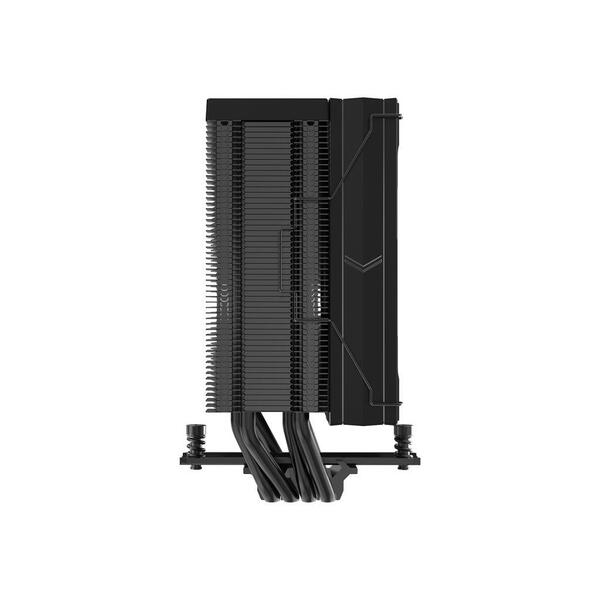

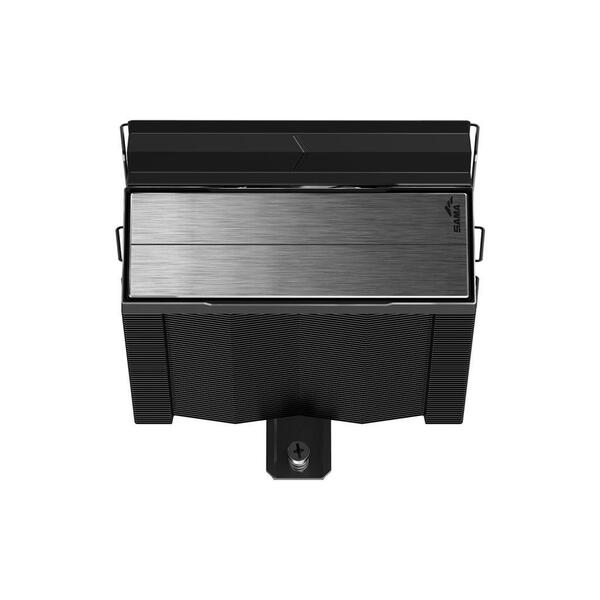

The offset heat pipe design makes mounting easier, as the fan does not need to be removed during installation. It includes all necessary brackets and screws. The heatsink features a uniform black finish without LED lighting, making it suitable for understated builds. The fan uses a hydro bearing for durability and connects to a standard motherboard header, which allows for speed monitoring. The maximum noise level is 29 dB.

• Supported processor sockets: Intel LGA115x, 1200, 1700, and 1851; AMD AM4 and AM5.
• Airflow: Up to 78 CFM.
• Static air pressure: 2.7 mmH2O.
• Fan speed: 800–2200 RPM.

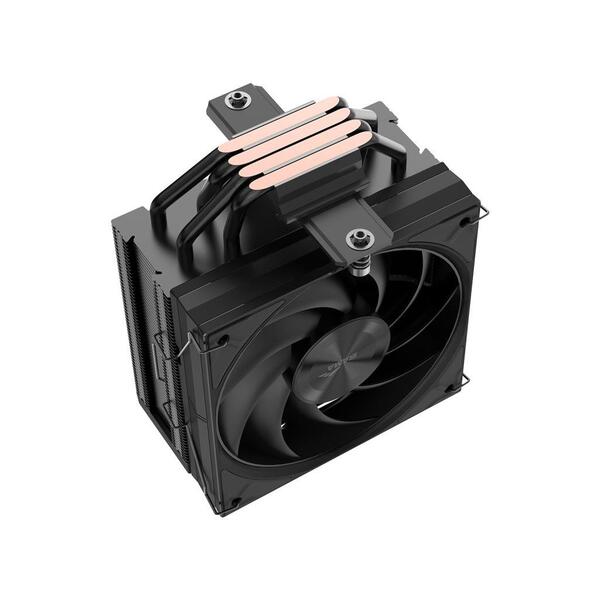

• Heat pipes: Four 6 mm diameter heat pipes.
• Dimensions: 122 mm wide, 71 mm deep, and 152 mm tall.
• Weight: 945 g (including mounting hardware).

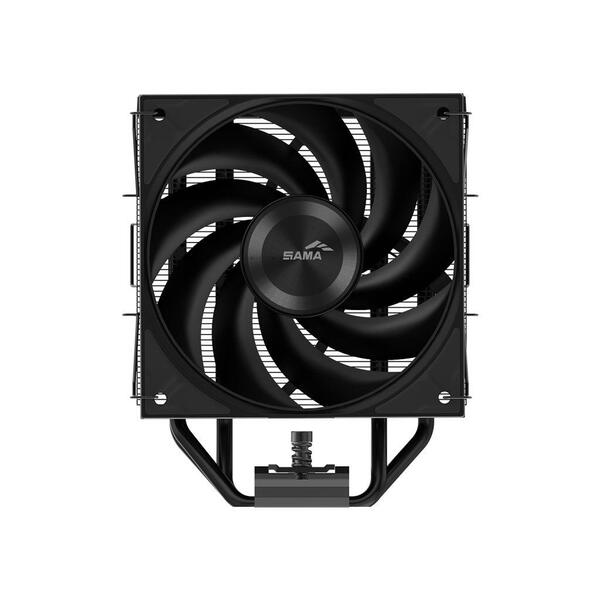

• Fan specifications: 120 x 120 x 25 mm, 4-pin connector.
