SilverStone Strider Titanium SST-ST1100-TIV2.0 1100W - PSU, 80 Plus Titanium
Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| Floppy disk drive connector | ![]() |
| PCI Express connector | ![]() |
| Motherboard power connector | 20+4 pin ATX |
| Floppy drive power connector | 1 |
| Number of SATA power connectors | 16 |

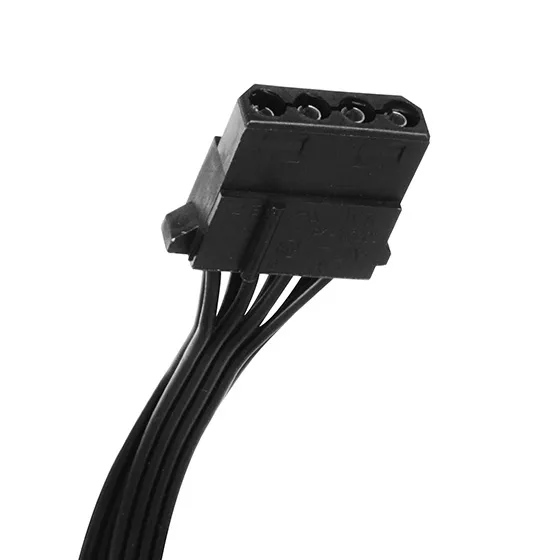

| Peripheral (Molex) power connectors (4-pin) | 6 |
| EPS power connector (8-pin) | ![]() |
| ATX power connector (20+4 pin) | ![]() |

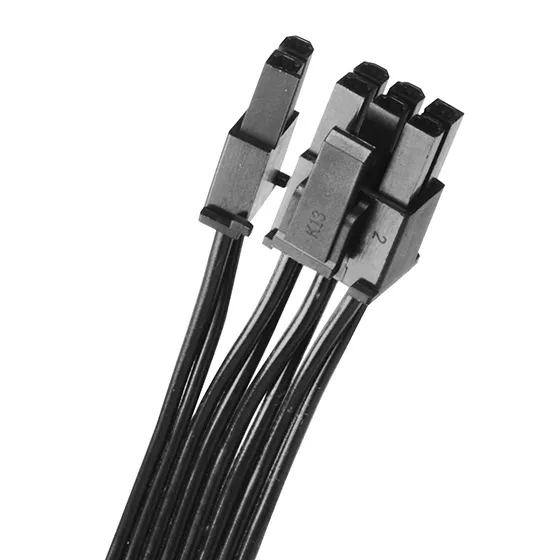

| PCI Express power connectors (8-pin) | 8 |
| CPU power connector (4+4 pin) | ![]() |
| PCI Express power connectors (6+2 pin) | 8 |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 150,600 mm |
| CPU power cable length | 75 cm |
| Peripheral (Molex) power cable length | 150,600 mm |
| PCI Express power cable length | 55 cm |
| Floppy disk drive cable length | 10 cm |
| Weight & dimensions | |
| Weight | 3.96 kg |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 180 mm |
| Energy management | |
| Peak power | 1200 W |
| Nominal power | 1100W |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1100 W |
| Combined power (+5V) | 120 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+5V) | 22 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 90 - 264 V |
| Max output current (+12V1) | 92 A |
| Total power | 1100 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging data | |
| Package type | Box |
| Certificates | |
| RoHS compliance | ![]() |
| 80 PLUS certification | 80 PLUS Titanium |
| Design | |
| Product colour | Black |
| Illumination | ![]() |
| Number of fans | 1 fan(s) |
| Fan diameter | 13.5 cm |
| Fan location | Top |
| Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Form factor | ATX |
| Noise level | 36 dB |
| Purpose | PC |
| Supported motherboard form factors | ATX |
| ATX version | 2.4 |
| Silent mode | ![]() |
| Power supply unit (PSU) form factor | ATX |
| Features | |
| Product type | Power supply unit |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| EAN | 4710007226285 |
The Silverstone SST-ST1100-TIV2.0 is an ATX power supply unit designed to deliver a nominal output of 1100 watts for high-performance computing systems. It features an 80 PLUS Titanium certification, which signifies a high standard of energy efficiency under typical operating loads. The integration of Active Power Factor Correction (PFC) contributes to stable power regulation for critical components. This unit is engineered to meet the demands of enthusiast-grade workstations and gaming builds that require consistent and reliable power delivery.

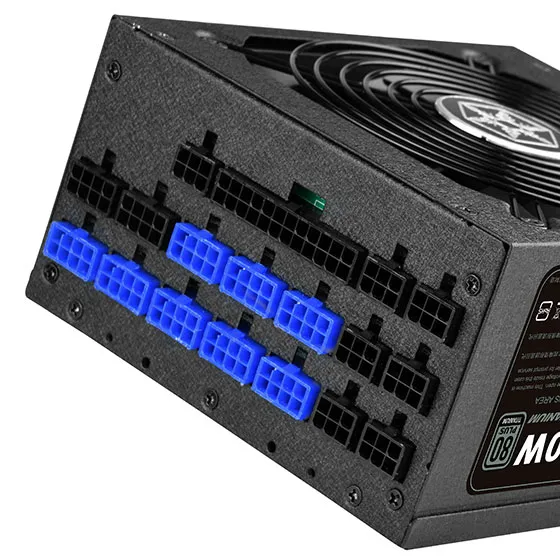

This model utilizes a fully modular cabling design, enabling users to attach only the cables required for their specific configuration, which can aid in case airflow and cable management. A 135 mm fan provides active cooling and supports a silent mode, ceasing rotation under low-load conditions to reduce noise output. The PSU is built with a comprehensive suite of power protection features to safeguard connected hardware from electrical anomalies. Its 180 mm depth is a factor to consider for compatibility with certain chassis.
Key Features:- Provides 1100W total power output
- Features 80 PLUS Titanium certification
- Utilizes a standard ATX form factor
- Offers a fully modular cabling system
- Equipped with one 24-pin ATX, two CPU, eight PCIe, and sixteen SATA connectors

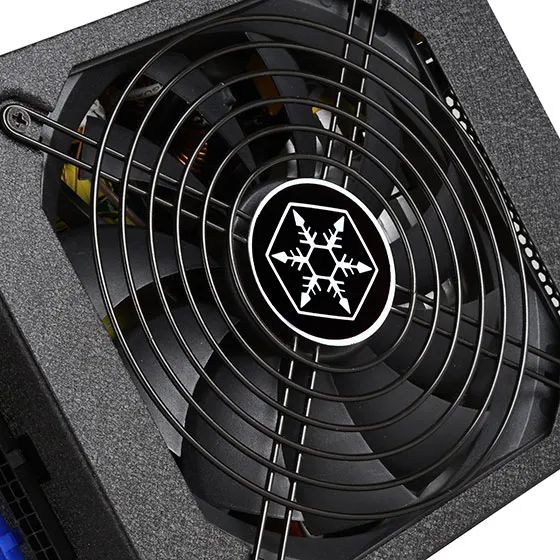

- Cooled by a 135 mm fan with a semi-fanless mode
- Includes OCP, OPP, OVP, SCP, UVP, and OTP protections
- Measures 150 mm x 86 mm x 180 mm (W x H x D)
