Gigabyte AERO X870E X3D WOOD WiFi 7 AM5 ATX Motherboard
Manufacturer: GIGABYTE
ID: X870E AERO X WOOD
44890€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Specifications
Description
Store availability
Delivery
Price development
| Technical details | |
| Warranty period | 3 year(s) |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Maximum internal memory | 256 GB |
| ECC |  |
| Non-ECC |  |
| Supported memory clock speeds | 9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Supported memory types | DDR5 |
| Memory channels | Dual-channel |
| Unbuffered memory | |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 9000 MHz |
| Maximum internal memory per slot | 64 GB |
| ECC сompatibility | Non-ECC |
| Weight & dimensions | |
| Height | 35 mm |
| Width | 305 mm |
| Depth | 244 mm |
| Networking | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Realtek RTL8126 |
| Wi-Fi | |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7927 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Number of EATX power connectors | 2 |
| Number of chassis fan connectors | 6 |
| Front panel audio connector | |
| TPM connector | |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Front panel connector | |
| 12V power connector | |
| RGB LED pin header | |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of RGB LED pin headers | 4 |
| Number of CPU fan connectors | 2 |
| Number of water pump connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of temperature sensor headers | 2 |
| Number of noise detection headers | 1 |
| Back panel I/O ports | |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | |
| S/PDIF out port | |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Digital audio optical out | 1 |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| Number of HDDs supported | 4 |
| RAID support | |
| Number of storage drives supported | 8 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 5.0, SATA III |
| Packaging data | |
| Package weight | 3.67 kg |
| Package depth | 306 mm |
| Package height | 89 mm |
| Package width | 341 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | |
| Screws included | |
| Antenna included | |
| Expansion slots | |
| PCI Express x16 slots | 3 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| 1st M.2 largest key size | 2580 |
| 2nd M.2 largest key size | 22110 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| ACPI version | 5.0 |
| Clear CMOS button | |
| Clear CMOS jumper | |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Battery capacity | 220 mAh |
| Number of battery cells | 1 |
| Battery weight | 3 g |
| Lithium weight per battery | 0.07 g |
| Other features | |
| Weight | 3.17 kg |
| Graphics | |
| Maximum resolution | 4096 x 2160 pixels |
| Parallel processing technology support | Not supported |
| DirectX version | 12.0 |
| HDCP | |
| HDCP version | 2.3 |
| On-board graphics card | |
| Features | |
| Motherboard chipset | AMD X870E |
| Motherboard form factor | ATX |
| Product colour | White |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Windows operating systems supported | Windows 11 x64 |
| Power source type | ATX |
| Motherboard chipset family | AMD |
| Component for | PC |
| Audio chip | Realtek ALC1220-VB |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| EAN | 4719331878481 |

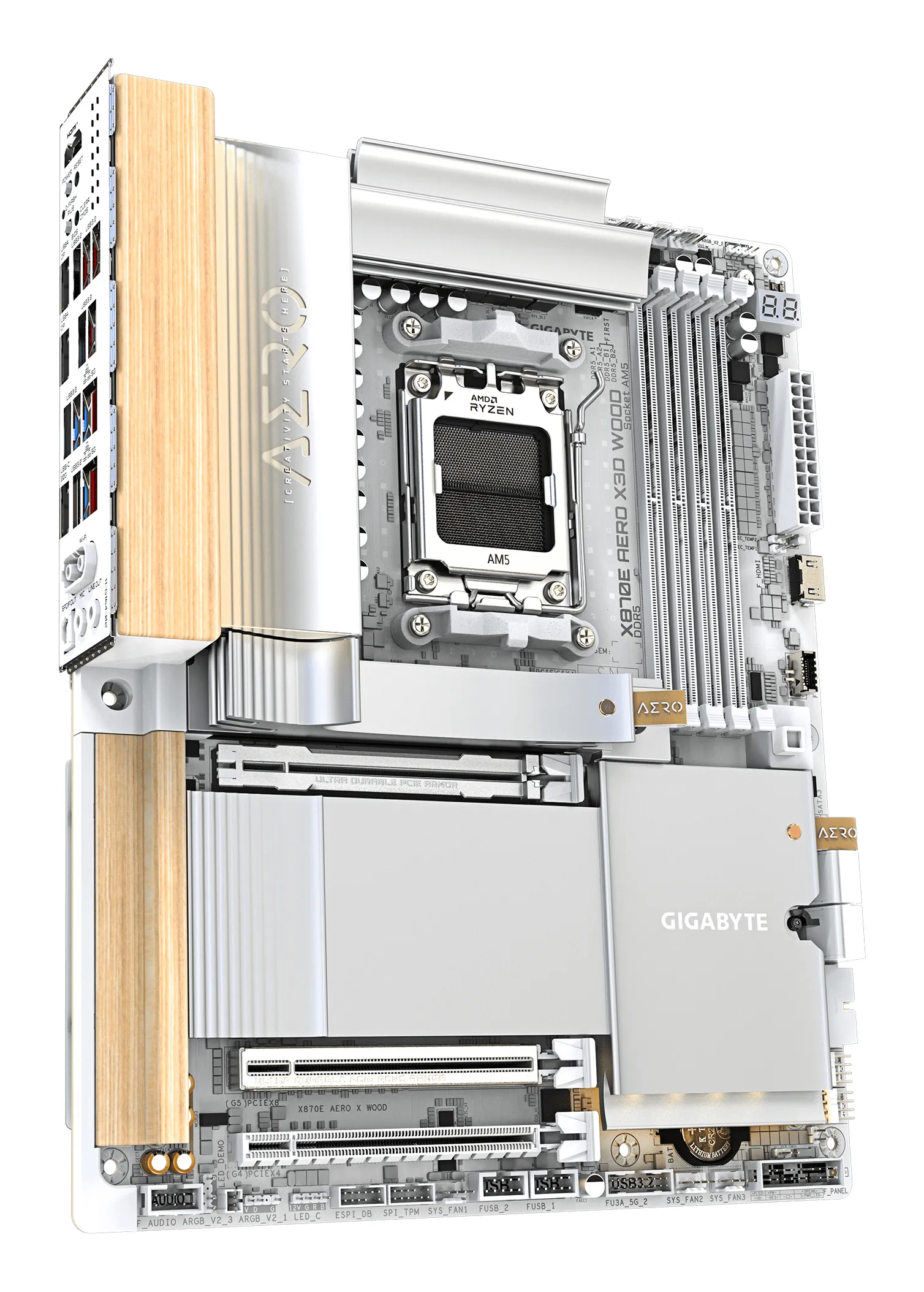

The GIGABYTE X870E AERO X3D WOOD is an ATX motherboard designed for the AMD AM5 socket, providing compatibility with Ryzen 7000, 8000, and 9000 series processors. It is built on the X870E chipset, which enables extensive connectivity and performance features for high-end computer builds. The board accommodates up to 256 GB of dual-channel DDR5 memory across four DIMM slots, supporting overclocked speeds up to 9000 MT/s. A robust power delivery system and comprehensive cooling headers ensure stable operation under demanding workloads, and the design incorporates a wood-inspired finish on its heatsinks.
For storage, the motherboard is equipped with four M.2 slots that support the PCIe 5.0 standard, alongside four SATA 6Gb/s ports for additional drives. Expansion capabilities are handled by three PCIe x16 slots, two of which are Gen 5, suitable for modern graphics cards and other peripherals. The networking configuration is comprehensive, featuring dual 5GbE LAN ports for high-speed wired connections, in addition to integrated Wi-Fi 7 and Bluetooth 5.4 for wireless connectivity. The rear I/O panel provides numerous USB ports for connecting a wide range of external devices.
Key Features:- Supports AMD Ryzen 7000, 8000, and 9000 Series processors
- Utilizes the AMD AM5 processor socket
- Built on the AMD X870E chipset
- Standard ATX form factor for broad case compatibility
- Four DDR5 DIMM slots support up to 256 GB of memory
- Four M.2 slots and four SATA 6Gb/s ports for storage drives
- Two PCIe 5.0 x16 slots for high-performance expansion cards
- Dual 5GbE LAN, Wi-Fi 7, and Bluetooth 5.4 for networking
- Integrated Realtek ALC1220 audio codec
- Includes one HDMI 2.1 display output
- Standard 24-pin ATX and dual 8-pin EPS power connectors
- Headers for CPU fan, system fans, and water cooling pumps
