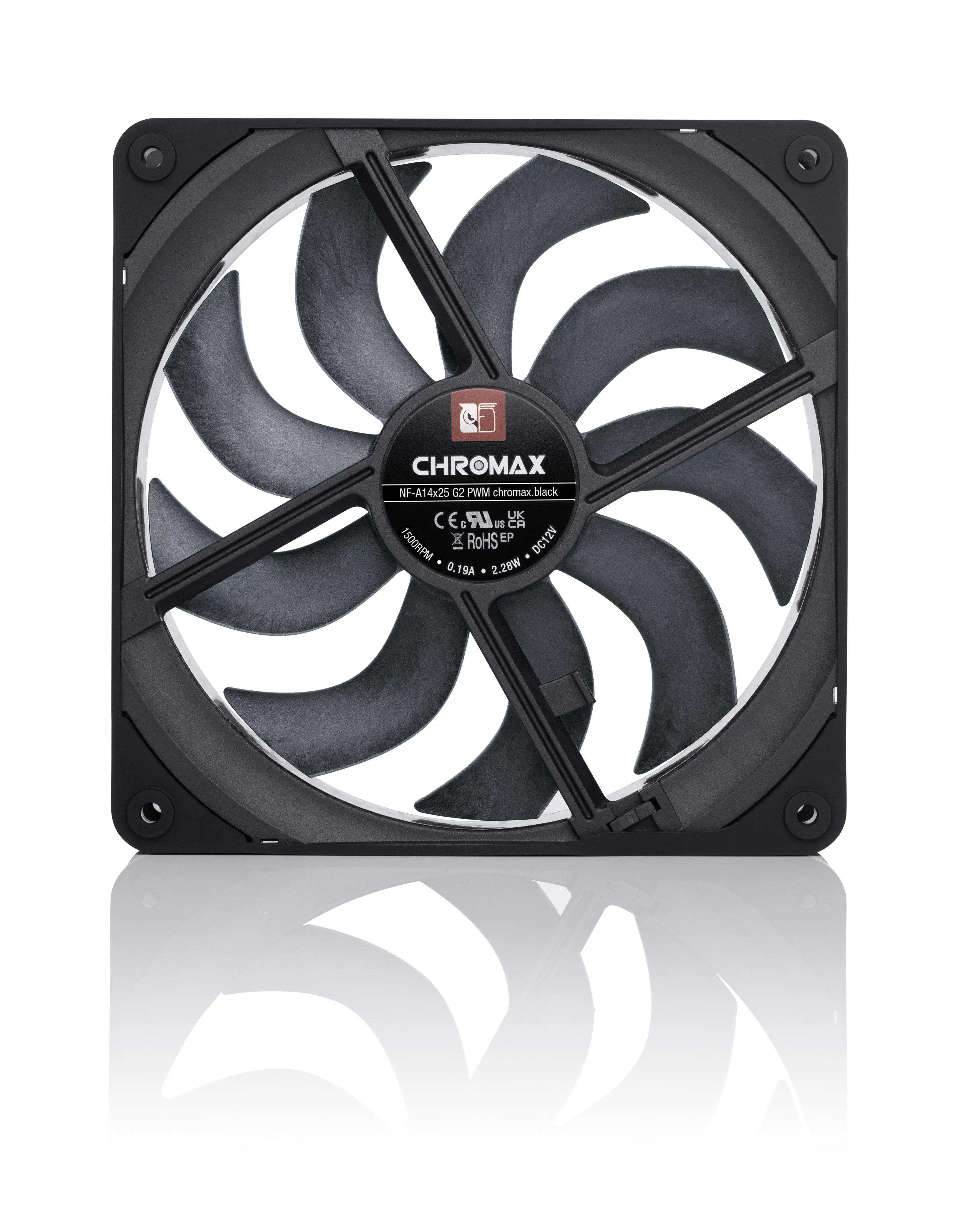

Noctua NF-A14x25 G2 PWM chromax.black Case Fan, 140 mm, Black

Manufacturer: NOCTUA
ID: NF-A14X25 G2 PWM CH.BK
3890€ Show VAT 0% Show VAT 25,5%
Estimated delivery: 04.06 - 08.06
40+pcs available at remote stock
Select your store
Order and pick up in 1-2 weeks Open today: 10:00 - 18:00 About this store
Order and pick up in 1-2 weeks Open today: 09:00 - 17:00 About this store
Order and pick up in 1-2 weeks Open today: 10:00 - 17:00 About this store
Order and pick up in 1-2 weeks Open today: 10:00 - 18:00 About this store
Order and pick up in 1-2 weeks Open today: 10:00 - 17:00 About this store
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Specifications
Description
Store availability
Delivery
Price development
Manuals
Technical details
Warranty period6 year(s)
Compliance certificatesUL, UKCA, CE, RoHS, REACH
Weight & dimensions
Weight225 g
Package weight362 g
Cable length0.2 m
Height140 mm
Width140 mm
Depth25 mm
Package depth148 mm
Package height33 mm
Package width199 mm
Fan thickness2.5 cm
Fan weight225 g
Fan dimensions (W x D x H)140 x 140 x 25 mm
Energy management
Fan current0.19 A
Rated voltage12 V
Fan power consumption2.28 W
Starting voltage7 V
Packaging data
Quantity1
Packaging content
Cables included4-pin
Mounting kitcheckmark
Screws includedcheckmark
Other features
Connector(s)4-pin PWM
Mounting hole pattern (W x D)124.5 x 124.5 mm
Design
MaterialPolybutylene terephthalate (PBT), Acrylonitrile butadiene styrene (ABS), Silicone, Rubber
Product colourBlack
Number of fans1 fan(s)
Fan connector4-pin
Illumination LEDcross
Number of fan blades9
Performance
TypeFan
Operating temperature (T-T)-10 - 60 °C
Speed detectioncheckmark
Airflow155.6 m³/h
Fan diameter14 cm
Suitable locationComputer case
Maximum airflow91.58 cfm
Maximum air pressure2.56 mmH2O
Noise level (low speed)19.7 dB
Noise level (high speed)24.8 dB
Fan speed (max)1500 RPM
Fan speed (min)0 RPM
Rotational speed (max)1500 RPM
Bearing typeSelf-Stabilising Oil-pressure (SSO2) bearing
Quantity per pack1 pc(s)
Fan noise level (max)24.8 dB
Pulse-width modulation (PWM) supportcheckmark
Fan's mean time to failure (MTTF)150000 h
Features
Product typeCase fan
EAN9010018100723

The Noctua NF-A14x25 G2 is a 140 mm fan designed for versatile cooling applications in PC builds. Its construction is optimized for both airflow and static pressure, making it suitable for use as a case fan or mounted on heatsinks and radiators. The fan's impeller, made from a liquid-crystal polymer (LCP) composite, features a blade geometry with a 0.7 mm tip clearance. This design helps to focus airflow and maintain performance when faced with impedance from radiator fins or dust filters.

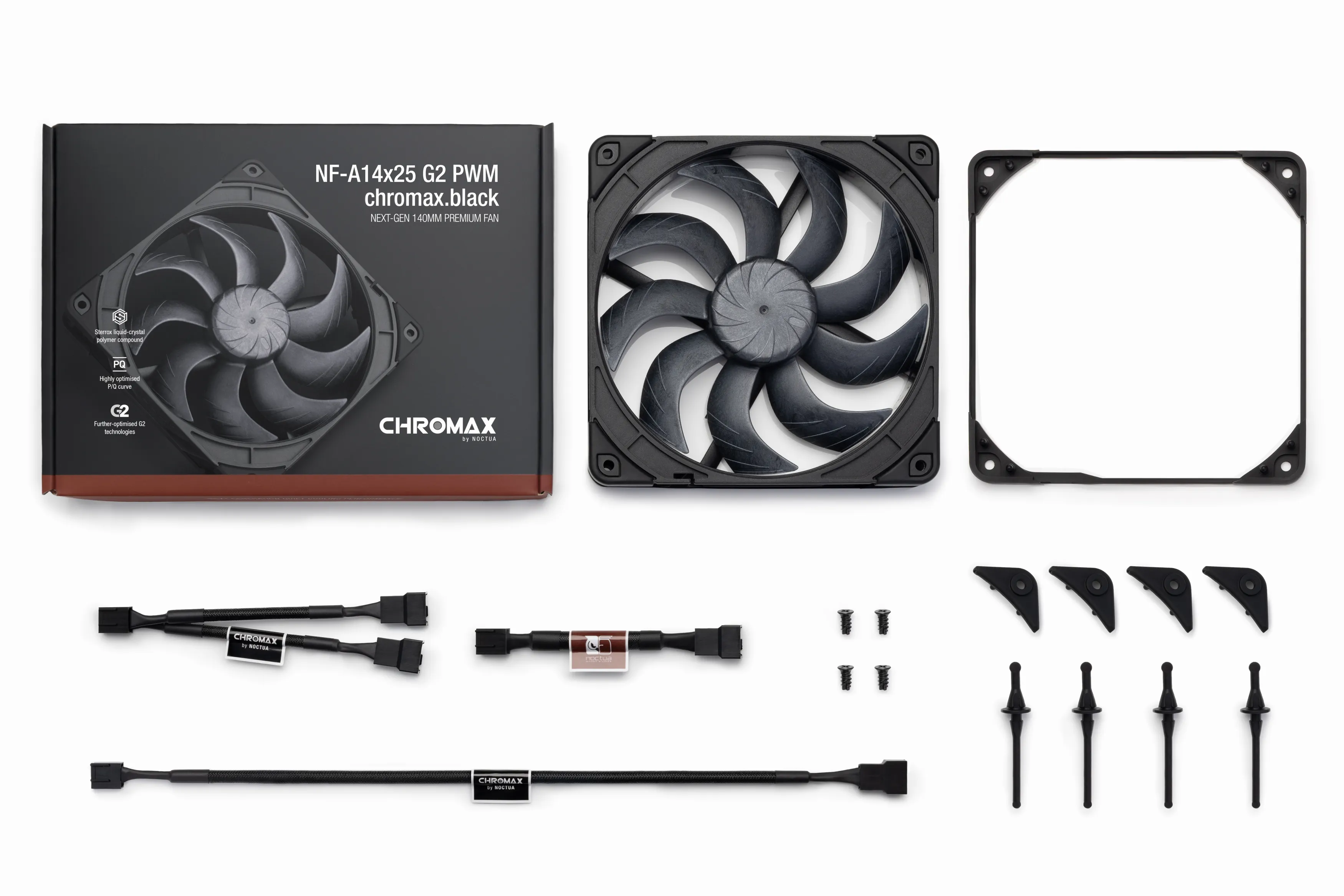

Controlled via a 4-pin PWM header, the fan has an operational range from 0 to 1500 RPM, allowing for speed adjustments based on system temperatures. To minimize operational noise, it incorporates an SSO2 bearing and includes a comprehensive anti-vibration system with mounts, a gasket, and load-relief pads. The package contains a Low-Noise Adaptor (L.N.A.) for users who prioritize acoustics. All components, including the fan and bundled accessories like the splitter and extension cables, come in a uniform black finish.

Key Features:
  • Measures 140 x 140 x 25 mm for standard case or radiator mounting
  • 4-pin PWM header provides automatic speed control by the motherboard
  • Optimized blade design for both airflow and static pressure performance
  • SSO2 bearing ensures smooth operation and long-term stability
  • Includes anti-vibration mounts and a gasket to reduce noise
  • All-black design with matching chromax.black cables and accessories
