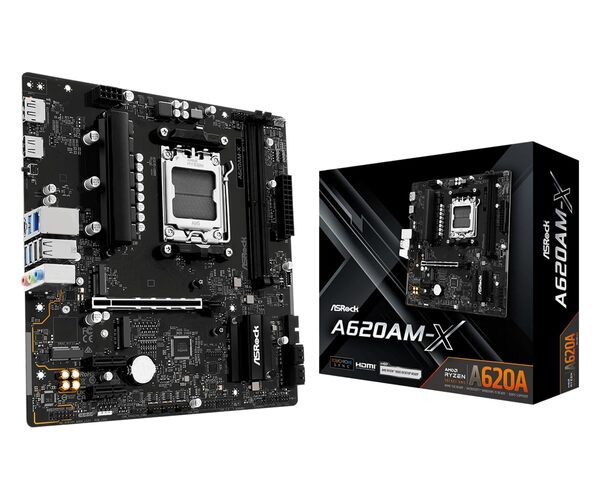

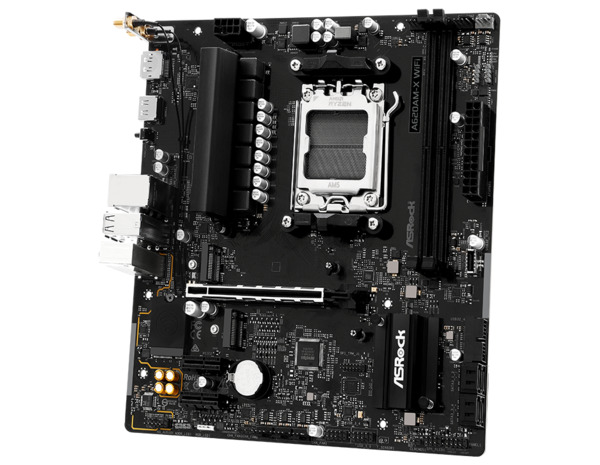

ASRock A620AM-X WiFi AM5 mATX Motherboard

The ASRock A620AM-X WiFi is a Micro ATX motherboard built on the AMD A620 chipset for the AM5 socket. It is compatible with AMD Ryzen 7000, 8000, and 9000 series processors, providing a foundation for compact PC builds. The board features four DDR5 DIMM slots supporting a dual-channel memory architecture with a maximum capacity of 128 GB and speeds up to 8000 MHz. Power is delivered through a standard 24-pin ATX and an 8-pin EPS connector, ensuring stable operation for the CPU and other components.

For expansion and connectivity, this motherboard includes one PCIe 4.0 x16 slot for a graphics card and two PCIe 3.0 x1 slots for additional peripherals. Storage is handled by two M.2 slots supporting the PCIe Gen4x4 interface and four SATA3 connectors, with RAID 0, 1, and 10 capabilities. Networking options consist of a 2.5GbE LAN port, integrated 802.11ac Wi-Fi, and Bluetooth 5.0. The rear I/O panel offers HDMI 2.1 and DisplayPort 1.4 outputs, along with a selection of USB ports including a USB 3.2 Gen1 Type-C port.

• Supports AMD Ryzen 7000/8000/9000 Series Processors
• Features a Micro ATX form factor
• Provides four DDR5 DIMM slots supporting up to 128GB
• Equipped with two M.2 PCIe Gen4x4 slots and four SATA3 ports
• Includes one PCIe 4.0 x16 slot for graphics cards
• Offers 2.5 Gigabit LAN, 802.11ac Wi-Fi, and Bluetooth 5.0
• Provides HDMI 2.1 and DisplayPort 1.4 video outputs
• Features a rear USB 3.2 Gen1 Type-C port
• Utilizes the Realtek ALC897 audio codec
• Includes an addressable RGB LED pin header for lighting customization
