Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | AM5 |
| Memory | |
| Maximum internal memory | 256 GB |
| ECC |  |
| Non-ECC | |
| Supported memory clock speeds | 8000 MHz |
| Supported memory types | DDR5 |
| Memory channels | Dual-channel |
| Unbuffered memory | |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Networking | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Marvell AQC113 |
| Wi-Fi | |
| Ethernet interface type | 10 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Internal I/O | |
| USB 2.0 connectors | 3 |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Number of EATX power connectors | 2 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | |
| TPM connector |  |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel connector | |
| 12V power connector | |
| RGB LED pin header | |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of RGB LED pin headers | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Back panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | |
| S/PDIF out port | |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| WiFi-AP antenna jack | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB4 Gen 3x2 ports quantity | 2 |
| Storage controllers | |
| RAID levels | 0, 1, 10 |
| RAID support | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Packaging content | |
| Cables included | SATA |
| Antenna included | |
| Expansion slots | |
| PCI Express x16 slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| BIOS | |
| BIOS memory size | 512 Mbit |
| BIOS type | EFI AMI |
| Clear CMOS button | |
| Features | |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Product colour | Black |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Component for | PC |
| Product type | Motherboard |
| Audio chip | Realtek ALC4082 |
| EAN | 4711581492066 |

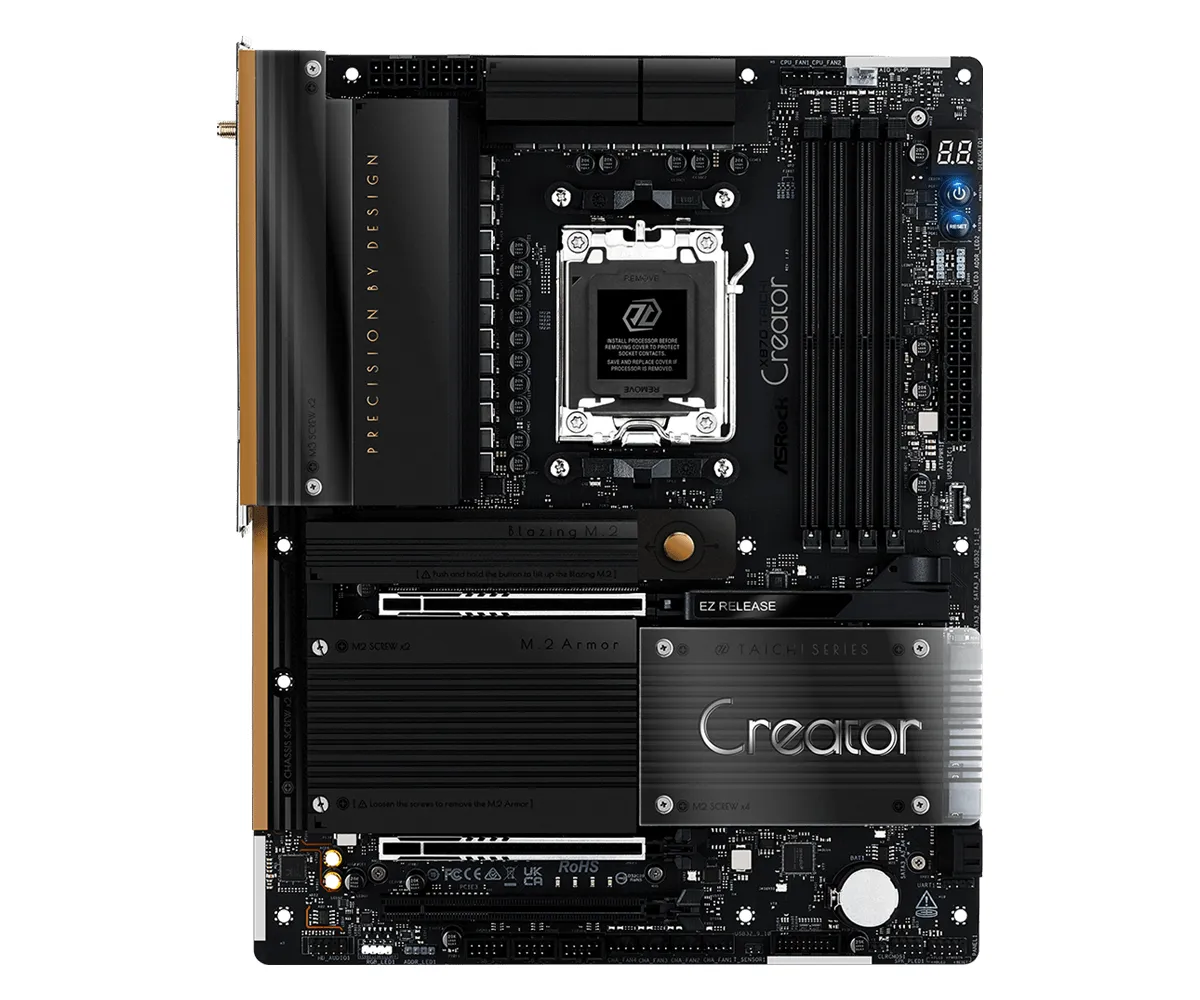

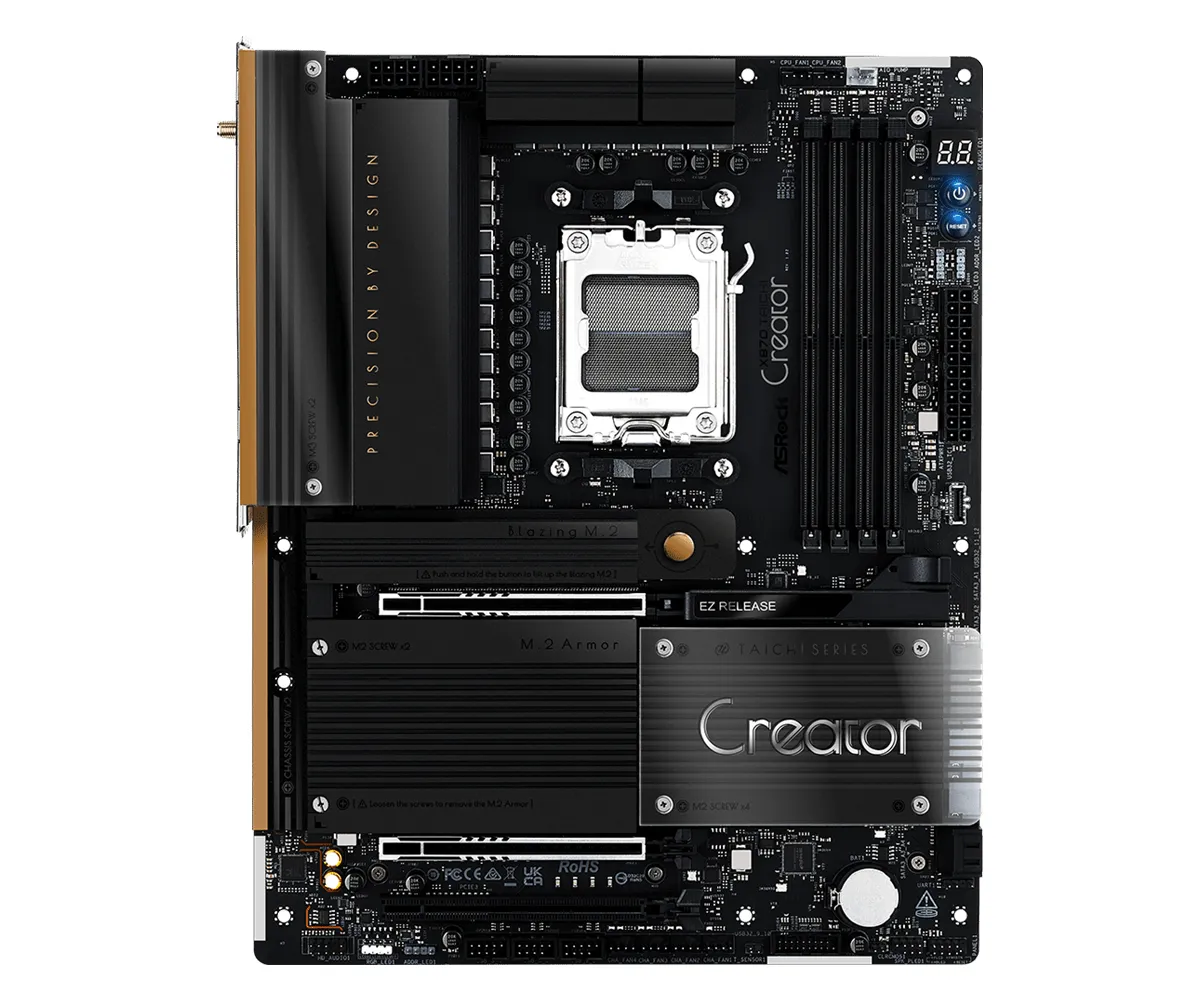

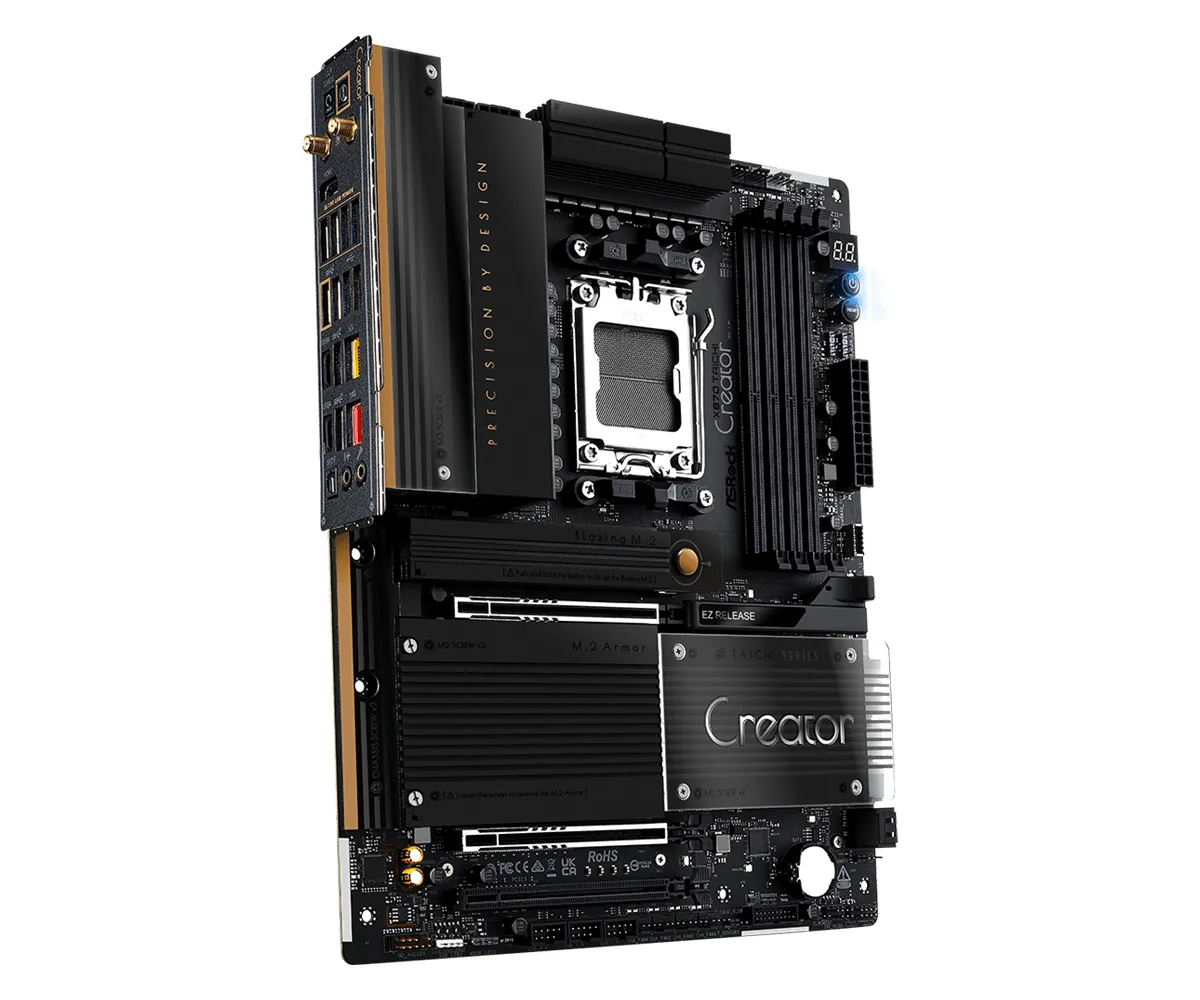

The ASRock X870 Taichi Creator is an ATX motherboard engineered for AMD's AM5 socket, providing support for Ryzen 7000, 8000, and 9000 series processors. It is built to accommodate demanding workloads with a robust power delivery system, supported by dual 8-pin EPS connectors. The board features four DDR5 DIMM slots, enabling dual-channel memory configurations of up to 256 GB at speeds reaching 8000 MHz. This foundation is suitable for high-performance computing and content creation requiring substantial memory bandwidth and capacity.
For expansion, the motherboard offers three PCIe x16 slots, two of which operate at Gen 5 speeds for compatible graphics cards or accelerators. Storage capabilities are extensive, with four M.2 slots supporting PCIe Gen5 interfaces and four additional SATA III ports for conventional drives. High-speed networking is handled by dual Ethernet ports, one of which is 10GbE, alongside integrated Wi-Fi 7. The rear I/O is equipped with multiple USB ports, including dual USB4 Type-C connectors that facilitate high-speed data transfer and daisy-chaining of peripherals.
Key Features:- AMD X870 chipset on the AM5 socket platform
- RAID 0, 1, and 10 support for storage arrays
- Realtek ALC4082 audio codec
- Onboard Clear CMOS button for BIOS reset
- Internal headers for USB 2.0 and USB 3.2 Gen 1
- One CPU fan header and four chassis fan headers
- Bluetooth 5.4 wireless connectivity
- One HDMI 2.1 display output
