Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C ports quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Weight & dimensions | |
| Height | 450 mm |
| Width | 215 mm |
| Depth | 468 mm |
| Storage | |
| Card reader integrated | ![]() |
| Number of HDDs supported | 3 |
| Number of storage drives supported | 6 |
| Supported storage drive types | HDD, SSD |
| HDD/SSD combo cage | ![]() |
| SSD form factor | 2.5" |
| Packaging data | |
| LED controller | ![]() |
| Cooling | |
| Cooling | ![]() |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120 mm |
| Side fans diameters supported | 120, 140 mm |
| Rear fans diameters supported | 120 mm |
| Top fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 3 |
| Liquid cooling capability | ![]() |
| Rear radiator sizes supported | 120 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Fan speed control | ![]() |
| Other features | |
| Expansion slots | 5 |
| Power LED | ![]() |
| On/off switch | ![]() |
| Screws included | ![]() |
| Fan connector | 3-pin/4-pin |
| Design | |
| Rack mounting | ![]() |
| Cable lock slot | ![]() |
| Product colour | Black |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | Micro-ATX, Mini-ITX |
| Anti-dust filter | ![]() |
| Number of 3.5" bays | 2 |
| Transport wheels | ![]() |
| Side window | ![]() |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 5 |
| Number of 2.5" bays | 4 |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| RGB control button | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply included | ![]() |
| Supported power supply form factors | ATX |
| EAN | 4710562749373 |

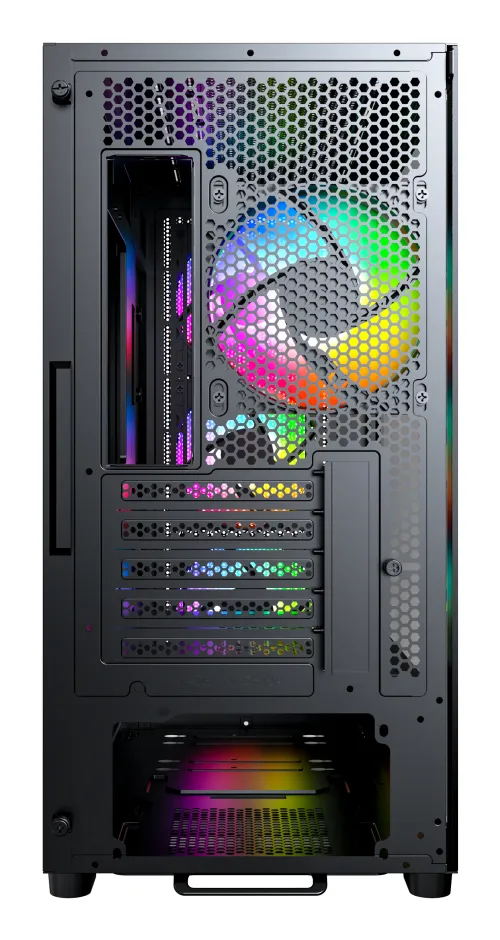

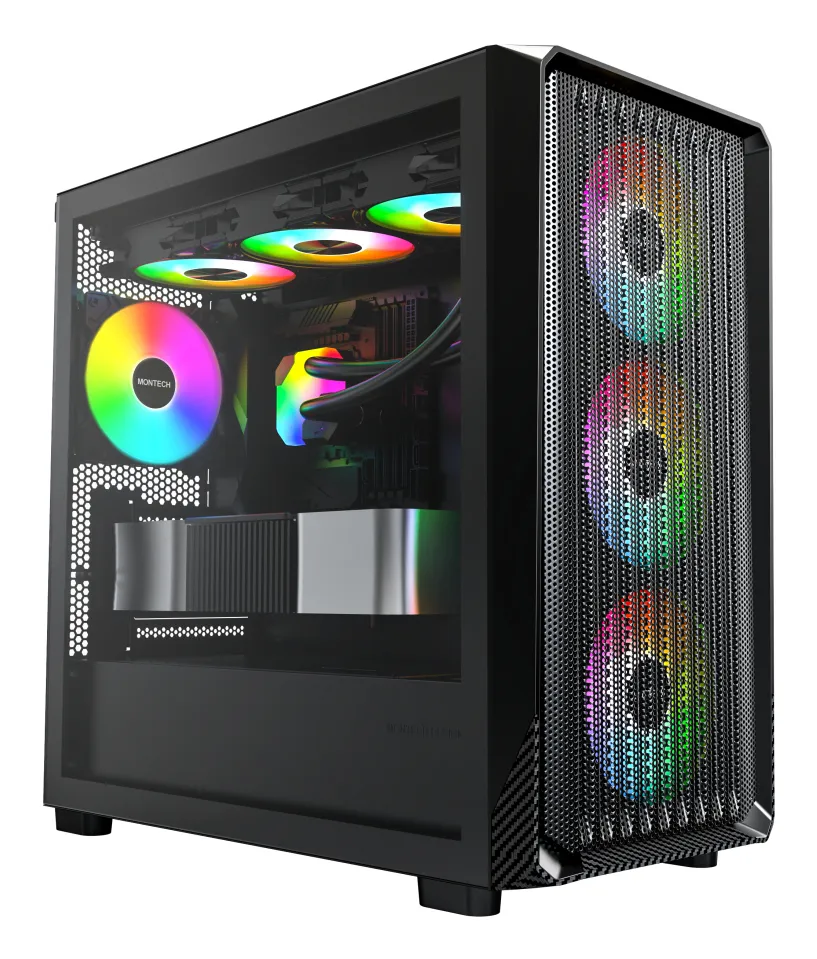

The MONTECH X5M is a Micro-ATX tower case engineered for compact PC builds that require performance-oriented features. Its construction consists of a steel chassis and a tempered glass side panel, which allows for a clear view of the internal components. This case is compatible with both Micro-ATX and Mini-ITX motherboards, offering a versatile foundation for smaller gaming or workstation systems. The design prioritizes airflow while incorporating addressable RGB lighting for system customization, and integrated dust filters help maintain a clean interior.
For thermal management, the case provides substantial cooling capacity with extensive support for fans and liquid cooling radiators. It arrives with five pre-installed fans: four 120mm ARGB units at the front and one 120mm standard fan at the rear. Component clearance accommodates CPU coolers up to 165mm in height and standard ATX power supplies with a maximum length of 230mm. The front I/O panel is equipped with multiple USB ports, including Type-C, and a combination audio jack for peripheral connectivity.
Key Features:- Form factor supports Micro-ATX and Mini-ITX motherboards
- Steel chassis with a tempered glass side panel
- Includes four 120mm ARGB front fans and one 120mm rear fan
- Supports up to a 360mm radiator in the front or top positions
- Accommodates CPU coolers up to 165mm in height
- Fits power supplies up to 230mm in length
- Provides five PCI expansion slots
- Offers storage for two 3.5" drives and four 2.5" drives
- Front panel includes USB 3.2 Type-C, USB 3.2 Type-A, and USB 2.0 ports
