Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| Headphone outputs | 1 |
| Microphone in | ![]() |
| Combo headphone/mic port | ![]() |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Weight & dimensions | |
| Height | 460 mm |
| Width | 210 mm |
| Depth | 371 mm |
| Material thickness | 3 mm |
| Storage | |
| Card reader integrated | ![]() |
| Number of HDDs supported | 3 |
| Number of storage drives supported | 3 |
| Supported storage drive types | HDD, SSD |
| Supported storage drive interfaces | SATA |
| HDD/SSD combo cage | ![]() |
| SSD form factor | 2.5" |
| Packaging data | |
| LED controller | ![]() |
| Cooling | |
| Cooling | ![]() |
| Number of front fans supported (max) | 3 |
| Rear fans diameters supported | 120 mm |
| Number of rear fans supported (max) | 1 |
| Number of top fans supported (max) | 2 |
| Liquid cooling capability | ![]() |
| Rear radiator sizes supported | 120 mm |
| Rear radiator installed | ![]() |
| Front radiator installed | ![]() |
| Top radiator installed | ![]() |
| Fan speed control | ![]() |
| Other features | |
| Expansion slots | 7 |
| Power LED | ![]() |
| Volume | 35.5 L |
| On/off switch | ![]() |
| Screws included | ![]() |
| Design | |
| Rack mounting | ![]() |
| Cable lock slot | ![]() |
| Product colour | White |
| Illumination | ![]() |
| Cable management | ![]() |
| Reset button | ![]() |
| Supported motherboard form factors | ATX, Micro-ATX, Mini-ITX |
| Anti-dust filter | ![]() |
| Number of 3.5" bays | 2 |
| Suitable for | PC |
| Transport wheels | ![]() |
| Side window | ![]() |
| Number of internal 3.5" bays | 2 |
| Maximum CPU cooler height | 16.6 cm |
| Number of expansion slots | 7 |
| Maximum PSU length | 18 cm |
| Number of 2.5" bays | 2 |
| On/off button | ![]() |
| Tempered glass panel(s) | ![]() |
| RGB control button | ![]() |
| Power supply | |
| Number of power supply units | 1 |
| Power supply location | Bottom |
| Power supply included | ![]() |
| Supported power supply form factors | ATX |
| EAN | 4711085937551 |

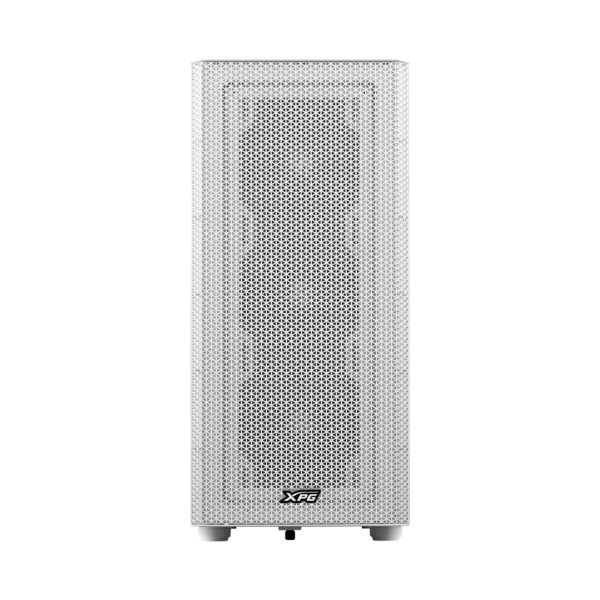

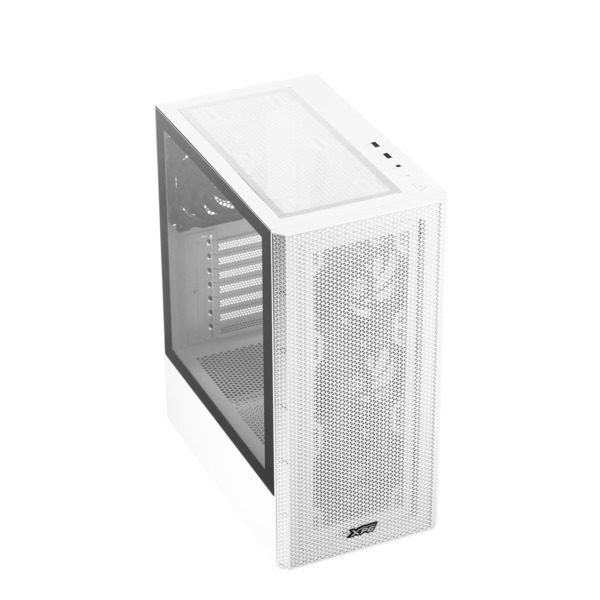

The XPG VALOR MESH is a mid-tower chassis designed for ATX, Micro-ATX, and Mini-ITX builds that require high airflow. Its primary design feature is a steel mesh front panel, which allows for direct air intake to internal components. The case measures 460mm in height and 371mm in depth, offering a compact footprint suitable for various setups. The main structure is composed of steel and plastic, providing a standard framework for system components.
For thermal management, the case supports extensive liquid and air cooling configurations. It accommodates radiators up to 360mm in the front, 240mm on top, and 120mm at the rear. The interior provides 166mm of clearance for CPU coolers and up to 180mm for a standard ATX power supply. The storage layout includes a drive cage that supports a combination of 2.5-inch and 3.5-inch drives. Build and maintenance are supported by features such as an anti-dust filter and designated cable management pathways.
Key Features:- Supports ATX, Micro-ATX, and Mini-ITX motherboards
- Features a steel chassis with a full mesh front panel
- Provides clearance for CPU coolers up to 166mm in height
- Accommodates graphics cards up to 305mm with front fans installed
- Includes two 3.5-inch and two 2.5-inch drive bays
- Equipped with two front-panel USB 3.2 Gen 1 Type-A ports and a combo audio jack
- Comes with three 120mm front fans and one 120mm rear fan pre-installed
- Offers seven horizontal expansion slots
