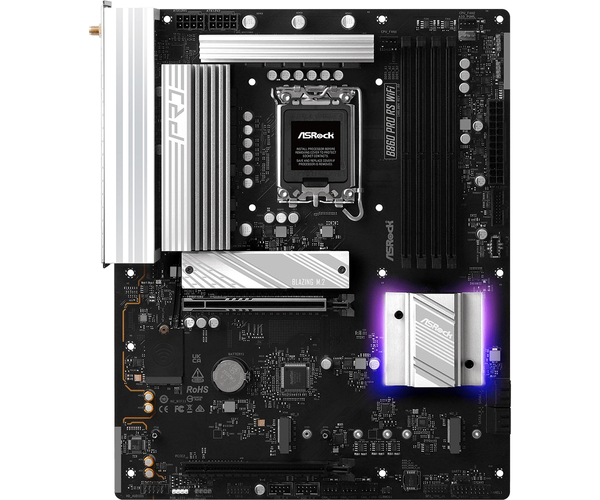

ASROCK B860 Pro RS WiFi 6E LGA 1851 ATX DDR5 - motherboard
Manufacturer: ASROCK
ID: B860 PRO RS WIFI
18390€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 |
| Supported processor sockets | LGA 1851 |
| Memory | |
| Maximum internal memory | 256 GB |
| Supported memory types | DDR5 |
| Memory channels | Dual-channel |
| Unbuffered memory |  |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory clock speed (max) | 8666 MHz |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Networking | |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Ethernet LAN | |
| Bluetooth | |
| LAN controller | Dragon RTL8125BG |
| Wi-Fi | |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| CPU fan connector | |
| ATX Power connector (24-pin) | |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | |
| TPM connector | |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | |
| Back panel I/O ports | |
| Line-in | |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Microphone in | |
| VGA (D-Sub) ports quantity | 0 |
| DVI-D ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Storage controllers | |
| RAID levels | 0, 1, 5, 10 |
| RAID support | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Packaging content | |
| Cables included | SATA |
| Antenna included | |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS memory size | 256 Mbit |
| BIOS type | UEFI AMI |
| Graphics | |
| HDCP | |
| Features | |
| Motherboard chipset | Intel B860 |
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| EAN | 4711581490239 |
| Warranty | 3 years |
The ASRock B860 Pro RS WiFi 6E is a versatile ATX motherboard designed for the latest generation of Intel processors. Built around the LGA 1851 socket and the B860 chipset, this motherboard is ideal for gamers, content creators, and PC enthusiasts looking to harness the power of DDR5 memory and the latest connectivity standards. It offers a balance of performance and features, making it a solid foundation for a wide range of PC builds.
This motherboard supports the latest WiFi 6E standard, providing faster wireless speeds and lower latency for online gaming and streaming. It also includes multiple M.2 slots for high-speed NVMe SSDs, as well as ample USB ports for connecting peripherals and external storage. The robust power delivery system ensures stable performance even under heavy loads, while the comprehensive cooling solutions keep temperatures in check. With its blend of features and performance, the ASRock B860 Pro RS WiFi 6E is an excellent choice for your next build.
Key Features- Supports Intel LGA 1851 Socket
- Intel B860 Chipset
- DDR5 memory support up to 96GB
- PCIe 5.0 support for high-end graphics cards
- Multiple M.2 slots for NVMe SSDs
- WiFi 6E for fast wireless connectivity
- 2.5 Gigabit LAN for high-speed wired networking
- USB 3.2 Gen2x2 Type-C port
- VRM heatsinks for improved cooling
- BIOS Flashback for easy BIOS updates
- RGB lighting customization options
- ATX form factor
- ASRock B860 Pro RS WiFi 6E Motherboard
- I/O Shield
- SATA Cables
- WiFi Antennas
- User Manual
- Driver CD
- M.2 Screws/Standoffs
