Key Specifications
Choose one or multiple features to search for items that have the same specifications.| Ports & interfaces | |
| PCI Express connector | ![]() |
| Motherboard power connector | 24-pin ATX |
| Number of SATA power connectors | 6 |
| EPS power connector (8-pin) | ![]() |
| ATX power connector (20+4 pin) | ![]() |
| PCI Express power connectors (8-pin) | 3 |
| CPU power connector (4+4 pin) | ![]() |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Fully-Modular |
| Number of PATA power connectors | 2 |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 750 mm |
| CPU power cable length | 75 cm |
| PCI Express power cable length | 65 cm |
| EPS power connector (4+4 pin) | ![]() |
| PCI Express power connectors (12+4 pin) | 1 |
| Weight & dimensions | |
| Weight | 2.93 kg |
| Height | 140 mm |
| Width | 150 mm |
| Depth | 86 mm |
| Energy management | |
| Peak power | 850 W |
| Input current | 10 - 5 A |
| Nominal power | 850W |
| Efficiency | 90% |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 850 W |
| Combined power (+5V) | 150 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (+5Vsb) | 3 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 850 W |
| Packaging data | |
| Package type | Box |
| Certificates | |
| RoHS compliance | ![]() |
| 80 PLUS certification | 80 PLUS Gold |
| Compliance certificates | CE, RoHS, UKCA |
| Design | |
| Product colour | Black |
| Illumination | ![]() |
| Number of fans | 1 fan(s) |
| On/off switch | ![]() |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Fan location | Front |
| Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Form factor | ATX |
| Purpose | PC |
| Bearing technology | Rifle |
| Supported motherboard form factors | ATX |
| ATX version | 3.1 |
| 80 PLUS certification | 80 PLUS Gold |
| Silent mode | ![]() |
| Power supply unit (PSU) form factor | ATX |
| EAN | 8400066912040 |
| Warranty | 7 years |
The CORSAIR RM850e is an 850W power supply unit engineered for modern PC builds that require stable and efficient power delivery. It is fully compliant with the latest ATX 3.1 and PCIe 5.1 standards, ensuring broad compatibility with current-generation components. The unit holds an 80 PLUS Gold certification, signifying up to 90% operational efficiency which helps to reduce heat output and energy consumption. A native 12V-2x6 GPU power cable is included to directly support high-performance graphics cards without the need for additional adapters.
This PSU utilizes a fully modular cabling system, which allows builders to use only the necessary cables for their specific hardware configuration. This approach simplifies the installation process and can improve airflow within the case. Its compact 140mm-deep chassis fits a wide range of ATX-compatible enclosures, providing flexibility for system integrators. For acoustic performance, the RM850e is equipped with a 120mm fan that features a zero RPM mode, stopping fan rotation entirely under low to medium loads to minimize noise.
Key Features:- Provides 850W of continuous power
- Features an 80 PLUS Gold efficiency certification
- Utilizes a standard ATX form factor
- Offers a fully modular cabling system
- Complies with ATX 3.1 and PCIe 5.1 specifications

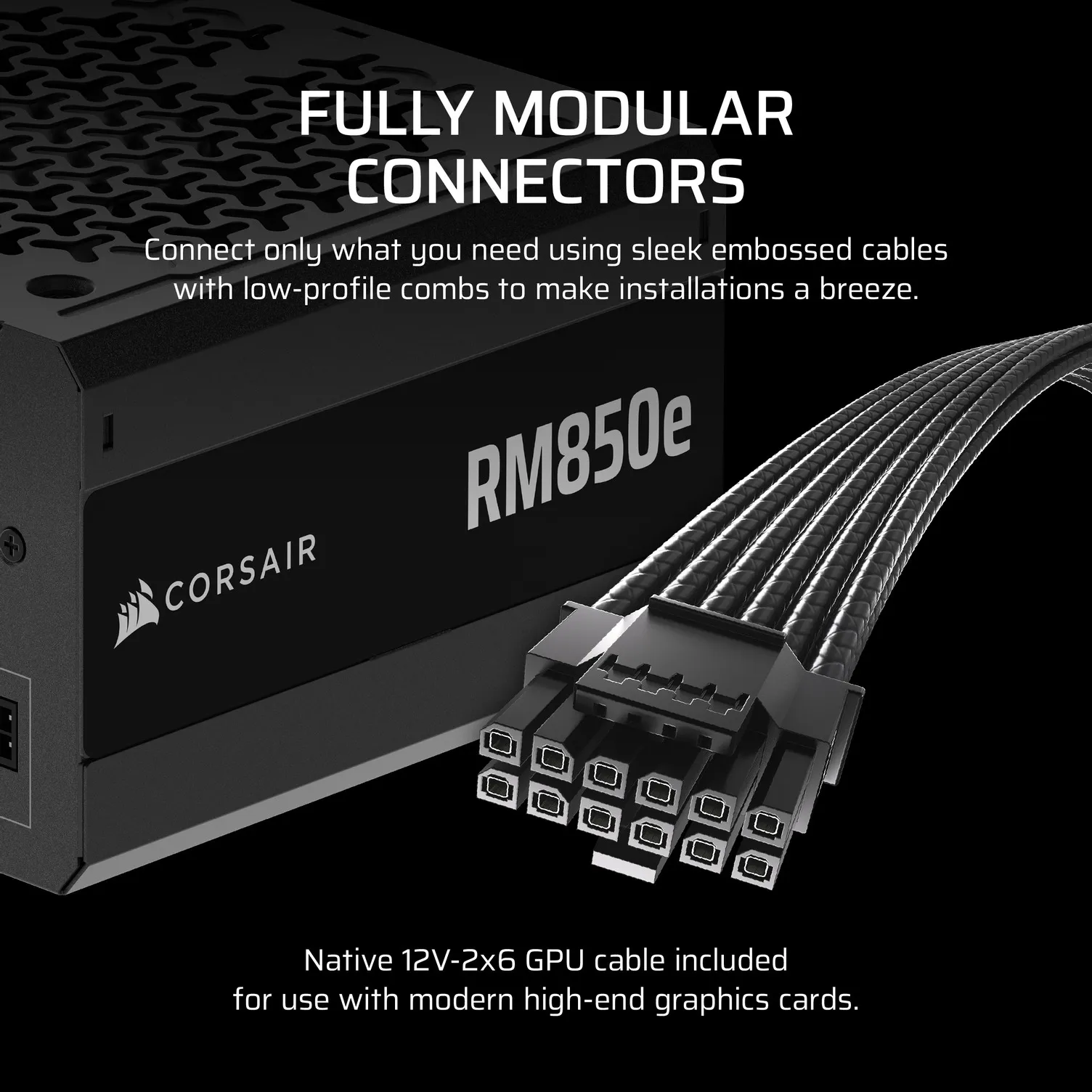

- Includes a native 12V-2x6 GPU power connector
- Equipped with a 120 mm low-noise cooling fan
- Supports a zero RPM mode for silent operation at low loads
