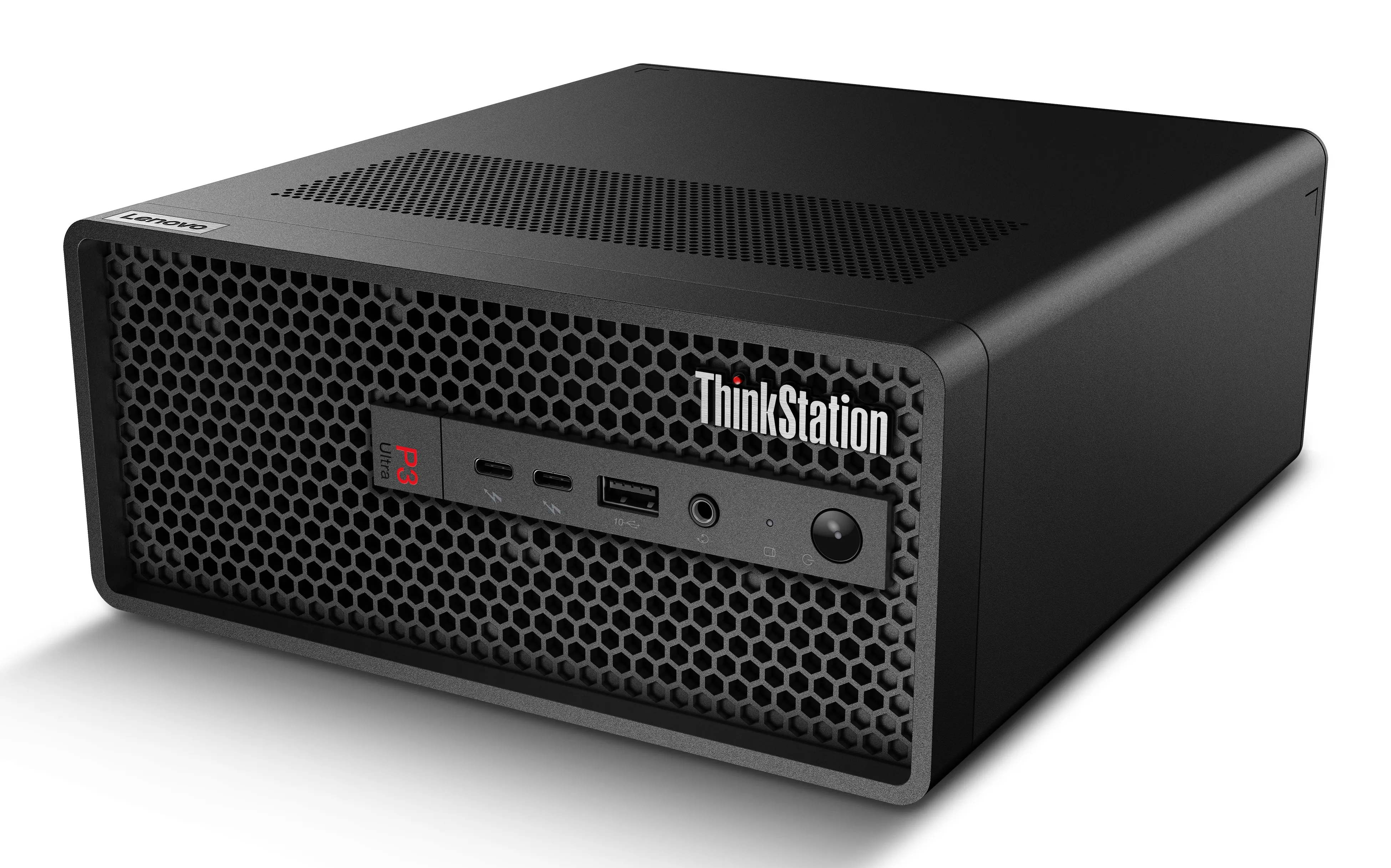

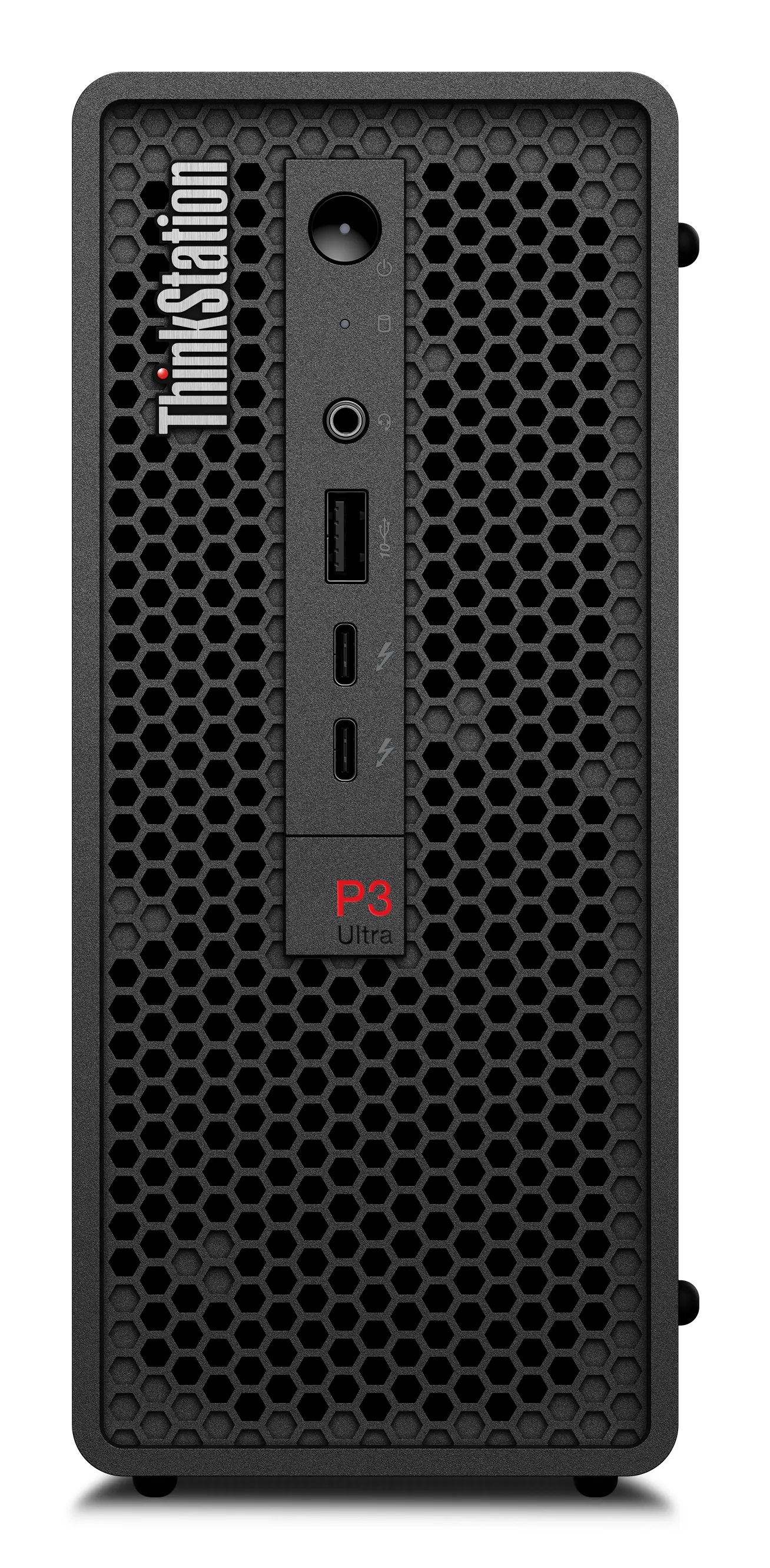

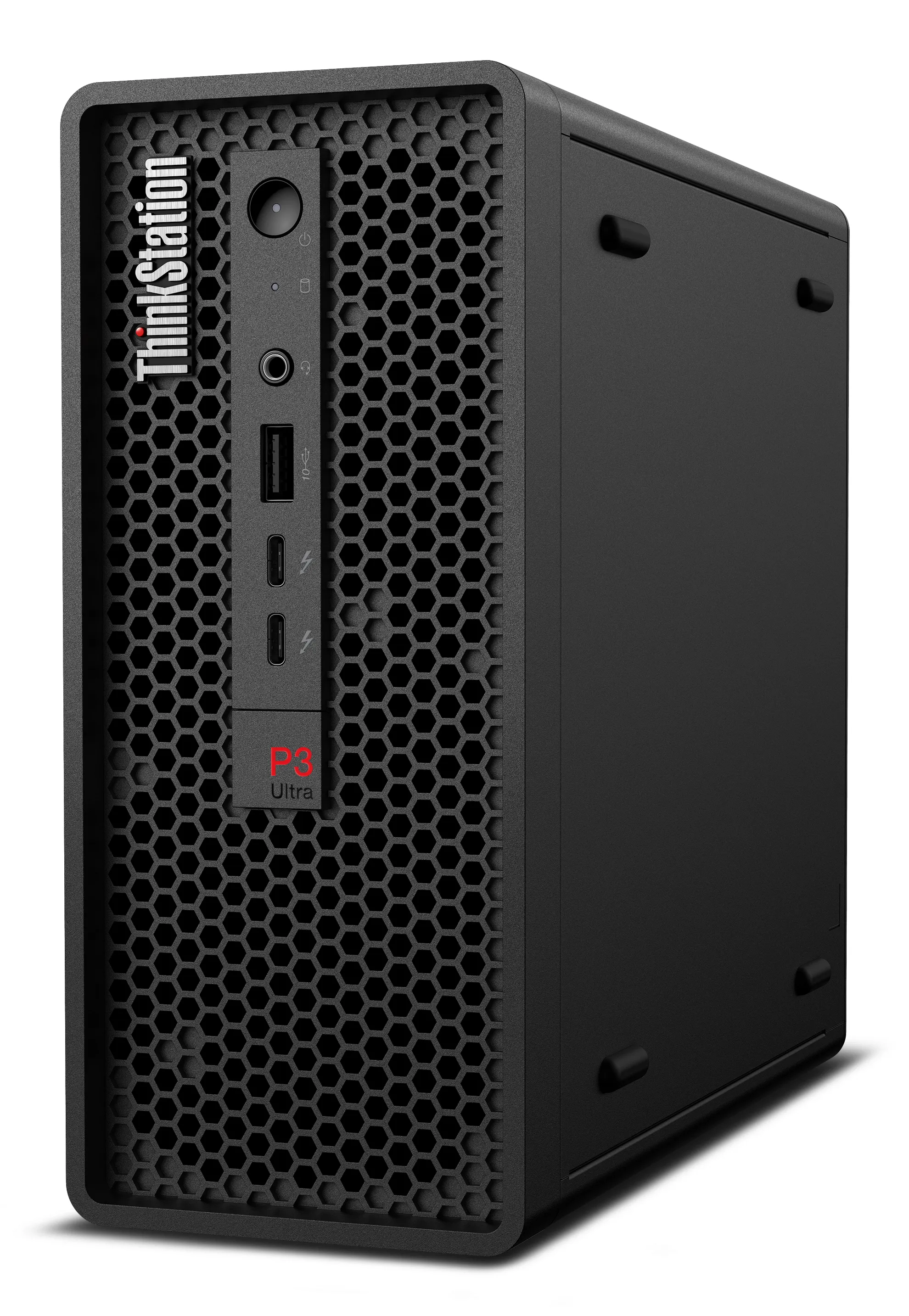

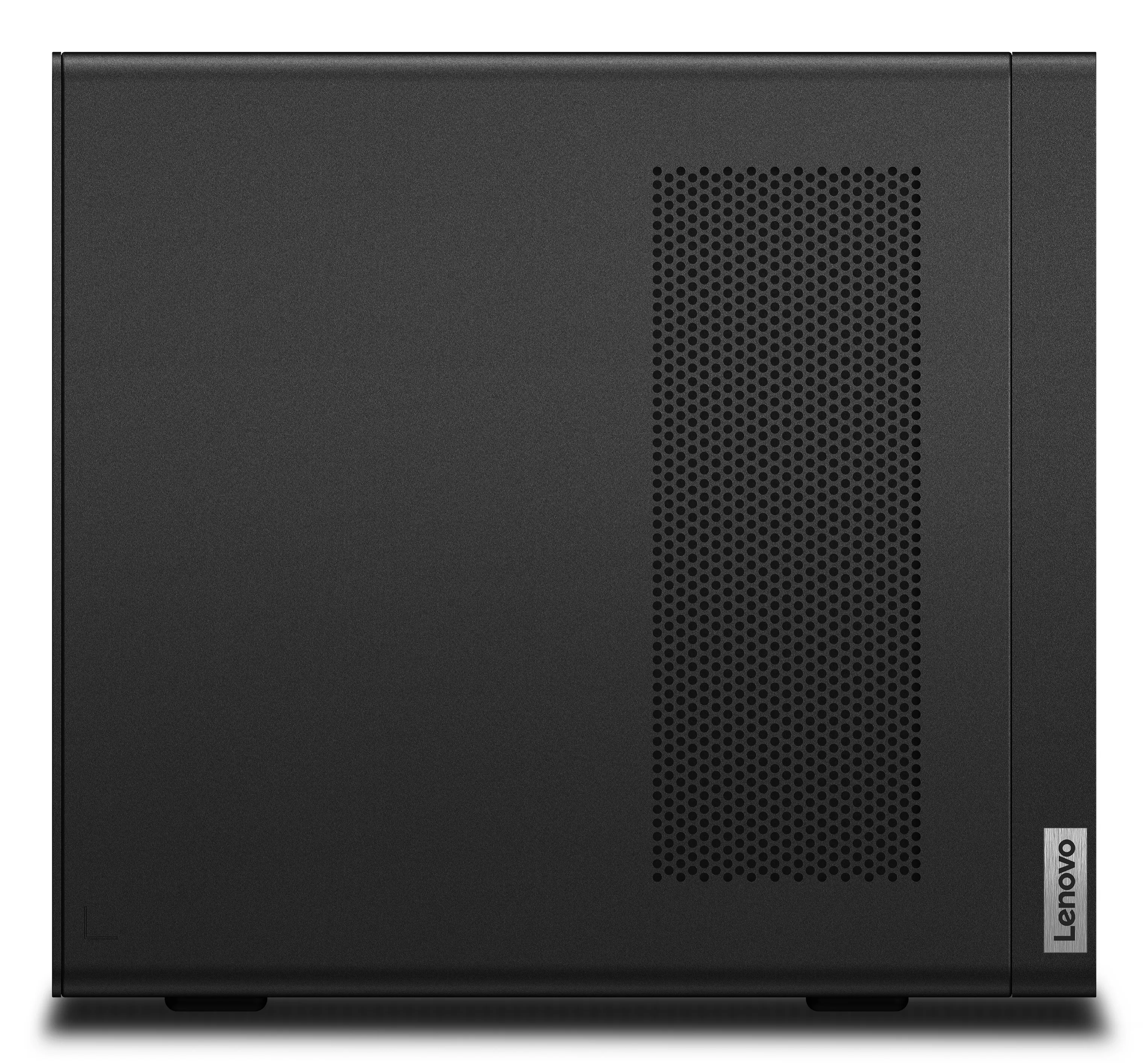

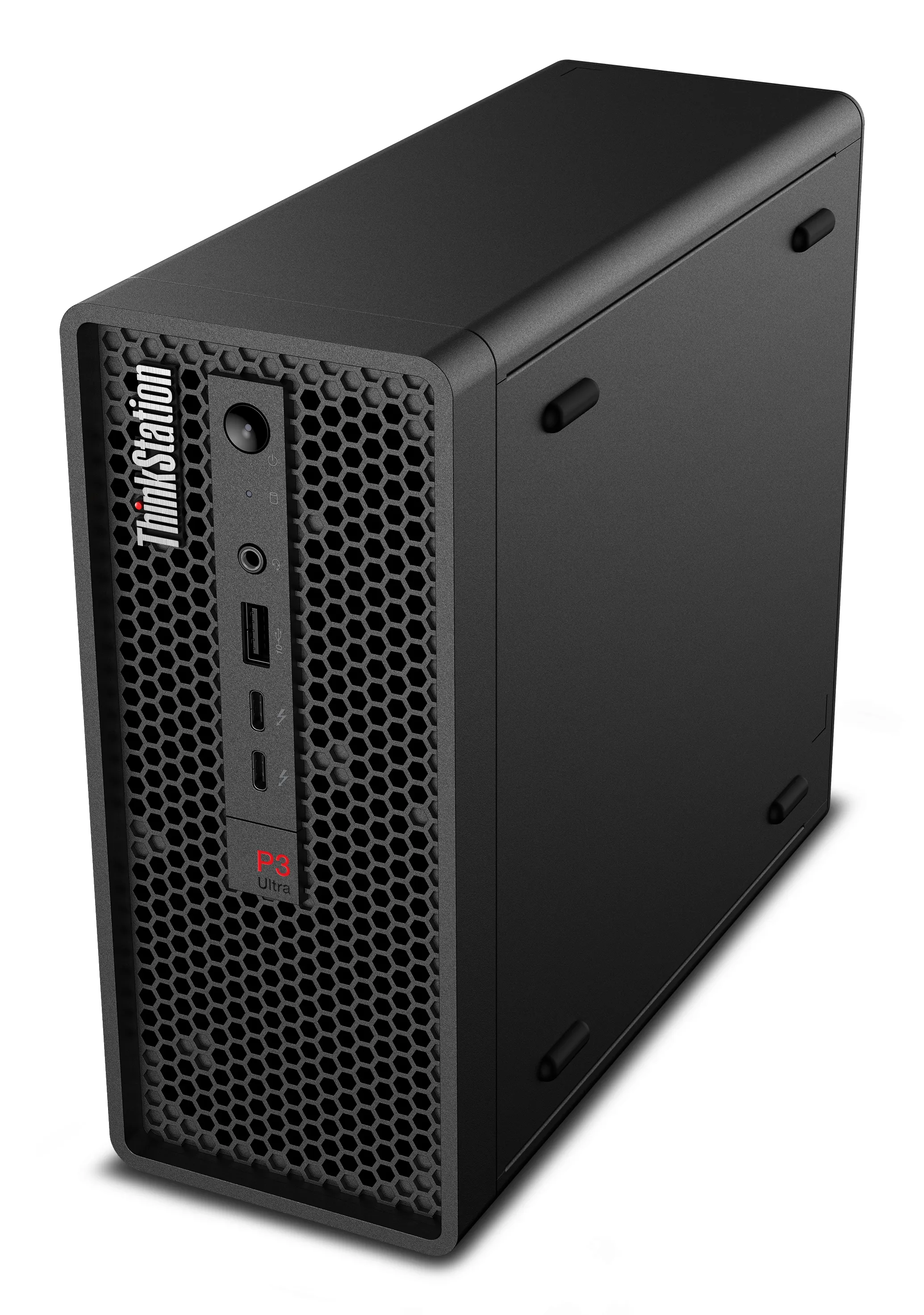

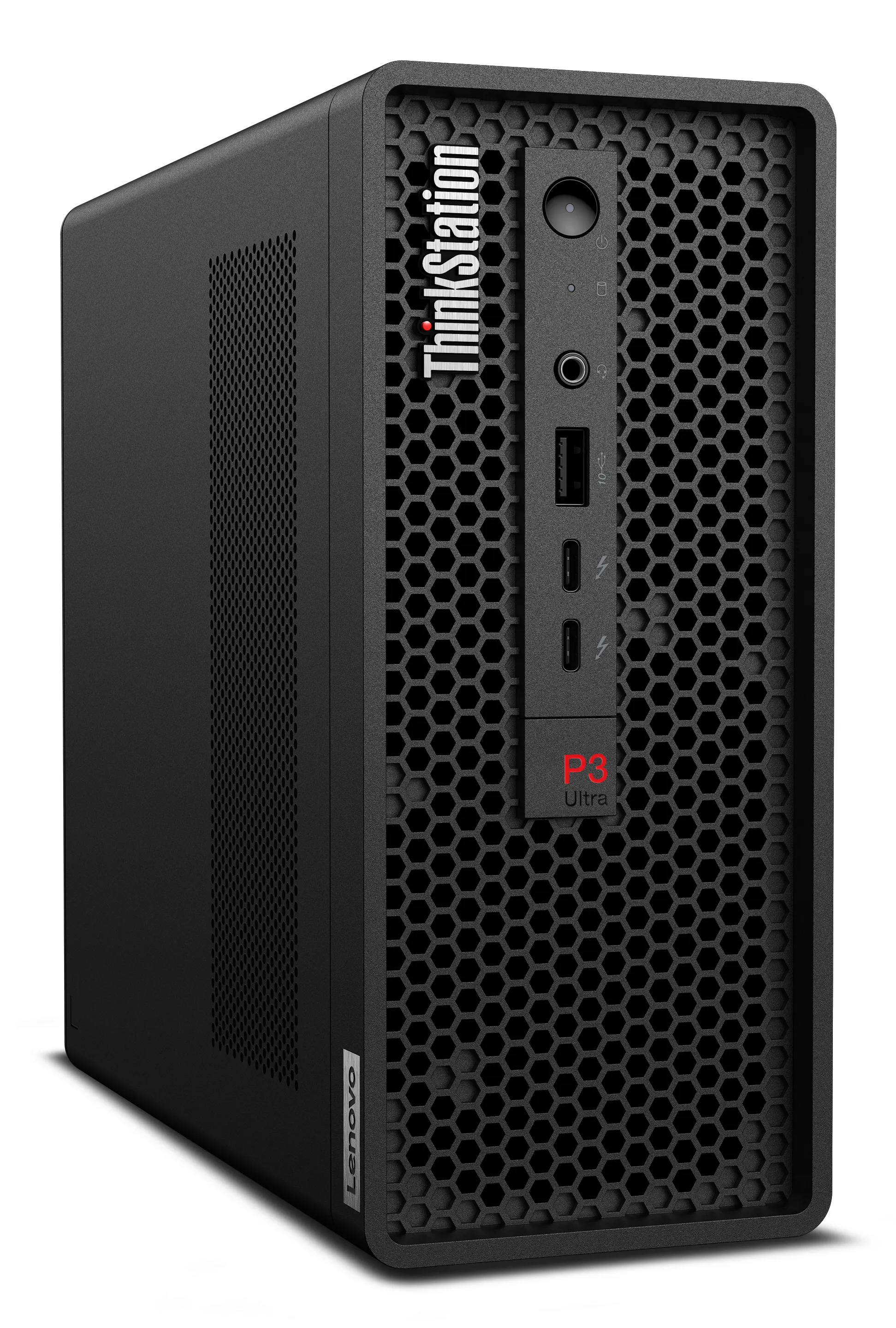

LENOVO P3 ULTRA I7-14700/32GB/1TB SSD/RTX A2000/2XRJ45/WLAN/W11P/3OS
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Technical details | |
Device type | SSD |
Processor | |
Processor model | i7-14700 |
Number of processors installed | 1 |
Processor manufacturer | Intel |
Processor family | Intel Core i7 |
Processor cores | 20 |
Processor threads | 28 |
Processor boost frequency | 5.4 GHz |
Processor cache | 33 MB |
Bus type | DMI4 |
Processor cache type | Smart Cache |
Efficient cores | 12 |
Performance cores | 8 |
Processor base power | 65 W |
Maximum turbo power | 219 W |
Efficient-core base frequency | 1.5 GHz |
Performance-core base frequency | 2.1 GHz |
Processor generation | Intel® Core™ i7 (14th gen) |
Efficient-core Max Turbo Frequency | 4.2 GHz |
Performance-core Max Turbo Frequency | 5.3 GHz |
Hard drive | |
Total storage capacity | 1000 GB |
Memory | |
Internal memory type | DDR5-SDRAM |
Memory slots | 4x SO-DIMM |
Maximum internal memory | 128 GB |
Memory clock speed | 4800 MHz |
Non-ECC | |
Memory channels | Dual-channel |
Memory layout (slots x size) | 2 x 16 GB |
Internal memory | 32 GB |

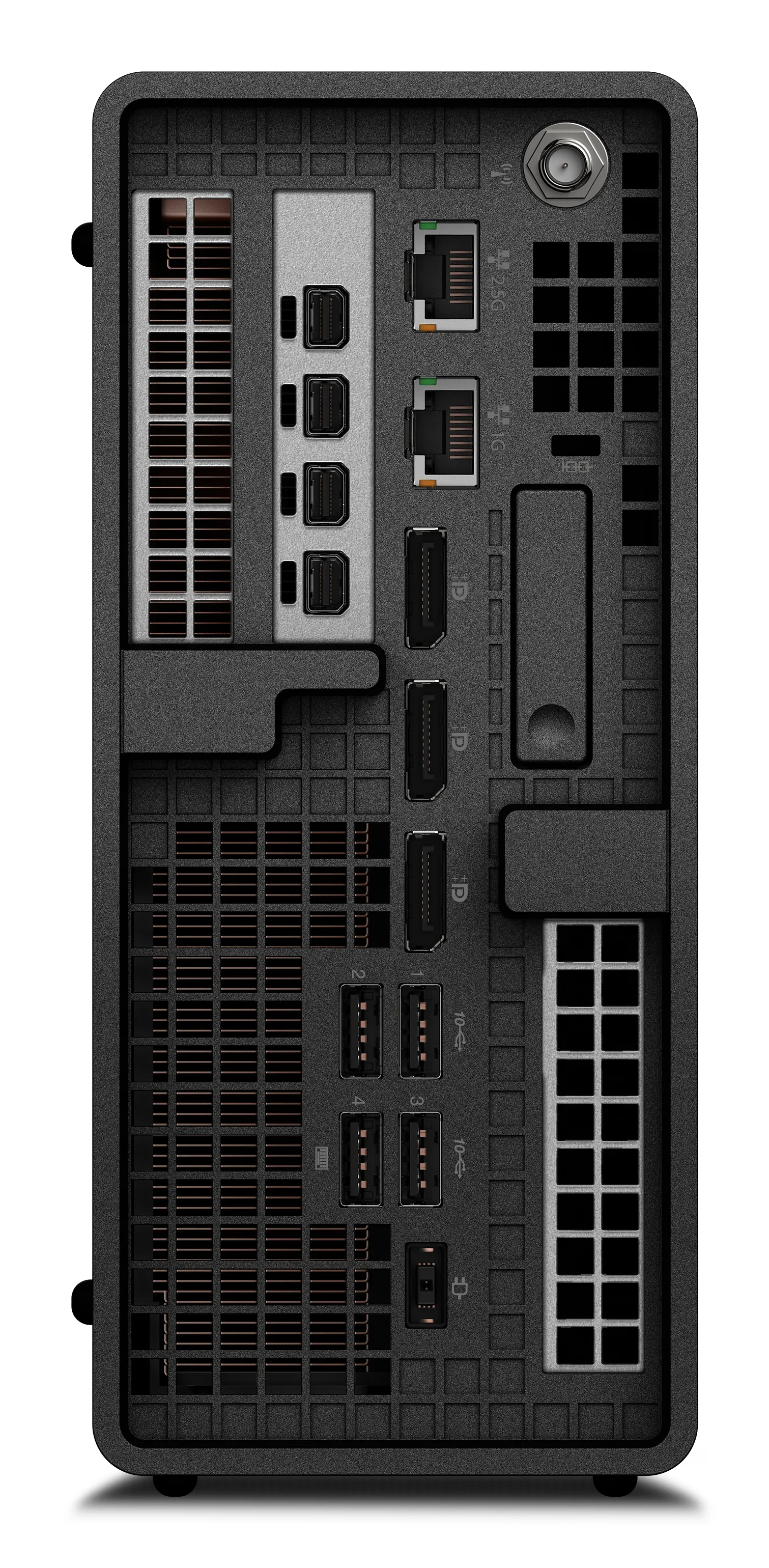

Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 2 |
DisplayPorts quantity | 3 |
Combo headphone/mic port | |
DisplayPort version | 1.2 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
Thunderbolt 4 ports quantity | 2 |
Intel® Thunderbolt 4 | |
Weight & dimensions | |
Weight | 3.6 kg |
Height | 202 mm |
Width | 87 mm |
Depth | 223 mm |
Energy management | |
Power supply | 230 W |
Power supply input voltage | 100 - 240 V |
Power supply input frequency | 50 - 60 Hz |
Operational conditions | |
Operating altitude | 0 - 3048 m |
Operating relative humidity (H-H) | 20 - 80% |
Storage temperature (T-T) | -40 - 60 °C |
Operating temperature (T-T) | 10 - 35 °C |
Storage relative humidity (H-H) | 10 - 90% |
Non-operating altitude | 0 - 12192 m |
Networking | |
Wi-Fi standards | Wi-Fi 6E (802.11ax) |
Cabling technology | 10/100/1000Base-T(X) |
Bluetooth version | 5.1 |
Ethernet LAN | |
Antenna type | 2x2 |
Bluetooth | |
LAN controller | Intel® I210-AT, Intel I225-LM |
Wi-Fi | |
Ethernet LAN data rates | 1000,2500,100 Mbit/s |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
WLAN controller model | Intel Wi-Fi 6E AX211 |
WLAN controller manufacturer | Intel |
Storage | |
Drive capacity | 1 TB |
Optical drive type | No |
Card reader integrated | |
SSD interface | PCI Express 4.0 |
Number of SSDs installed | 1 |
Storage media | SSD |
Number of storage drives installed | 1 |
SSD form factor | M.2 |
NVMe | |
Total SSDs capacity | 1 TB |
Certificates | |
Certification | MIL-STD-810H |
Operating system/software | |
Operating system installed | Windows 11 Pro |
Operating system architecture | 64-bit |
Operating system language | English, Norwegian, Swedish, Danish, Finnish |
Packaging content | |
Display included | |
Mouse included | |
Keyboard included | |
Mouse connectivity | Wired |
Keyboard connectivity | Wired |
Design | |
Chassis type | Mini Tower |
Cable lock slot | |
Product colour | Black |
Placement supported | Horizontal/Vertical |
Volume | 3.9 L |
Cable lock slot type | Kensington |
Graphics | |
On-board graphics card model | Intel UHD Graphics 770 |
Discrete graphics card model | NVIDIA RTX A2000 |
Discrete graphics memory type | GDDR6 |
Number of discrete graphics cards | 1 |
On-board graphics card | |
Discrete graphics card memory | 12 GB |
Graphics card Mini DisplayPort ports quantity | 4 |
Discrete graphics card | |
On-board graphics card family | Intel® UHD Graphics |
Discrete GPU manufacturer | NVIDIA |
On-board GPU manufacturer | Intel |
Processor special features | |
CPU configuration (max) | 1 |
Performance | |
Motherboard chipset | Intel W680 |
Audio system | High Definition Audio |
BIOS type | UEFI |
Built-in speaker(s) | |
Trusted Platform Module (TPM) | |
Password protection type | BIOS, Power on, Supervisor |
Number of speakers | 1 |
Product type | Workstation |
Password protection | |
Audio chip | Realtek ALC897-Q |
Sustainability | |
Sustainability compliance | |
Sustainability certificates | ENERGY STAR, EPEAT Gold, TCO |
EAN | 197531845962 |
Warranty | 3 years |
Source: Icecat.biz |

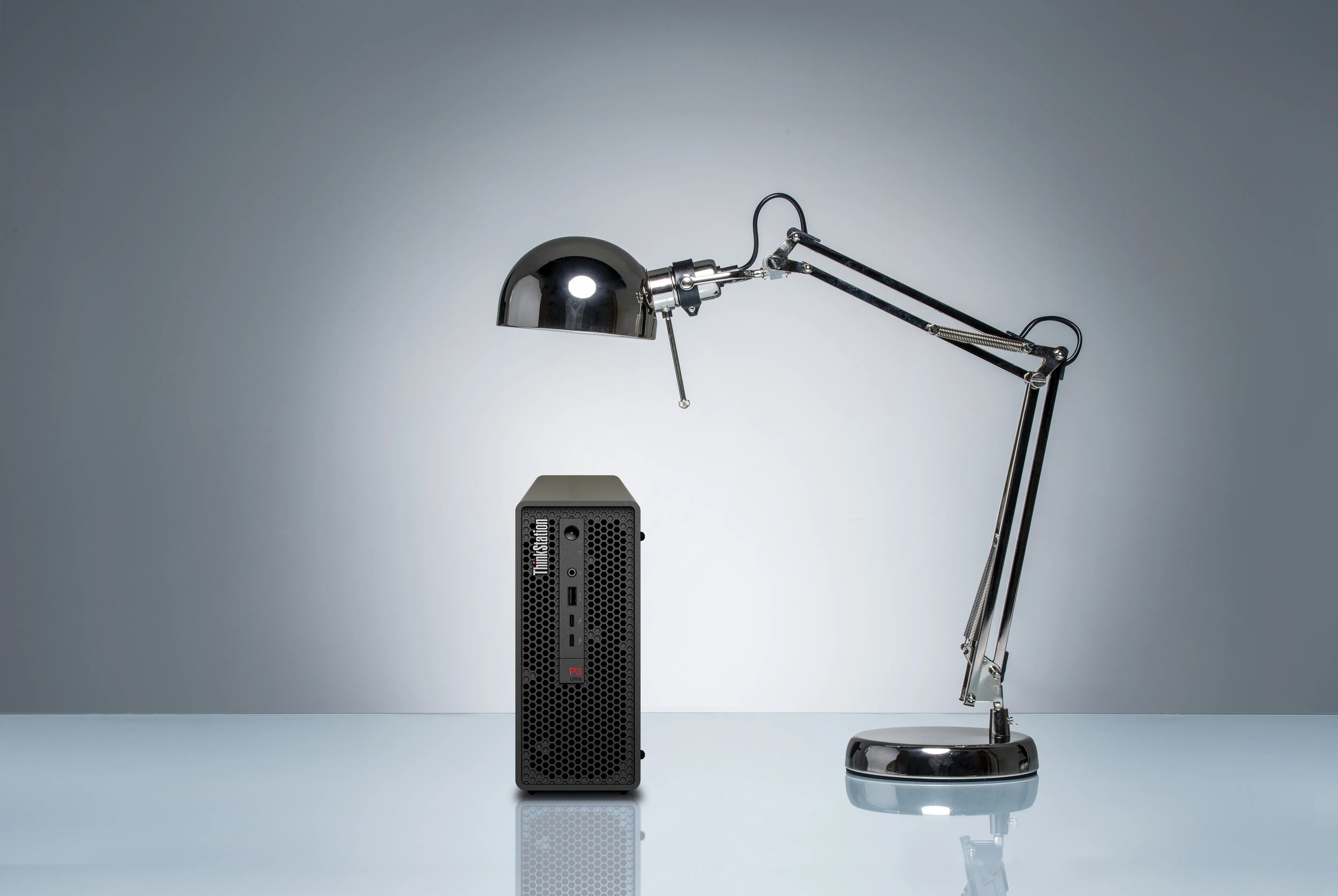

Superior performance, smaller footprint
The Lenovo ThinkStation P3 Ultra boasts a revolutionary 3.9L form factor in a space-efficient chassis. Ideal for demanding workflows that require flexible configurations and maximum space savings, it’s designed to go wherever today’s professionals need to be. Powered by Intel vPro® with Intel® Core™ processors and with a choice of optional NVIDIA® discrete graphics, this workstation breaks new ground with an intelligently compact design that doesn’t compromise on functionality.

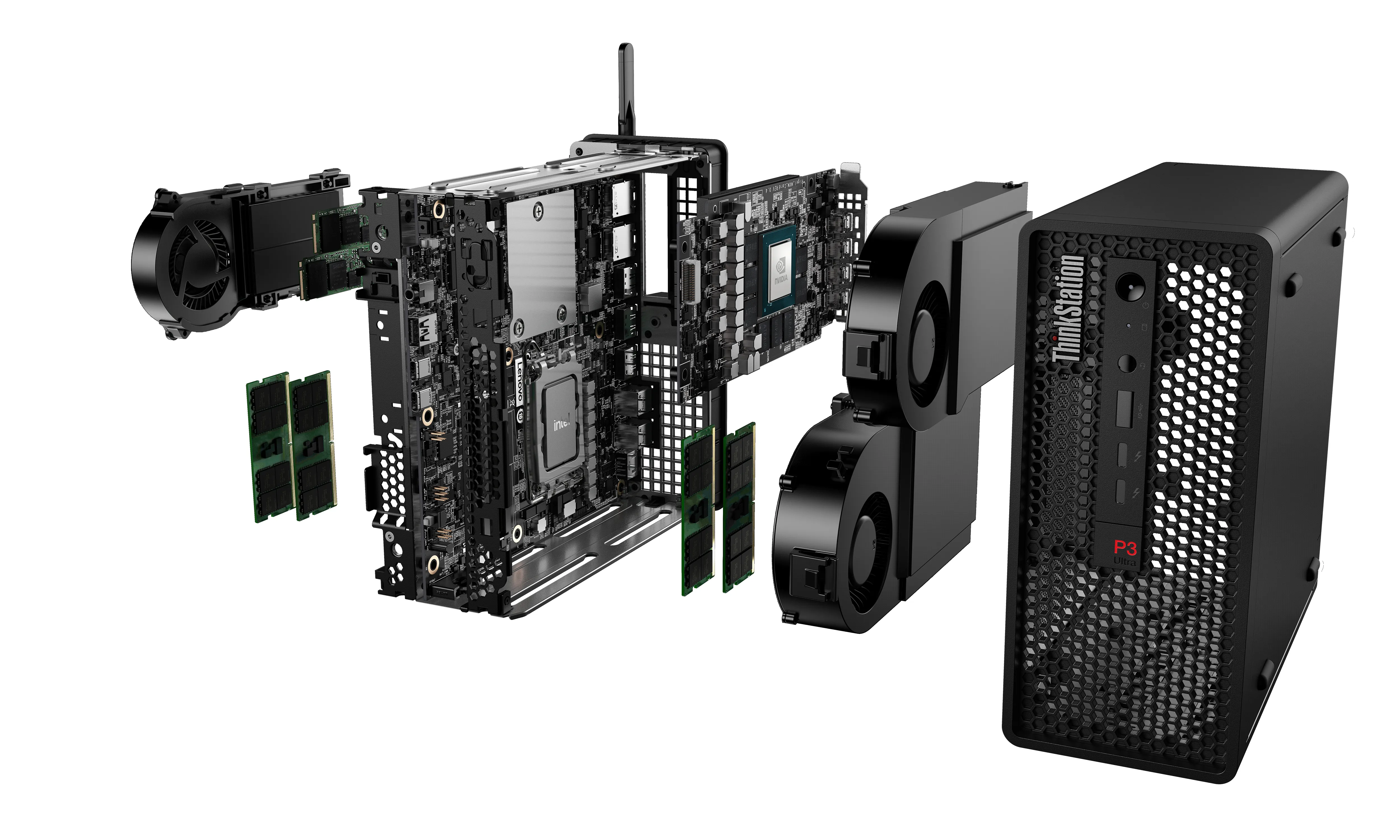

Configurable for today & tomorrow
No matter how heavy or complex your workflow needs are, the ThinkStation P3 Ultra can be configured to meet them—now and well into the future. With support for up to 128GB of memory and 9TB of storage, plus an array of high-speed ports, including three DisplayPorts and dual ethernet ports, this workstation packs an unimaginable level of power and performance. It also comes with a USB mouse and keyboard.
Makes your workflows flow
The ThinkStation P3 Ultra, with its optimal size and performance, is perfect for any industry, from architecture to healthcare and finance to education. MIL-SPEC-certified, it runs in even the most extreme conditions, from the Arctic to deserts. It also zips through high-performance workflows, such as CAD and Edge/IoT. And with its extensive list of ISV-certified applications, your most complex projects will be executed with ease.
See the complete list of ISV certifications
Remote management, made easy
The ThinkStation P3 Ultra supports the pluggable baseboard management controller (BMC). A specialized service processor, BMC uses sensors to track the physical condition of hardware such as PCs and network servers. It enables advanced remote monitoring and systems management, including installing BIOS updates and monitoring fan speeds, in this critical time of digital transformation.
All the security you need
The ThinkStation P3 Ultra comes with ThinkShield—a suite of hardware and software designed to safeguard both your workstation and data. It includes essential security features like Trusted Platform Module (TPM) to encrypt your sensitive data and programs to prevent unauthorized system access. It also has a self-healing BIOS should the BIOS be corrupted or maliciously attacked. For extra peace of mind, this PC supports Windows firmware updates.
