Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces | |
USB 2.0 ports quantity | 0 |
Ethernet LAN (RJ-45) ports | 1 |
Weight & dimensions | |
Height | 240 mm |
Width | 100 mm |
Depth | 53.7 mm |
Antenna width | 2.16 cm |
Antenna depth | 1.55 cm |
Antenna height | 19.8 cm |
Energy management | |
Output voltage | 24 - 57 V |
Power over Ethernet (PoE) | ![]() |
Power over Ethernet (PoE) type supported | Active PoE, Passive PoE |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | -20 - 60 °C |
Storage relative humidity (H-H) | 5 - 90% |
Security | |
Security algorithms | WPA-PSK, WPA2-PSK |
MAC address filtering | ![]() |
Service Set Identifier (SSID) features | Multiple SSIDs |

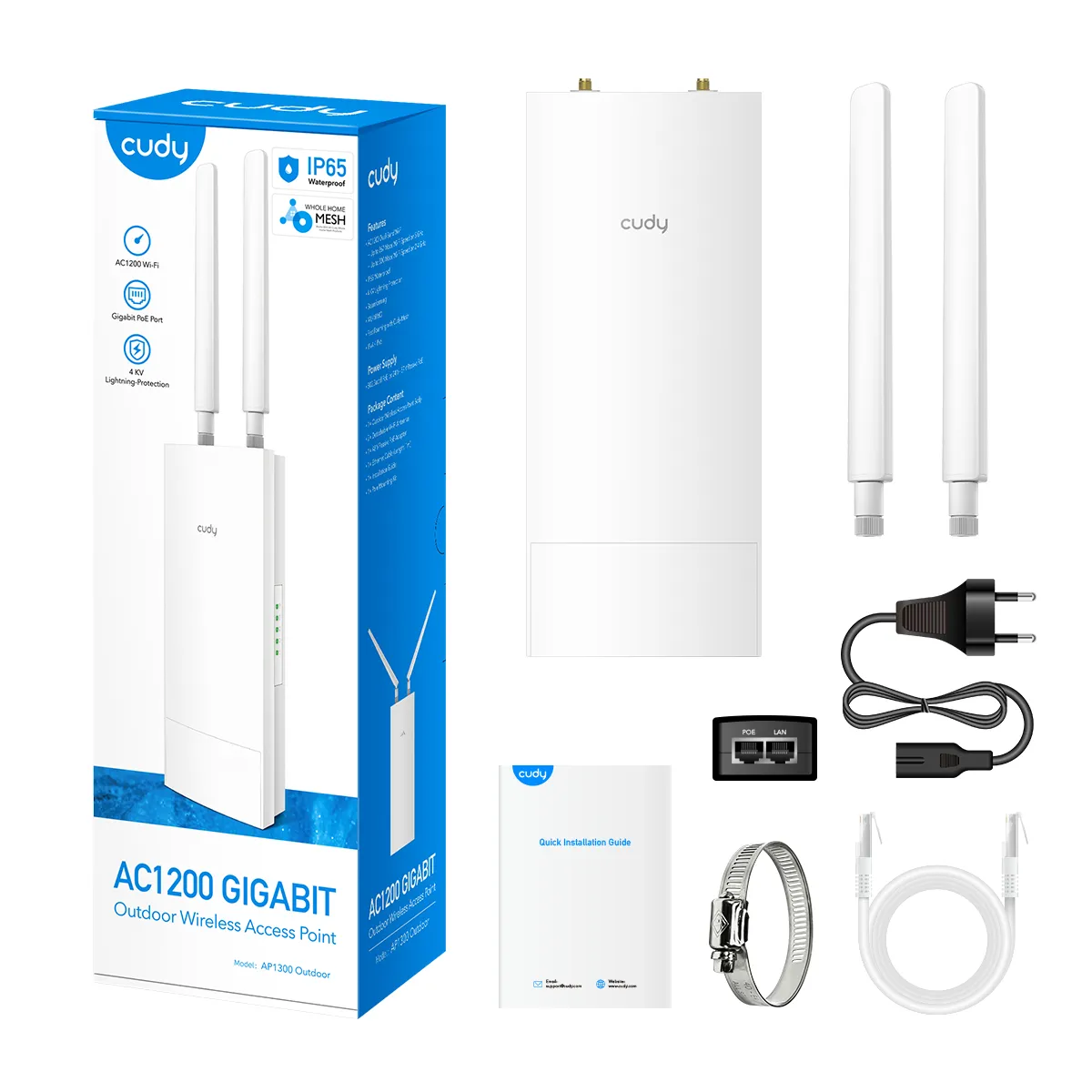

Packaging content | |
Cables included | LAN (RJ-45) |
Quick start guide | ![]() |
Mounting kit | ![]() |
Antenna included | ![]() |
PoE adapter included | ![]() |
Antenna | |
Antenna type | External |
Antennas quantity | 2 |
Antenna features | Detachable antenna |
Design | |
Product colour | White |
Reset button | ![]() |
International Protection (IP) code | IP65 |
Placement | Pole, Wall |
WPS push button | ![]() |
Performance | |
Processor frequency | 880 MHz |
Internal memory | 128 MB |
Flash memory | 16 MB |
Chipset | MT7621DA+MT7613B+MT7603E |
Compatible operating systems | Microso� Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
Built-in processor | ![]() |
Features | |
Maximum data transfer rate | 867 Mbit/s |
Channel bandwidth | 80 MHz |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
Quality of Service (QoS) support | ![]() |
Rate limiting | ![]() |
Ethernet LAN data rates | 100,1000 Mbit/s |
Maximum outdoor range | 170 m |
Operating modes | Wireless Access Point, Wireless Router, Wireless Extender, WISP |
2.4 GHz | ![]() |
5 GHz | ![]() |
Wireless isolation | ![]() |
Wi-Fi Multimedia (WMM)/(WME) | ![]() |
MIMO | ![]() |
Fast roaming | ![]() |
Band steering | ![]() |
MIMO type | Multi User MIMO |
Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
Maximum data transfer rate (5 GHz) | 867 Mbit/s |
Fit AP mode features | Mesh networking |
BeamForming | ![]() |
6 GHz | ![]() |
EAN | 6971690792893 |
Source: Icecat.biz |
Speedy Dual-Band AC1200 Wi-Fi
With MU-MIMO and dual-band features, the AC1200 Wi-Fi AP can connect to over 30 devices while minimizing latency. The maximum number of simultaneous connections per AP is 128 devices.
Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two external antennas. If your space is too large for one access point to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.
Plug-and-Play Mesh Installation
Simply Plug and Unplug for Mesh Setup
Connect the PoE adapter LAN port to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC to add the new AP to the Mesh network. Feel free to unplug it or keep using Ethernet backhaul after pairing. (Requires firmware newer than 1.15.28, the other Cudy Mesh device needs to be purchased separately)
Leave the Rest to Adaptive Routing
Adaptive Routing improves the system's awareness of the capacity used by each node. Once the backhaul path is jammed by clients or interfered with by environmental factors, it will automatically switch to a better path for improved stability.
Mounting Kit Included
A mounting kit is included in the box, supporting—
- Wall-Mounting
- Pole-Mounting
With MU-MIMO and dual-band features, the AC1200 Wi-Fi AP can connect to over 30 devices while minimizing latency. The maximum number of simultaneous connections per AP is 128 devices.
Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four scenarios, achieved by Beamforming technology and two external antennas. If your space is too large for one access point to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.
Plug-and-Play Mesh Installation
Simply Plug and Unplug for Mesh Setup
Connect the PoE adapter LAN port to a Cudy Mesh AP/router/Mesh unit/VPN Router/AC to add the new AP to the Mesh network. Feel free to unplug it or keep using Ethernet backhaul after pairing. (Requires firmware newer than 1.15.28, the other Cudy Mesh device needs to be purchased separately)
Leave the Rest to Adaptive Routing
Adaptive Routing improves the system's awareness of the capacity used by each node. Once the backhaul path is jammed by clients or interfered with by environmental factors, it will automatically switch to a better path for improved stability.
Mounting Kit Included
A mounting kit is included in the box, supporting—
- Wall-Mounting
- Pole-Mounting
