Deepcool DQ750-M-V2L WH 750W - PSU, 80 Plus White80 Plus Gold
Manufacturer: DEEPCOOL
ID: DP-DQ750-M-V2L WH
12490€
Show VAT 0%
Show VAT 25,5%
Multitronic Vaasa
Multitronic Pietarsaari
Multitronic Jyväskylä
Multitronic Lappeenranta
Multitronic Mariehamn
Key Specifications
Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
| Ports & interfaces | |
| PCI Express connector |  |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 6 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| ATX power connector (20+4 pin) | |
| PCI Express power connectors (6+2 pin) | 2 |
| Cabling type | Fully-Modular |
| Motherboard power cable length | 55 cm |
| SATA power cable length | 150,550 mm |
| Peripheral (Molex) power cable length | 150,450 mm |
| PCI Express power cable length | 50 cm |
| EPS power connector (4+4 pin) | |
| Weight & dimensions | |
| Height | 86 mm |
| Width | 150 mm |
| Depth | 160 mm |
| Energy management | |
| Input current | 10 A |
| Nominal power | 750 W |
| Efficiency | 90% |
| Hold time | 16 ms |
| Power protection features | Over power, Over voltage, Overcharge, Short circuit, Under voltage |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 744 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| AC input frequency | 47 - 63 Hz |
| AC input voltage | 100 - 240 V |
| Total power | 750 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging data | |
| Package type | Box |
| Certificates | |
| Certification | CE, CB, CCC, EAC, FCC, KCC, RCM, RoHs |
| 80 PLUS certification | 80 PLUS Gold |
| Packaging content | |
| Cables included | PCIe, Peripheral (Molex), SATA |
| Design | |
| Product colour | White |
| Number of fans | 1 fan(s) |
| On/off switch | |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Performance | |
| Mean time between failures (MTBF) | 100000 h |
| Purpose | PC |
| ATX version | 2.4 |
| EAN | 6933412798941 |
The DQ750-M-V2L WH fully modular 750W 80 PLUS Gold power supply features 100% Japanese capacitors and high quality switch MOSFETs. Built to deliver stable output capacity with high conversion efficiency, the DQ750-M-V2L WH offers better reliability for your PC system.
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L WH delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.

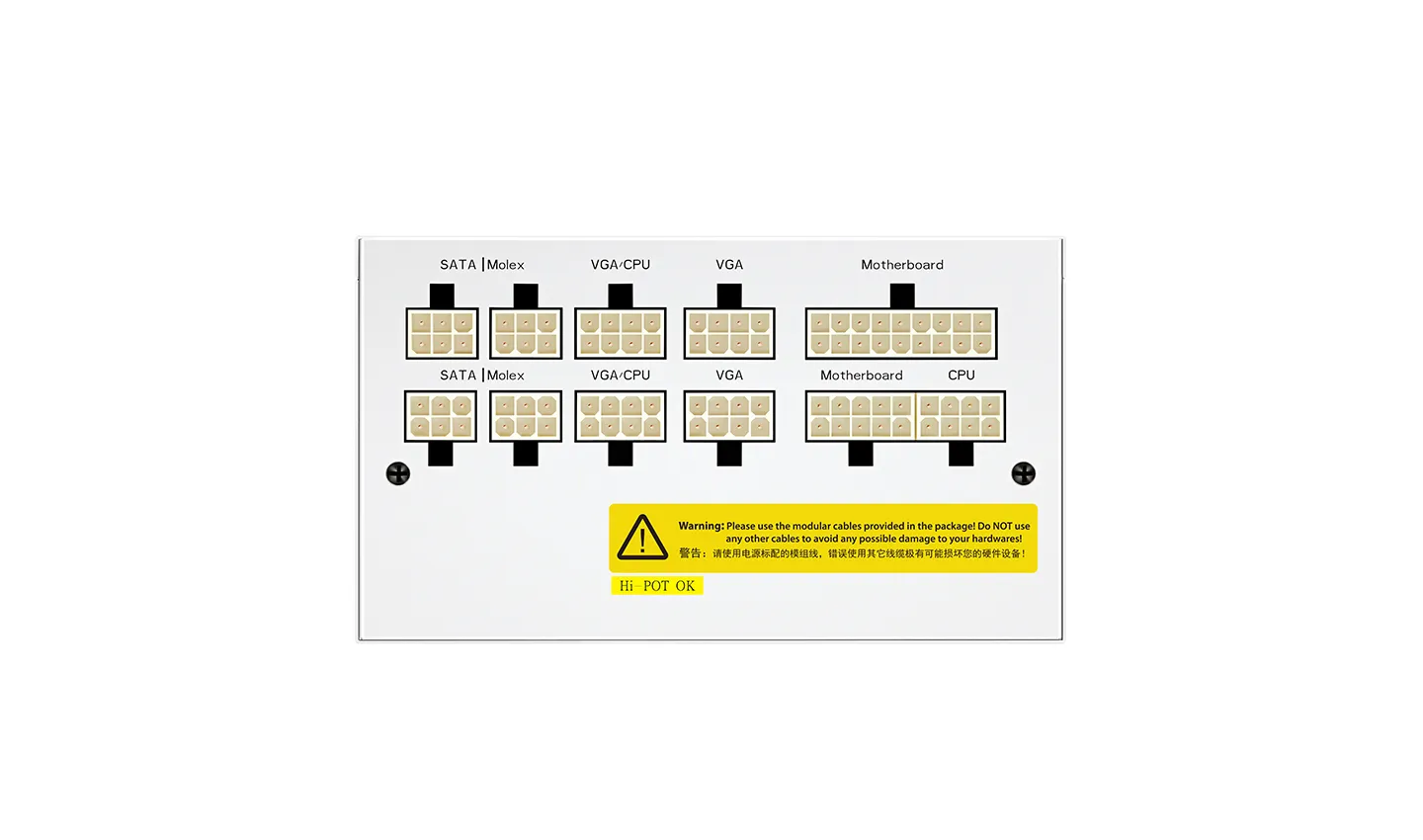

Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
80 PLUS® Gold Certified
Get all the power you need with a maximum 91.2% efficiency to reduce excess energy consumption and waste heat.
Top-notch Design
Featuring active Power Factor Correction (PFC), a full bridge LLC resonant converter and synchronous rectification DC-DC design, the DQ750-M-V2L WH delivers improved performance with lower power dissipation, increased quality, and better thermals to meet your needs.
Fully Modular
Easy cable management with flat cables keep your system clean and tidy.
