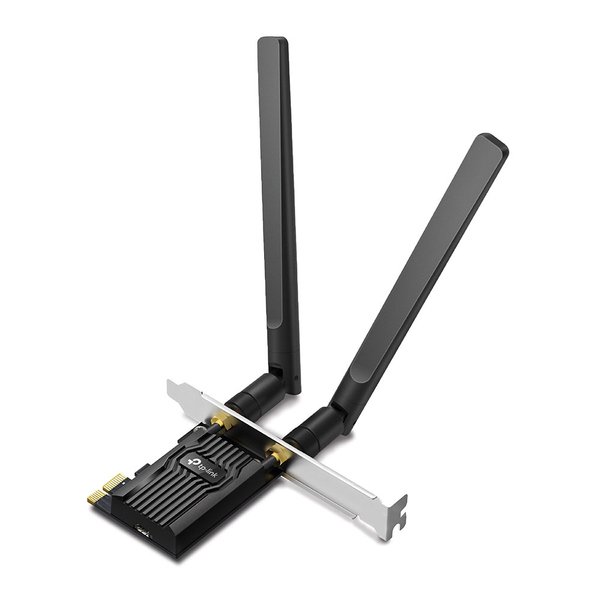

TP-Link Archer TX20E AX1800 Dual Band Wi-Fi 6 Bluetooth 5.2 -PCI Express Adapter
System requirements | |
Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
Ports & interfaces | |
Interface | WLAN / Bluetooth |
Connectivity technology | Wireless |
Host interface | PCI Express |
Weight & dimensions | |
Height | 20.9 mm |
Width | 120.8 mm |
Depth | 78.5 mm |
Operational conditions | |
Operating relative humidity (H-H) | 10 - 90% |
Storage temperature (T-T) | -40 - 70 °C |
Operating temperature (T-T) | 0 - 40 °C |
Storage relative humidity (H-H) | 5 - 90% |
Networking | |
Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
Maximum data transfer rate | 1800 Mbit/s |
Bluetooth version | 5.2 |
Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Bluetooth | |
Wi-Fi | |
WLAN data transfer rates supported | 11,54,300,574,867,1200 Mbit/s |
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
Packaging data | |
Package weight | 220 g |
Package depth | 152.5 mm |
Package height | 41.5 mm |
Package width | 201.5 mm |
Packaging content | |
Quick installation guide | |
Mounting brackets included | |
Resource CD | |
Bluetooth header cable | |
Design | |
Internal | |
Plug and Play | |
Product colour | Black |
Antenna | Yes |
Component for | PC/Server |
Operating modes | Infrastructure mode |
Transmitting power (FCC) | 27 dBm |
Transmitting power (CE) | 23 dBm |
Antenna design | External |
Sustainability | |
Sustainability compliance | |
Sustainability certificates | CE, Federal Communications Commission (FCC), RoHS |
EAN | 4897098688809 |
Warranty | 3 years |
Source: Icecat.biz |
Easily Get Start with Wi-Fi 6
AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
- Fully Featured Wi-Fi 6
- Warp Speed up to 1800 Mbps
- Superior Coverage
- Bluetooth 5.2
- Cutting-Edge Security

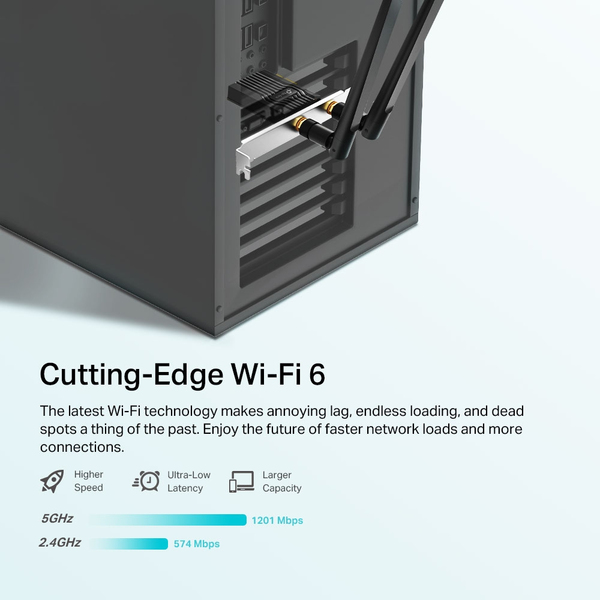

Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.
High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.
Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.
