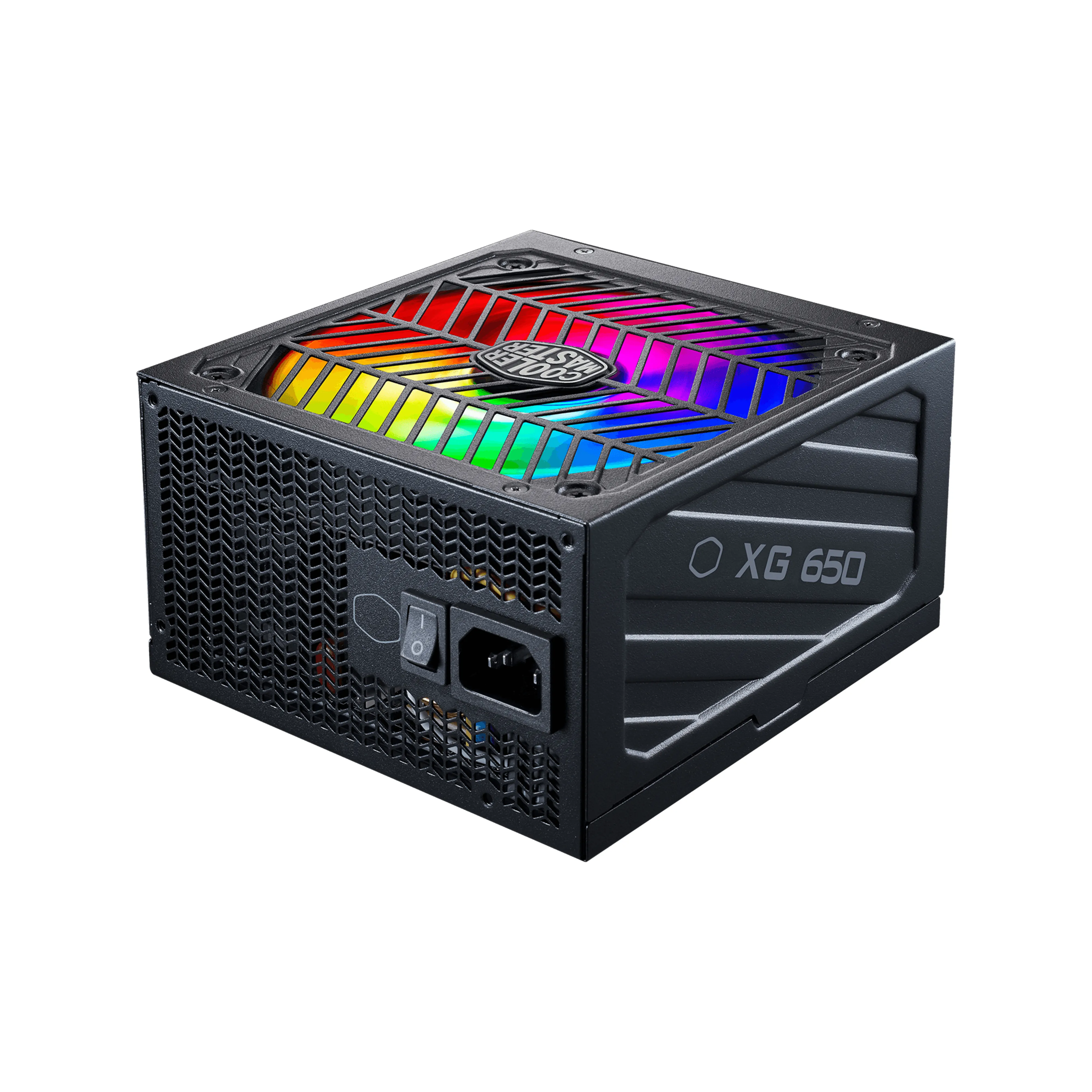

Cooler Master XG650 Plus 650W - Power supply, 80 Plus Platinum

Manufacturer: COOLER MASTER
ID: MPG-6501-AFBAP-XEU
Choose the version of your product
16990€ Show VAT 0% Show VAT 25,5%
Estimated delivery: 28.11 - 29.11
11pcs available at remote stock
Select your store
Order and pick up in 5-7 days Open today: 10:00 - 18:00 About this store
Order and pick up in 5-7 days Open today: 09:00 - 17:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 18:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 17:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 18:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 17:00 About this store
Order and pick up in 5-7 days Open today: 10:00 - 18:00 About this store
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Motherboard power connector24-pin ATX
Number of SATA power connectors8
Peripheral (Molex) power connectors (4-pin)4
EPS power connector (8-pin)checkmark
PCI Express power connectors (6+2 pin)4
Cabling typeModular
Motherboard power cable length65 cm
SATA power cable length500,620,740,860 mm
Peripheral (Molex) power cable length860,740,620,500 mm
PCI Express power cable length67 cm
Weight & dimensions
Height86 mm
Width150 mm
Depth160 mm
Energy management
Input current4 - 8 A
Nominal power650 W
Efficiency92%
Hold time16 ms
Power protection featuresOver current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Power Factor Correction (PFC) typeActive
Combined power (+3.3V)120 W
Combined power (+12V)650 W
Combined power (+5V)120 W
Combined power (-12V)3.6 W
Combined power (+5Vsb)15 W
Max output current (+3.3V)20 A
Max output current (+12V)54.1 A
Max output current (+5V)20 A
Max output current (-12V)0.3 A
Max output current (+5Vsb)3 A
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Total power650 W
Power Good signal delay range100 - 500 ms
Operational conditions
Operating temperature (T-T)0 - 50 °C
Packaging data
Package depth125 mm
Package height300 mm
Package width214 mm
Certificates
80 PLUS certification80 PLUS Platinum
Other features
Illumination colourMulti
Design
Product colourBlack
Illuminationcheckmark
Number of fans1 fan(s)
Cooling typeActive
Fan diameter13.5 cm
Fan speed0 - 1800 RPM
Performance
CertificationErP 2014 Lot 3, TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA
Mean time between failures (MTBF)100000 h
Noise level25 dB
PurposePC
Supported motherboard form factorsATX
ATX version2.53
Power supply unit (PSU) form factorATX
Logistics data
Master (outer) case height520 mm
Master (outer) case width318 mm
Master (outer) case length250 mm
Products per master (outer) case4 pc(s)
EAN4719512112373
Warranty1 year

Original is Everything
Cooler Master keeps searching for uniqueness, creativity, and more. XG Plus Platinum is the first Cooler Master in-house designed power supply, providing next-level efficiency, rigid design, and sturdy performance to fulfill all your daily computing and gaming needs.

Silence is Platinum
The XG Plus Platinum is Cooler Master’s first in-house designed platform, created to provide rated efficiency and high-end performance. It offers full-modular cabling with in-line capacitors, an ARGB 135mm silent fan, and a 10 year warranty. The built-in Information Display Panel compatible with MasterPlus+ software, can monitor real time performance and manage ARGB effects hassle-free.

Powered by Cooler Master
The XG Plus Platinum marks the culmination of many years of effort and the beginning of a new era for Cooler Master power supply units. This product line debuts the first generation of power supply platform created by Cooler Master in-house. This platform allows Cooler Master to offer an entirely new class of high efficiency products. The use of 100% Japanese capacitors allows this power supply unit to deliver top-shelf performance with reduced ripple noise.

Silence is Platinum
Some power supply units offer great cooling performance. And some offer quiet operation. The XG Plus Platinum offers both. The in-house designed was created so that we could deliver a high quality PSU that could power gaming builds at top of the line performance levels while remaining relatively cool.

ARGB Fans with Digital Side Panel

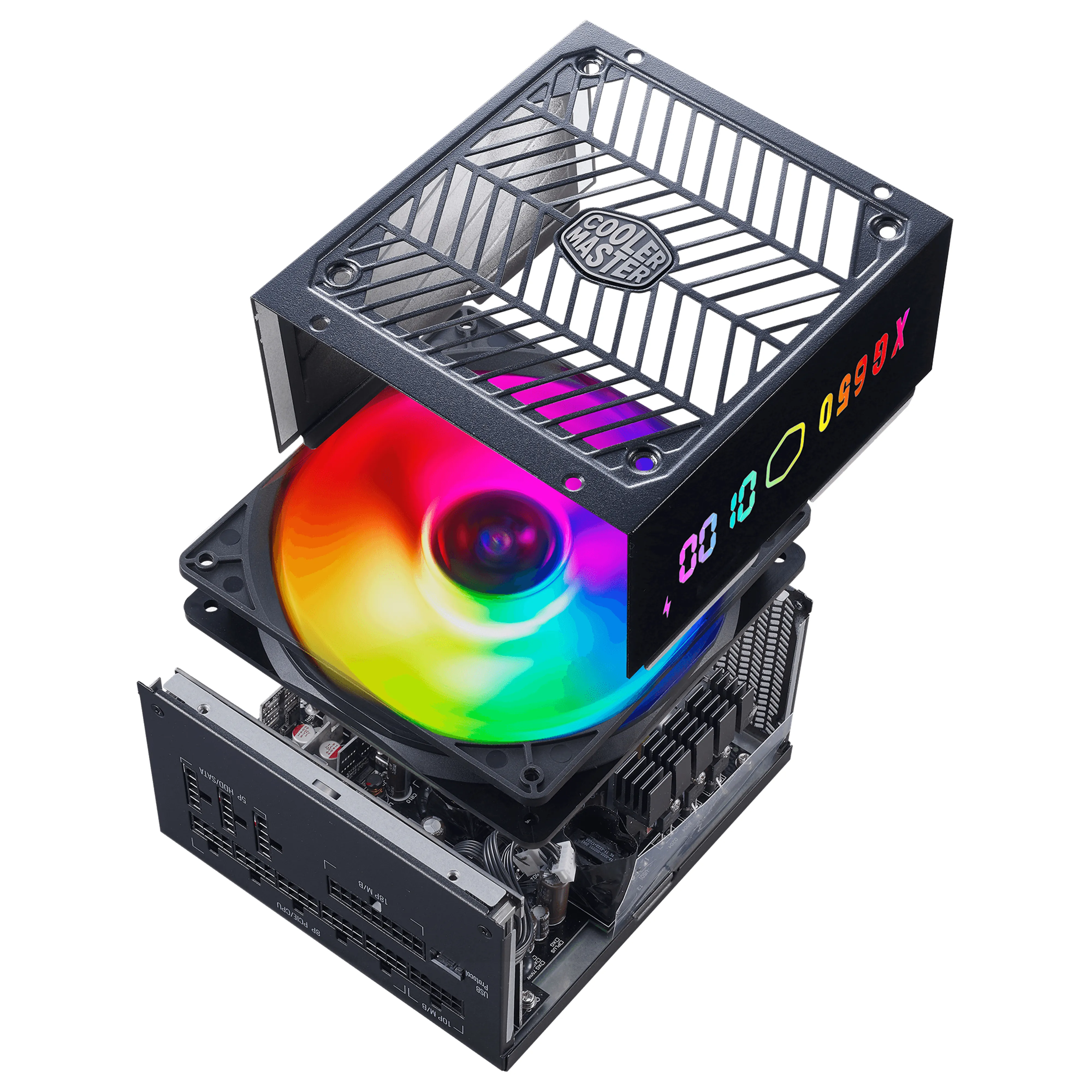

The XG Plus Platinum ARGB fan with digital display panel can monitor real time performance data, showing fan speed, temperature, power load, and customized ARGB lighting.

Crafted For Excellence
The XG Plus Platinum is created and designed for performance, stability, reliability, lifespan, and so much more. That quality starts with the technology used on the inside. The full-bridge LLC resonant converter and DC-DC technology, made with 100% Japanese capacitors, work together to create a PSU that offers reliable and stable voltage outputs for safer, more reliable performance and higher efficiency while creating minimal noise pollution.

Flat Cables
The XG Plus Platinum is using flat cabling to reduce clutter, which in turn increases both airflow and aesthetic quality.

All in Control
The MasterPlus+ software is Cooler Master's newest innovation for system management. This software provides users the ability to monitor just about every aspect of the XG Plus Platinum's operations in real time. Temperature, fan speed, system load, and so much more.
