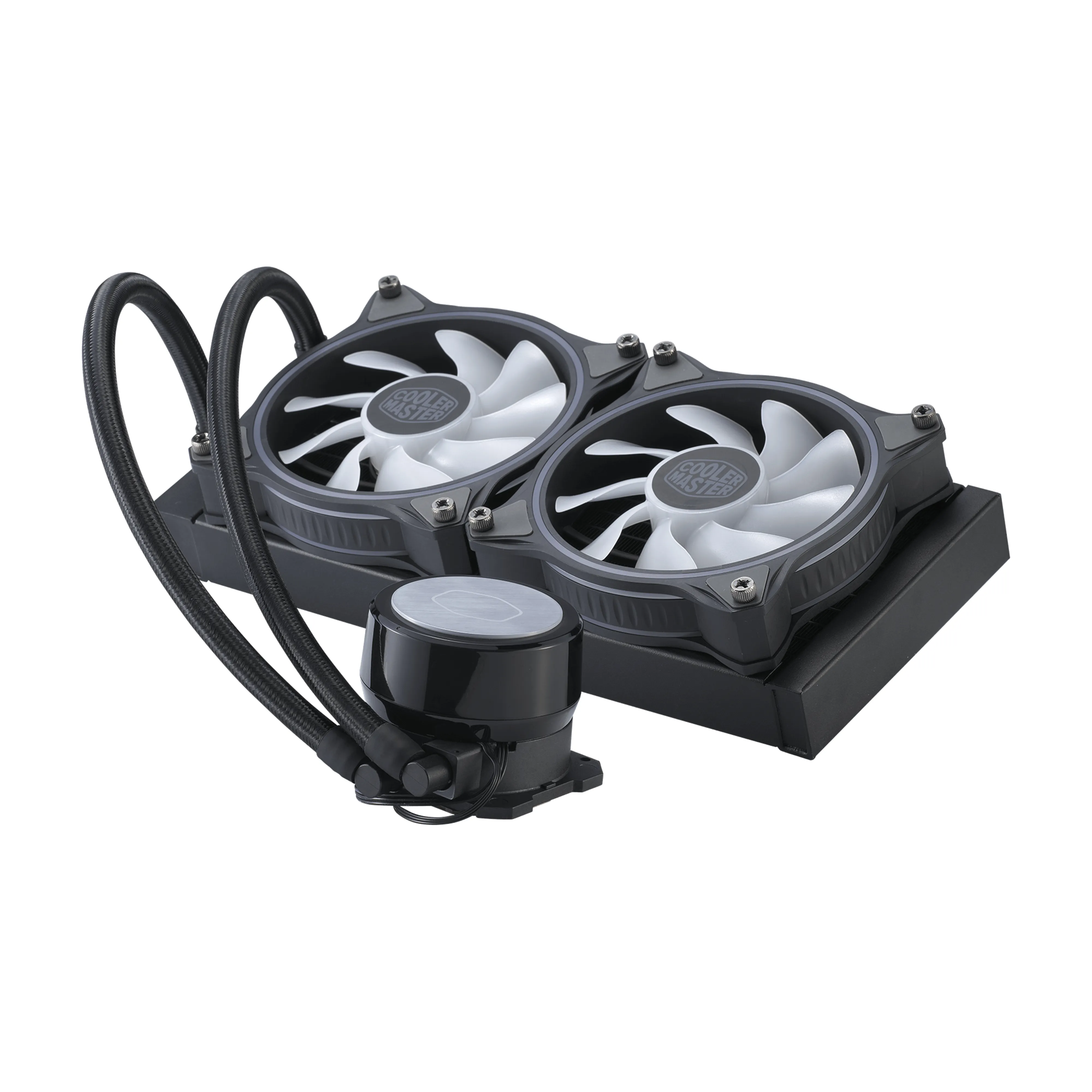

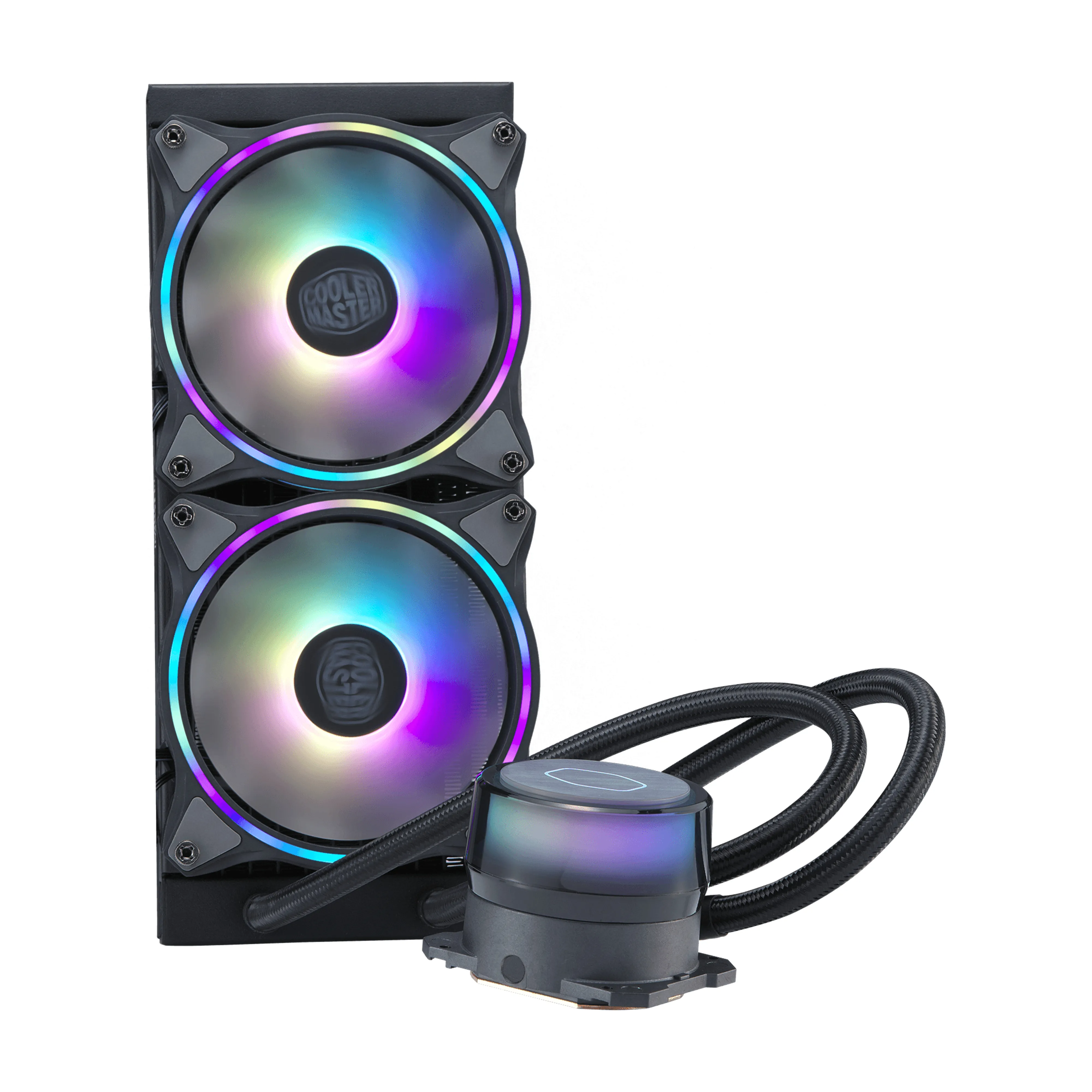

Cooler Master MasterLiquid ML240 Illusion - AiO liquid cooler
Key Specifications
Choose one or multiple features to search for items that have the same specifications.Black Weeks are already here!
Multitronic's Black Weeks have started and that means hundreds of great deals on components, electronics and home products. Click and see all the offers! .
Learn moreWeight & dimensions | |
Weight | 1.48 kg |
Package weight | 2.1 kg |
Package depth | 585 mm |
Package height | 270 mm |
Package width | 345 mm |
Radiator width | 27.7 cm |
Radiator depth | 12 cm |
Radiator height | 2.72 cm |
Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
Pump width | 8.14 cm |
Pump depth | 7.6 cm |
Pump height | 5.78 cm |
Energy management | |
Pump voltage | 12 V |
Fan voltage | 12 V |
Fan current | 0.25 A |
Pump power consumption | 2.36 W |
Other features | |
Country of origin | China |
Design | |
Product colour | Black |
Number of fans | 2 fan(s) |
Illumination colour | Blue, Green, Red |
Radiator material | Aluminium |
Illumination LED | |
Performance | |
Type | All-in-one liquid cooler |
Supported processor sockets | LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2 |
Suitable location | Processor |
Maximum airflow | 47.2 cfm |
Maximum air pressure | 1.6 mmH2O |
Fan speed (max) | 1800 RPM |
Fan speed (min) | 650 RPM |
Fan noise level (min) | 6 dB |
Fan noise level (max) | 30 dB |
Pump noise level | 10 dB |
Pulse-width modulation (PWM) support | |
Pump connector | 3-pin |
Pump's mean time to failure (MTTF) | 70000 h |
Logistics data | |
Harmonized System (HS) code | 84733080 |
EAN | 4719512110362 |
Warranty | 1 year |
Source: Icecat.biz |
See It To Believe It
The MasterLiquid ML-Illusion series redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting features are more than even visual enthusiasts can handle. The Illusion is not only elegant, but extremely capable as well, featuring the 3rd generation Dual Chamber Pump for excellent cooling performance.

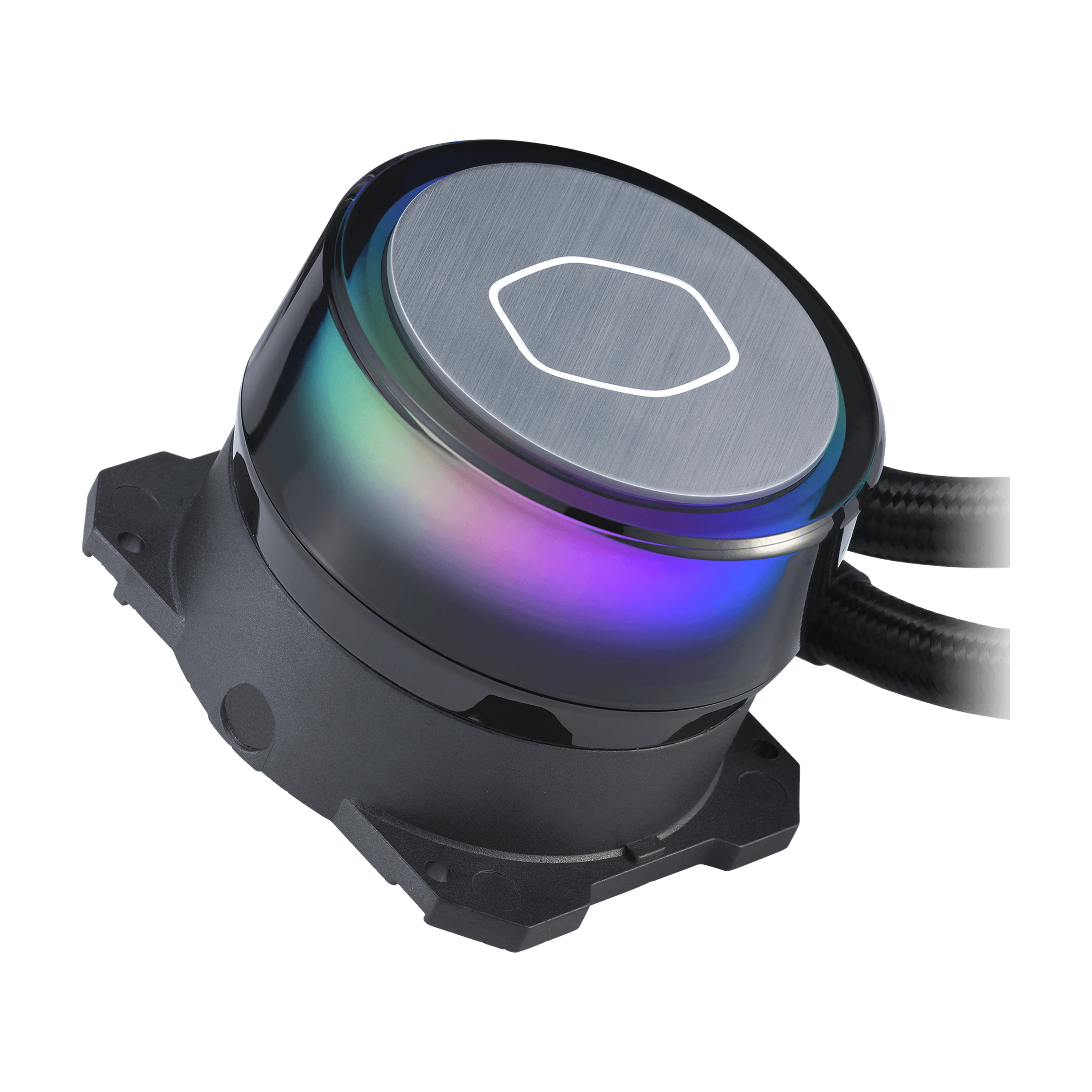

Translucent Dome
Stunning lighting visuals with translucent water chamber dome and rotatable logo. Compatible with software customization
New 3rd Gen Dual Chamber Pump
Experience a quieter cooling performance with an improved design on the internal impeller and housing to enhance the cooling performance and efficiency while lowering the noise level.
Expanded Dissipation Surface Area
Widened radiator water channels for increased cooling surface area.
Masterfan MF120 Halo
Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs Fully Customizable with MasterPlus+ software to ensure the most vibrant display of color
New Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master's MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more - all from an intuitive, convenient interface
