Key Specifications
Choose one or multiple features to search for items that have the same specifications.Ports & interfaces | |
PCI Express power connectors (6-pin) | 5 |
Motherboard power connector | 24-pin ATX |
Floppy drive power connector | 2 |
Number of SATA power connectors | 16 |
Peripheral (Molex) power connectors (4-pin) | 6 |
CPU power connector (4+4 pin) | ![]() |
PCI Express power connectors (6+2 pin) | 9 |
Cabling type | Modular |
Motherboard power cable length | 60 cm |
EPS power connector (4+4 pin) | ![]() |
Weight & dimensions | |
Height | 85 mm |
Width | 150 mm |
Depth | 225 mm |
Energy management | |
Input current | 10 - 17 A |
Nominal power | 600 W |
Combined power (+3.3V) | 120 W |
Combined power (+12V) | 1599.6 W |
Combined power (+5V) | 120 W |
Combined power (-12V) | 6 W |
Combined power (+5Vsb) | 15 W |
Max output current (+3.3V) | 24 A |
Max output current (+12V) | 133.3 A |
Max output current (+5V) | 24 A |
Max output current (-12V) | 0.5 A |
Max output current (+5Vsb) | 3 A |
AC input frequency | 50 - 60 Hz |
AC input voltage | 115 - 240 V |
Total power | 1600 W |
Operational conditions | |
Operating temperature (T-T) | 0 - 50 °C |
Certificates | |
80 PLUS certification | 80 PLUS Platinum |
Performance | |
Certification | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS Compliance with ErP Lot 6 2013 Requirement |
Mean time between failures (MTBF) | 100000 h |
Power supply unit (PSU) form factor | ATX |
Logistics data | |
Harmonized System (HS) code | 84733020 |
EAN | 4250812438706 |
Warranty | 1 year |

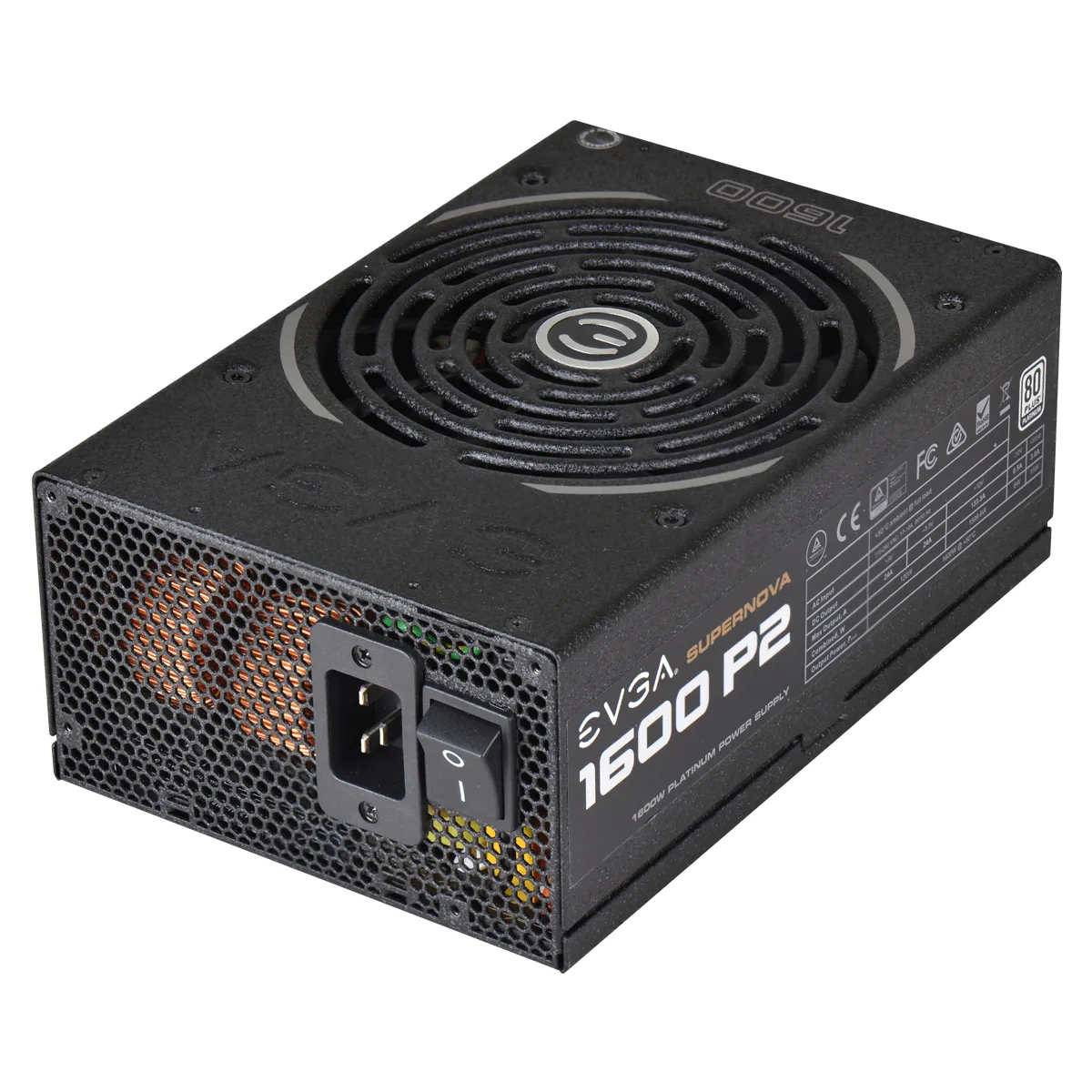

The EVGA SuperNova 1600 P2 power supply is designed for enthusiasts and professionals who demand the ultimate in power and performance. Boasting a staggering 1600W of continuous power, this PSU is more than capable of handling even the most demanding multi-GPU gaming rigs, high-end workstations, and server builds. Its 80 Plus Platinum certification ensures exceptional energy efficiency, reducing waste heat and lowering your electricity bill.
Built with premium components, including 100% Japanese capacitors, the SuperNova 1600 P2 delivers rock-solid stability and reliability. It also features a fully modular design, allowing you to use only the cables you need, resulting in a cleaner, more organized build and improved airflow. Comprehensive protection features such as OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), and SCP (Short Circuit Protection) safeguard your valuable components. Backed by EVGA's renowned customer support and a comprehensive warranty, you can trust the SuperNova 1600 P2 to power your system for years to come.
Key Features- 1600W Continuous Power
- 80 Plus Platinum Certified
- Fully Modular Design
- 100% Japanese Capacitors
- Active Power Factor Correction (PFC)
- OVP, UVP, OCP, OPP, SCP Protection
- 135mm Fluid Dynamic Bearing Fan
- NVIDIA SLI & AMD Crossfire Ready
- ATX Form Factor
- EVGA ECO Intelligent Thermal Control System
- Heavy-Duty Protections
- 10 Year Warranty
- EVGA SuperNova 1600 P2 Power Supply

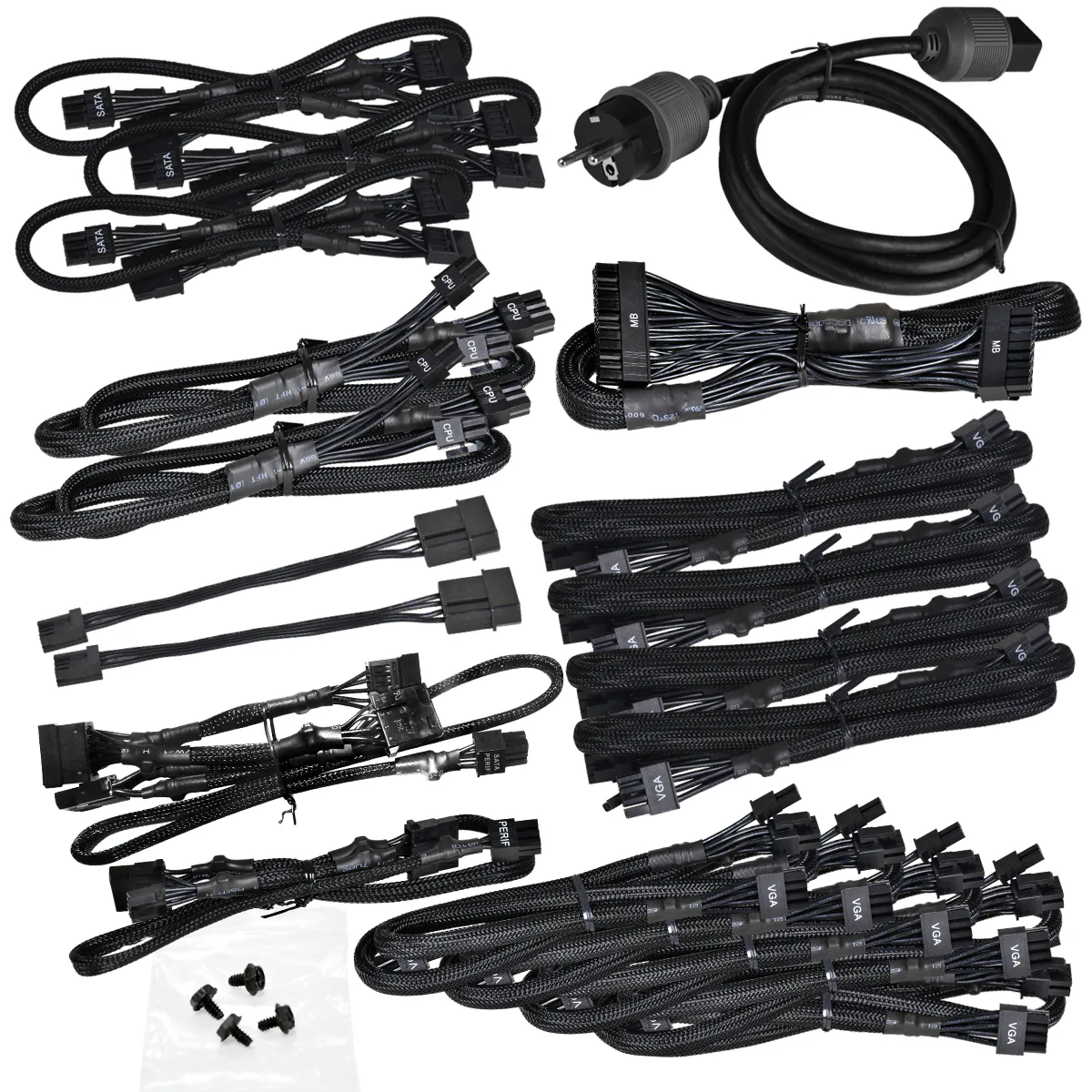

- Modular Cable Set
- AC Power Cord
- Mounting Screws
- User Manual
- Cable Ties
