Key Specifications
Choose one or multiple features to search for items that have the same specifications.Processor | |
Processor model | V1500B |
Processor manufacturer | AMD |
Processor family | Ryzen Embedded |
Processor cores | 4 |
On-board graphics card model | Not available |
Processor frequency | 2.2 GHz |
Processor generation | AMD Ryzen Embedded V1000 Series |
Memory | |
Internal memory type | DDR4 |
Memory slots | 2 |
ECC | |
Memory form factor | SO-DIMM |
Maximum RAM supported | 32 GB |
Internal memory | 4 GB |
Ports & interfaces | |
USB 2.0 ports quantity | 0 |
Ethernet LAN (RJ-45) ports | 4 |
eSATA ports quantity | 2 |
Fiber ports quantity | 0 |
PCI Express x8 (Gen 3.x) slots | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
USB port | |
Weight & dimensions | |
Weight | 5.1 kg |
Height | 166 mm |
Width | 282 mm |
Depth | 243 mm |
Energy management | |
Power consumption (typical) | 51.22 W |
Number of power supply units | 1 |
AC input frequency | 50 - 60 Hz |
AC input voltage | 100 - 240 V |
Power supply location | Built-in |
Power supply unit (PSU) capacity | 250 W |
Power consumption (HDD standby) | 25.27 W |
Operational conditions | |
Operating relative humidity (H-H) | 5 - 95% |
Storage temperature (T-T) | -20 - 60 °C |
Operating temperature (T-T) | 0 - 40 °C |
Networking | |
Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
Ethernet LAN | |
Wake-on-LAN ready | |
Link aggregation | |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Storage | |
RAID levels | 0, 1, 5, 6, 10 |
Supported file systems | BTRFS, ext4 |
RAID support | |
Number of storage drives supported | 6 |
Storage drive sizes supported | 2.5,3.5" |
Storage drives installed | |
Maximum supported storage capacity | 108 TB |
Number of storage drives installed | 0 |
Installed storage drive type | |
Supported storage drive types | HDD & SSD |
Hot-swap drive bays | |
Storage drive capacity | 0 GB |
Supported storage drive interfaces | M.2, Serial ATA |
Number of M.2 (M & B) slots | 2 |
Total installed storage capacity | 0 TB |
Operating system/software | |
Operating system installed | DiskStation Manager |
Windows operating systems supported | |
Mac operating systems supported | |
Linux operating systems supported | |
Design | |
Chassis type | Desktop |
LED indicators | |
Product colour | Black |
Number of fans | 2 fan(s) |
Cooling type | Active |
Fan diameter | 9.2 cm |
Built-in display | |
Fan diameter 2 | 9.2 cm |
Performance | |
Type | NAS |
Browser supported | Google Chrome, Firefox, Microsoft Edge, Internet Explorer 10, Safari |
Number of users | 2048 user(s) |
Access Control List (ACL) | |
Multilingual support | |
On/off switch | |
Device class | Small & Medium Business |
Backup function | |
Logistics data | |
Harmonized System (HS) code | 84714100 |
EAN | 4711174723775 |
Warranty | 3 years |
Source: Icecat.biz |
Powerful, scalable, and versatile

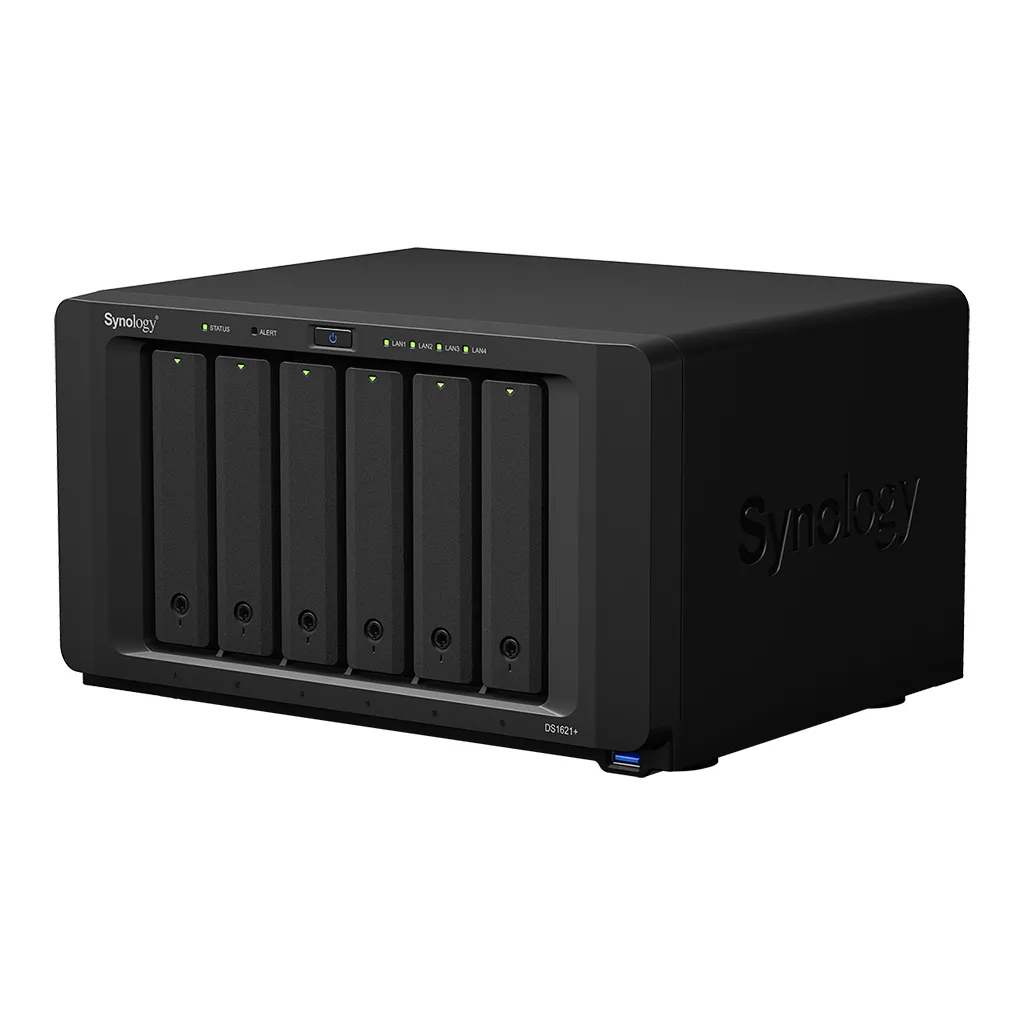

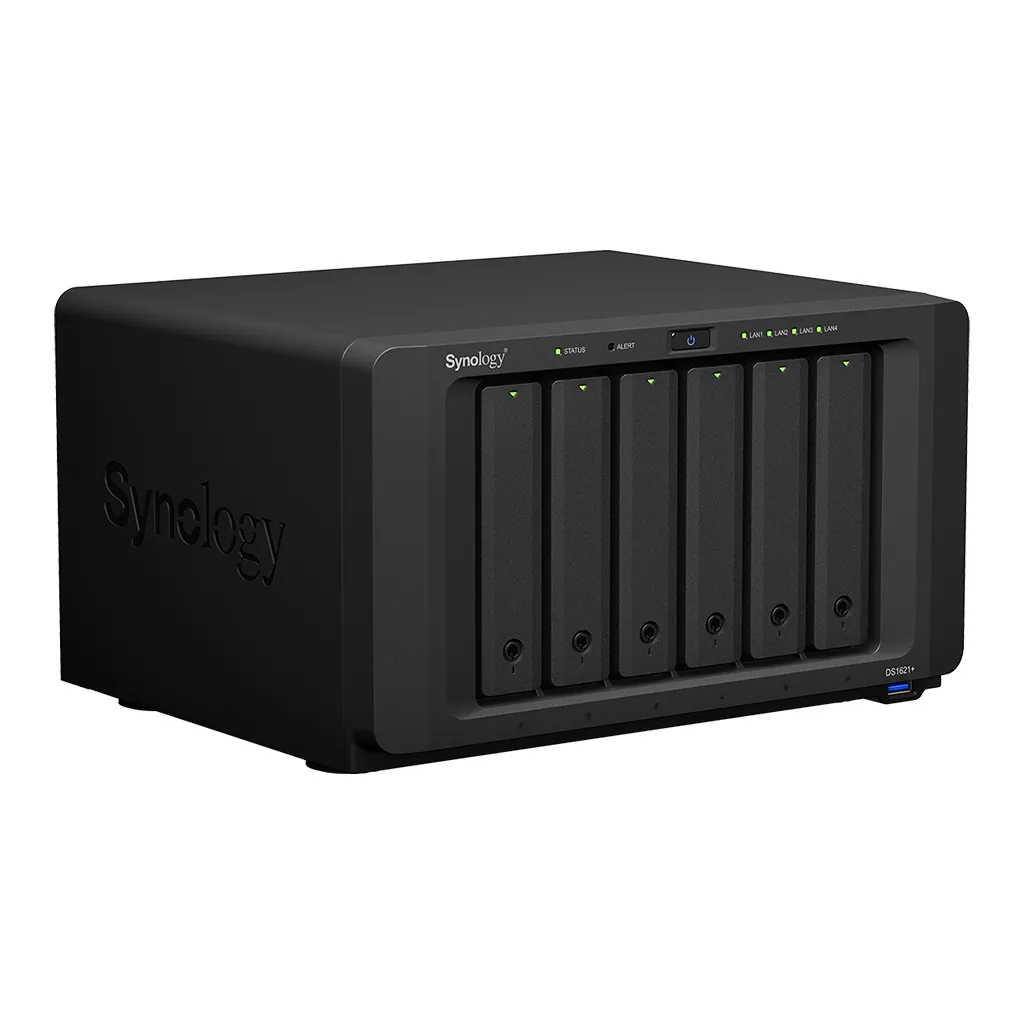

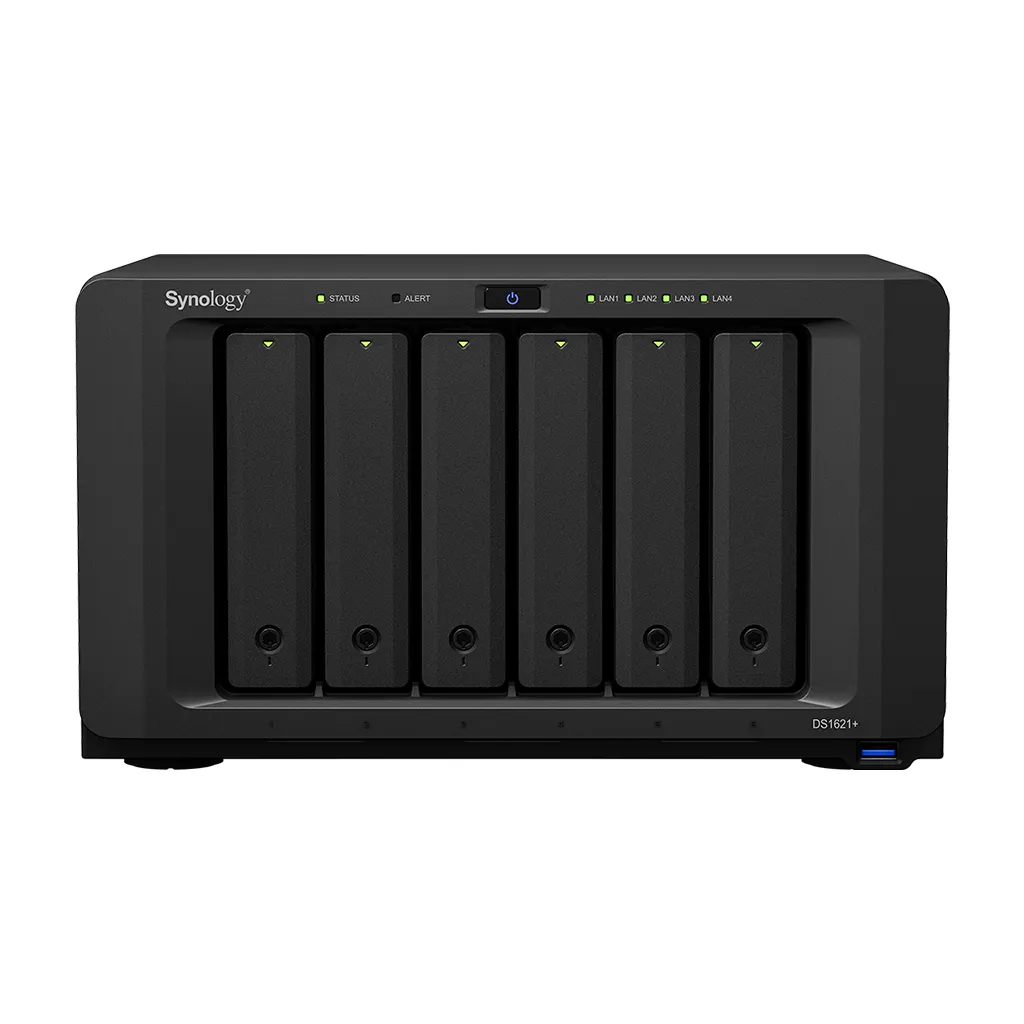

Synology DS1621+ is a powerful and compact 6-bay network attached storage solution designed to store and protect critical data assets. Today’s growing amount of unstructured data requires smarter and increasingly higher performance methods of storing, accessing, and collaborating. Designed for scalability, the DS1621+ enables you to start small, then expand as your data grows.
Faster than ever
Compared to its predecessor, DS1621+ is faster in just about everything. Get things done quicker through Synology Drive and streamline photo management with Synology Moments.
Turbocharge and expand it
Upgrade your DS1621+ to match your data requirements, whether it is for faster networking or for higher storage capacity.
Ultimate file management and sharing
File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operations without requiring any complex setup on Mac or PC. Advanced search and filtering tools allow for easy organization and file sharing. For complete compatibility, DS1621+ supports the following protocols: AFP, FTP, iSCSI, NFS, SMB, and WebDAV.
Fully certified storage virtualization solutions
Synology iSCSI storage fully supports most virtualization solutions to enhance work efficiency with easy management interface. VMware vSphere 6 and VAAI integration helps offload storage operations and optimizes computation efficiency. Windows Offloaded Data Transfer (ODX) speeds up data transfer and migration rate. OpenStack Cinder support turns your Synology NAS into a block-based storage component.
Ultimate Backup Solution
DS1621+ integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.
