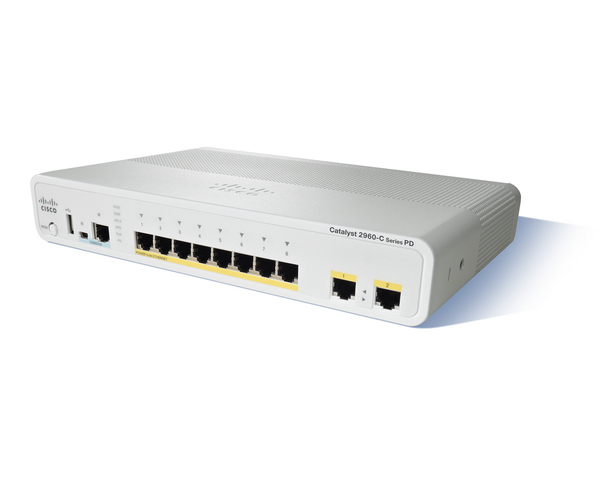

Cisco Catalyst Compact 2960CPD-8PT-L - Kytkin - Hallinnoitu - 8 x 10/100 (PoE) + 2 x 10/100/1000 - työpöytä - PoE

Manufacturer: CISCO
ID: WS-C2960CPD-8PT-L
123590€ Show VAT 0% Show VAT 25,5%
Estimated delivery: 01.12 - 06.12
On order with ETA after 29.11.2024
Select your store
On order with ETA after 29.11.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 29.11.2024 Open today: 09:00 - 17:00 About this store
On order with ETA after 29.11.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 29.11.2024 Open today: 10:00 - 17:00 About this store
On order with ETA after 29.11.2024 Open today: 10:00 - 18:00 About this store
On order with ETA after 29.11.2024 Open today: 10:00 - 17:00 About this store
On order with ETA after 29.11.2024 Open today: 10:00 - 18:00 About this store
Multitronic warehouse store
Multitronic | JNT Pietarsaari
Multitronic Seinäjoki
Multitronic | iTronic Jyväskylä
Multitronic | iTronic Lappeenranta
Multitronic Mariehamn
iTronic Vaasa

Key Specifications

Choose one or multiple features to search for items that have the same specifications.
Specifications
Description
Store availability
Delivery
Price development
Ports & interfaces
Gigabit Ethernet (copper) ports quantity2
Fast Ethernet (copper) ports quantity8
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Basic switching RJ-45 Ethernet ports quantity10
Power connectorDC-in jack
Weight & dimensions
Weight1.08 kg
Height44.4 mm
Width269 mm
Depth172 mm
Energy management
Power consumption (typical)43 W
Operational conditions
Operating altitude0 - 3048 m
Operating relative humidity (H-H)5 - 95%
Operating temperature (T-T)-5 - 45 °C
Storage relative humidity (H-H)5 - 95%
Non-operating altitude0 - 4000 m
Protocols
Management protocolsSNMP
Networking
Full duplexcheckmark
Networking standardsIEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Link aggregationcheckmark
Broadcast storm controlcheckmark
IP routingcheckmark
Number of VLANs255
Spanning tree protocolcheckmark
VLAN supportcheckmark
10G supportcross
Copper ethernet cabling technology1000BASE-T, 100BASE-TX, 10BASE-T
Data transmission
MAC address table4000 entries
Switching capacity10 Gbit/s
Jumbo frames supportcheckmark
Throughput4.2 Mpps
Jumbo frames9018
Security
Security algorithms802.1x RADIUS, SSH
Access Control List (ACL)checkmark
SSH/SSL supportcheckmark
IGMP snoopingcheckmark
BPDU filtering/protectioncheckmark
Management features
Switch layerL2
Quality of Service (QoS) supportcheckmark
Switch typeManaged
ARP inspectioncheckmark
Design
Rack mountingcross
SafetyUL 60950-1, CAN/CSA 22.2 No. 60950-1, EN 60950-1, IEC 60950-1, CE, GB 4943, IEC 60825
Electromagnetic compatibilityFCC, EN 55022 (CISPR22), EN 55024 (CISPR24), AS/NZS, VCCI, V-3/2007.04, KCC, ANATEL, CCC, GOST
LED indicatorscheckmark
Product colourWhite
Power over Ethernet (PoE)
Power over Ethernet (PoE)checkmark
Power over Ethernet (PoE) ports quantity8
Power over Ethernet plus (PoE+) ports quantity2
Performance
Internal memory128 MB
Mean time between failures (MTBF)346590 h
Flash memory64 MB
Multicast features
Multicast supportcheckmark
EAN0882658388569
Warranty3 months
Source: Icecat.biz

The Cisco® Catalyst® 3560-C and 2960-C Series Switches are compact switches designed to deliver unified communications, wireless, IP video, and other applications to the retail, hospitality, education, and enterprise customer. These new compact switches are designed specifically to be placed outside the wiring closet, and they contain a number of innovative features that give customers flexibility in switch placement and end device support with Power over Ethernet (PoE) pass-through, as well as advanced security services and ease-of-management features.

Primary Features and Benefits

Flexible Placement Options with PoE Pass-Through


PoE pass-through gives users the ability to power PoE end devices, as well as the switch itself, by drawing Cisco Universal Power Over Ethernet™ (Cisco UPOE™)/PoE+ power from a wiring closet switch. This ability is ideal for wiring-constrained and space-constrained applications.

Ease of Management with Cisco Smart Install and Configuration

Cisco Smart Install and Configuration is a transparent automated technology to configure the Cisco IOS® Software image and switch configuration without user intervention. It provides a single point of management for a group of switches.

Intelligent Power Management Capabilities with Cisco EnergyWise

Cisco Catalyst 3560-C and 2960-C switches use hardware components created by Cisco, providing optimum power-saving, low-power operations for industry best-in-class power management and power consumption capabilities.

Enhanced Security Features with Cisco TrustSec Technology

Cisco TrustSec® technology secures access to the network and resources, whether wired, wireless, or VPN, making sure those endpoint devices are authorized and healthy. The Cisco Catalyst 3560-C compact switches also support MACsec.
