Asus PRIME B760M-A-CSM mATX - moderkort

The PRIME B760M-A-CSM motherboard is designed to support a wide range of Intel processors, including the 14th, 13th, and 12th generation Intel Core, Pentium Gold, and Celeron processors. Featuring the Intel B760 chipset, it offers robust performance and extensive connectivity options. This motherboard supports up to 128GB of DDR5 memory, allowing for high-speed data processing with support for Intel Extreme Memory Profile (XMP) and OptiMem II technology, ensuring optimal memory performance and stability.

Graphics capabilities include a DisplayPort and two HDMI ports, all supporting up to 4K resolution at 60Hz. Expansion options are ample with three PCIe 4.0 slots, accommodating various configurations for additional graphics cards, storage, and other peripherals. Storage options include two M.2 slots and four SATA 6Gb/s ports, ensuring flexibility for high-speed and high-capacity storage solutions. Connectivity is also a strong suit with numerous USB ports, both on the rear and front panels, supporting USB 3.2 Gen 2, Gen 1, and USB 2.0 standards, as well as a Realtek 2.5Gb Ethernet port for fast and reliable network connections.

Key Specifications:

• CPU Support: Intel LGA1700 socket for 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors
• Chipset: Intel B760
• Memory: 4 x DIMM slots, up to 128GB DDR5, supporting up to 7200+ MHz (OC)
• Graphics: 1 x DisplayPort, 2 x HDMI (supports 4K@60Hz)
• Expansion Slots: 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x16 (x1 mode)
• Storage: 2 x M.2 slots, 4 x SATA 6Gb/s ports
• Ethernet: Realtek 2.5Gb Ethernet
• USB Ports:
  • Rear: 2 x USB 3.2 Gen 2 (Type-A), 4 x USB 2.0 (Type-A)
  • Front: 2 x USB 3.2 Gen 1 headers (4 ports), 1 x USB 3.2 Gen 1 (Type-C), 2 x USB 2.0 headers (4 ports), 1 x USB 2.0 header (1 port)
• Audio: Realtek 7.1 Surround Sound High Definition Audio CODEC
• Form Factor: mATX (24.4 cm x 24.4 cm)

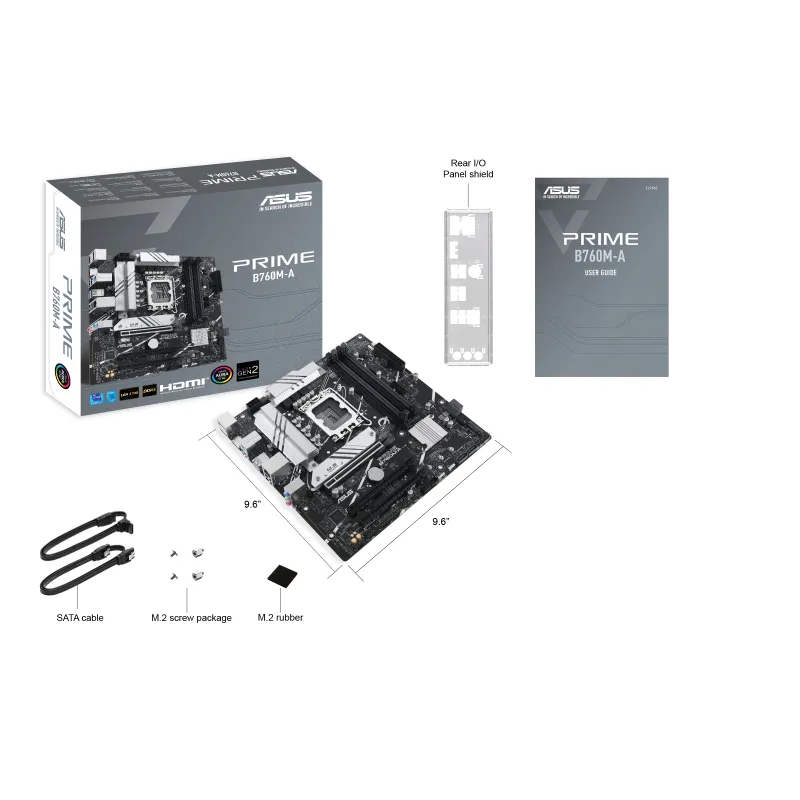

• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD
• 1 x ACC Express Activation Key Card
• 1 x User guide
