Gigabyte GeForce RTX 4070 Ti SUPER Windforce OC 16G - grafikkort
Processor | |
Processorfrekvens | 2565 MHz |
Grafikprocessor | GeForce RTX 4070 Ti SUPER |
Maximal upplösning | 7680 x 4320 pixlar |
Stöd för parallellprocessteknik | Stöds inte |
Max antal skärmar per grafikkort | 4 |
CUDA | |
Grafikprocessorfamilj | NVIDIA |
Minne | |
Grafikkortets minnestyp | GDDR6X |
Minneskapacitet | 256 bit |
Minne klockhastighet | 21000 MHz |
Minnesbandbredd (max) | 21 GB/s |
Minneskapacitet, diskret grafikkort | 16 GB |
Anslutningar | |
Gränssnittstyp | PCI Express x16 |

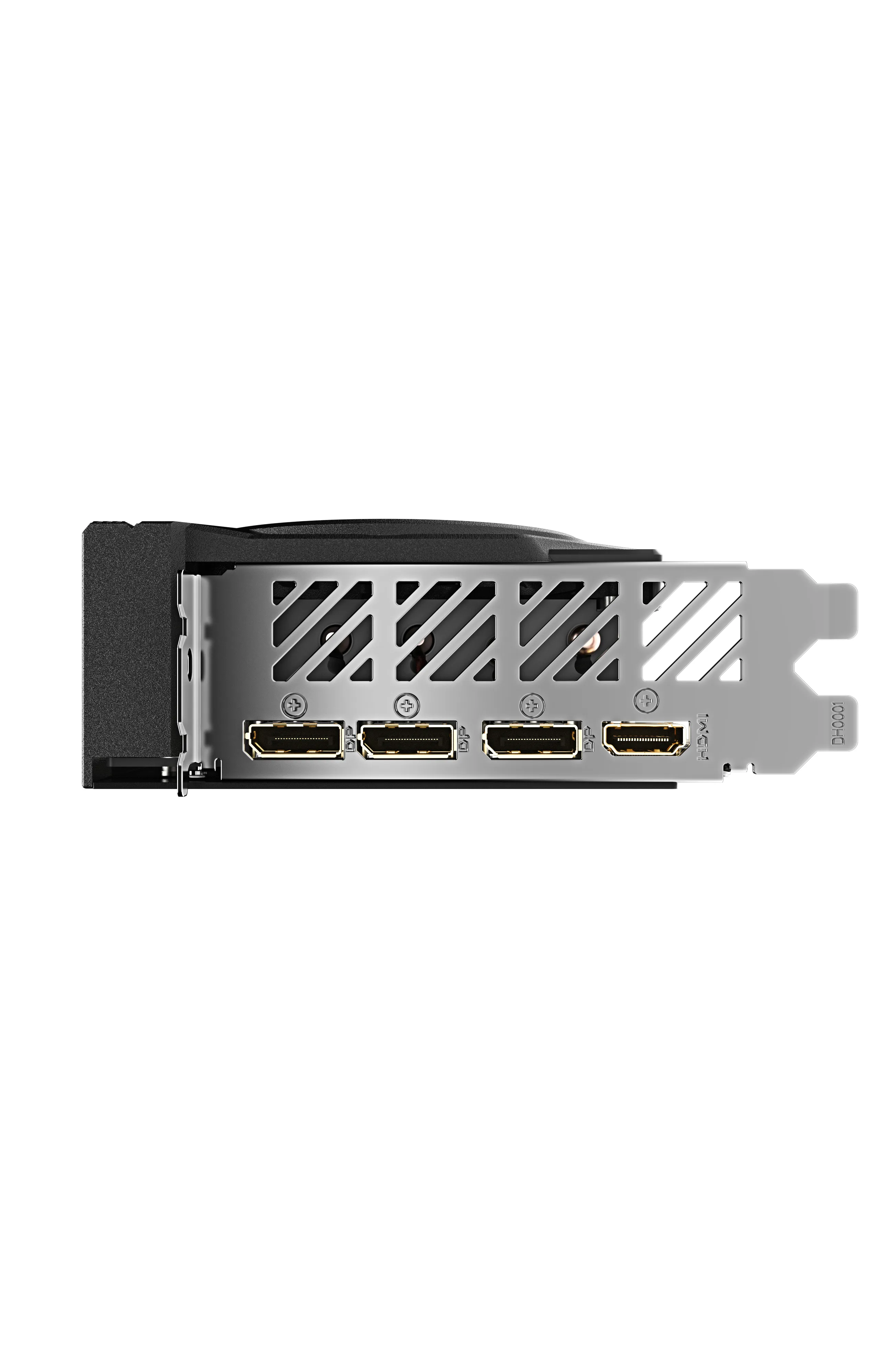

Antal HDMI-portar | 1 |
HDMI-version | 2.1a |
Antal Displayportar | 3 |
DisplayPort-version | 1.4a |
Vikt & dimension | |
Höjd | 126 mm |
Djup | 50 mm |
Produktlängd | 261 mm |
Strömtillförsel | |
Lägsta systemströmförsörjning | 750 W |
Kompletterande strömkontakter | 1x 16-pin |
Förpackning | |
Vikt inkl. förpackning | 1,51 kg |
Låddjup | 322 mm |
Höjd | 75 mm |
Förpackningens bredd | 214 mm |
Förpackningstyp | Låda |
Design | |
Formfaktor | Full-Height/Full-Length (FH/FL) |
Produktens färg | Svart |
Antal fläktar | 3 fläkt/-ar |
Kylning typ | Aktiv |
Nedkylningsteknik | GIGABYTE WINDFORCE 3X |
Prestanda | |
Inbyggd TV mottagare | |
DirectX-version | 12 Ultimate |
OpenGL-version | 4.6 |
Dual Link-DVI | |
EAN | 4719331354121 |
Garanti | 1 år |
WINDFORCE
COOLING SYSTEM

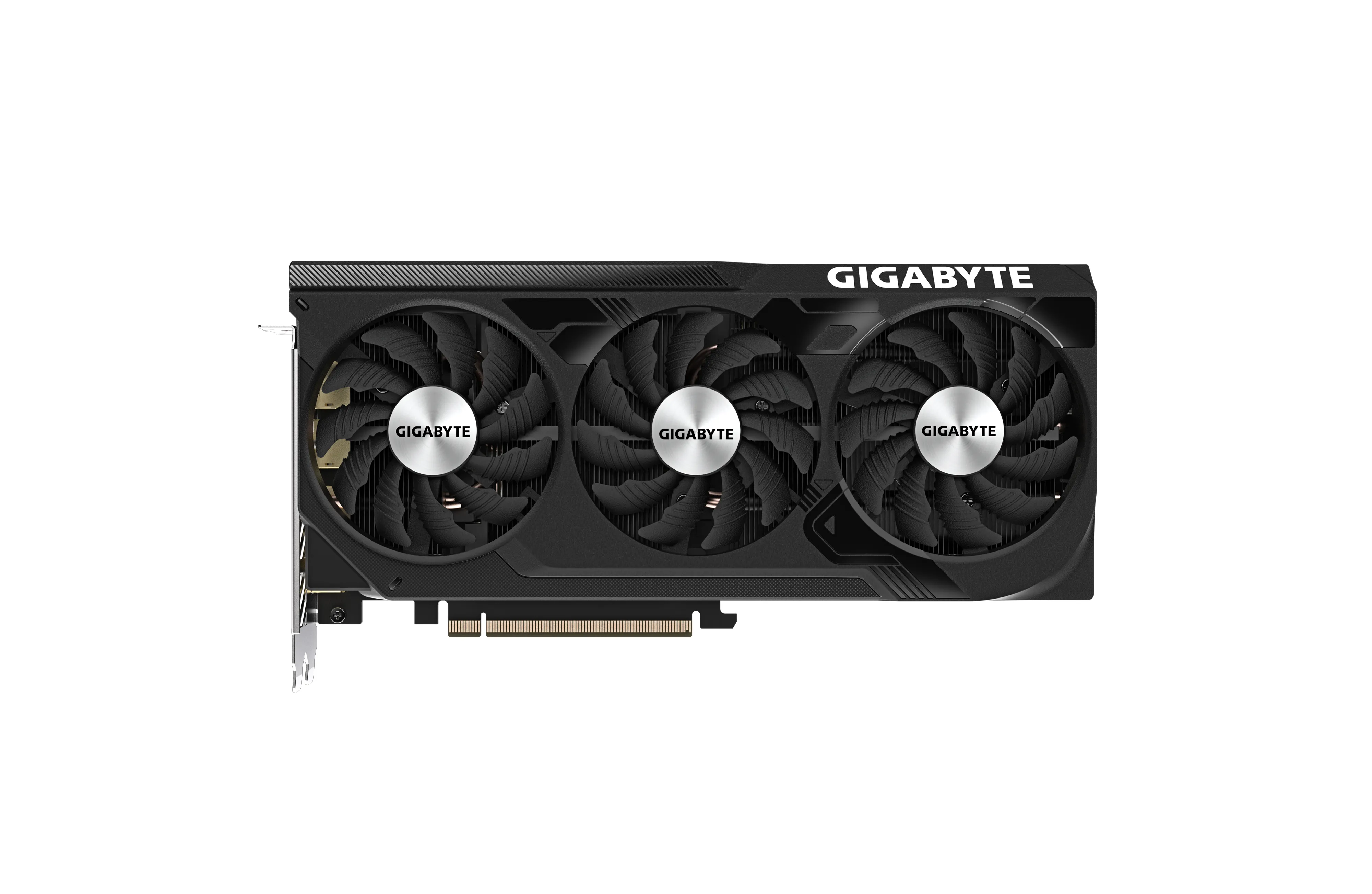

The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 8 composite copper heat pipes, a copper plate directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
LARGE COPPER PLATE & HEAT-PIPE
The large copper plate directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.
PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
