Anslutningar | |

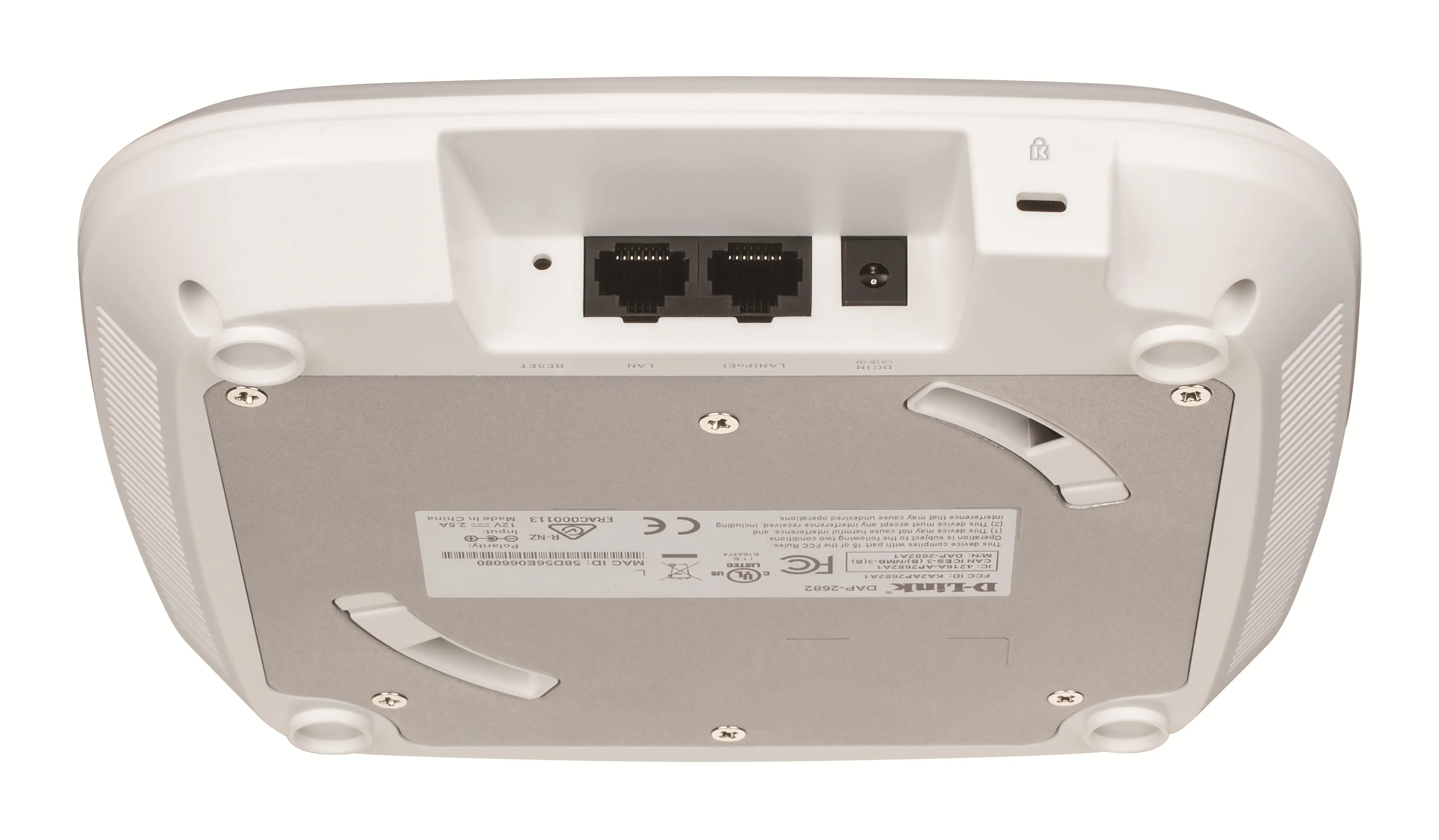

Antal LAN (RJ-45) anslutningar | 2 |
Vikt & dimension | |
Vikt | 551.6 g |
Höjd | 43,7 mm |
Bredd | 190 mm |
Djup | 190 mm |
Strömtillförsel | |
Strömförsörjning via Ethernet (PoE) stöd | |
Ingående ström | 2,5 A |
AC-inspänning | 12 V |
Strömförbrukning (max) | 15,5 W |
Miljökrav | |
Intervall för relativ operativ luftfuktighet | 10 - 90% |
Temperaturintervall (förvaring) | -20 - 65 ° C |
Temperatur vid drift | 0 - 40 ° C |
Fuktighet (förvaring) | 5 - 95% |
Protokoll | |
Lednings Protokoll | Telnet, SSH |
Bevakning | |
Kryptering/säkerhet | 64-bit WEP, 128-bit WEP, WPA2 |
MAC-adressfiltrering | |
Automatiskt trådlöst distributionssystem (WDS) | |
Antal SSID som stöds | 16 |
RADIUS (Remote Authentication Dial-In User Service) | |
Funktioner för Service Set Identifier (SSID) | SSID broadcast |
Management features | |
Webbaserad adminstraion | |
Antenn | |
Antenntyp | Intern |
Antenn ökningsnivå (max) | 4,8 dBi |
Design | |
Certifiering | FCC, CE, UL |
LED-indikatorer | Energiljus, Status |
Produktens färg | Vit |

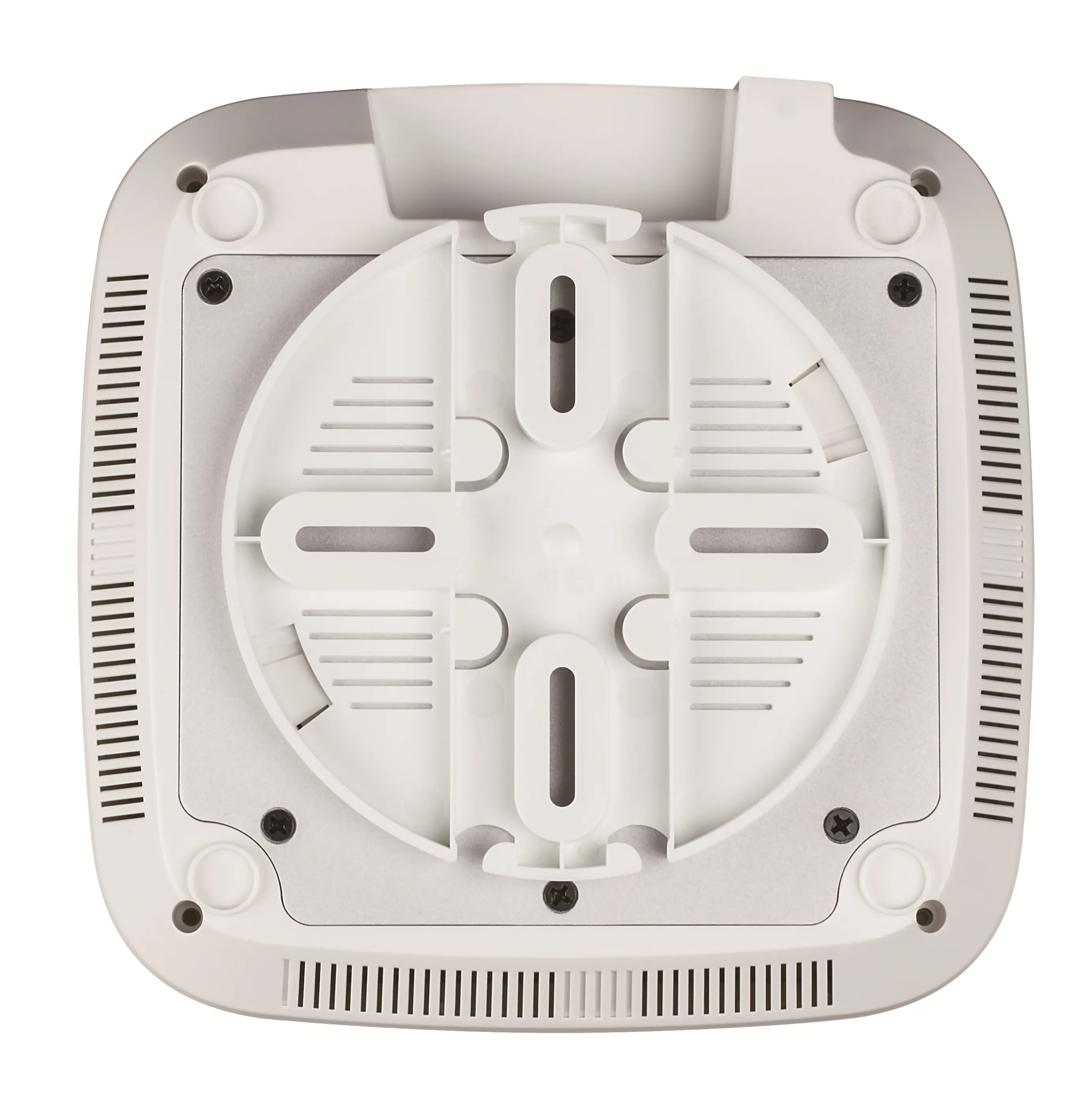

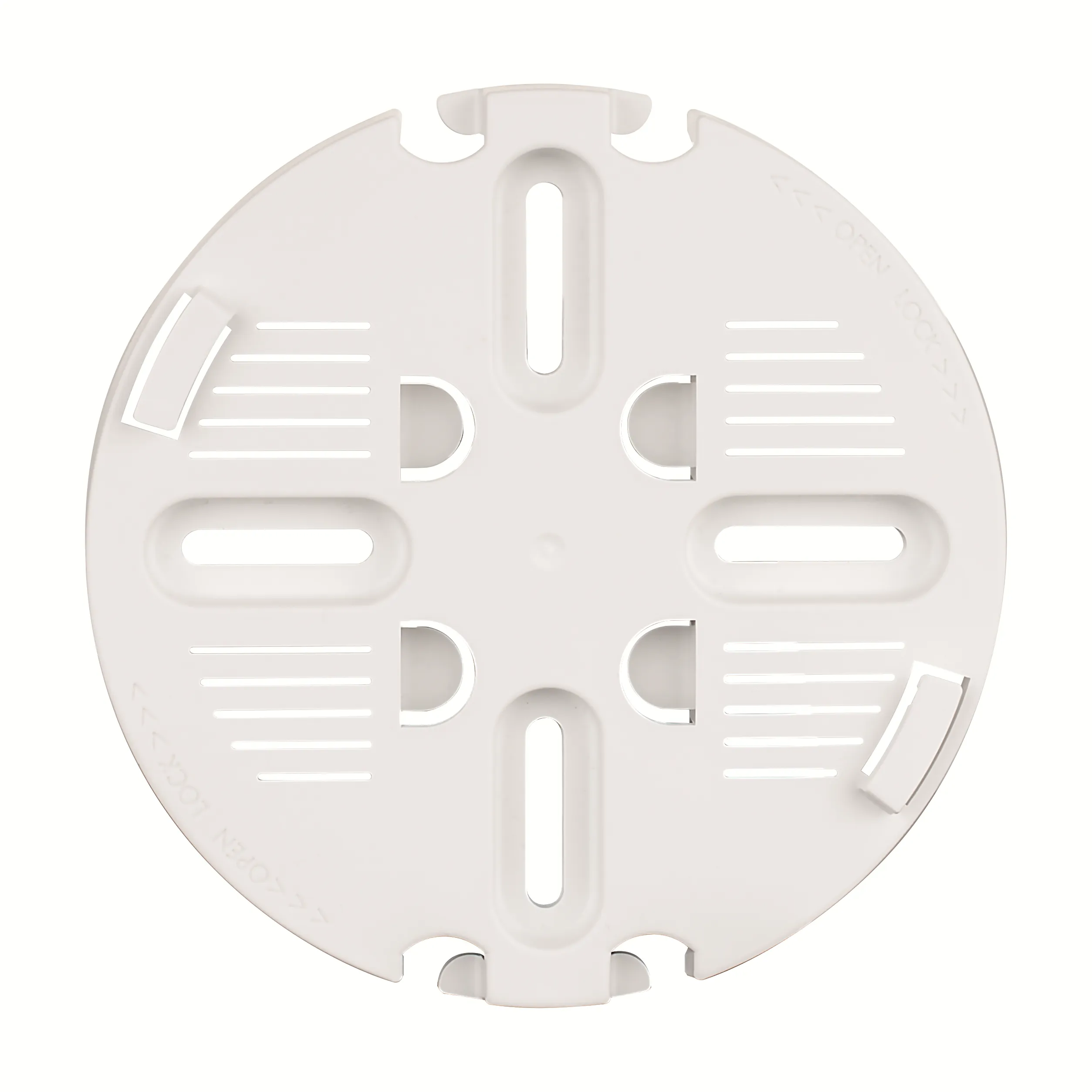

placering | Tak, Vägg |
Egenskaper | |
Medeltid mellan fel (MTBF) | 341897 h |
Kabelteknik | 10/100/1000Base-T(X) |
Maximal dataöverföringshastighet | 1700 Mbit/s |
Frekvensband | 2.4 - 5 GHz |
Kommunikationsstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
Stöd för garanterad tjänstekvalitet (QoS) | |
Datahastighet för Ethernet-LAN | 10,100,1000 Mbit/s |
VLAN-stöd | |
2,4 GHz | |
5 GHz | |
Wi-Fi Multimedia (WMM)/(WME) | |
MIMO | |
MIMO-typ | Multi User MIMO |
VLAN-funktioner | Multiple VXLAN (MUX VLAN) |
Maximal dataöverföringshastighet (2,4 GHz) | 600 Mbit/s |
Maximal dataöverföringshastighet (5 GHz) | 1700 Mbit/s |
Logistikdata | |
Harmonized System (HS)-kod | 85176990 |
EAN | 790069443756 |
Garanti | 5 år |
Source: Icecat.biz |

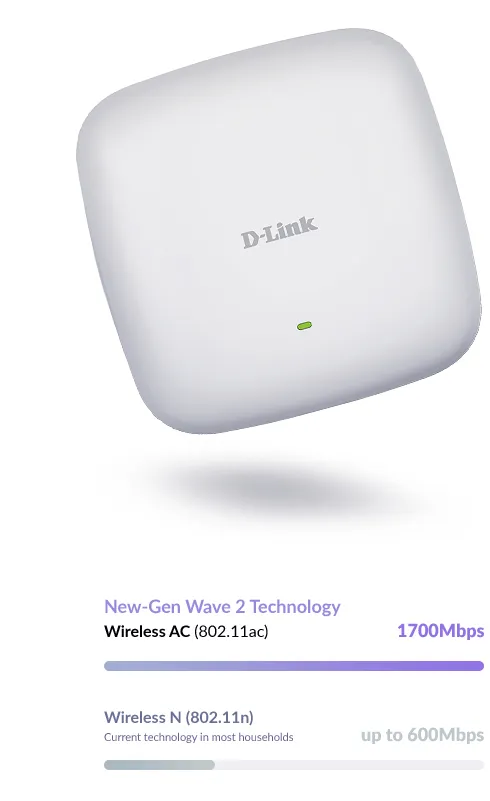

Fast, business‑class Wave 2 Wi‑Fi.
Designed for medium businesses or enterprise environments, the DAP-2682 provides network administrators with fast, secure and manageable dual-band 802.11ac wireless, coupled with easy and free Nuclias Connect network management.
Strong security, with centralised network management
Use as a standalone AP or manage centrally via free Nuclias Connect software.
Wave 2 Wi-Fi with Band Steering
Fast wireless speeds of up to 2300 Mbps. Automatically steers traffic to the fastest, least congested band.
MU-MIMO & Beamforming
Allows multiple devices to connect simultaneously for improved efficiency. And creates highly-targeted Wi-Fi connections for superior Wi-Fi bandwidth.
Multiple Operational Modes
Use as an access point (AP), wireless client, Wireless Distribution System (WDS) or Wireless Distribution System with AP (WDS+AP).

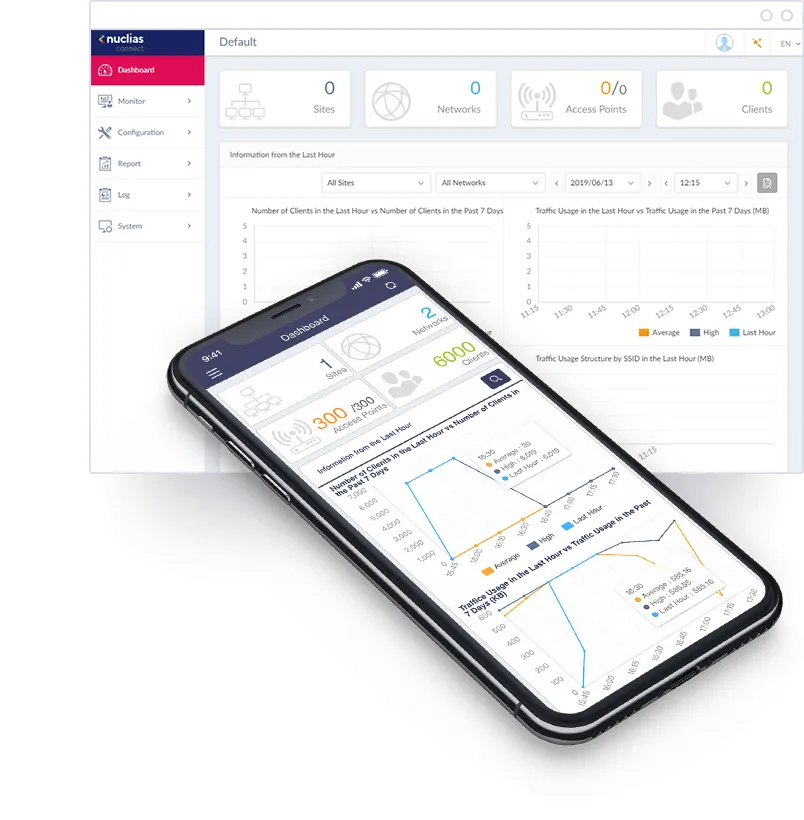

Convenient management
Intuitive interface with instant alerts and live usage reports with integrated Google maps to show the locations of all devices in the network.
Free dedicated app
Free Nuclias Connect tablet app to instantly detect devices on the network and easy remote management from anywhere.
Easy-mount setup with PoE
Supports Power over Ethernet (802.3af) for a simpler installation with a single cable.

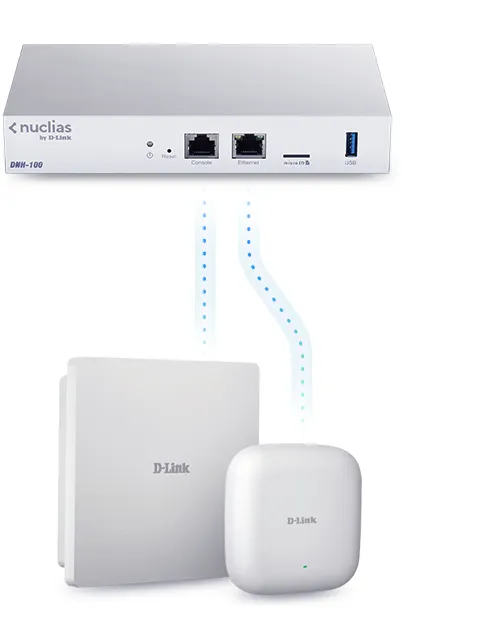

Nuclias hardware controller
The DNH-100 Wireless Controller provides an inexpensive, ready-made solution, and removes the need for installing and maintaining Nuclias Connect on additional hardware such as a server or PC. It supports up to 100 APs, automatically detects devices, pushes configurations, and provides robust hardware management. Simply plug in and power on.

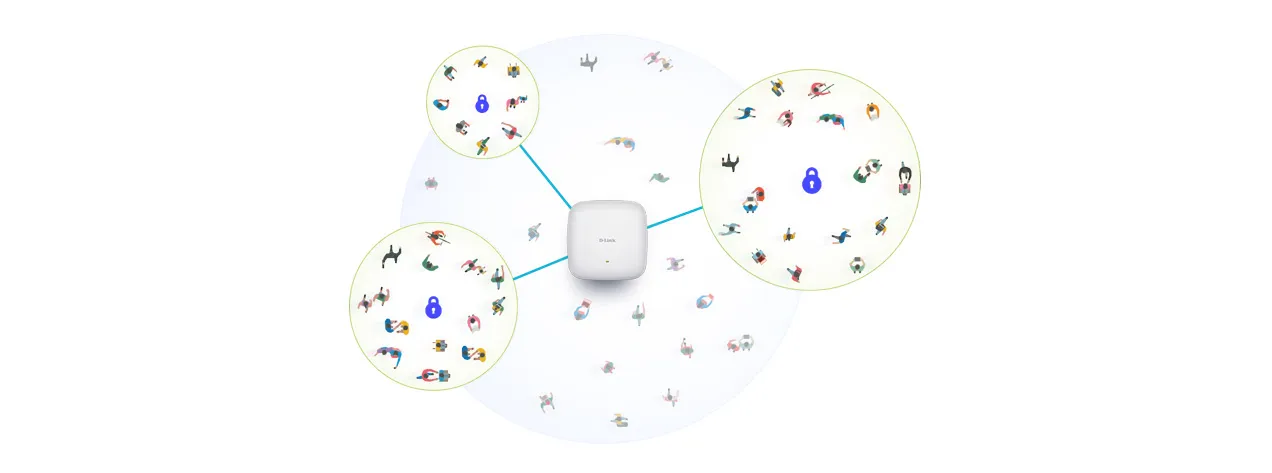

Seamlessly connect entire crowds to a safer and faster internet.
It supports up to eight VLANs per band, allowing multiple SSIDs to segment users. It features wireless client isolation, which limits direct client-to-client communication for added privacy. Moreover, Network Access Protection (NAP) allows multiple levels of network access to be defined based on a client’s needs.
Your network, your way.
Customise the network the way you need it to perform. The AP can be used as a standalone AP or part of a centralised, scalable, multi-device deployment.
Reliably faster Wireless AC performance.
Delivers reliable wireless speed with maximum wireless signal rates of up to 600 Mbps in the 2.4 GHz band and 1700 Mbps in the 5 GHz band, and also optimises your network’s performance with Quality of Service (QoS), MU-MIMO, Band Steering and Beamforming.
Scale your Wi‑Fi alongside your business.
The free Nuclias Connect management software controller allows you to scale up the network by up to 1,000 access points, providing a cost-effective network that can be tailored to the demands of the business.
