Produktspecifikation
Välj en eller flera funktioner för att söka efter produkter med samma specifikationer.Tekniska data | |
Uppfyller hållbarhetskrav | |
Hållbarhetscertifiering | Triman |
Garantiperiod | 3 År |
Vikt & dimension | |
Vikt | 227 g |
Vikt inkl. förpackning | 400 g |
Kabellängd | 0,5 m |
Höjd | 31 mm |
Bredd | 120 mm |
Djup | 120 mm |
Låddjup | 192 mm |
Förpackningens bredd | 141 mm |
Strömtillförsel | |
Uppskattad strömförbrukning | 0,3 A |
Spänning | 7 - 13.2 V |
Uppmätt spänning | 12 V |
Fläktens strömförbrukning | 3,6 W |
Förpackningens innehåll | |
Antal skruvar | 4 |
Skruvar medföljer | |
Design | |
Produktens färg | Vit |
Fan kontakt | 4-stift |
Prestanda | |
Modell | Fan |
Luftflöde | 142,5 m³/h |
Fläktdiameter | 12 cm |
Lämplig placering | Datorväska |
Maximalt luftflöde | 83,9 cfm |
Maximalt lufttryck | 5,31 mmH2O |
Ljudnivå (hög hastighet) | 36,9 dB |
Fläkthastighet (max) | 3000 RPM |
Rotationshastighet (max) | 3000 RPM |
Lagertyp | Vätskedynamiskt lager (FDB) |
Antal per förpackning | 1 styck |
Fläktbrusnivå (max) | 36,9 dB |
Stöd för pulsbreddsmodulering (PWM) | |
Fläktens medeltid mellan fel (MTTF) | 300000 h |
Logistikdata | |
Fraktkartongens bredd | 38,7 cm |
Fraktkartongens längd | 43,2 cm |
Fraktkartongens höjd | 37,5 cm |
Innerförpackningens bruttovikt | 17,2 kg |
EAN | 4260052191095 |
Source: Icecat.biz |
Silent Wings Pro 4 120mm PWM White is the most progressive, performant and versatile fan by be quiet!
IMPROVED ON ALL LEVELS
Altered blade arrangement for new generation performance
The fan blades are what makes a fan. It is for this reason that the fan blades of Silent Wings Pro 4 120mm PWM White have been developed newly from scratch. The new blade arrangement enables a performance second to none for all possible operations. Be it in a case, on radiators or heat sinks.
OPTIMIZED FOR HIGH-END PERFORMANCE
Minimum distance for maximum air pressure
Silent Wings Pro 4 120mm PWM White makes for extraordinary air pressure and therefor, significantly increases the system’s performance. The decreased distance between the fan blades and the frame enables an extraordinarily high air pressure. By that, the Silent Wings Pro 4 120mm PWM White allows the user to run even the most demanding applications.

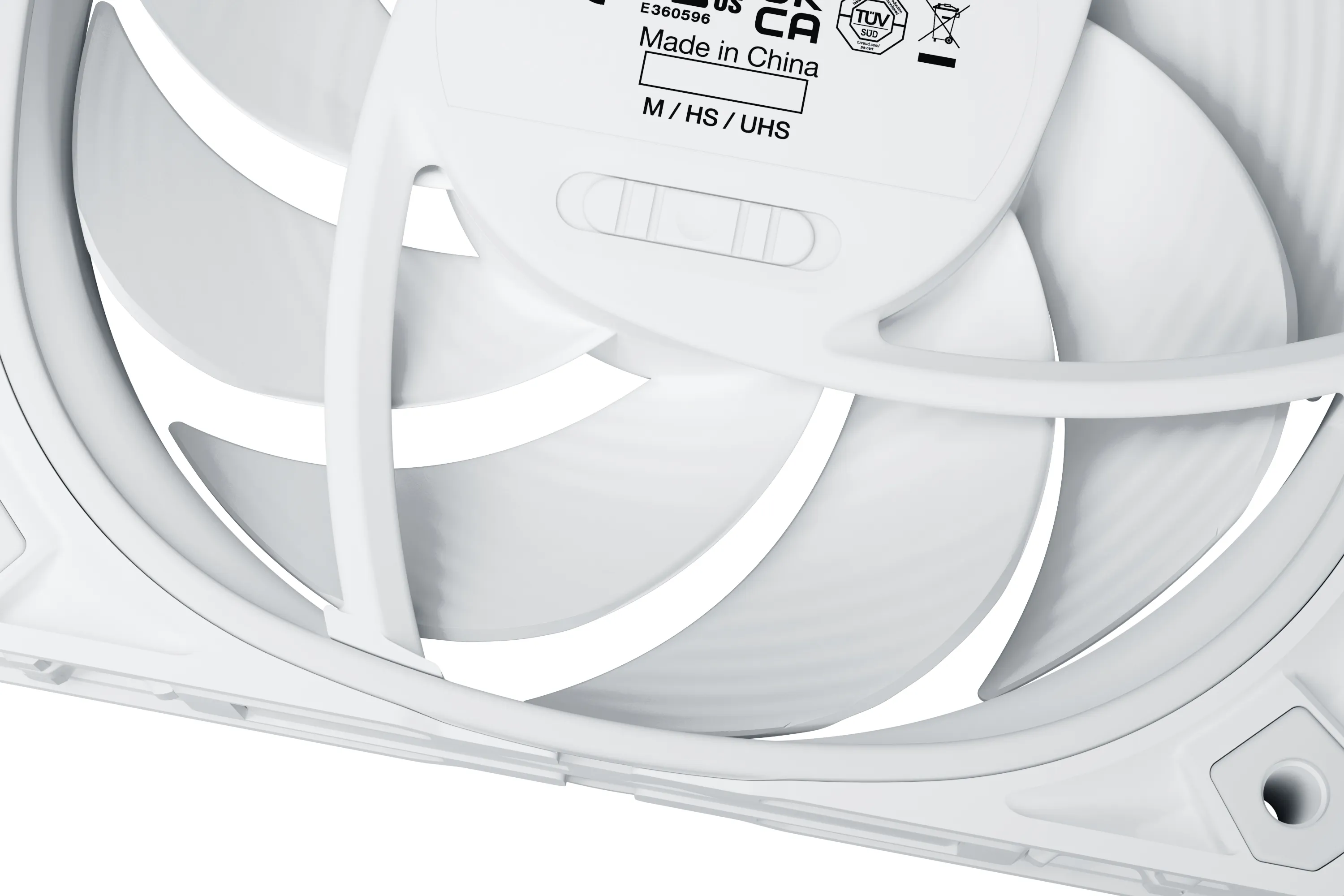

SPEED SWITCH
3 speed options for any possible application
The speed switch makes switching between medium, high-speed and ultra-high-speed of maximum RPM levels quick and easy. The Silent Wings Pro 4 120mm PWM White alters its application with a simple slide to the right. Medium-speed is suitable for any operation that requires regular cooling performance. High-speed lets the fan spin faster, providing more cooling power. Ultra-high-speed ultimately offers enough rpm to cool even the most demanding hardware in high-end PC builds.
6-POLE FAN MOTOR
The key for virtually inaudible operation when needed
6-pole fan motor with 3 phases for very low power consumption, less vibration and therefore quiet max. operation of 36.9dB(A). Equipped with this state-of-the-art technology the fan is virtually inaudible when operated
in mid-speed.
3 DIFFERENT MOUNTING OPTIONS
For any purpose
Silent Wings Pro 4 120mm PWM White has 3 mounting options in the scope of delivery. The pre-installed radiator corners are specially designed for radiators on which the incomparable performance of this high-end fan completely shines. On the other hand, for chassis use, the anti-vibration mounting is the first choice as they reduce vibrations to a minimum. The plastic mountings round up the scope.
FLUID-DYNAMIC BEARING
For a sustainable operation
The advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours. In addition, it reduces the vibrations significantly and supports the virtually inaudible operation of Silent Wings Pro 4 120mm PWM White.
ELEGANT LOOK
Magnificent appearance in all details
Completely covered in white and equipped with a high-grade fan sticker, this fan is especially suited for white PC builds. The finely sleeved PWM cable perfectly rounds up the outer appearance of the fan. Not only does the PWM cable look great: its connector can also be plugged in and out with ease, making the fan an eye-catcher and user-friendly alike.
