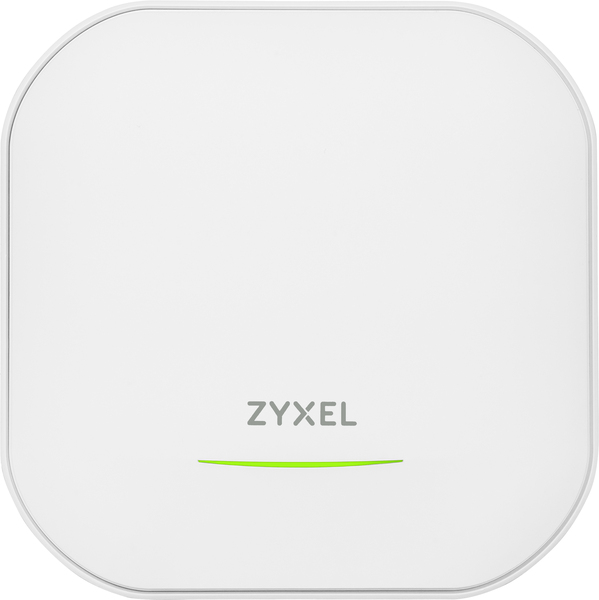

Zyxel NWA220AX-6E 802.11axe AP, Standalone / NebulaFlex, exclude Power Adaptor
Порты и интерфейсы | |
Количество портов USB 2.0 | 0 |
Количество портов Ethernet LAN ( RJ-45) | 1 |
Вес и размеры | |
Вес | 650 g |
Высота | 42 mm |
Ширина | 180 mm |
Глубина | 180 mm |
Энергопитание | |
Источник питания | 21 W |
Выходное напряжение | 12 V |
Питание по Ethernet (PoE) | ![]() |
Ток на выходе | 2 A |
Внешние условия | |
Диапазон относительной влажности при эксплуатации | 10 - 95% |
Диапазон температуры хранения | -40 - 70 °C |
Диапазон рабочих температур | 0 - 50 °C |
Диапазон относительной влажности при хранении | 10 - 95% |
Безопасность | |
Алгоритмы шифрования данных | 802.1x RADIUS, EAP, WEP, WPA, WPA2-PSK, WPA3, WPA3-Enterprise |
Фильтрация MAC-адресов | ![]() |
Технология aвтоматического расширения беспроводной сети | ![]() |
Содержимое упаковки | |
Монтажный комплект | ![]() |
Антена | |
Тип антенны | Внутренний |
Коэффициент усиления антенны (макс) | 6 dBi |
Дизайн | |
Светодиодные индикаторы | ![]() |
Цвет товара | Белый |
Размещение | Потолок |
Свойства | |
Максимальная скорость передачи данных | 4800 Мбит/с |
Ширина полосы частот | 0,16 GHz |
Стандарты сети | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Поддержка VLAN | ![]() |
2,4 ГГц | ![]() |
5 ГГц | ![]() |
Беспроводные мультимедийные расширения | ![]() |
MIMO | ![]() |
Быстрый роуминг | ![]() |
Управление полосой пропускания | ![]() |
Тип MIMO | Multi User MIMO |
Максимальная скорость передачи данных (2,4 ГГц) | 575 Мбит/с |
Максимальная скорость передачи данных (5 ГГц) | 4800 Мбит/с |
EAN | 4718937628643 |
Гарантия | 5 года |
Source: Icecat.biz |
AXE5400 WiFi 6E Dual-Radio Access Point Featuring 6 spatial streams (4x4 in 6 GHz/5 GHz selectable, 2x2 in 2.4 GHz) with the maximum data rate of 5.4 Gbps, the Zyxel NWA220AX-6E is the dual-radio access point with a BandFlex radio that can support either 5 GHz or 6 GHz by configuration, making it the most economical choice to fit into your existing 5 GHz coverage as well as futureproofing the use of 6 GHz. NWA220AX-6E includes all the benefits of WiFi 6 capabilities like OFDMA, MU-MIMO, BSS Coloring, and brings them into the brand-new, interference-free 6 GHz that more than doubles the WiFi capacity to deliver multi-gigabit speed, and low-latency connections. The brand-new, interference-free 6 GHz band presents a solution to quenching the thirst for today’s network hungry for more bandwidth, making it a perfect choice for high-density WiFi and emerging technology connectivity. To reach the full potential of the new band, Zyxel 6E Boost, using the high-gain 4x4 streams in 6 GHz, increases the maximum gains in transmit beamforming and receive MIMO to extend its range and ensure the highest performance is delivered. The NWA220AX-6E is ideal in high density environments such as transport hubs, exhibition halls, schools, offices, hotels, restaurants, or any other organizations that need to accommodate a large number of devices as it can offer the optimal premium service for everyone, every time they connect to WiFi.
WiFi 6E — bringing WiFi 6 into 6 GHz spectrum
WiFi 6E is the WiFi 6 extended into 6 GHz spectrum. It includes all the WiFi 6 features, plus the following: • 2.5X More Capacity: 2.5 times more spectrum with the extended 6 GHz band with no legacy devices • Superwide Channels: Utilizing up to seven additional superwide 160 MHz channels in 6 GHz for bandwidth-demanding applications like VR/AR, WiFi calling, and high-definition video streaming • No Interference: No interference from microwaves and the non-6E devices. Only Wi-Fi 6E capable devices can use the 6 GHz band.
4G/5G cellular network coexistence
With the exponential growth of mobile devices in the wireless network, users start to experience degraded performance, such as ping drops and high latency; users have to reduce the use of their mobile devices in order to maintain a smooth, working wireless service. Thus, to enable 4G/5G cellular network coexistence and minimize interference from 4G/5G antennas or signal boosters, the NWA220AX-6E has built-in 4G/5G interference filters. As a result, the visible or invisible 4G/5G indoor antennas in the environment is no longer an issue when installing APs.
NebulaFlex — simply manage it your way!
The NebulaFlex provides extended flexibility, allowing users to easily switch among standalone, or our intuitive cloud-managed NCC (Nebula Control Center) modes any time according to your needs without additional cost while protecting wireless technology investments. The Nebula cloud management platform provides centralized control and visibility over all Nebula networking devices. Simply you only need to register the device on NCC, and it will automatically join, auto provision and begin to give real-time information. The intuitive platform allows you to group your access points together, control centrally, gain access to diagnostics tools and additional features like captive portal all under a single platform.
